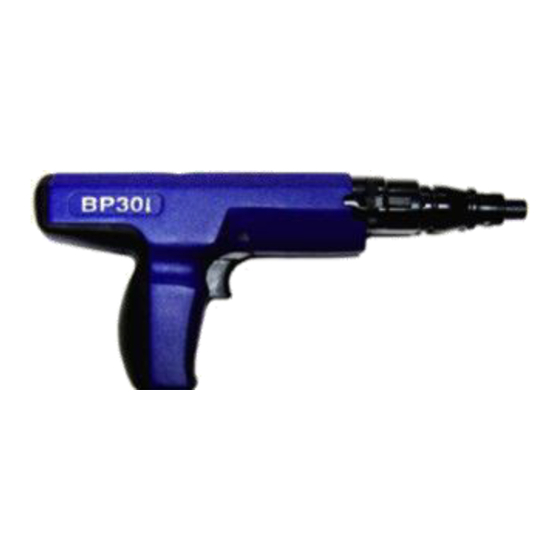

Model BP301
Operating Instruction Manual
Low Velocity Powder Actuated Fastening Tool
WARNING!
DO NOT OPERATE THE BP301 TOOL UNTIL YOU HAVE READ THIS INSTRUCTION MANUAL AND
RECEIVED PROPER TRAINING ACCORDING TO ANSI STANDARD A 10.3-1995. BY READING THIS
MANUAL IT CAN HELP AVOID SERIOUS INJURY OR DEATH.
Advertisement
Related Manuals for Blue point BP301
Summary of Contents for Blue point BP301
- Page 1 Low Velocity Powder Actuated Fastening Tool WARNING! DO NOT OPERATE THE BP301 TOOL UNTIL YOU HAVE READ THIS INSTRUCTION MANUAL AND RECEIVED PROPER TRAINING ACCORDING TO ANSI STANDARD A 10.3-1995. BY READING THIS MANUAL IT CAN HELP AVOID SERIOUS INJURY OR DEATH.
- Page 2 MANUAL OF THE TOOL AND COMPLETED THE OPERATORS EXAM WITH A 100% GRADE. THE WARRANTY DOES NOT APPLY UNTIL BLUE POINT FASTENERS, INC. RECEIVES A COPY OF OPERATORS EXAM AND A COPY OF YOUR RECEIPT WHEN THE TOOL WAS PURCHASED.
- Page 3 This semi-automatic tool makes it easy to operate and allows for fast maintenance making it easy to repair in minutes. BP301 handles all .300” and 8mm head diameter drive pins from 1/2” to 3” shank lengths and 1/4” threaded studs.
- Page 4 4. Always provide warning signs within 50' of the area where fastening is taken place. Sign should state: "Caution powder actuated tool in use." Failure to warn others can result in serious injury or death to them. Contact your supervisor for this sign. BP301 www.bpfasteners.com Page 4...
-
Page 5: Technical Specifications
• Firing Action: Semi-automatic •Fastener Capacity: 1/2"to 3" 5. Never place your hands or any other body part on the loading end of the tool. It can cause serious injury by the fastener or piston must the tool be BP301 www.bpfasteners.com Page 5... - Page 6 Selection Guide for Pin .300 Head, .145 Shank, Flat Head Drive Pin Blue Point Part # Shank Length PD13F10K 1/2" Knurled PD19F10 3/4" 1" PD25F10 PD32F10 1-1/4" PD37F10 1-1/2" PD52F10 2" PD62F10 2-1/2" PD76F10 3" .300 Head Diameter Drive Pin w/ Top Hat...
- Page 7 .300 Head, .145 Shank Pin w/ 90 Degree Angle Clip Blue Point Part # Shank Length PDAC90-25F10 1" PDAC90-32F10 1-1/4" .300 Head, .145 Shank Pin w/ 120 Degree Angle Clip Blue Point Part # Shank Length PDAC120-25F10 1" PDAC120-32F10 1-1/4"...
- Page 8 30 seconds. Then carefully open the tool, remove the load and put in a can of water or other non- flammable liquid. Never discard loads into a BP301 www.bpfasteners.com Page 8...
- Page 9 Penetration of thin gauge metal APPLICATIONS OF FASTENERS Fasteners driven in concrete too close to an BP301 tool can be used for a wide range of edge can cause the concrete edge to fail or fastening needs in a variety of base fasteners to fly free or concrete can crack if materials.
-
Page 10: Operating Instructions
NEVER load a fastener with your is open to semi-open position. finger on the trigger. OPERATING THE BP301 TOOL 3. With the tool pointed in a safe direction and your finger off the trigger, insert the 1. After checking to make sure that the tool is... - Page 11 The tool does not Tool was assembled incorrectly Contact your distributor or call fully depress or damaged parts. the offices of Blue Point Fasteners. Reduction or loss of The barrel of the tool is not The barrel must be removed...
- Page 12 3. Slide the piston sleeve and front Wipe all parts dry before barrel assembly out of the tool reassembled. Wear safety goggles body. when cleaning tool parts. BP301 www.bpfasteners.com Page 12...
- Page 13 To assemble the tool BP301 2. Align the groove in the piston sleeve with the pawl opening in the tool 1. Reassemble the tool in the reverse body when placing the barrel order of disassembly. When sliding assembly into the tool body. Replace...
- Page 14 BP301 www.bpfasteners.com Page 14...
- Page 15 Item # PART # DESCRIPTION Item # PART # DESCRIPTION BP301-01 Spall guard BP301-14 Tool body BP301-02 Base Plate BP301-15 Push Pin BP301-03 Shear clip BP301-16 Trigger assembly BP301-04 Fastener guide 16-1 BP301-16-1 Advance Arm BP301-05 Piston with piston ring...
- Page 16 14728 Yorba Court Chino, Ca. 91710 U.S.A. Tel: (877)779-2583 Fax: (866)672-9402 www.bpfasteners.com...
