Summary of Contents for Axess CS3607

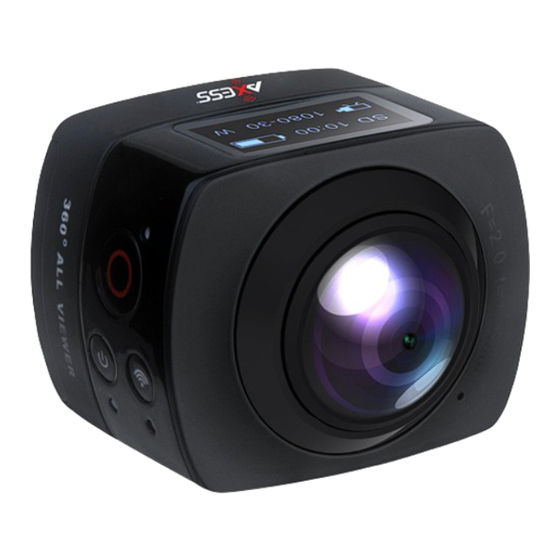

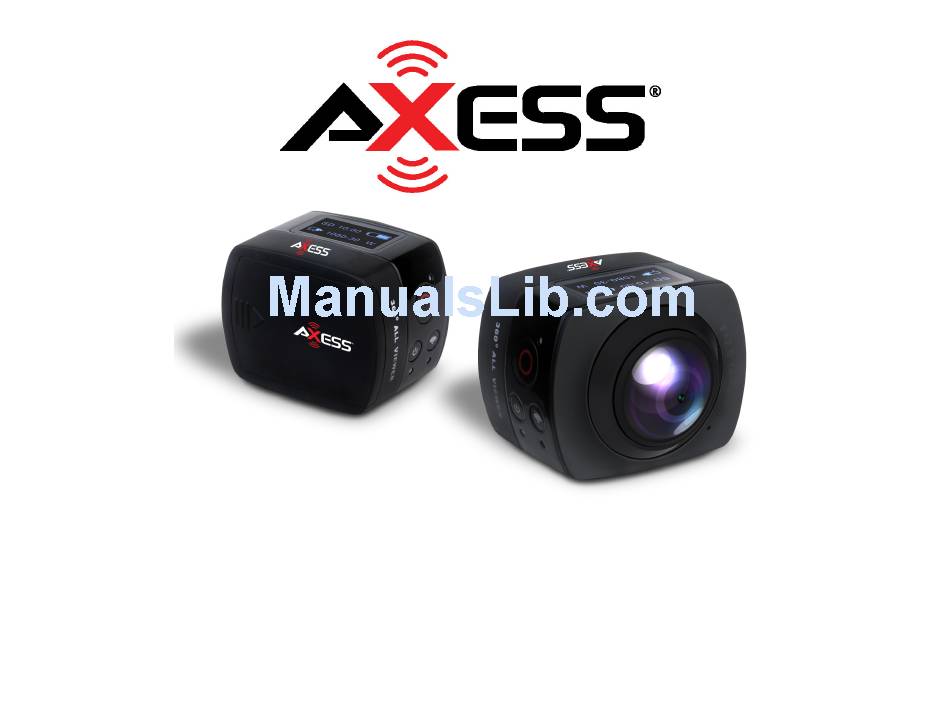

- Page 1 CS3607 360 ACTION CAM Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 2 1. LCD display screen 4.Wifikey 3.Power/Mode 6. Charging indicator (blue) 5.Busy indicator (red) 8. Lens 7. WIFI indicator (red) 10. Interface lid (USB, HDMI) 9. Gear adjusting triangle nut 11. Speaker Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 3 1. First insert a micro SD or micro SDHC card, as shown in the right figure: A high-speed card of Class 6 or above is recommended, and a Class 10 card is needed for video recording in professional mode. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 4 The device will be turned off automatically when it is in power saving mode for 3 minutes (default setting of the system) without any operation, “Goodbye” will be displayed on the LCD screen when it is turned off. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 5 4. Switch of functional modes This video camera has three modes: video recording mode, driving mode and photographing mode. After power is on, modes can be switched by pressing Power/Mode key, or through APP. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 6 As illustrated below, press Shutter key to start video recording, accompanied with a sound from the buzzer. In video recording, Busy indicator will be flashing in red all the time, and LCD Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 7 Photographing mode: After switching to photographing mode, press Photograph key to take a photo, accompanied with a sound from the buzzer, and Busy indicator will be flashing in red all the time in photographing. After photographing, the timer will count in a decreasing way. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 8 Press WIFI key and move the cursor to select on the menu Press Shutter key to confirm; Hold WIFI key to cancel setting or exit from the menu; Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 9 30m without operating on the camera, and just press one key to realize corresponding functions. Remarks: Press any key, the two indicators on two sides will be on in red simultaneously. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 10 Connect the video camera to a HDTV with a HD cable as illustrated below. After power is on, display signals in the video camera will be output to the HDTV automatically, and HD videos and photos can be browsed in the HD TV. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 11 Note: Stop video recording or playing before connecting or pulling off the HDMI cable. III. Illustrated use of accessories: 1. Silica gel sucker: Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 12 2. Cover 3. Water-proof shell: Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 13 4. Sucker bracket 5. Selfie stick Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 14 2. Insert the card into the video camera and turn it on, press Wi-Fi key to activate Wi-Fi, and a prompting word of Wi-Fi signals will be displayed on the screen; 3. Turn on Wi-Fi on the mobile phone or the tablet, search for PDV1800SA, the name of wireless Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 15 This video camera is for plug and play, in power-on state, connect the device to the computer with the USB cable, it will be switched to movable hard drive mode automatically. Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 16 Technical parameters Image sensor 8 million pixels (CMOS) Functional mode Video recording and photographing Lens F2.8 f=2.5mm Video resolution 1440P (30fps）, 1080P (30fps） Photo resolution 3264*2448、2560*1920、2304*1728 Video H.264（MOV） File format Picture Copyright © 2014 Axess Products Corporation. All Rights Reserved...
- Page 17 Storage medium TF card (max. 32GB supported) USB interface High-speed USB 2.0 interface Power source External lithium battery 1000mAh Copyright © 2014 Axess Products Corporation. All Rights Reserved...
