Summary of Contents for MISS LIGHTING ML-ML28B
-

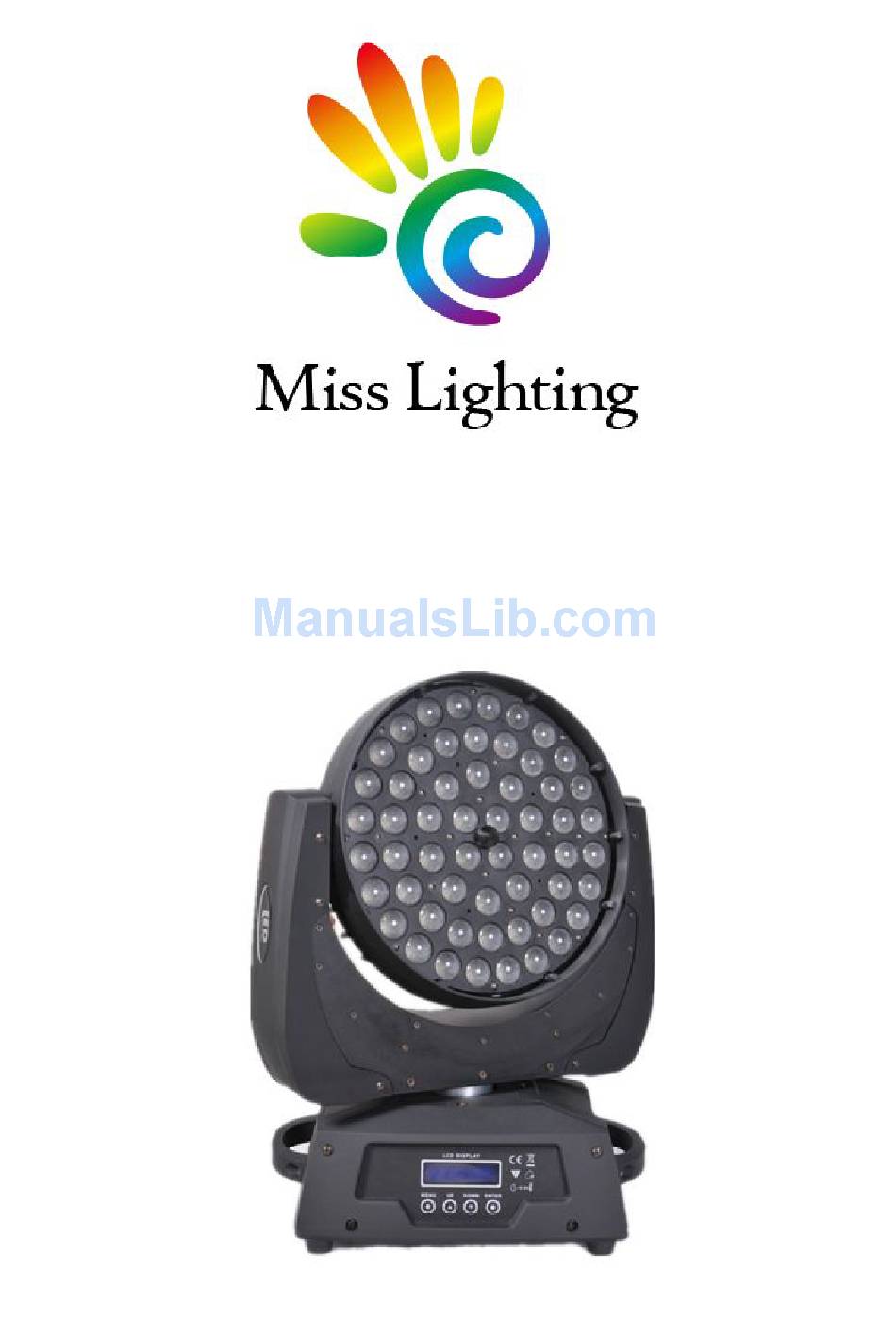

Page 1: User Manual
56*10W 4in1 zoom moving head light User Manual ML-ML28B... - Page 2 Guangzhou Miss Lighting Technology Co.,Ltd TABLE OF CONTENTS 1. Safety Instructions....................1 2. Technical Specifications..................2 3. How To Control The Unit..................3 4. Trouble shooting....................... 7 5. Fixture Cleaning......................7 6. Technical Support ....................8 statement The product has well capability and intact packing when leave factory. All of...
-
Page 3: Technical Specifications
Guangzhou Miss Lighting Technology Co.,Ltd or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts. DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. -
Page 4: How To Control The Unit
Guangzhou Miss Lighting Technology Co.,Ltd Pan/Tilt Pan/Tilt: 540°/ 270° Pan/Tilt Resolution: 16 bit Construction Display: LCD Display Data In/Out socket: 3-pin XLR sockets Power Socket: Powercon in Protection Rating: IP20 Features Motorized liner zoom system, zoom range: 10°~60° Outstanding color macro effect... - Page 5 Guangzhou Miss Lighting Technology Co.,Ltd Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
- Page 6 Guangzhou Miss Lighting Technology Co.,Ltd Display Settings Shut off show close delay time Reset Default Re-load all delivery ON/OFF parameter Reset Reset All Reset the light Test Channel PAN… Channel test Stati Control PAN=XXX Manually test channels Calibrate Values Password Password=XXX channels’...
- Page 7 Guangzhou Miss Lighting Technology Co.,Ltd 224-255 Led turn on Dimmer intensity: 0-255 Intensity 0 to 100% Rainbow: No function 5-29 30-54 55-79 80-104 105-129 Rainbow colours 130-154 Rainbow colours 155-174 Rainbow colours 175-179 Rainbow colours 180-184 Rainbow colours 185-189 Rainbow colours...
-
Page 8: Trouble Shooting
Guangzhou Miss Lighting Technology Co.,Ltd 4. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. -
Page 9: Technical Support
Guangzhou Miss Lighting Technology Co.,Ltd 6.Technical Support Support Telephone: +86-20-62918259 Support Email: sales2@gzmisslighting.com Website: www.gzmisslighting.com Working Time: (BeiJing Time) Monday to Friday 08:00~12:00 14:00~18:00 19:00~21:00 Saturday 09:00~12:00 14:00~18:00 Note: all the rest of China's holidays 56*10W zoom moving head light...
