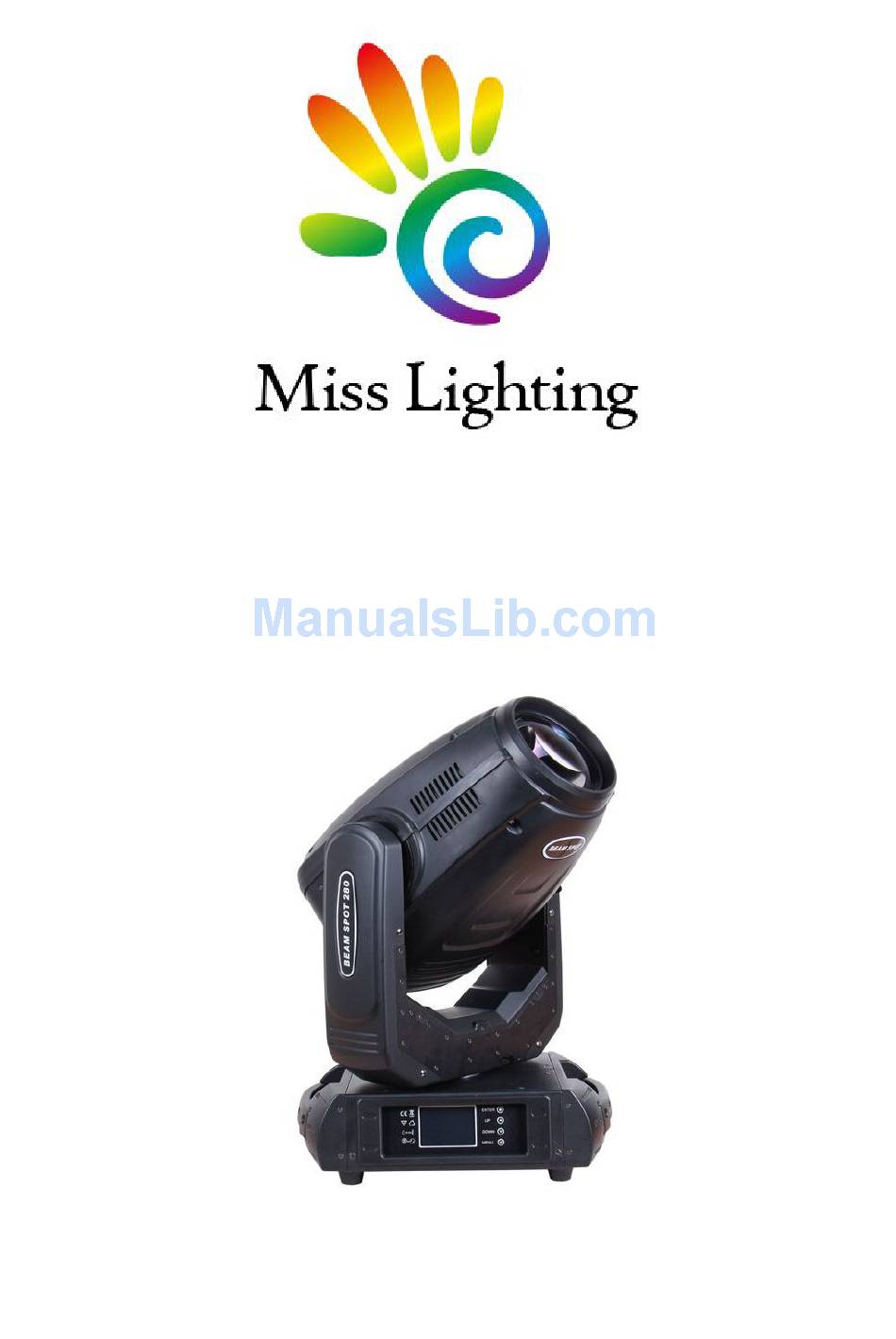

- Page 1 280W Beam Wash Spot Moving Head Light User Manual ML-M10...
-
Page 2: Table Of Contents
Guangzhou Miss Lighting Technology Co.,Ltd Contents Contents........................1 1. Production Introduction..................2 2. Fixture Size......................3 3. Fixture Annotation....................4 4. Security Warning....................5 5. Packing and Transportation................6 6. A C Power supply....................7 7. Lamp and Replacement..................7 8. -
Page 3: Production Introduction
Guangzhou Miss Lighting Technology Co.,Ltd 1. Production Introduction Thanks for choosing 280 Beam Moving Head Spot light. This is our latest developed smart beam spot light with up-to-date technology,advanced electronic control technology and hunanized design . It is more high-efficient, more beautiful surface compared with its peers.. -
Page 4: Fixture Size
Guangzhou Miss Lighting Technology Co.,Ltd With Voltage stabilizer inside, can work with unstable input volt. Fixture size: 380MM（L）×330（W）×590（H）MM N.W.: 17.5KG G.W (Paper CTN): 18.5kgs G.W(Flight case/1pc): 38kgs G.W(Flight case/2pcs): 68kgs Paper CTN Size: 465*450*685MM Flight case/1pc: 460*380*71MM Flight case/2pcs: 950*510*740MM 2. -
Page 5: Fixture Annotation
Guangzhou Miss Lighting Technology Co.,Ltd 3. Fixture Annotation 01 — Lens 02 — Body 03 — Y axis lock 04 — Arm 05 — X axis 06 — Holder 07 — Base 01 Display Screen 02 Set key 01 — 3 Pin interface 02 —... -
Page 6: Security Warning
Guangzhou Miss Lighting Technology Co.,Ltd 4. Security Warning This item is only used in professional application, not for others. Please check the product to see if there is damage during transportation. Please contact local agents or manufacture for repair or replacement. -
Page 7: Packing And Transportation
Guangzhou Miss Lighting Technology Co.,Ltd 4.6 Prevention of flame No installation on Flammable products No wire with temperature control switch or fuse. Use the right fuse. Keep Lighting equipment away from flammable No projection on products within 3 meters. And the temperature must be below 60 Celsius No obstacles obstruct fans or ventilation within 0.5M... -
Page 8: A C Power Supply
Guangzhou Miss Lighting Technology Co.,Ltd 6. A C Power supply HOT BEAM Input volt、Power, Fuse Input volt Power consumption Frequency 110~240V 470W 50/60HZ Fuse Volt Current Model 250V 5×20 Notice!! Only qualified staff are allowed to connect lighting equipment with power... - Page 9 Guangzhou Miss Lighting Technology Co.,Ltd (PIC1) 2. As taking off the plate, you can see the lamp, don’t take off lamp untill The fixture keep cooling for at least 20 minutes, then take off lamp.(PIC2) (PIC2) 3.Hold the clip with one hand and take lamp with the other hand. (PIC3),plug out Wire and take lamp out after clip loose.(PIC4)
-
Page 10: Colour Wheel And Gobo Wheel
Guangzhou Miss Lighting Technology Co.,Ltd 5. To install lamp, do it reversely. 8. Color wheel and gobo wheel Color Wheel：13 colors + blank Gobo：14 gobos + blank, working with prism produce fantastic effect. 9 Bidirectional rotating Gobos + blank, gobos can be customized. -
Page 11: Display Screen
Guangzhou Miss Lighting Technology Co.,Ltd 9. Display Screen Keys Color Touch Screen 10. Display description Main Menu1 Menu2 Function function introduce menu Address 001-512 Address Normal Display normally Reverse display Reverse 180° reverse display Chinese Chinese Language English English Brightness... - Page 12 Guangzhou Miss Lighting Technology Co.,Ltd 540° Pan 540° 630° Pan 630° Pan/Tilt optocoupler detection off optocoupler detection Pan/Tilt optocoupler detection on Back ▲ Back to feature set Color wheel and gobo wheel running in shortest way shortest way Color wheel and gobo wheel...
- Page 13 Guangzhou Miss Lighting Technology Co.,Ltd Forbidden outside signal controlling lamp Electric-light up Outside signal control lamp record lamp working working time 0000-9999 time(hours) password ★ time reset reset remove lamp working time lamp off Lamp lamp on Back ▲ Back to main menu...
-
Page 14: Channel
Guangzhou Miss Lighting Technology Co.,Ltd remove accumulated times reset reset running times password 1 000-255 password revise1 password 2 000-255 password revise2 password 3 000-255 password revise3 password 4 000-255 password revise4 X driving wheel 000-255 Pan driving wheels X driven wheel... - Page 15 Guangzhou Miss Lighting Technology Co.,Ltd 140－149 X/Y axis reset 150－159 blank 160－169 Effect reset 170－199 blank 200－209 Fixture reset 210－229 blank 230－239 240－255 blank Color wheel 0－8 white 9－17 deep red 18－26 deep blue 27－35 yellow 36－44 green 45－53 magenta 54－62...
- Page 16 Guangzhou Miss Lighting Technology Co.,Ltd 177－180 yellow+deep blue 181－185 deep blue+deep red 186－189 deep red+white 190－220 from fast to slow 221－250 from slow to fast 251－255 blank blank static gobo 0－3 blank 4－9 gobo1 10－15 gobo2 16－21 gobo3 22－27 gobo4 28－33...
- Page 17 Guangzhou Miss Lighting Technology Co.,Ltd 168－175 Penlight1 176－183 Penlight2 184－199 Penlight3 200－255 gobo from slow to fast Ratating gobo 0－8 blank 9－17 gobo1 18－26 gobo2 27－35 gobo3 36－44 gobo4 45－53 gobo5 54－62 gobo6 63－71 gobo7 72－80 gobo8 81－89 gobo9 Gobo shaking from slow to fast 90－97...
- Page 18 Guangzhou Miss Lighting Technology Co.,Ltd Prism 0－19 blank 20－75 6-facet prism 76－255 8-facet prism prism auto-rotate 0－127 Index 128－191 clockwise from fast to slow 192－193 blank 194－255 anti-clockwise from slow to fast Frost 0－64 blank 65－255 Linear frost zoom 0－255 Linear zoom 0－255...
-
Page 19: Technical Support
Guangzhou Miss Lighting Technology Co.,Ltd 12. Technical Support Support Telephone: +86-20-62918259 Support Email: sales@gzmisslighting.com Website: www.gzmisslighting.com / www.misslighting.net Working Time: (BeiJing Time) Monday to Friday 08:00~12:00 14:00~18:00 19:00~21:00 Saturday 09:00~12:00 14:00~18:00 Note: all the rest of China's holidays 280W Moving Head Light, Standard version...
