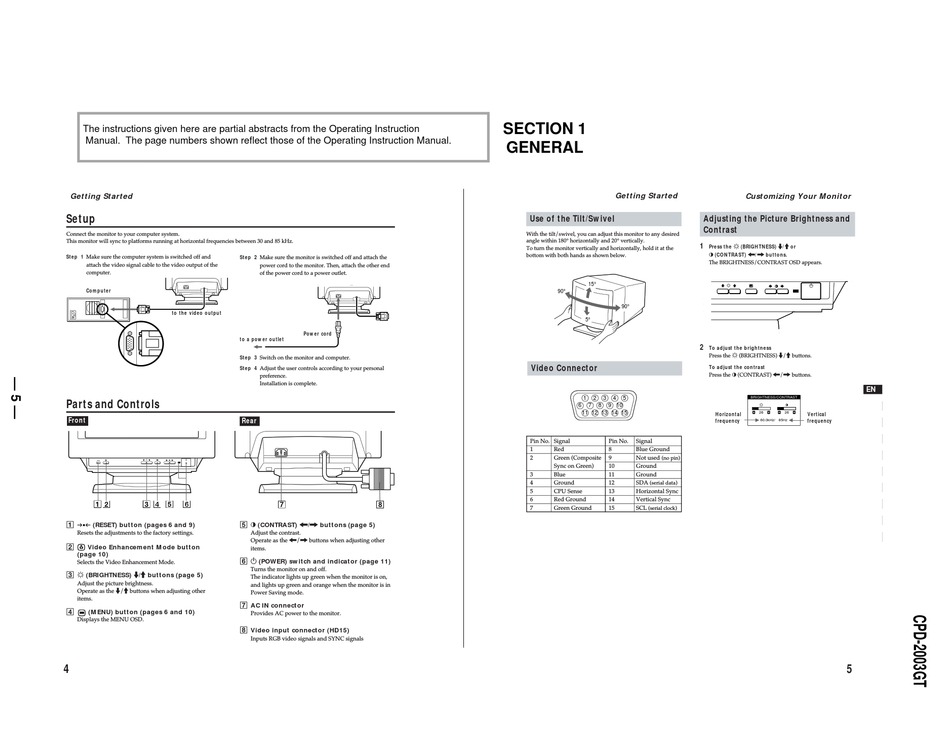

General - Sony CPD-2003GT Service Manual

The instructions given here are partial abstracts from the Operating Instruction
Manual. The page numbers shown reflect those of the Operating Instruction Manual.
Getting Started
Setup
Connect the monitor to your computer system.
This monitor will sync to platforms running at horizontal frequencies between 30 and 85 kHz.
Step 1 Make sure the computer system is switched off and
Step 2 Make sure the monitor is switched off and attach the
attach the video signal cable to the video output of the
computer.
Computer
to the video output
to a power outlet
Step 3 Switch on the monitor and computer.
Step 4 Adjust the user controls according to your personal
Parts and Controls
Front
Rear
1 5 > (CONTRAST) ?// buttons (page 5)
(RESET) button (pages 6 and 9)
Resets the adjustments to the factory settings.
2
Video Enhancement Mode button
(page 10)
6 u (POWER) switch and indicator (page 11)
Selects the Video Enhancement Mode.
3 ¨ (BRIGHTNESS) ./> buttons (page 5)
Adjust the picture brightness.
Operate as the ./> buttons when adjusting other
items.
7 AC IN connector
4
(MENU) button (pages 6 and 10)
Displays the MENU OSD.
8 Video input connector (HD15)
4
power cord to the monitor. Then, attach the other end
of the power cord to a power outlet.
Power cord
preference.
Installation is complete.
Adjust the contrast.
Operate as the ?// buttons when adjusting other
items.
Turns the monitor on and off.
The indicator lights up green when the monitor is on,
and lights up green and orange when the monitor is in
Power Saving mode.
Provides AC power to the monitor.
Inputs RGB video signals and SYNC signals
SECTION 1

GENERAL

Getting Started
Use of the Tilt/Swivel
With the tilt/swivel, you can adjust this monitor to any desired
angle within 180° horizontally and 20° vertically.
To turn the monitor vertically and horizontally, hold it at the
bottom with both hands as shown below.
15°
90°
90°
5°
Video Connector
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
Pin No. Signal Pin No. Signal
1 Red 8 Blue Ground
2 Green (Composite 9 Not used
(no pin)
Sync on Green) 10 Ground
3 Blue 11 Ground
4 Ground 12 SDA
(serial data)
5 CPU Sense 13 Horizontal Sync
6 Red Ground 14 Vertical Sync
7 Green Ground 15 SCL (serial clock)
Getting Started Customizing Your Monitor
Adjusting the Picture Brightness and
Contrast
1
Press the ¨ (BRIGHTNESS) ./> or
> (CONTRAST) ?// buttons.
The BRIGHTNESS/CONTRAST OSD appears.
2
To adjust the brightness
Press the ¨ (BRIGHTNESS) ./> buttons.
To adjust the contrast
Press the > (CONTRAST) ?// buttons.
EN
BRIGHTNESS/CONTRAST
F
26 26
Horizontal Vertical
frequency 60.0kHz/ 85Hz frequency
D
ES
I
RF
PL
SI
H
CZ
