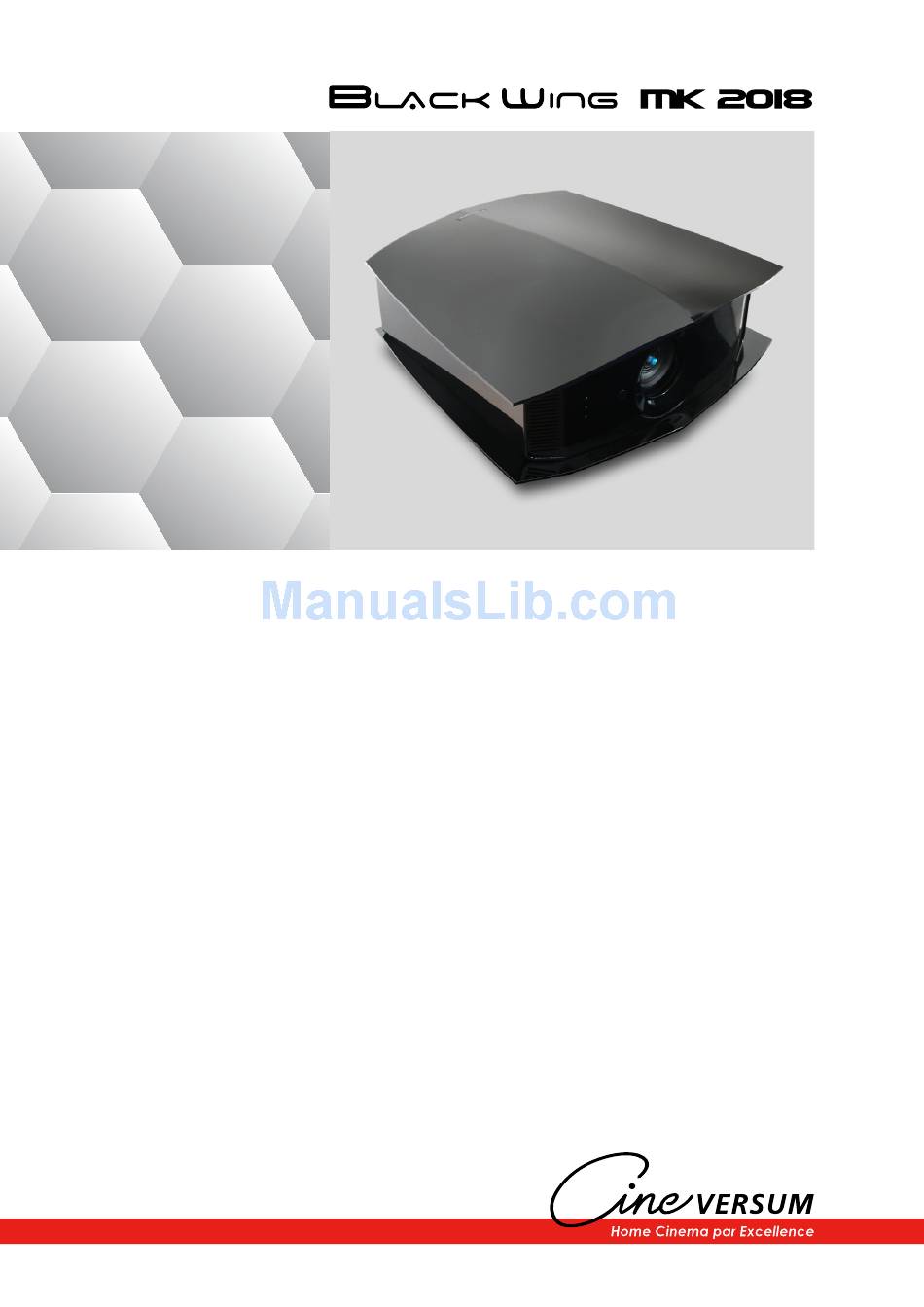

- Page 1 v2.0 User manual R599890...
- Page 2 Changes Cineversum provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Cineversum may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
- Page 3 ........................Input Level ...........................24 Color Space ..........................24 Aspect Ratio ..........................24 Progressive (only 480i, 576i, 1080i) ....................24 Mask .............................24 Picture Position..........................24 HDMI2 EDID ..........................25 10.0 3D CONTENT AND 3D PROJECTION ............... 10.1 General Information about 3D playback ..................25 R599890 - Blackwing MK2018 User Manual...
- Page 4 Dirt on the Lens ..........................32 16.3 Replacing the Lamp........................32 16.4 Troubleshooting ..........................34 17.0 MISCELLANEOUS ......................17.1 RS-232C protocol .........................35 17.2 LAN protocol ..........................37 17.3 Infra Red, long hex-pronto compatible RCU ................38 17.4 Specifications..........................39 R599890 - Blackwing MK2018 User Manual...
-
Page 5: Safety Instructions
FCC Information (USA only) Changes or modification not approved by Cineversum could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. - Page 6 When connecting other products such as VCR’s, and personal computers, you should turn off the power of this product for protection against electric shock. • Do not place combustible behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated. R599890 - Blackwing MK2018 User Manual...
-
Page 7: Image Projector Classification
No Overscan or Scaling • Correct High Definition color Gamut The Best in Class Parameters also include ANSI and Sequential contrast, luminance and color Uniformity, color tracking with gray scale, optimum brightness, de-interlacing performance, jaggies and contouring. R599890 - Blackwing MK2018 User Manual... -
Page 8: Environment Of Use
• Depth of the screw holes (A) is 23 mm. Use at least 13 mm long screws but not longer than 23 mm as you may damage inside the projector. • Regardless whether the unit is still under guarantee, Cineversum is not liable for any product damage caused by mounting the unit with third party ceiling mount or when the environment is not suitable for ceiling-mount. -
Page 9: Projection Distance
The Horizontal Shift level is between -34% and 34% of the Screen Base (0.34 x B). • If the projector is not installed perpendicularly to the screen, use keystone correction to fulfill your screen. R599890 - Blackwing MK2018 User Manual... -
Page 10: Installation Guidelines
/ down shift • Adjust the picture position The Blackwing MK2018 projector has motorized vertical and horizontal shifts. Browse into the Menu to the [Lens Control] setting into the Installation menu, select the shift adjustment. Or use the direct access button on the Remote Control Unit [Lens Control] to make the lens adjustment. -
Page 11: Remote Control Unit (Rcu)
If the remote control has to be brought closer to the projector to operate, it means that the batteries are wearing out. When this happens, replace the batteries. Always insert the batteries according to the + and - marks. R599890 - Blackwing MK2018 User Manual... -
Page 12: Getting Started
When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets or exhaust vents by standing the projector on its end or laying it on its side. R599890 - Blackwing MK2018 User Manual... -
Page 13: Operating And Navigation Buttons
Prior to connecting any device to this unit, switch the projector in standby mode. Never connect a HDMI source to this unit when the projector is in operate mode. The HDMI termination is a self-powered connection and can cause electric discharges. R599890 - Blackwing MK2018 User Manual... -
Page 14: Connecting A Video Source To The Projector
ECO Mode turn to On prevents this unit to receive and to respond to automation commands when it is in standby. Turn Off ECO mode if you plan to take full control of this unit with an automation system. R599890 - Blackwing MK2018 User Manual... -
Page 15: Menu Structure
3D THX (only with User Modes) x.v.Color Custom 1 - 5(**) Advanced Color Profile Color Management: Off / On Color selection Axis Position -30 +30 -30 +30 Saturation -30 +30 Brightness -30 +30 Reset Confirm R599890 - Blackwing MK2018 User Manual... - Page 16 Confirm Input Signal Input level Auto (16 - 235) Standard (0 - 255) Enhanced (16 - 255) Super White Color Space Auto YCbCr(4:4:4) YCbCr(4:2:2) Aspect (Video only) (N.A. for 4K and 3D) 16:9 Zoom R599890 - Blackwing MK2018 User Manual...
- Page 17 1H, 2H, 3H, 4H, Off ECO Mode On, Off Network DHCP Client On, Off IP Address 192.168.0.2 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 Mac Address Display MAC Remote Code Press [Menu] + [Back] A, B Lamp Reset Confirm R599890 - Blackwing MK2018 User Manual...
-
Page 18: Picture Adjust
HDR that is best suitable for HDR movies in general. • BT.2020 that is optimized for HDR movies encoded with REC 2020 color space. • Video color profile is best suited to TV and Sport programs. R599890 - Blackwing MK2018 User Manual... -
Page 19: Advanced Picture Mode
Additionally the Calibrator can certify his action by setting in the Information Menu his name or company name. R599890 - Blackwing MK2018 User Manual... -
Page 20: Color Temperature
Correction Value The Custom data can be set to a correction value: a numeric value that will act as a gamma coefficient between 1.8 and 2.6, Normal, A, B, C, HDR(Hybrid Log), HDR(ST.2084) or Import. R599890 - Blackwing MK2018 User Manual... -
Page 21: Multiple Pixel Control Level (Mpc Level)
When set to On, Clear Motion Drive will be disabled. Low Latency is disable if Keystone or Anamorphic mode A or B are in use. This setting cannot be used with 3D inputs. R599890 - Blackwing MK2018 User Manual... -
Page 22: Contrast
Generally UHD sources use Enhanced levels: You may try to configure your UHD player to output Standard levels to be consistent settings with Bluray playback . Menu > Input Signal > Input level > (0-255) Enhanced R599890 - Blackwing MK2018 User Manual... -
Page 23: High Dynamic Range Sources
Menu > Picture Adjust > Color Profile > Standard • Movies encoded with richer colors: Menu > Picture Adjust > Color Profile > Cinema 1 or Cinema 2 • REC-2020 colors: Menu > Picture Adjust > Color Profile > BT.2020 R599890 - Blackwing MK2018 User Manual... -
Page 24: Input Signal
Depending on your source, you may find that the picture should be adjusted into the screen, adjust the horizontal and vertical position of the picture into the screen. Some signals may not be fully displayed, adjust this setting R599890 - Blackwing MK2018 User Manual... -
Page 25: Hdmi2 Edid
Can be adjust with a 3D signal input. This function lessens the residual cross-talk found between 3D left and right images. Adjust the Parallax value and then the Cross-talk settings in order to cancel the residual cross-talk without loosing picture quality. Adjustments: -8 +8 R599890 - Blackwing MK2018 User Manual... -
Page 26: Operating The 3D Glasses
The 3D Glasses are programmed to automatically stop functioning after 5 minutes of immobilization or 10 minutes without a 3D synchro signal. To turn them back On, just press the Power Button (B) once. R599890 - Blackwing MK2018 User Manual... -
Page 27: Installation
This function is enable when the Adjust Area is set to Zone only. You can adjust the selected color position horizontally and vertically by 1-pixel steps. • H settings: -2 +2 • V settings: -2 +2. R599890 - Blackwing MK2018 User Manual... -
Page 28: Installation Style
Anamorphic Mode B with a HD video. 11.6 High Altitude Mode Select this when the projector is in a location of low atmospheric pressure or located at an altitude higher than 900 m above sea level. On or Off. R599890 - Blackwing MK2018 User Manual... -
Page 29: Screen Adjust And Screen No
001 - 009: select a profile between 001 and 009 when watching 3D content with 3D shutter glasses. Profile 001 is recommended when using Cineversum’s active 3D glasses. b) 010 to 255: select the best compensation profile depending on your screen and environment. -
Page 30: Lamp Reset
15.0 CINEMASCOPE SETUPS 15.1 Lens Zoom or Static Cinemascope kit The Blackwing MK2018 centralizes the controls and automation commands for a unique, versatile and unexpectedly simple to operate 2.35:1 theatre experience using Lens Zoom or the Static Cinemascope kit. -
Page 31: Installing A 2.35:1 Screen With The Static Cinemascope Kit
2.35 screen Mode A 16:9 format 16:9 on 2.35 screen 2.35:1 format 2.35 on 2.35 screen Mode A Mode B When the source switches format..press [Anamo] button to obtain the correct anamorphic mode. R599890 - Blackwing MK2018 User Manual... -
Page 32: Maintenance
Allow a cooling period of 1 hour or more before replacement. Before replacing the lamp unit, pull out the power plug from the outlet and wait until the STANDBY/ON led is still light red. R599890 - Blackwing MK2018 User Manual... -
Page 33: Procedure For Lamp Replacement
Reset the lamp time only when you have replaced the lamp. Never reset it when the lamp is still in use. Otherwise, the approximate standard for gauging replacement time may be inaccurate, lamp performance may deteriorate and lamp blowout may occur. R599890 - Blackwing MK2018 User Manual... -
Page 34: Troubleshooting
CAUTION: When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets/exhaust vents by standing the projector on its end or laying it on its side. R599890 - Blackwing MK2018 User Manual... -
Page 35: Miscellaneous
52h 43h 37h 33h 30h 31h 37h 33h 30h 32h DOWN 37h 33h 30h 33h BACK 37h 33h 32h 45h MENU 37h 33h 32h 46h 37h 33h 33h 34h RIGHT 37h 33h 33h 36h LEFT R599890 - Blackwing MK2018 User Manual... - Page 36 52h 43h 37h 33h 32h 30h Toggle the lens aperture menu MPC menu 52h 43h 37h 33h 46h 30h Toggle the MPC menu CMD menu 52h 43h 37h 33h 38h 41h Toggle the CMD menu R599890 - Blackwing MK2018 User Manual...
-
Page 37: Lan Protocol
1. Opening Connection on port 20554 2. Projector Ready (PJ_OK) 3. Command Type (PJREQ) 4. Projector Acknowledge (PJACK) 5. Command 6. Projector confirms After 5sec, connection is closed LAN communication protocol and timed out R599890 - Blackwing MK2018 User Manual... -
Page 38: Infra Red, Long Hex-Pronto Compatible Rcu
003C 0014 0014 0014 003C 0014 0014 0014 003C 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0336 A complete device/function chart with their corresponding long hex commands is available, ask your dealer if required. R599890 - Blackwing MK2018 User Manual... -
Page 39: Specifications
MISCELLANEOUS 17.4 Specifications Overview The Blackwing MK2018 uses the latest technology developed to provide the ultimate video-projection experience. LCoS (Liquid Crystal on Silicon) technology based on a reflective principle features an extremely high-definition picture and seamless color gradations. Emission method... - Page 40 MISCELLANEOUS Dimensions 20 cm 7.9” 53 cm 55 cm 20.9” 21.7” 55 cm 21.7” 53 cm 20.9” R599890 - Blackwing MK2018 User Manual...
- Page 41 R599890 - Blackwing MK2018 User Manual...
- Page 42 R599890 - Blackwing MK2018 User Manual...
