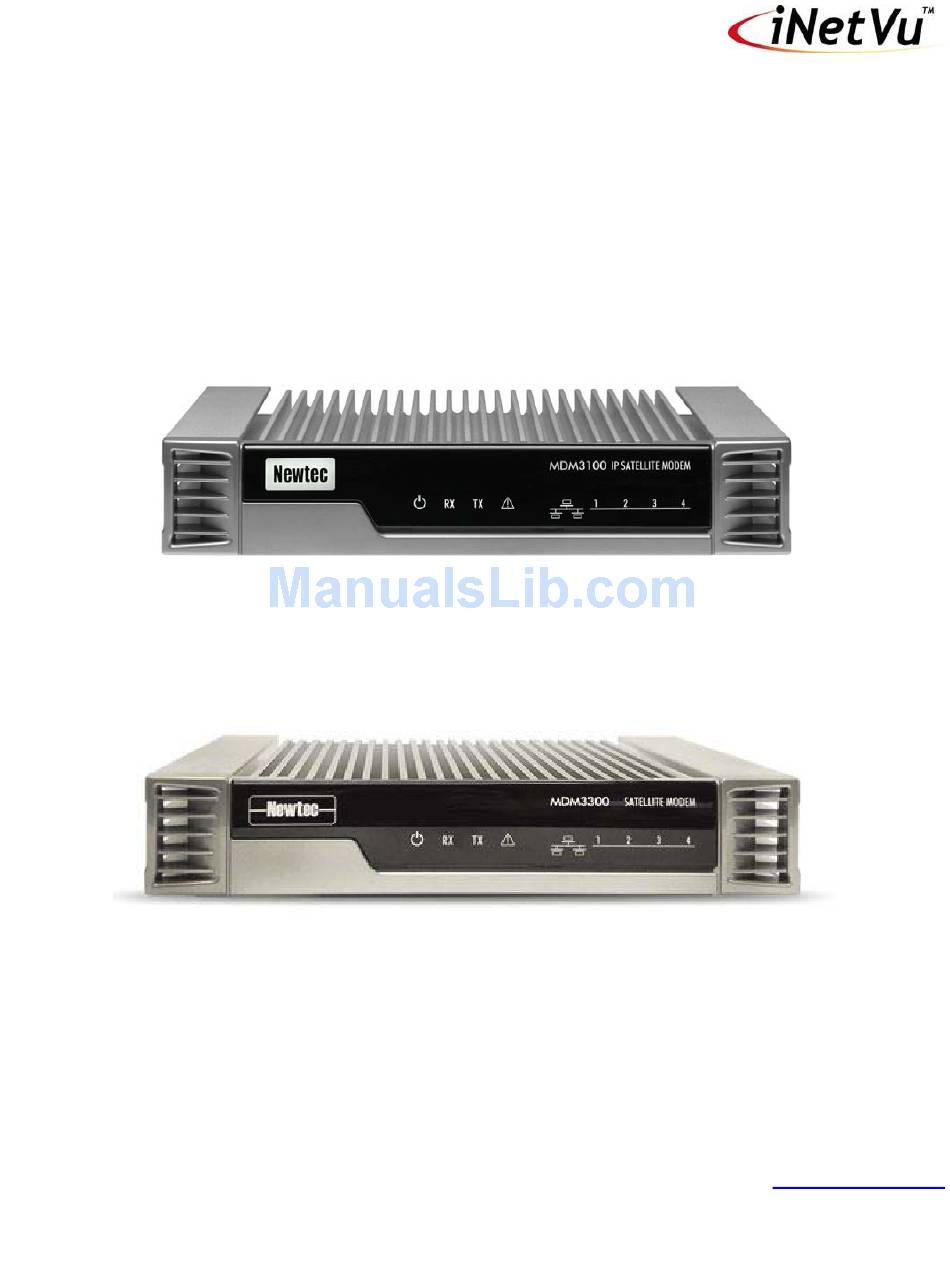

- Page 1 Newtec and the iNetVu® 7700 Series Controller Newtec MDM3100 Satellite Modem Newtec MDM3300 Satellite Modem 1-877-iNetVu6 www.c-comsat.com Revision 2.1 February 8, 2017...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – NEWTEC This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
- Page 3 For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation.
-
Page 4: System Overview
Transmission/Receive coaxial cables have all pre-wired. There is no need to re-calibrate the Mobile Platform unless directed by a C-Com Support Technician. It is critical that the iNetVu™ Controller stay together with the Mobile Platform it shipped with. You may refer to the iNetVu™ Shipping Checklist to confirm this. - Page 5 MDM3100 / MDM3300 3.1.0.33+ 7.7.6+ AMIP Note: Installed iNetVu Software and Controller Firmware versions MUST be identical for normal operation € IP Address of Satellite Modem € Satellite Name and Coordinate € DVB Carrier(s) if available € Transmit and Receive Polarization (Horizontal/Vertical) €...
- Page 6 INETVU® MOBILE SYSTEM QUICK START – NEWTEC Network Interface Connection – System Wiring Control Cable RG6 Coaxial Cable iNetVu® Fly A0986C Network Cable Power Cable USB Cable GPS /Glonass Antenna iNetVu® 7720 Remote Drive Module *Ground protection External CONTROL grounding...
- Page 7 INETVU® MOBILE SYSTEM QUICK START – NEWTEC Modem Console Connection – System Wiring Diagram with Splitter Control Cable iNetVu® A1201A Drive-away RG6 Coaxial Cable USB Cable GPS /Glonass Power Cable Antenna Network Cable iNetVu® 7720 Remote Drive Module Control Cable...
- Page 8 The 7710 Controller may be configured via the Software Application / Web Interface / LCD interface. Only one is necessary for complete configuration. € iNetVu® Software Application (preferred method) € First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for guidance in configuring your system. USB Connection ...
- Page 9 Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc.
- Page 10 INETVU® MOBILE SYSTEM QUICK START – NEWTEC Software Setup and Initial Configuration Procedure with Newtec Service 1. If you are using the network interface to communicate with the 7710 Controller, set the PC/Notebook to the same network as the 7710 Controller.
- Page 11 INETVU® MOBILE SYSTEM QUICK START – NEWTEC 5. Set the 7710 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.
-
Page 12: Software Installation And Configuration
4. Now connect the Controller to the PC using the provided USB cable. 5. You have successfully installed the 7710 iNetVu Drivers and Software. Exit the setup wizard. 6. You can now run the iNetVu Mobile 7710 software from the shortcut on your desktop. C-COM Satellite Systems Inc. - Page 13 1.11 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7710 software. NOTE: It is recommended that you continue to the iNetVu Setup Wizard and confirm all required information is correct.
- Page 14 INETVU® MOBILE SYSTEM QUICK START – NEWTEC 3. Follow the on screen instructions to update the controller firmware. Once complete the wizard will resume. C-COM Satellite Systems Inc. Page 14...
- Page 15 INETVU® MOBILE SYSTEM QUICK START – NEWTEC 4. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Antenna Model Type: Antenna Version Version: Antenna Serial Number Serial No: It is important that this information be correct or will result in undesired antenna behavior.
- Page 16 INETVU® MOBILE SYSTEM QUICK START – NEWTEC 5. Complete the Service Information section, set to Newtec as the Service Type. Select the Interface method you wish to use and configure accordingly. Mouse over each selection for a detailed description. After changes, have been made please click “Next” to continue.
- Page 17 8. Congratulations you have configured your iNetVu Controller. You can now find satellite by pressing the FIND SAT button from the front panel or by launching the iNetvu Software. *For more detailed information on the iNetVu® 7700 Controller Software, refer to the iNetVu® 7700 Controller Manual C-COM Satellite Systems Inc.
