Page 1: Parts List
BR-31 Owner’s Manual Parts List Part no. Quantity Description Computer Screw M5x10L... - Page 2 Front handlebar End cap Foam grip Cover for front handlebar Allen bolt M7x30mm Flat washer φ7*φ12*1t Spring washer φ7*2t Handlebar post Screw M8x16L Semicircle washer Cable wire (upper) Heart rate cable (upper) Main frame Cable wire (lower) Heart rate cable (lower) Nylon screw Crank arm (L) Crank arm (R)
- Page 3 Adjustable cap End cap for stabilizer Adjustable cap Pedal (R/L) Seat holder Acorn nut Screw Screw M8x16L Flat washer φ8*φ16*2t Flat washer Hex. screw Slider rail Heart rate cable Lift handle Side cover (L) Side cover (R) Upper cover rear (L) Lower cover rear (L) Upper cover rear (R) Lower cover rear (R)
- Page 4 Bearing 6003RS Axle for flywheel Flat washer Small pulley Bearing 6000RS Bushing Bearing 6300RS Bearing 6203RS Idler Spring Flat washer Nylon nut Idler wheel Hex. screw Bushing Wave washer Adaptor DC wire Screw Stopper Cap for wire Fixing set for seat slider Screw Screw Cover for handle...
- Page 5 Nylon nut End cap Screw Nylon nut Slider holder Bushing Back rest knob Screw M10x36L Nylon nut Spring washer Bushing Seat slider wheel Hex. screw Magnetic set Gear box Sensor box Sensor holder Screw...
- Page 6 Assembly Stage #1 Carriage Bolt Screwdriver (1) M8*P1.25*55MM (4) Curved Washer 8* 19*2t (4) Box Spanner(1) 55 Acorn Nut for M8 Bolt (4) 1. Put on front stabilizer (36) and rear stabilizer (41) to the mainframe assembly. Be noted: the front stabilizer has transportation wheel. 2.
- Page 7 Assembly Stage #3 59 Flat Washer 8* 16*2T (6) Screwdriver (1) Allen Key(1) 61 Allen Bolt M8xP1.25x16mm (4) Allen bolt M8*P1.25*35L (2) Allen Bolt M8xP1.25x12mm (2) 1. Assemble the seat slider handle (128) with handle post (127). 2. Assemble the saddle (75) by flat washer (59) and allen bolt (61). 3.
- Page 8 Assembly Stage #5 Allen Key(1) 1. Remove the handlebar post cover (72) from main frame, and set in handlebar post (12). 2. Connect the heart rate cable upper (16) and lower (19). 3. Connect the cable wire upper (15) and lower (18). 4.
- Page 9 Set the cover for front handlebar (6). Assembly Stage #7 Screwdriver (1) 1. Connect the heart rate cable upper (16) and the cable wire upper (15) to the back of computer (1). 2. Fix the computer on handle bar post with four screw M5x10L (2).

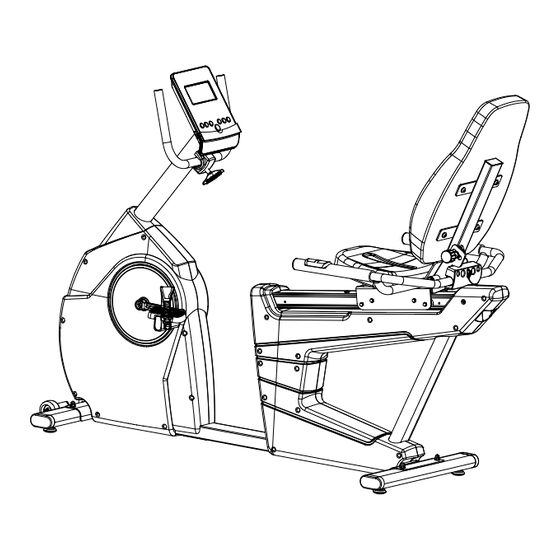

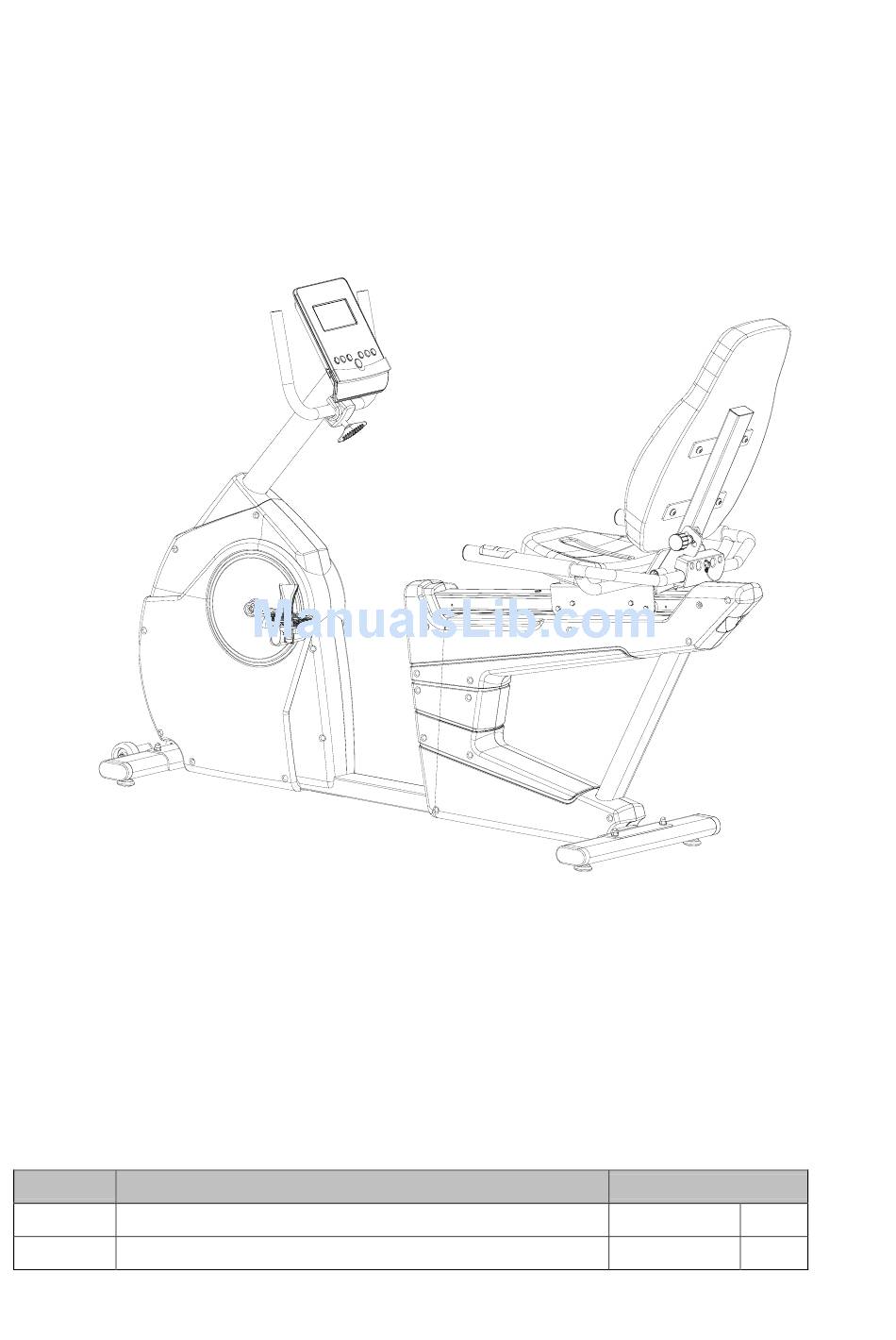

- Page 10 Exploded drawing.
-
Page 11: Button Functions
INSTRUCTION MANUAL OF COMPUTER BUTTON FUNCTIONS In stop mode, the mode is to confirm all exercise data setting, and enter into program. MODE/ENTER RESET In stop mode, press the button back to main menu. To start or stop exercise. START/STOP RECOVERY To test hear rate recovery status. - Page 12 3. In main menu, first exercise program MANUAL will flash, user may press UP and DOWN button to select MANUAL PROGRAM (12 profiles) (drawing E) PROGRAM USER PROGRAM HRC WATT. 4. Quick Start and Manual : Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE target.
Need help?
Do you have a question about the Everbright BR31 and is the answer not in the manual?
Questions and answers
have been using the bike for 12 years and no complaints. however, seat is very loose./wobbly now. I paid for assembly. I **** not handy at 77 years old. How can I tighten the seat? do I need special equipment? Thanks
To tighten the seat on a Northern Lights Everbright BR31 bike, follow these steps:
1. Locate the seat slider wheel (145) and knob (141).
2. Adjust the seat to the desired position.
3. Use the knob (141) to secure the seat in place.
4. Ensure that the seat is firmly tightened before use.
If additional stability is needed, check for any loose screws (146) or nylon nuts (142) and tighten them as necessary.
This answer is automatically generated
I have moved my machine several times, and it has always worked when i plugged it in. Now i get no response when i plug it in? help!
