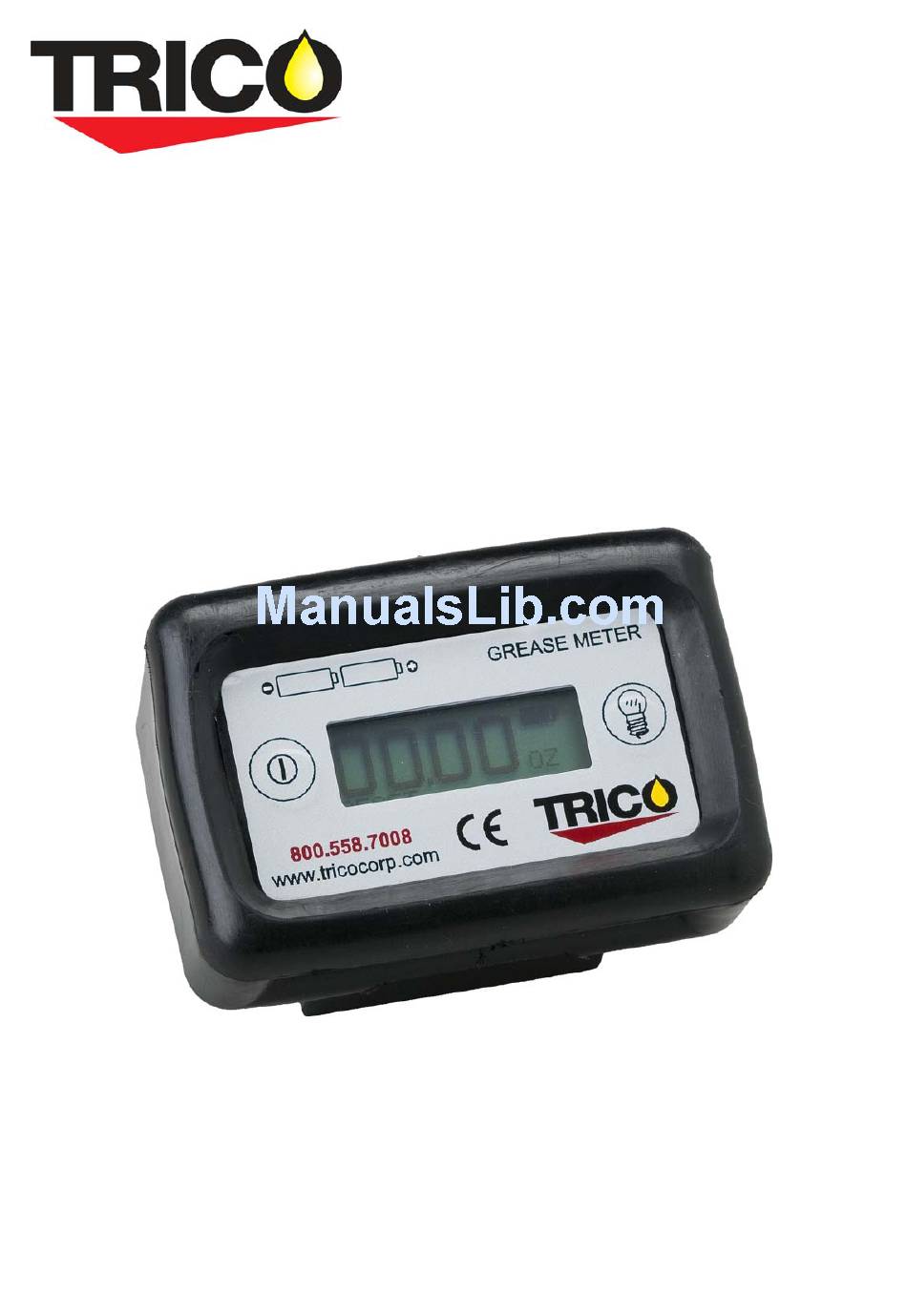

- Page 1 GREASE METER USER'S MANUAL INSTRUCTIONS TRICO CORPORATION • 1235 Hickory Street • Pewaukee WI 53072 Telephone: (800) 558-7008 • Fax: (262) 691-9336 www.tricocorp.com...
- Page 2 EXPLODED VIEW...
- Page 3 The Grease Meter measures the grease quantity that passes through the meter. The grease quantity dispensed can be shown in cm , gram, oz or fl oz. The Grease Meter can be calibrated and is equipped with bias lighting for use in dark working environments. DATA Max pressure...
- Page 4 CALIBRATING THE GREASE METER The Grease Meter can be calibrated for different grease types etc. 1. CALCULATE THE CORRECTION FACTOR Correction factor = real quantity / shown quantity Example: The dispensed grease weight is 500 gram The grease meter shows 485 gram Correction factor = 500 / 485 = 1.03...
- Page 5 Press ENTER (left button) to accept and save the new calibration, or CANCEL (right button) to cancel the changes and return to the old calibration factor. CHANGING UNITS The Grease Meter can show the grease amount in four different units; cm³, gram, oz, and fl oz. To enter the menu, press: buttons simultaneously. The display will show:...
- Page 6 MENU STRUCTURE...
- Page 8 TRICO CORPORATION • 1235 Hickory Street • Pewaukee WI 53072 Phone: (800) 558-7008 • Fax: (262) 691-2576 www.tricocorp.com...
