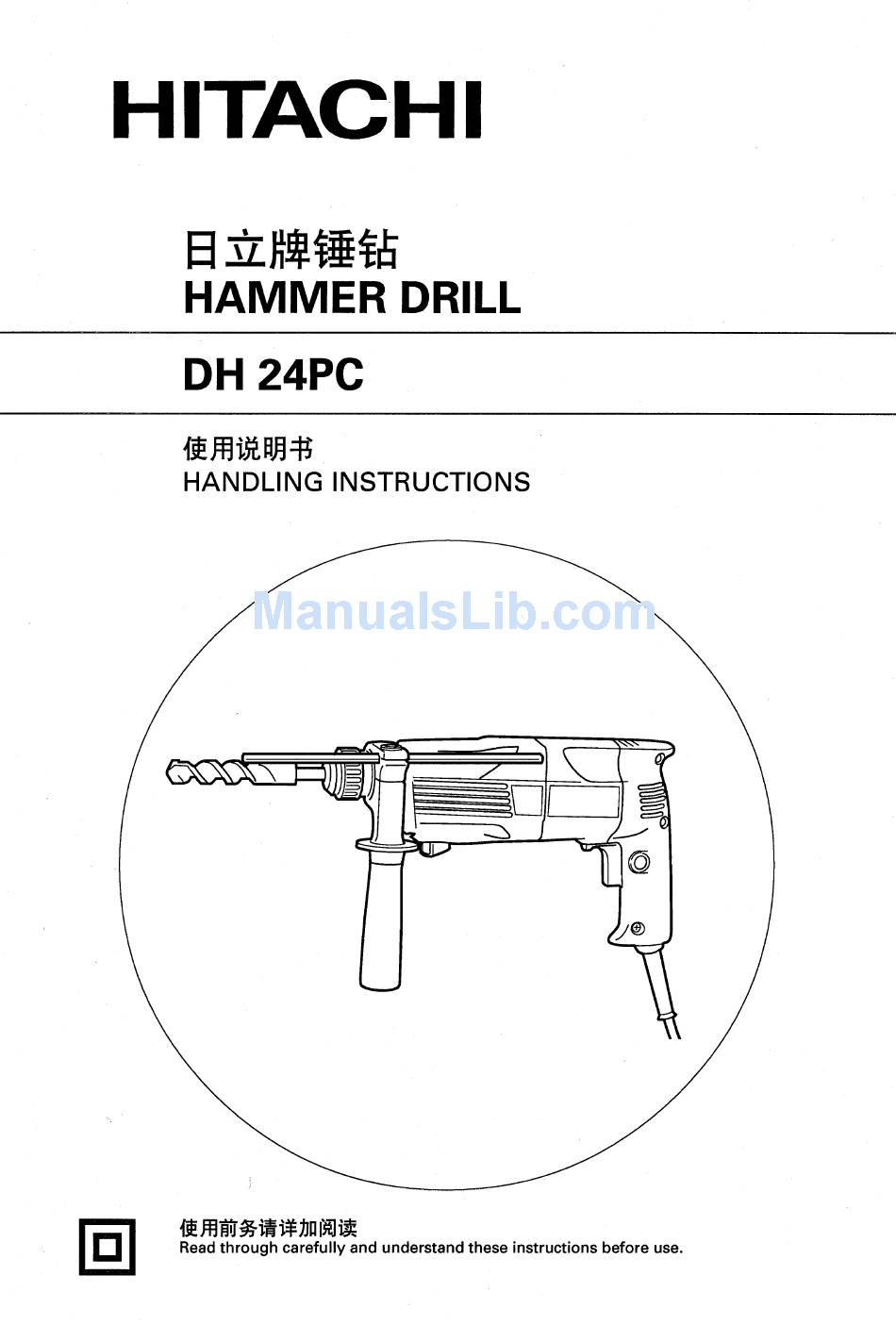

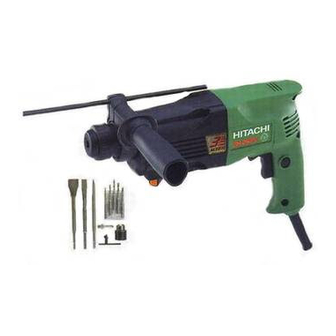

Hitachi DH24PC Handling Instructions Manual

Hide thumbs Also See for DH24PC:

Advertisement

Quick Links

Download this manual See also: Operation Manual & Safety Instructions

Advertisement

loading

Related Manuals for Hitachi DH24PC

Summary of Contents for Hitachi DH24PC

  • Page 4 12 mm –...
  • Page 15 16. Remove adjusting keys and wrenches. Form the GENERAL OPERATIONAL PRECAUTIONS habit of checking to see that keys and adjusting wrenches are removed from the tool before turn- WARNING! When using electric tools, basic safety pre- ing it on. cautions should always be followed to reduce the risk of 17.
  • Page 16 SPECIFICATIONS Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V) Power Input 620W* No-load speed 0 – 1350/min. Full-load impact rate 4400/min. Capacity: concrete 3.4 – 24 mm steel 13 mm wood 32 mm Weight (without cord and side handle) 2.4 kg *Be sure to check the nameplate on product as it is subject to change by areas.
  • Page 17 13 mm Hammer drill chuck For drilling operations when using a straight shank bit for impact drilling with a hammer drill. Straight shank bit 13 mm Hammer drill chuck for impact drill (SDS-plus shank) Chuck wrench 2. Anchor setting (Striking only) Anchor setting adapter (for electric hammer drill) Anchor setting adapter (SDS-plus shank) (for electric hammer drill)
  • Page 18 4. Demolishing operation (Striking only) Bull point (Round type) (SDS-plus shank) Bull point (Square type) (SDS-plus shank) 5. Groove digging and edging (striking only) Cold chisel (SDS-plus shank) Cutter (SDS-plus shank) 6. Grooving (striking only) Grooving chisel (SDS-plus shank) 7. Bolt placing operation with Chemical Anchor. (rotation + striking) (SDS-plus shank) Standard socket on the market...
  • Page 19 8. Drilling holes and driving screws (rotation only) Drill chuck, chuck adapter (G), special screw and chuck wrench Chuck adapter (G) Special screw Drill chuck (13 VLR) (SDS-plus shank) Chuck wrench 9. Drilling holes (rotation only) Drill chuck (13VLA) Chuck adapter (D) (SDS Plus shank) Chuck wrench 13 mm drill chuck ass’y (includes chuck wrench) and chuck (for drilling in steel or wood).
  • Page 20 attached to a drill bit that has more than 190 mm of APPLICATIONS overall length, dust collector (B) cannot touch the concrete surface but rotates. Therefore please use Rotation and striking function dust collector (B) by attaching to drill bits which have Drilling anchor holes 166 mm, 160 mm, and 110 mm overall length.
  • Page 21 CAUTIONS: (3) Turn the change lever to mark. (Fig. 10) Application of force more than necessary will not Then bull point or cold chisel is locked. only expedite the work, but will deteriorate the tip 7. Using depth gauge (Fig. 13) edge of the drill bit and reduce the service life of the (1) Loosen the knob on the side handle, and insert the hammer drill in addition.
  • Page 22 NOTE: fected by use of other grease. Please be sure to let one Due to HITACHI’s continuing program of research and of our authorized service center undertaking replace- development, the specifications herein are subject to ment of the grease.
  • Page 26 Code No. C99088721 N Printed in Japan...
