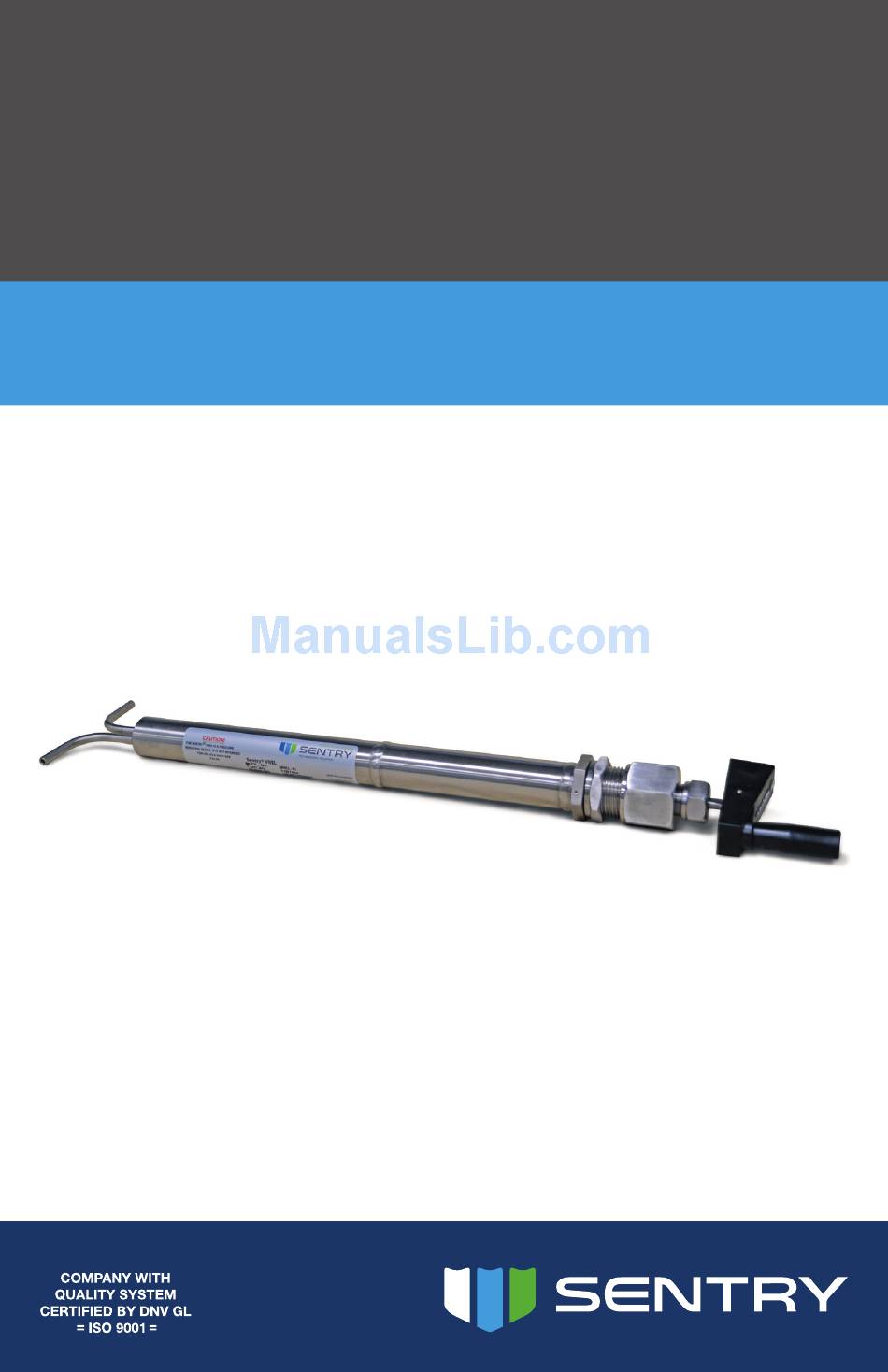

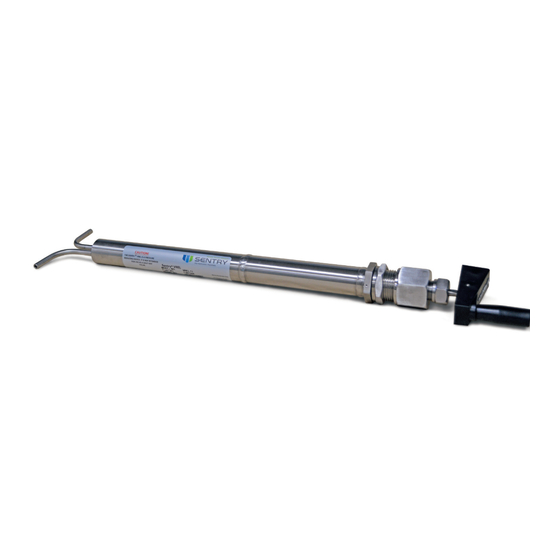

- Page 1 Original Instructions Installation, Operation & Maintenance Manual Sentry VREL Control Valve Pressure Conditioning S-SW-IOM-00277-15 1-17...
- Page 2 Otherwise, injury, damage, or both may result. Copyright © 2016 by Sentry Equipment Corp. All rights reserved. All product and company names are property of their respective owners. This document contains proprietary information. No part of this document may be photocopied or reproduced without the prior written consent of Sentry Equipment Corp.
-
Page 3: Safety Information
. Â NOTE Information that requires special emphasis . Â TIP Alternate techniques or clarifying information. SHALL: This word is understood to be mandatory. SHOULD: This word is understood to be advisory. Sentry VREL Control Valve... -
Page 4: General Safety Precautions
High pressures! This equipment may contain fl uids at very high pressures . Prior to installing, removing, or maintaining this equipment, ensure that the equipment is isolated from all connecting piping, the equipment is depressurized, the contents have been drained, and the equipment is cool . Sentry Equipment Corp... -
Page 5: Overview
. Ensure that the VREL valve is installed such that it will not be subject to steam or water sample temperatures greater than 300˚F . Damage to the VREL valve or downstream equipment may occur . - Page 6 Installing the VREL valve in a Panel Isolate the sample line and make sure that it cannot be opened during installation of the VREL valve . Failure to isolate the sample line could expose personnel to high pressure and/or hot materials .
-
Page 7: Operation
CUSTOMER TUBE Operation During operation, the VREL valve may become hot . Do not touch . Use care not to touch adjacent hot sample lines . When starting up a sample line that includes a VREL valve, always be sure that the rods are fully inserted before opening the sample isolation valve (turn handle clockwise to insert rods) . -
Page 8: Replacement Parts
. This is necessary to prevent exposure to high pressure and/or hot materials . Allow the VREL valve to cool to a comfortable touch prior to commencing service . No normal maintenance is required. Replacement parts available are listed below. - Page 9 1/4" max panel thk Alignment Pin Panel Lock Nut Body Nut 4" [102mm] REF. 14 1/8" [359mm] REF. 19 9/16" [497mm] REF. 37˚ Fitting Socket Weld 5 5/16" 4 5/16" Panel Cutout Ø 5/16" 15/16" Ø 1 1/4" Sentry VREL Control Valve...
-
Page 10: Standard Warranty
Standard Warranty Sentry Equipment Corp (“Seller”) warrants products manufactured by it and supplied hereunder (“Products”) to be free from defects in workmanship and, to the extent materials are selected by Seller, to be free from defects in materials, in each case for a... -
Page 11: Customer Support
Customer Support With proven sampling expertise since 1924, Sentry products and services provide business operations the critical insights to optimize process control and product quality. We deliver true representative sampling and analysis techniques to customers around the globe, empowering them to accurately monitor and measure processes for improved production effi... - Page 12 Serving customers in more than 50 countries across six continents worldwide. sentry-equip.com 966 Blue Ribbon Circle North, Oconomowoc, WI 53066 U.S.A. | +1-262-567-7256 | support@sentry-equip.com...
