- Page 1 OPERATION MANUAL RK-2001W4 SOLID FUEL FIRED BOILER TEMPERATURE CONTROLLER Wersja E128...
- Page 2 Setting the exhaust gas temperature control parameters ....... 14 Testing of device's outputs ................14 Factory defaults ....................14 Exiting service mode ..................15 Device removal ....................15 Specifications ....................15 Connection diagram of the RK-2001W4 ............16 Schemes of connecting additional devices ............. 16...
- Page 3 1. Application. Controller RK-2001W4 is a device designed for temperature control in solid fuel fired boilers equipped with: - blower, - central heating pump, - domestic hot water pump, mixing pump or a pump charging the accumulative tank (optional), - household thermostat or exhaust gases temperature sensor (optional), - signalling device or an additional boiler (optional).

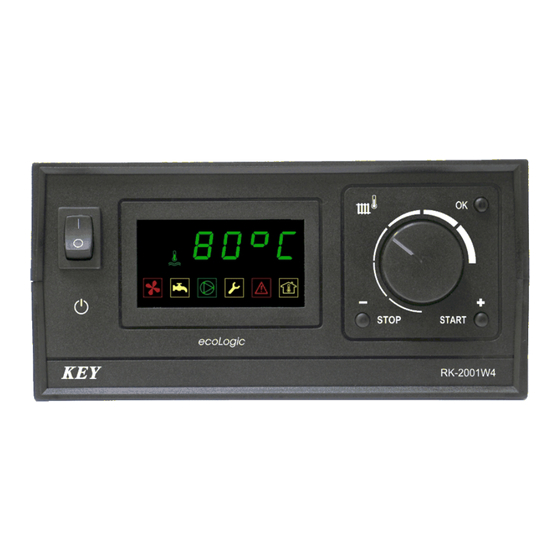

- Page 4 Picture 1. Front panel of the RK-2001W4 controller. The basic operation of the regulator depends on setting the desired temperature with the thermostat knob. The remaining functions are carried out according to the programmed parameters of the service mode. The change of thermostat parameters is shown on the display for a few seconds, e.g.
- Page 5 If the circulation system is equipped with the accumulative tank, the desired boiler water temperature equals the value set with the thermostat knob (3). If the heating system is equipped with the domestic hot water tank, the higher of two component temperatures is accepted as the desired boiler water temperature –...
- Page 6 3.3. System with the household thermostat operation. If the heating system is equipped with the household thermostat, the desired temperature of the boiler water depends on the status of its contacts (3.1.). As an addition the central heating pump work may, depending on the service settings, be influenced by the household thermostat.
- Page 7 5.Setting the user’s parameters. When you press the OK button briefly, the regulator enters the viewing and setting the user’s parameters mode. It is possible to view the parameters with buttons marked with “+”, “-”. After the particular parameter has been selected, you can enter the changing mode of the given parameter by simply pressing the OK button –...
- Page 8 domestic hot water system or the accumulative tank only are supported by the regulator. If the additional pump is turned off or it works as the mixing pump, then there is no possibility of changing the WINTER/SUMMER mode (the parameter is not available).
- Page 9 Table 2. Service parameters list. Factory Disp. Parameter Step default. Blower work capacity or maximum capacity when Π100 Πr 1. n 40 Blower minimum capacity. Πh 5 Ratio of blower speed change. Πr 0 Automatic regulation of blower speed. -, 0 Πn 5 Induced draught duration.
- Page 10 6.1. Parameters of blower work. Blower maximum capacity [Π100] – is the maximum value of capacity at which the blower can operate. Blower minimum capacity [n 40] – is the minimum value of capacity at which the blower can work. Changing the rotational speed of the blower ratio [Πh 2] –...
- Page 11 6.2. Central heating circulation pump working parameters. Temperature of central heating pump turn-on. [P 40] – if the heating system is not equipped with the accumulative tank ([ur 0], [ur 2] or [ur 3]), then the parameter defines the level of the boiler water temperature at which the central heating pump can be turned on.
- Page 12 Similarly, the [ur 2] value indicates the work of the additional input and output in the domestic water heating mode. The difference depends on the hot water being prepared with no priority, which means the central heating circulation pump is not turned off while the domestic water tank is being topped up.
- Page 13 6.5. Preventing the boiler from overheating. The temperature of boiler overheating [A 99] – defines the value of temperature which, when exceeded, causes the regulator to activate the alarm of the boiler overheating. STB – the regulator is equipped with an additional, independent of the processor security against the overheating.
- Page 14 6.8. Setting the parameters regulating the exhaust gases temperature. The exhaust gases temperature/ the exhaust gases sensor turn-on [c ---] – the parameter determines by what temperature of the exhaust gases the blower rotational speed will be decreased. Setting the parameter to ‘---‘ will cause the sensor of the exhaust gases temperature to turn off.
- Page 15 6.11. Exiting the service mode. To exit the parameters setting mode, select [End] on the display and press the OK button. Also, if no buttons will be pressed for 1 minute, exiting the mode occurs. 7. Controller disassembly. When disassembly of controller is necessary, you need to: –...
- Page 16 Picture 2. Schematics of connecting the RK-2001W4 unit. Picture 3. Schematics of connecting the additional devices.
- Page 19 DECLARATION OF CONFORMITY Manufacturer:Przedsiębiorstwo Wielobranżowe KEY 11-200 Bartoszyce, ul. Bohaterów Warszawy 67 hereby declares that the product: RK-2001W4 Controller is in conformity with provisions of the following directives: 73/23/EWG i 93/68/EWG (LVD 73/23/EEC + 93/68/EEC), as superseded by Directive 2006/95/WE (EC Directive 2006/95/EEC);...
- Page 20 Manufacturer: P.W. KEY 11-200 Bartoszyce, ul. Bohaterów Warszawy 67 tel. (89) 763 50 50, fax. (89) 763 50 51 www.pwkey.pl e-mail: pwkey@onet.pl...
