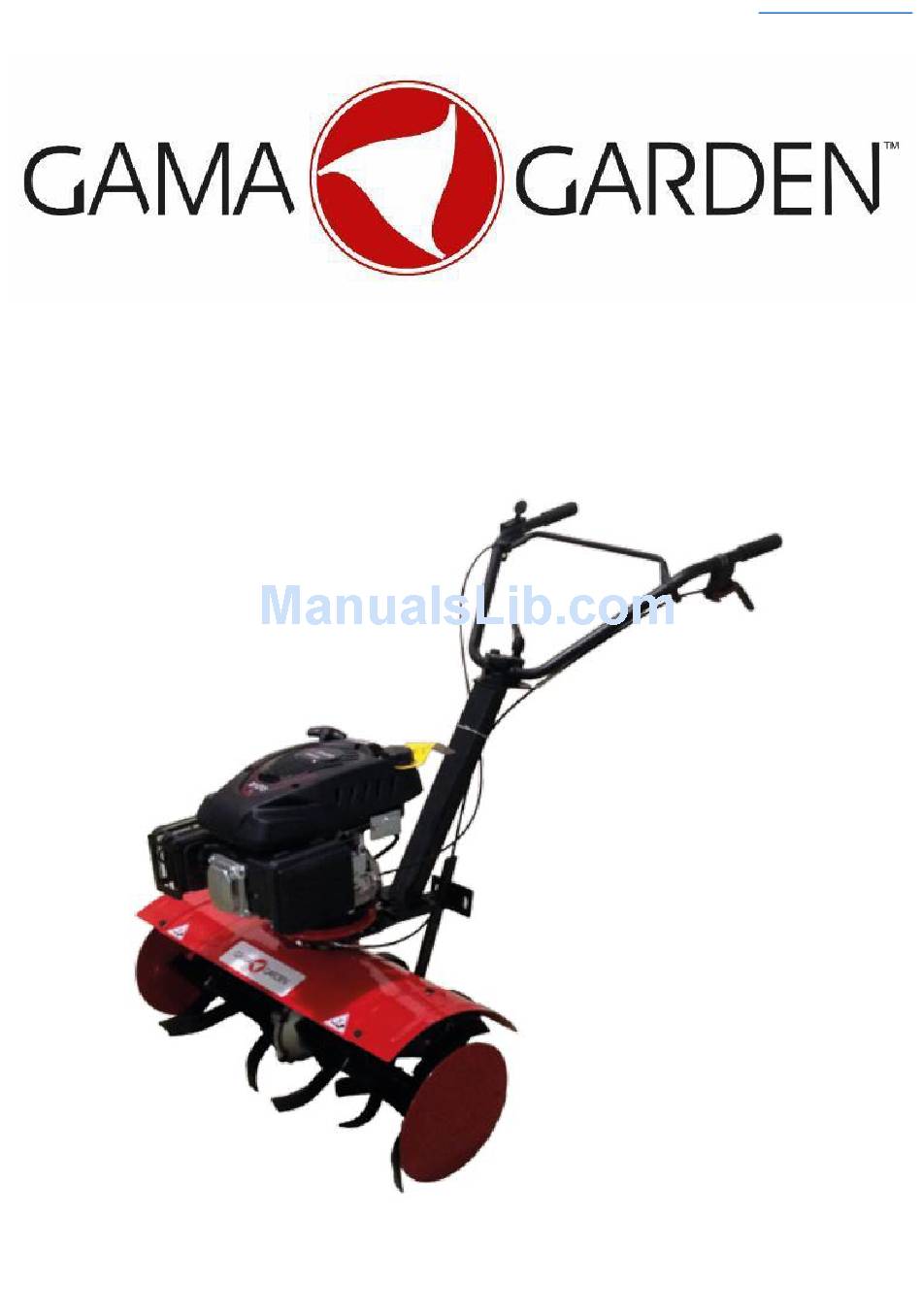

- Page 1 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. GT 250C Tiller Instruction manual...
- Page 2 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. TABLE OF CONTENTS TECHNICAL DATA ..................................... 4 DESCRIPTION ....................................5 ASSEMBLY ......................................6 USE ........................................9 PREPARATIONS .................................... 9 STOPPING THE ENGINE ................................10 CULTIVATING ..................................... 11 SURFACE WORKING ................................... 12 TRANSPORT ....................................12 MAINTENANCE....................................
- Page 3 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Congratulations on your purchase of a GAMA GARDEN petrol tiller! SAFETY INSTRUCTIONS Read these instructions carefully and familiarize yourself with the controls on the machine and how they are used and the applicable safety instructions. Persons who are not familiar with these instructions should not use the machine.
- Page 4 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Warning symbols Description of the symbols found on the machine. Read these instructions before use. Keep your hands and feet away from moving parts – risk of serious personal injury and/or death. Risk of personal injury and/or damage to objects in the vicinity.
-
Page 5: Technical Data
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. TECHNICAL DATA Type GT 250C Basic (Rato) GT 250C Basic (Honda) Rato RV225 GCV 160 Engine type 4-stroke vertical engine 4-stroke vertical engine Fuel Petrol Petrol Output 5,5 HP 4,4 HP Displacement 223 cm³... -
Page 6: Description
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. DESCRIPTION 1 Crossbar 10 Wheel 2 Rubber grip 11 Side disc 3 Clutch lever 12 Rotating blade attachment 4 Upper handle 13 Gearbox 5 Clutch cable 14 Protective guard 6 Handle tube 15 Engine 7 Handle holder 16 Throttle cable... -
Page 7: Assembly
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. ASSEMBLY WARNING: Make sure not to damage the clutch cable when unpacking. Assemble the machine as shown in the diagrams in these instructions. Remove all parts from the packaging. Unpack the top handle, handle tube, handle bracket, metal discs as well as left and right guard extensions, shear pins and other parts and accessories. - Page 8 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Assembly of the handle Loosen the 4 screws M8 x 25 from the handle tube (pos. 1, fig. 3) and align the holes in the handle tube with the holes in the support plate.
- Page 9 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Fit the right-hand guard extension in the same way. WARNING: Never use the machine without the guards fitted. Assembly of the rotating blades Fit the rotating blades with screws M8 x 25, lock washers Ø 8 and nuts M8 (fig. 7). The rotating blades in fig. 7 must be placed on the right- hand side of the machine, as seen from the direction of travel.
-
Page 10: Preparations
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Assembly of the engine on the machine (see the transport section) Assembling the clutch cable The clutch cable is fitted at the factory. Clutch adjustment The clutch cable is adjusted at the factory. Any clutch cable adjustment must be carried out by an authorized service center. Before using for the first time WARNING: Check all screws joints on the machine, including the motor attachment. -
Page 11: Stopping The Engine
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. • SMOKING IS FORBIDDEN. • Do not start the machine if fuel has been spilled. Move the machine away from any fuel spill before starting. Exercise care to ensure spilt fuel does not ignite. •... -
Page 12: H-4900, Fehérgyarmat, Szatmári Út
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. • Only use the machine in daylight, or in good artificial lighting. Do not cultivate ground where there are large stones, or where there are mounds of earth or ditches. DANGER: Fire hazard! Avoid sources of ignition, e.g. smoking, naked flames, electrical sparks, etc. when working. -
Page 13: Surface Working
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. SURFACE WORKING Reduce the cultivating depth to work the surface. Working on slopes DANGER: Risk of personal injury and/or material damage if the machine rolls over. • Be very careful when changing direction, and when on slopes. Work across slopes, never up or down. •... - Page 14 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Assembly of the engine Align the clutch’s mount ring (pos. 2, fig. 13) with the guide pin on the gearbox’s mount ring (pos. 3, fig. 13). Press down the engine and clutch so that the clutch’s mount ring and (pos. 2, fig. 13) and the gearbox’s mount ring (pos. 3, fig. 13) rest against each other.
-
Page 15: Maintenance
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. MAINTENANCE Follow these maintenance instructions for the best performance and service life. Carry out maintenance after the specified calendar period or specified hours of operation (whichever comes first). In demanding conditions, maintenance should be carried out more frequently. DANGER: •... -
Page 16: Changing The Oil
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. WARNING: Never rinse the machine, especially not the gearbox, with a water jet or high pressure washer. CHANGING THE OIL NOTE: Drain the engine oil when the engine is hot so that all the oil quickly runs out. Unscrew and remove the oil filling cap (fig. - Page 17 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Check the spark plug Check that the spark plug is clean and free of combustion residue and has the right electrode gap. The correct electrode gap is 0.7-0.8 mm. Disconnect the spark plug lead from the spark plug and unscrew the spark plug using a spark plug spanner. Inspect the spark plug visually.
- Page 18 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. Assemble the new rotating blades by following the instructions in the reverse order.
-
Page 19: Gearbox Maintenance
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. NOTE: Side discs (pos. 1, fig. 16) should be disassembled and assembled the same way. GEARBOX MAINTENANCE WARNING: Do not tilt the gearbox and do not put it on the side or upside down. Gearbox oil should be changed every year. -
Page 20: Troubleshooting
Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. • Unscrew the spark plug and pour a tablespoon of fresh engine oil into the cylinder through the spark plug hole. Pull the starter cord slowly several times to distribute the oil in the engine. Replace the spark plug, but do not connect the spark plug lead. •... - Page 21 Acquaer Ltd. www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári út 11. - Deployment of the device solely for private use. The guarantee is reduced to 6 months in the commercial sector or leasing business. - Proper handling and observance of all information given in the operating manual, which forms part of our guarantee terms. - Observance of the prescribed maintenance intervals - No unauthorized alteration of the design.
