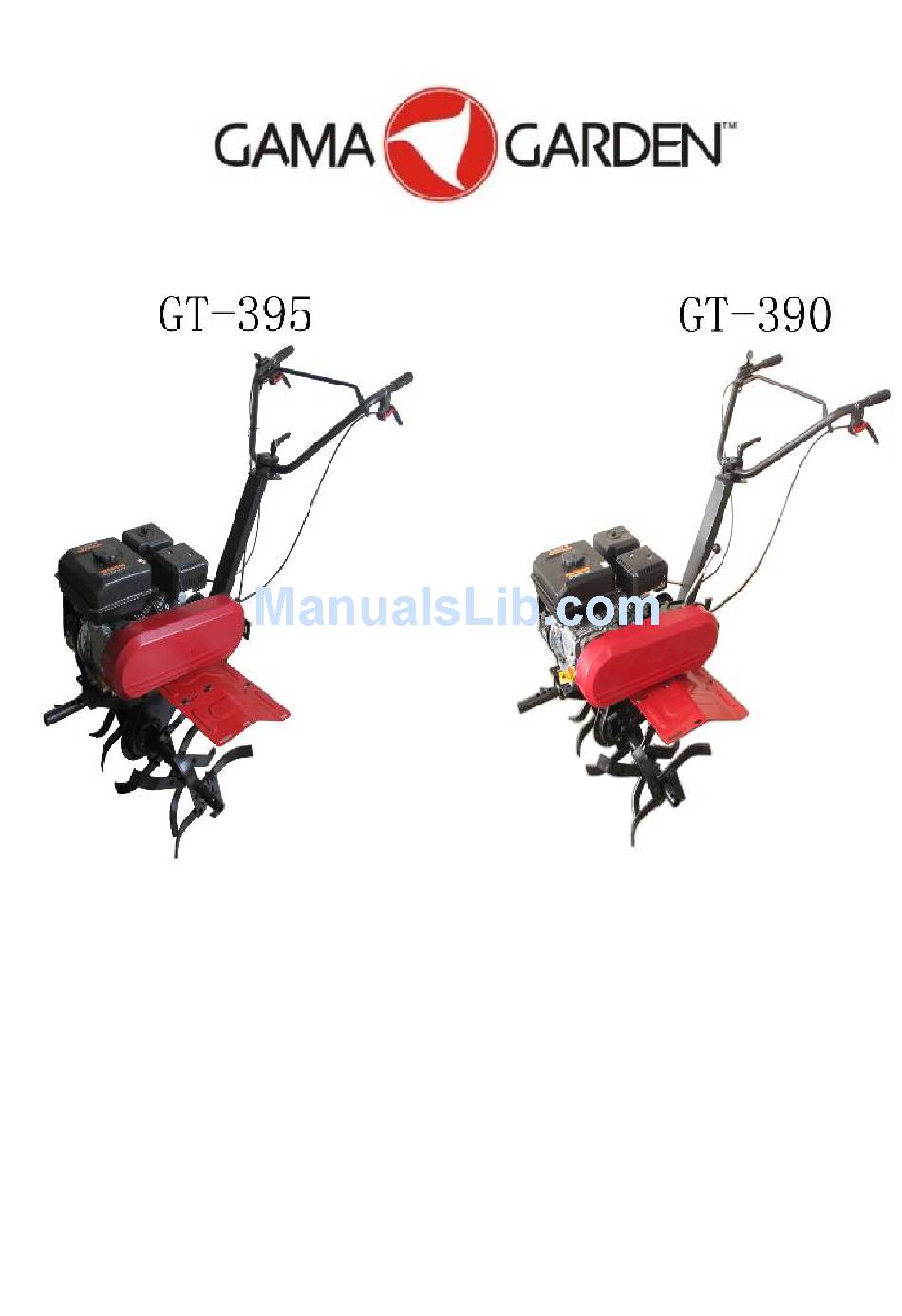

  • Page 1 Instruction manual Petrol Powered cultivator GT- 390 GT- 395...

  • Page 2: Dear Customer

    Dear Customer, Thank you for choosing the „GAMA GARDEN” petrol cultivator. Purpose Prior to starting to use the petrol powered cultivator, please read this instruction manual carefully and get acquainted with the controls in order to ensure proper and safe operation.
  • Page 3  During work performance wear protective clothing, Stickers of operations to be done by the secure footgear, goggles and gloves controls  Do not refill the cultivator fuel tank while operating. Depending on the engine model, stickers and their arrangement Petrol is allowed to be refilled only outdoors may differ from those included in the instruction manual.
  • Page 4 Arrangement of main parts of the cultivator GT-390 1 – Throttle control, 2 - Throttle cable, 3 - Handle bar bracket, 4 – Handle, 5 - Clutch lever, 6 - Clutch cable, 7 – Speed changer, 8- Deflector, 9 – Tine, 10 – Front handle, 11 – Engine GT-395 Figure 1 1 –...

  • Page 5: Adjusting The Clutch Cable

    washer. 6. Install the handlebar in the hole of the lower part of the handlebar fastening clamp (round hole without teeth), and from the top place the upper part of the handlebar fastening clamp Assembly on it (Figure 2, Item 6а), fitting the bracket holes in the lower and upper part of the handlebar fastening clamp.
  • Page 6 2.2 Order of adjustment (for the following model: GT 395) 1. Press clutch lever out to 1/3 of the free escapement (Figure 6). 2. W ith the lever held in this position, draw the starter cord slowly 2 or 3 times. The cultivator blades should start moving. Screw off retaining nut of adjusting sleeve (Figure 6, Item 1).

  • Page 7: Operation

    Engines without bayonet gauge: 2. Place the central blade holders (with blades installed) on the internal blade holders from both sides. The oil level should reach the lower level in the oil filling outlet, that is the oil should be filled until it flows over the oil 3.

  • Page 8: Engine Stop

    Note: Work can be performed only with the air valve open. 1. Engine start-up Order of start-up (for the following model: Prior to the engine start-up: with Briggs&Stratton engine): Check whether there is petrol in the fuel tank, and check For models with Briggs&Stratton engine, see the engine the oil level in the engine case and the speed changer.

  • Page 9: Technical Maintenance

    For reverse (for the following model: GT 395): 1. Disengage the reverse lever. 2. Disengage the clutch lever. Note: The Reverse function is designed only for a short time travel. Prepare for the work: Figure Start the engine Select the desired direction of travel by means of the Adjust the tilling depth in accordance with the soil switch (see: Figure 12, Item 1).

  • Page 10: Maintenance Operations

    Periodical maintenance : After each Once in a season If necessary Each 25 Each 50 or each 100 List of operations to be performed hour hours hours Clean the guard and the blades Clean the air filter (**) Change the air filter Change the oil in the engine case (*, **) Change the oil in the speed changer Perform lubrication of blade-reducer shaft...
  • Page 11 Transportation Danger! It is strictly forbidden to use petrol or low temperature solvent Transportation in short distances for cleaning the filter. It may result in fire or explosion For transporting the cultivator from an area to be cultivated to Replace the filter and the air filter cover in reverse order another, use the wheels found on the plough iron.

  • Page 12: Terms Of Guarantee

    Possible operating failures and method of repair In case of any possible failure, use the information found in the table for repair: Failure Cause Method of repair Fill the fuel tank up with clean fresh, lead-free petrol engine There is no petrol in the fuel tank. cannot be started.
  • Page 13 The used packaging must be placed in the proper waste collection container. GAMA Garden Kft., 4900 Fehérgyarmat, Szatmári Street, 11, declares that the device has CE marking (that is the device meets the requirements of the relevant international standards), and that it is in compliance with the data...
