Therma-Ray SR-240 Getting Started Manual

Comfort controller
Hide thumbs Also See for SR-240:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Getting started with ThermaRay's
Comfort Controller is as easy as... 1,2,3.
Notes:
o Your Ceiling System is calling for heat when an UP arrow is displayed.
o
Your Floor or Earth Storage System is calling for heat when a Down arrow is displayed.
o Your System will turn ON when the temperature difference between the comfort settings and the floor or
room temperature is more than 2° Fahrenheit (1°C).
APPLIES TO MODELS SR240/120

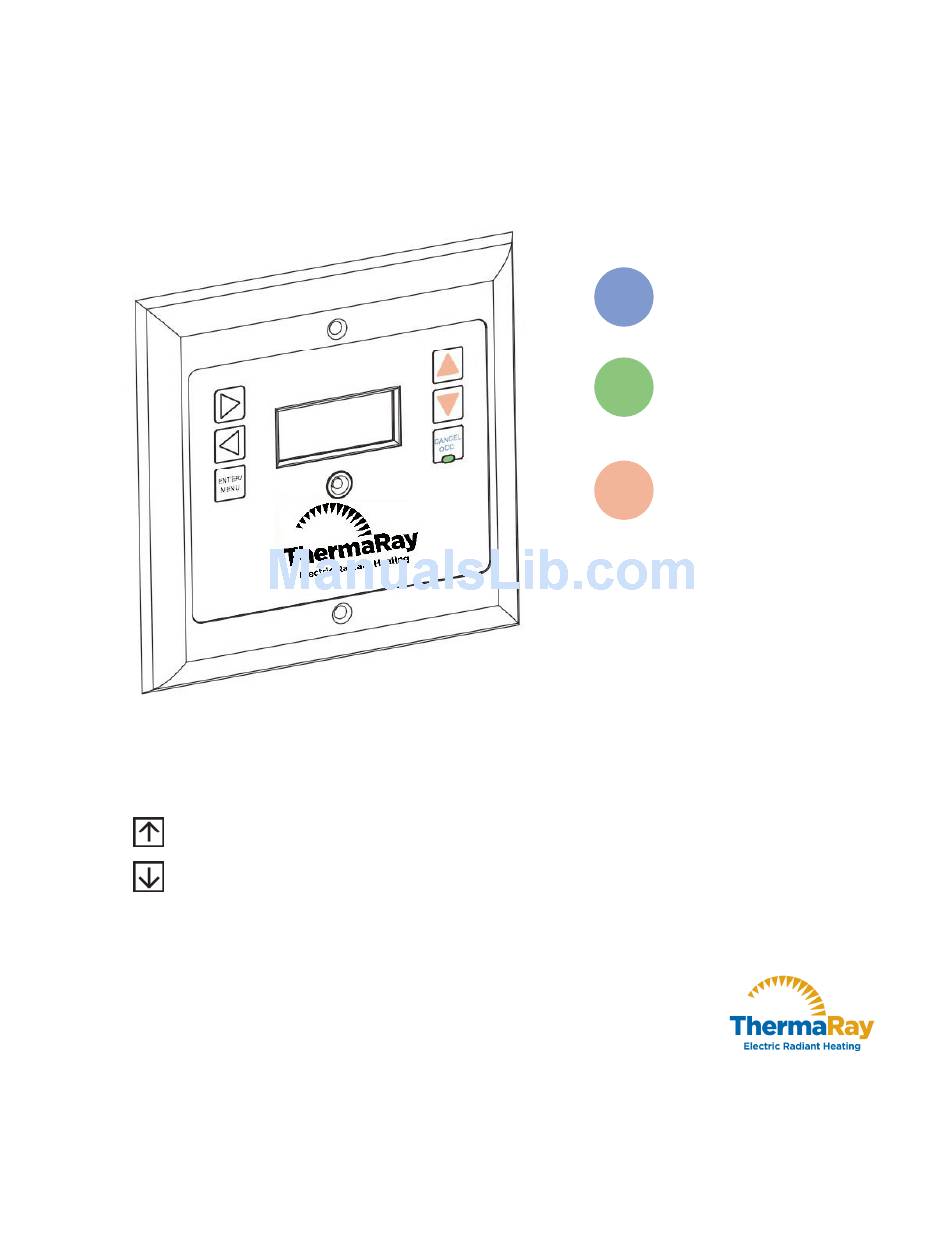

Press CANCEL/OCC to put Comfort
1
Control in manual mode.
Verify that the green light is on
2
indicating manual mode.
Choose the desired room temperature
3
using the Up or Down arrows. Press
ENTER/MENU to save the change. You
can change this temperature at any
time.
