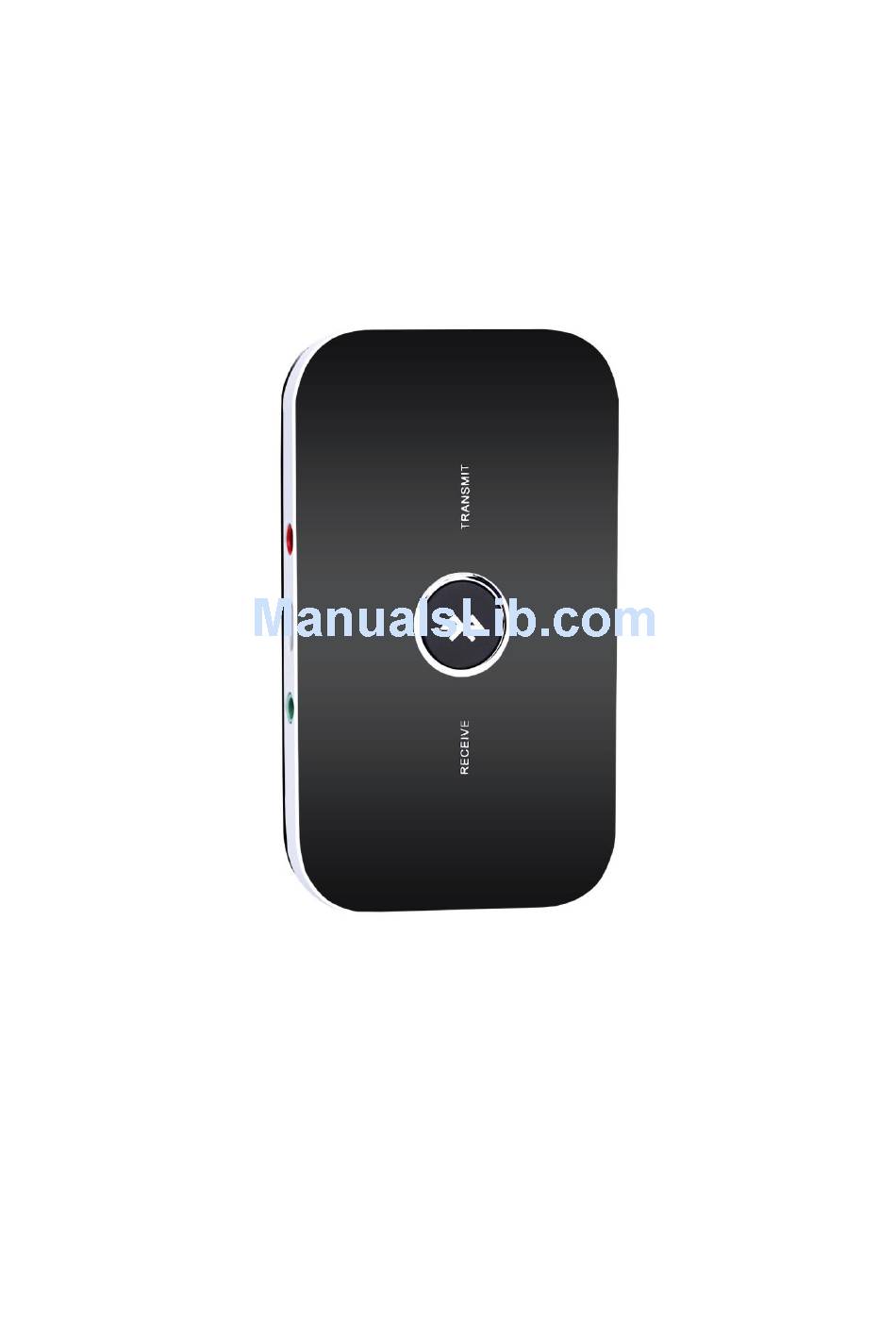

Page 1: User Manual
HIFI Bluetooth 4.1 Receiver and Transmitter User Manual... - Page 2 1、 product introduction This product is a receive and transmit 2 in 1 Bluetooth device, send and receive all of the audio freely and easily. Via this product, you can cast the music in your phone to the audio equipment , more convenient is that you can also make television, CD player, MP3 or any other audio device sent to the speakers or headphones with Bluetooth, Since the product use low-latency technology, it also supports online games, television,...
- Page 3 3、 Accessory Receiver and Transmitter device User manual USB charging cable 3.5MM audio connecting cable One for two patch cord audio connecting cable 4、 Product description Interface Schematic： Receive Mode Audio Output Interface USB Charging Transmit Mode Audio Input Interface Charging ,Bluetooth connection status indicator Multi-function- -buttons Receive...
- Page 4 LED lights Status： 5、 Charging Mode This product is built-in rechargeable battery for long standby and use. Recommended charge full power before first time use. Insert the Micro USB charging cable into the product charging port, another side into output standard USB port (such as mobile phone chargers, PC USB interface).
- Page 5 OFF: press the button 5S the blue light will off . Automatic shutdown function: the device in the absence of the connection state, after 10 minutes, it will automatically go into power-saving sleep mode, the light will turn off. Receive Mode 1）...
- Page 6 blink rapidly. transmit Insert the 3.5MM audio connecting cable into transmit Headphone jack(Red Headphone jack), the status red indicator lights will be bright, the another cable side insert into phone, tablet, MP3, CD player, PC, TV audio output interface (For Headphone output interface example ,the A、...
- Page 7 function, if there are many Bluetooth devices around (such as Bluetooth headsets) , you can press the button shot time to switch and match device. 7、 Fault diagnosis You can try to solve problems by these ways if facing problems below. Please connect the local distributors if you can’t solve problems these ways, but please don’t disassemble the receiver to repair yourself , for fear that it may cause any unnecessary problems by doing so.
- Page 8 5, According to the indicator light to choose work mode,the default boot mode is receive mode. if the two jack of products are inserted headphone audio plug , the mode is also receive mode. 6、 Please check the product mode is correct, whether 3.5MM audio cable into the headphone correct jack or not.
