INTEX
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• To reduce the risk of injury, do not permit children to use this product. Always supervise
children and those with disabilities.
• Assembly and disassembly by adults only. This product is not a toy.
• Never allow anyone to step, stand, sit or jump on this product.
• Turn the pump off before installing, servicing, cleaning or adjusting this product.
• Do not block the outlet of this product while the pump is running.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR
DEATH.
4
*8
1

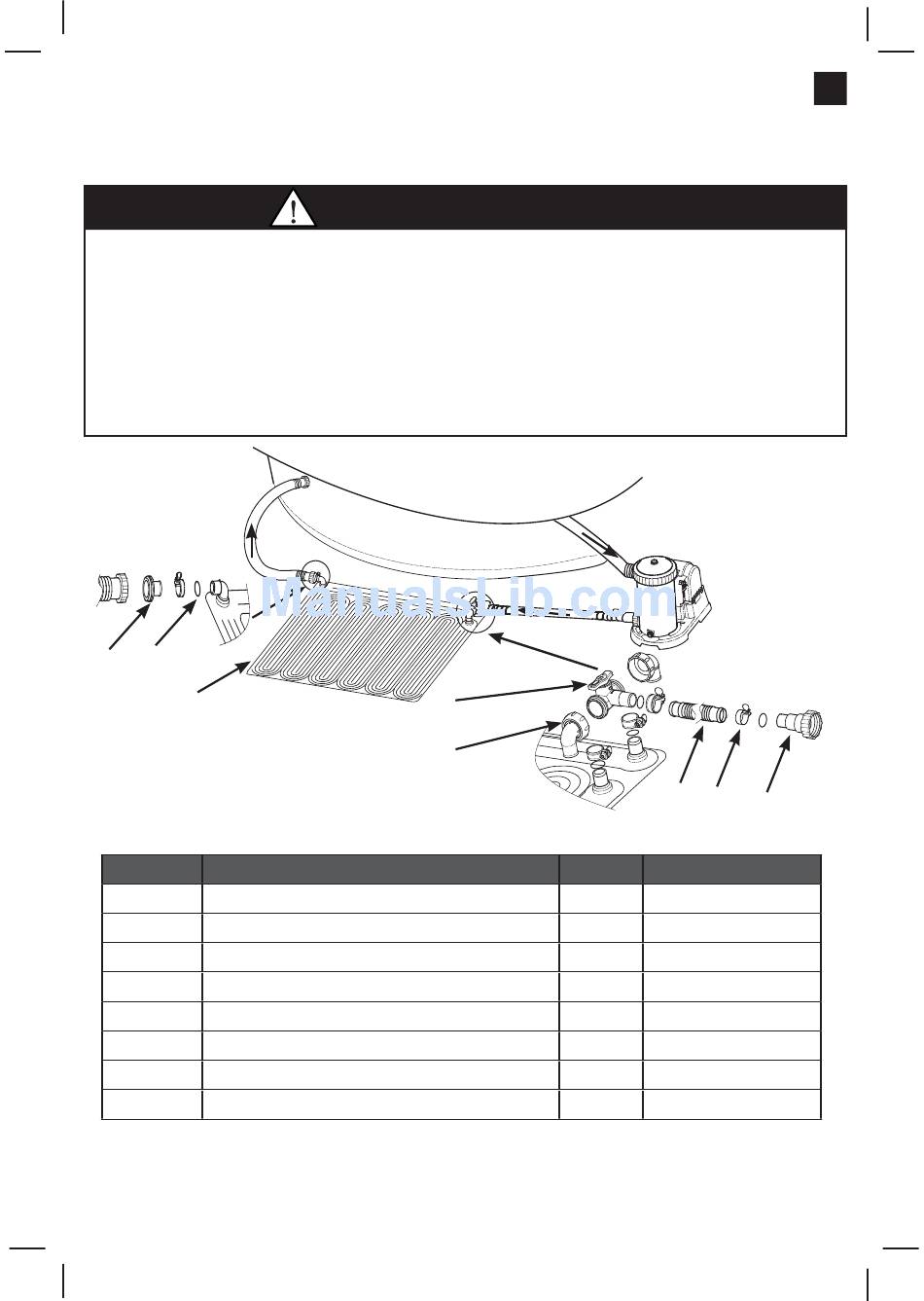

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
REF. NO.
1

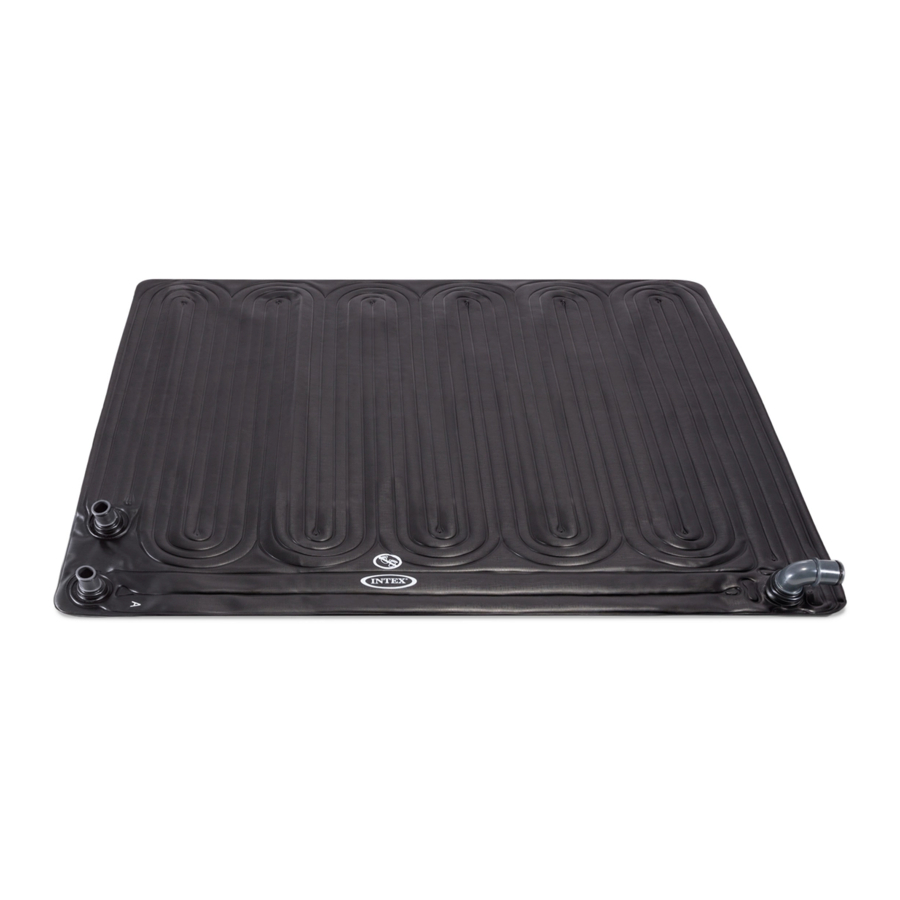

Solar heater mat
2
Bypass valve
3
Elbow joint
4
Hose seal
5
Hose clamp
6
Hose
*7
Adaptor A (For 1-1/4" hose only)
*8
Adaptor B (For 1-1/2" hose only)
SAVE THESE INSTRUCTIONS
®
OWNER'S MANUAL
SOLAR HEATER MAT
WARNING
2
3
DESCRIPTION
Page 1
(269IO) SOLAR HEATER MAT ENGLISH 4.875" X 7.25" 08/19/2016
6
QTY.
SPARE PART NO.
1
1
2
5
5
1
1
1
269
IO
5
*7
11956
11954
11953
10134
11489
11955
10849
10722
269-*IO-R0-1708
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intex 28685
Summary of Contents for Intex 28685
-
Page 1: Save These Instructions
(269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016 ® INTEX OWNER'S MANUAL SOLAR HEATER MAT READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT WARNING • To reduce the risk of injury, do not permit children to use this product. Always supervise children and those with disabilities. - Page 2 (269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016 General • This product is for use with storable pools only. Do not use with permanently-installed pools. • Solar heater mat size (flat, before fill): 47” X 47” (1.2 m X 1.2 m). Surface area: 11 ft •...
- Page 3 (269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016 Connection to 1-1/4”(32 mm) hose with clamp 1. Disconnect the pool water return hose from the pump outlet. 2. Connect the other end of the short hose (6) to the pump outlet. Secure the hose with hose clamps (5).
- Page 4 (269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016 Operation 1. Open or uncover all pool inlet and outlets, and then turn on the filtration system. Make sure all trapped air is released from the circulation system. Refer to the filter pump owner’s manual for details.
- Page 5 (269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016 SOLAR HEATER MAT QUANTITY FOR INTEX POOLS Number of solar heater mat recommended for larger pools. Based on 8 hours of sunshine exposure per day; heating performance varies depending on weather and ambient conditions, and whether the pool is covered or not at night.
