Summary of Contents for Tenda GPON ONU

  • Page 2: Copyright Statement

    Tenda does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied.

  • Page 3: Technical Support

    How to modify your login password  How to dial up to connect to the Internet Preface  How to configure TCP/IP settings for your PC Technical Support  Website: http://www.tendacn.com  Telephone: (86 755) 2765 7180  Email: support@tenda.com.cn...
  • Page 4 Contents Chapter I Product Overview ......................... 1 1. About this Product ..........................1 2. Package Contents ..........................1 3. Physical Appearance ........................2 Preface 3.1 LED Indicators, Interfaces & Buttons ..................2 3.2 Label ............................3 4. Main Features ........................... 4 Chapter II Internet Setup ........................
  • Page 5 1. Configure PC ..........................33 1.1 Windows 8 ..........................33 1.2 Windows 7 ..........................35 1.3 Windows XP ..........................37 2. FAQs .............................. 39 3. Specifications ..........................42 4. Safety and Emission Statement ...................... 43 Preface...

  • Page 6: Chapter I Product Overview

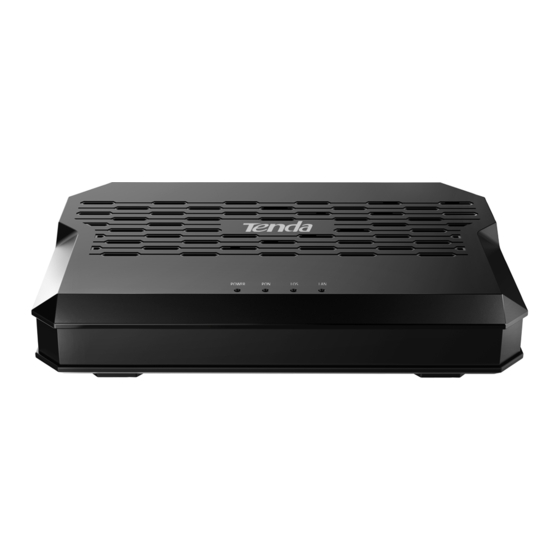

    Chapter I Product Overview 1. About this Product Tenda G103 brings stimulating fast speed into your e-life via FTTH deployment. Compliant with ITU-T G.984 standard, G103 can be widely used in broadband telecommunication network all over the world. G103 has one 10/100/1000M BASE-T RJ45 port to which you can connect a PC,...

  • Page 7: Led Indicators, Interfaces & Buttons

    3. Physical Appearance 3.1 LED Indicators, Interfaces & Buttons Product Overview Color Status Description Indicators Solid Proper connection to power supply POWER Green Improper connection to power supply Solid GPON connection has been established. Green Blinking GPON connection is being established. No GPON connection is established.

  • Page 8: Label

    Interface / Button Description Product SC/UPC fiber optic port for connecting to the optical network Overview The RJ45 port which is used for connecting to the PC, Router or other Ethernet device Power receptacle for connecting to the included power adapter ON/OFF ON/OFF button for powering on/off the device Pressing it for over 4 seconds restores the device to factory default...

  • Page 9: Main Features

    4. Main Features  Compliant with ITU-T G.984, G.988  Support OMCI remote management  One 10/100/1000M BASE-T RJ45 port and one GPON port (SC/UPC)  Downstream rate of up to 2.5Gbps and upstream rate of up to 1.25Gbps  DC: 9V Product Overview...

  • Page 10: Chapter Ii Internet Setup

    Chapter II Internet Setup Step 1: Connect Your Device Note: 1. Do confirm your access type matches this GPON ONU before selecting it. Mainstream fiber Internet access technology can be divided into two incompatible types: EPON and GPON. Setup 2. When this device is powered on, please do not look straight the PON port in the eye and the laser beam in the optical fiber to avoid eye damage.

  • Page 11: Step 2: Configure Your Device

    Step 2: Configure Your Device 1. Set your PC to an IP address within the following range: 192.168.1.X (2~254), and with the subnet mask of 255.255.255.0. For specific steps, see 1 Configure 2. Launch a browser, say IE, enter 192.168.1.1 in the address bar and press Enter. Internet 3.
  • Page 12 4. Select LOID, SN or SLID according to the authentication type provided by your ISP, enter relevant information in the corresponding field and click OK. Screen below displays the Authenticated status. Internet Setup Tips: 1. Three authentication types are available here: LOID, SN and SLID. Please select the corresponding authentication type according to Internet setup information provided by your ISP.

  • Page 13: Step 3: Dial Up To Connect To The Internet

    Step 3: Dial up to Connect to the Internet Following demos show how to dial up to connect to the Internet in Windows 8, Windows 7 or Windows XP. Configurations steps vary in other operation systems. Windows 8 ❶ Move your mouse cursor into the bottom left corner till the Start icon displays.
  • Page 14 Internet Setup...
  • Page 15 Internet Setup ❸ Click Connect to the Internet > Next. ❹ Click Broadband (PPPoE).
  • Page 16 Internet Setup ❺ Enter the user name and password your ISP has provided, check Remember this password and click Connect.
  • Page 17 ❻ Click Skip > Close. Internet Setup...
  • Page 18 ❼ Click the icon on the bottom right corner of your computer, select Broadband Connection and click Connect. Internet Setup ❽ If you have entered the ISP user name or password previously, just click Connect. If you’ve just left the ISP user name or password blank, enter the ISP username and password here and then click OK.

  • Page 19: Windows 7

    If it displays Connected as shown below, you can surf the Internet normally. Internet Setup Windows 7 ❶ Click the icon on the bottom left corner of your desktop. ❷ Click Control Panel > Network and Internet > Network and Sharing Center > Set up a new connection or network.
  • Page 20 Internet Setup ❹ Click Broadband (PPPoE). ❺ Enter the user name and password your ISP has provided, check Remember this password and click Connect.
  • Page 21 Internet Setup...
  • Page 22 ❻ Click Skip > Close. Internet Setup...
  • Page 23 ❼ Click the icon on the bottom right corner of your computer, select Broadband Connection and click Connect. Internet Setup ❽ If you have entered the ISP user name or password previously, just click Connect. If you just leave them blank, enter the ISP username and password here and then click Connect.

  • Page 24: Windows Xp

    If it displays Connected as shown below, you can surf the Internet normally. Internet Setup Windows XP ❶ Right click My Network Places and select Properties.
  • Page 25 ❷ Click Create a new connection. Internet Setup ❸ Click Next.
  • Page 26 ❹ Select Connect to the Internet and click Next. Internet Setup ❺ Select Set up my connection manually and click Next.
  • Page 27 ❻ Select Connect using a broadband connection that requires a user name and password and click Next. Internet Setup ❼ Type in the name of your ISP, say SKY, and click Next.
  • Page 28 ❽ Type in an ISP user name and password or leave them blank temporarily, and click Next. Internet Setup ❾ Check Add a shortcut to this connection to my desktop and click Finish.
  • Page 29 ❿ If you have entered the ISP user name or password previously, just click Connect. If you just leave them blank, enter the ISP username and password here and then click Connect. Internet Setup Tips: To connect to the Internet next time, right click My Network Places and select Properties to go for dial-up connection or directly click the icon on your desktop to dial up to connect to the Internet.

  • Page 30: Chapter Iii Function Brief

    Chapter III Function Brief 1. Internet Setup This page allows you to register your ONU device. Function Brief Parameters on this page are described below: Parameter Description After connecting the fiber to the ONU device, only when you have authenticated your ONU device to the ISP OLT, can your ONU device access the Internet.

  • Page 31: Slid

    registration, and then click OK. Screen below displays the Authenticated status. Function Brief 1.2 SN SN, serial number authentication. When SN is selected, enter SN information provided by your ISP for registration, and then click OK. Screen below displays the Authenticated status. 1.3 SLID SLID, password authentication.

  • Page 32: System Status

    ISP for registration, and then click OK. Screen below displays the Authenticated status. Function Brief 2. System Status Click System Status to view device information. Parts of parameters on this page are described below: Parameter Description...

  • Page 33: Device Management

    ONU Register Display this device’s current register status. When Registered is Status displayed, it means you can dial up to connect to the Internet. ONU ID Display the ONU ID, i.e., ONU ID distributed by OLT. Display this device’s laser status. ...
  • Page 34 Function Brief...

  • Page 35: Change Login Password

    3.1 Change Login Password To prevent others from accessing your device’s web management page to modify settings without your permission, we strongly recommend you change your login password. Click Device Management to enter screen below: Tips: 1. The default login password is admin (case-sensitive). Function 2.

  • Page 36: Device Manage

    3.3 Device Manage Function Brief  Device Reboot When some settings are not activated or there goes something wrong with your device, you can reboot your device. Configuration Steps: ❶ Click Reboot; ❷ Click OK on the pop-up dialogue box. ...
  • Page 37 instructions to export logs.  Firmware Upgrade If your device is in normal operation, it is not advisable to upgrade your device. If you want to acquire the latest software version or better value-added functions for your device, you can access our official website www.tendacn.com to download the latest software for upgrading.

  • Page 38: Chapter Iv Appendix

    Chapter IV Appendix 1. Configure PC 1.1 Windows 8 Appendix ❶ Right click the icon on the bottom right corner of your desktop. ❷ Click Open Network and Sharing Center. ❸ Click Ethernet > Properties. ❹ Find and double click Internet Protocol Version 4(TCP/IPv4).
  • Page 39 Appendix ❺ Select Use the following IP address, type in the IP address: 192.168.1.x (2~254), Subnet mask: 255.255.255.0 and click OK.

  • Page 40: Windows 7

    ❻ ❹ Click OK on the Ethernet Properties window (see step for the screenshot). 1.2 Windows 7 ❶ Click the icon on the bottom right corner of your desktop. ❷ Click Open Network and Sharing Center. Appendix Tips: If you cannot find the icon on the bottom right corner of your desktop, follow steps below: Click Start >...
  • Page 41 Appendix ❺ Select Use the following IP address, type in the IP address: 192.168.1.x (2~254), Subnet mask: 255.255.255.0 and click OK. ❻ ❹ Click OK on the Local Area Connection Properties window (see step for the screenshot).

  • Page 42: Windows Xp

    1.3 Windows XP ❶ Right click My Network Places on your desktop and select Properties. Appendix ❷ Right click Local Area Connection and select Properties. ❸ Scroll down to find and double click Internet Protocol (TCP/IP).
  • Page 43 Appendix ❹ Select Use the following IP address, type in the IP address: 192.168.1.x (2~254), Subnet mask: 255.255.255.0 and click OK. ❺ ❸ Click OK on the Local Area Connection Properties window (see step for the screenshot).
  • Page 44 If your problem is not covered here, please feel free to go to www.tendacn.com to find a solution or email your problems to: support@tenda.com.cn. We will be more than happy to help you out as soon as possible. Appendix Q 1: I entered 192.168.1.1 in the address bar but cannot access its web page. What should I A: Try the following solutions one by one: ❶...
  • Page 45 ❸ Verify the authentication information you’ve entered is correct; ❹ If your problem still exists, contact your ISP. Q 3: I’ve forgotten this device’s login password. What should I do? A: Pressing and holding the RST button on this device for over 4 seconds restores it to factory defaults.
  • Page 46 Q4: The device is correctly connected but cannot access the Internet. What should I do? ❶ Check whether LED indicators work normally or not. Normally, the POWER, PON LED stays solid, the LOS LED is off and LAN LED keeps blinking. When malfunction occurs, try below solutions one by one: ...

  • Page 47: Specifications

    3. Specifications Item Description Standard & Protocol ITU-T G.984 , ITU-T G.988 Dimensions 142mm*92mm*31mm 1 * PON port Ports Appearance 1 * RJ45 port LED Lights POWER, PON, LOS, LAN Appendix Downstream 2.5Gbps Transmission Rate Upstream 1.25Gbps Power Source 0 ℃ ~40 ℃ Operation 10%~90%RH, non-condensing Environment...
  • Page 48 4. Safety and Emission Statement CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Appendix NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
  • Page 49 NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. Appendix...
