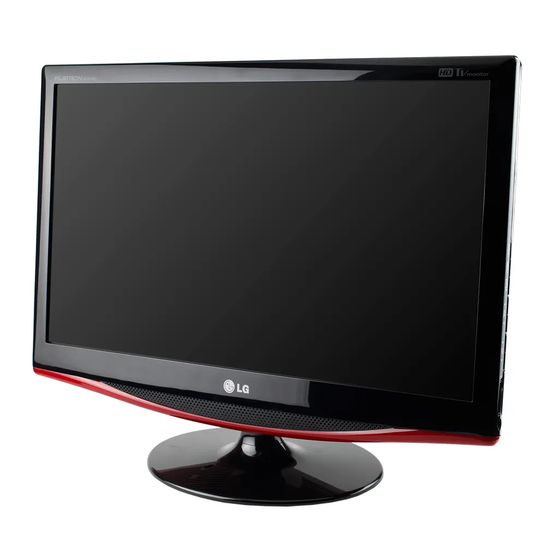

LG M237WD Owner's Manual
Hide thumbs
Also See for M237WD:
- Owner's manual (88 pages) ,
- Service manual (37 pages) ,
- Specifications (2 pages)
Related Manuals for LG M237WD
Summary of Contents for LG M237WD
- Page 1 Order Number : GETEC-C1-08-159 Test Report Number : GETEC-E3-08-069 FCC Class B Certification APPENDIX H : USER’S MANUAL EUT Type: LCD TV/Monitor FCC ID.: BEJM237WDJ...
- Page 2 OWNER’S MANUAL M237WD Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require...
-
Page 3: Front Panel Controls
PREPARATION FRONT PANEL CONTROLS ■ This is a simplified representation of the front panel. The image shown may be somewhat different from your set. INPUT Button MENU Button ENTER Button VOLUME Buttons PROGRAMME Buttons Power Button Headphone Button... -
Page 4: Back Panel Information
PREPARATION BACK PANEL INFORMATION ■ This is a simplified representation of the back panel. The image shown may be somewhat different from your set. COMPONENT AV-IN AUDIO IN (RGB/DVI) OPTICAL DIGITAL AUDIO OUT S-VIDEO HDMI IN RGB IN (PC) ANTENNA/ CABLE IN DVI-D IN (PC) SERVICE... -
Page 5: Stand Installation
PREPARATION STAND INSTALLATION ■ The image shown may be somewhat different from your set. Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage. Insert the stand base into the product Attach the monitor to the Stand Base by turning the screw to the right. -
Page 6: Detaching Stand
PREPARATION DETACHING STAND ■ The image shown may be somewhat different from your set. Place the set screen side down on a cushion or Detach the monitor to the Stand Base by turn- soft cloth. ing the screw to the left. Pull the stand base. -
Page 7: Desktop Pedestal Installation
PREPARATION WALL MOUNT: HORIZONTAL INSTALLATION For proper ventilation, allow a clearance of 4 inches on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide. 4 inches 4 inches 4 inches... -
Page 8: Positioning Your Display
We will not be held responsible for any damage resulting from failure to follow these instructions. < Screw Mounting Interface Dimension > * 75mm x 75mm hole spacing * Wall mount interface(LG) : RW120 RW120 Warning: When adjusting the angle of the... -
Page 9: Kensington Security System
PREPARATION KENSINGTON SECURITY SYSTEM - The product is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below. - For detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. -
Page 10: Antenna Connection
PREPARATION To prevent equipment damage, never plug in any power cords until you have finished connecting all equipment. ■ ANTENNA CONNECTION For optimum picture quality, adjust antenna direction. ■ An antenna cable and converter are not supplied. ■ Multi-family Dwellings/Apartments Wall ANTENNA/ (Connect to wall antenna socket) - Page 11 EXTERNAL EQUIPMENT SETUP To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. ■ The image shown may be somewhat different from your set. ■ HD RECEIVER SETUP When connecting with a component cable Connect the SET-TOP outputs to the COMPONENT IN VIDEO sockets (Y P ) on the set.
- Page 12 EXTERNAL EQUIPMENT SETUP When connecting with a HDMI Connect the HDMI output of the digital set-top box to the HDMI IN HDMI IN jack on the set. When connecting with a HDMI to DVI cable Connect the digital set-top box to HDMI IN jack on the set.
-
Page 13: Dvd Setup
EXTERNAL EQUIPMENT SETUP DVD SETUP When connecting with a component cable Connect the video output sockets (Y P ) of the DVD to the COMPONENT IN VIDEO sockets (Y P ) of the set. Connect the audio cable from the DVD to COMPONENT IN AUDIO sockets of the set. - Page 14 EXTERNAL EQUIPMENT SETUP When connecting S-Video Connect the S-Video output of the DVD to the S-Video in put on the set. Connect the audio output of the DVD to the AUDIO in put on the set. AV-IN S-VIDEO When connecting HDMI cable HDMI IN Connect the HDMI output of the DVD to the HDMI IN jack on the set.
-
Page 15: Vcr Setup
EXTERNAL EQUIPMENT SETUP VCR SETUP To avoid picture noise (interference), leave an adequate distance between the VCR and set. ■ Typically a still picture is shown on the VCR. If a user uses 4:3 picture format for a long time, an afterimage ■... - Page 16 EXTERNAL EQUIPMENT SETUP When connecting with a RCA cable Connect the audio/video out sockets of the VCR to AV-IN AUDIO/VIDEO in sockets of the set. S-VIDEO Press the INPUT button to select AV. Press the PLAY button on the VCR. The VCR playback picture appears on the screen.
- Page 17 EXTERNAL EQUIPMENT SETUP PC SETUP This product provides Plug and Play capability, meaning that the PC adjusts automatically to the set's settings. When connecting with a D-sub 15 pin cable Connect the signal cable from the monitor output socket of AUDIO IN the PERSONAL COMPUTER to the PC input socket of the set.
- Page 18 EXTERNAL EQUIPMENT SETUP When connecting with a DVI cable Connect the DVI output of the PC to the DVI-D IN jack on the set. AUDIO IN (RGB/DVI) Connect the audio cable from the PC to the AUDIO IN (RGB/DVI) sockets of the set. AUDIO DVI OUTPUT NOTE...
-
Page 19: Back Cover For Wire Arrangement
BACK COVER FOR WIRE ARRANGEMENT Tie cables together with a cable tie as shown in the illustration. Cable tie... - Page 20 EXTERNAL EQUIPMENT SETUP RGB/DVI[PC] Horizontal Vertical Resolution Frequency(kHz) Frequency(Hz) 720x400 31.468 31.469 640x480 37 .500 37 .879 800x600 46.875 48.363 1024x768 60.123 67 .500 1 152x864 63.981 1280x1024 79.976 64.674 1680x1050 65.290 1600x1200 75.000 66.587 1920x1080 HDMI[DTV] supported mode Horizontal Vertical Resolution Frequency(kHz)
-
Page 21: Screen Setup For Pc Mode
EXTERNAL EQUIPMENT SETUP SCREEN SETUP FOR PC MODE Screen Reset Returns Position, Size and Phase to the default factory settings. This function works in the following mode: RGB[PC]. PICTURE SCREEN Move Enter Move BACK Prev. • Contrast : 90 Resolution •... - Page 22 EXTERNAL EQUIPMENT SETUP Adjustment for screen Position, Size, Phase If the picture is not clear after auto adjustment and especially if characters are still shaky, adjust the pic- ture phase manually. This function works in the following mode: RGB[PC]. PICTURE SCREEN Prev.
-
Page 23: Selecting Resolution
EXTERNAL EQUIPMENT SETUP Selecting Resolution To view a normal picture, match the resolution of RGB mode and selection of PC mode. This function works in the following mode: RGB[PC] mode. PICTURE SCREEN Move Enter Move Prev. BACK • Contrast : 90 Resolution 1400 x 1050 •... - Page 24 EXTERNAL EQUIPMENT SETUP Auto Configure (RGB [PC] mode only) Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, your set is functioning properly but needs further adjustment. Auto configure This function is for automatic adjustment of the screen position, clock, and phase The displayed image will be unstable for a few seconds while the auto configuration is in progress.
- Page 25 EXTERNAL EQUIPMENT SETUP 2. Using OK(Remocon or control key) This function is available for RGB signals only. Auto Config. If you don’t want Auto Configure, do • Press ENTER. ENTER not press OK Auto in Progress Auto in Progress Press ENTER. ENTER For optimal display <1920 x 1080 Resolution>...
-
Page 26: Remote Control Key Functions
WATCHING TV /PROGRAMME CONTROL REMOTE CONTROL KEY FUNCTIONS When using the remote control, aim it at the remote control sensor on the set. POWER Turns your set on or off. POWER TV/PC Selects TV or PC mode. TV/PC INPUT Switches the set on. PICTURE SOUND RATIO INPUT... -
Page 27: Turning On The Tv
WATCHING TV /PROGRAMME CONTROL TURNING ON THE TV - If your TV is turned on, you will be able to use its features. POWER First, connect power cord correctly. TV/PC INPUT PICTURE SOUND RATIO Turn on power by pressing the power button on the product. Press the TV/PC button on the remote control. -
Page 28: Volume Adjustment
WATCHING TV /PROGRAMME CONTROL CHANNEL SELECTION POWER TV/PC INPUT Press the CH + or - or NUMBER buttons to select a PICTURE SOUND RATIO programme number. VOLUME ADJUSTMENT FLASHBK Press the VOL + or - button to adjust the volume. If you want to switch the sound off, press the MUTE button. - Page 29 WATCHING TV /PROGRAMME CONTROL QUICK MENU / FAVORITE CHANNEL SETUP Your set’s OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently. Aspect Ratio: Selects your desired picture format. ■...
-
Page 30: On Screen Menus Selection And Adjustment
WATCHING TV /PROGRAMME CONTROL ON SCREEN MENUS SELECTION AND ADJUSTMENT Your set's OSD ( On Screen Display ) may differ slightly from what is shown in this manual. CHANNEL Move Enter PICTURE Move Enter Auto tuning Aspect Ratio : 16:9 Manual tuning Picture Mode : Vivid... -
Page 31: Auto Programme Tuning
WATCHING TV /PROGRAMME CONTROL AUTO PROGRAMME TUNING Use this to automatically find and store all available programmes. When you start auto programming in digital mode, all previously stored service information will be deleted. CHANNEL CHANNEL Move Enter Move Enter Auto tuning Auto tuning Auto tuning Auto tuning... -
Page 32: Manual Tuning
WATCHING TV /PROGRAMME CONTROL MANUAL TUNING If selecting DTV or TV or CADTV or CATV input signal, you can view the on-screen signal strength monitor to see the quality of the signal being received. CHANNEL CHANNEL Move Enter Move Enter Auto tuning Auto tuning Manual tuning... -
Page 33: Picture Control
PICTURE CONTROL PICTURE SIZE (ASPECT RATIO) CONTROL You can watch the screen in various picture formats; Set By Program, 4:3, 16:9, Zoom1/2. If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible. - Page 34 PICTURE CONTROL Auto Colour Tone Control (Warm/Medium/Cool) Choose one of three automatic colour adjustments. Set to warm to enhance warm colours such as red, or set to cool to see less intense colours with more blue. PICTURE PICTURE Move Move Enter Enter Color Temperature...
-
Page 35: Input Label
PARENTAL CONTROL / RATINGS INPUT LABEL Selects a label for each input source. OPTION OPTION Move Enter Move Enter Language : English Language : English Input Label Input Label Input Label Input Label Component Key Lock : Off Key Lock : Off RGB-PC Caption... - Page 36 PARENTAL CONTROL / RATINGS Analog Broadcasting System Captions Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying cap- tioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.
-
Page 37: Digital Broadcasting System Captions
PARENTAL CONTROL / RATINGS Digital Broadcasting System Captions Choose the language you want the DTV/CADTV Captions to appear in. Other Languages can be chosen for digital sources only if they are included on the program. This function in only available when Caption Mode is set On. OPTION OPTION Move... -
Page 38: Caption Option
PARENTAL CONTROL / RATINGS Caption Option Customize the DTV/CADTV captions that appear on your screen. This function in only available when Caption Mode is set On. Custom OPTION OPTION Move Enter Move Enter Size A Standard Language : English Language : English Font Font 1... - Page 39 PARENTAL CONTROL / RATINGS POWER INDICTOR It helps you control LED when power is turned on. OPTION OPTION Move Enter Move Enter Language : English Language : English Input Label Input Label Key Lock : Off Key Lock : Off Caption : Off Caption...
-
Page 40: Block Channel
PARENTAL CONTROL / RATINGS BLOCK CHANNEL Blocks any programmes that you do not want to watch or that you do not want your children to watch. This function is available in Lock System “On”. LOCK Move Enter Lock System : Off Set Password Block Channel Block Channel... -
Page 41: Movie Rating
PARENTAL CONTROL / RATINGS MOVIE RATING Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas. - Page 42 PARENTAL CONTROL / RATINGS TV RATING-CHILDREN Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi- ences in the TV Rating - sub menu, your children can view those programs.
- Page 43 PARENTAL CONTROL / RATINGS TV RATING-GENERAL Based on the ratings, blocks certain TV programs that you and your family do not want to view. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password Block Channel Block Channel...
- Page 44 PARENTAL CONTROL / RATINGS DOWNLOADABLE RATING This function may become available in the future and will be available only for digital channel signal. This function operates only when TV has received Region5 Rating data. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System...
-
Page 45: Input Block
PARENTAL CONTROL / RATINGS INPUT BLOCK Enables you to block an input. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password Component Block Channel Block Channel RGB-PC Movie Rating Movie Rating HDMI1 TV Rating-Children TV Rating-Children... -
Page 46: Troubleshooting
APPENDIX TROUBLESHOOTING The operation does not work normally. Check to see if there is any object between the product and the remote control caus- ing obstruction. Ensure you are pointing the remote control directly at the set. The remote control Ensure that the batteries are installed with correct polarity (+ to +, - to -). - Page 47 APPENDIX The audio function does not work. Press the VOL + or - button. Sound muted? Press MUTE button. Picture OK & No sound Try another channel. The problem may be with the broadcast. Are the audio cables installed properly? No output from one Adjust Balance in menu option.
- Page 48 APPENDIX ‘Unknown Product’ message appears when the product is connected. Install the product driver, which is provided with the product, or download it from the web site. Did you install the driver? (http://www.lge.com) See if the plug_&_play function is supported by referring to the video card user’s guide.
-
Page 49: Cleaning The Screen
APPENDIX MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new set. Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen To keep the dust off your screen for a while, wet a soft cloth in a mixture of lukewarm water and a little fab- ric softener or dishwashing detergent. -
Page 50: Product Specifications
APPENDIX PRODUCT SPECIFICATIONS Screen Type LCD Panel 23 inches Wide (584.2 mm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Visible diagonal size : 584.2 mm Pixel Pitch 0.266(H) x 0.266(V) mm Video Signal Max. Resolution 1920 X 1080 @60 Hz Recommended Resolution 1920 X 1080 @60 Hz Horizontal Frequency... -
Page 51: Programming The Remote Control
APPENDIX PROGRAMMING THE REMOTE CONTROL The remote is a multi-brand or universal remote. It can be programmed to operate most remote- controllable devices of other manufacturers. Note that the remote may not control all models of other brands. Programming a code into a remote mode Test your remote control. -
Page 52: External Control Device Setup
APPENDIX EXTERNAL CONTROL DEVICE SETUP RS-232C Setup Connect the RS-232C (serial port) input jack to an RS-232C IN (CONTROL & SERVICE) external control device (such as a computer or an A/V control system) to control the product’s functions externally. Connect the serial port of the control device to the RS-232C jack on the product back panel. - Page 53 APPENDIX Set ID Use this function to specify a set ID number. Refer to ‘Real Data Mapping’. p. 84 OPTION OPTION Move Enter Move Enter Language : English Language : English Input Label Input Label Key Lock : Off Key Lock : Off Caption : Off...
-
Page 54: Communication Parameters
APPENDIX Communication Parameters Baud rate : 9600 bps ( UART ) Stop bit : 1 bit Data length : 8 bits Communication code : ASCII code Parity : None Use a crossed (reverse) cable. Command Reference List Transmission / Receiving Protocol Transmission COMMAND COMMAND... -
Page 56: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 57 Regulatory Information cont. Why do we have environmentally labelled computers? visual ergonomics. In many countries, environmental labelling has become an established method for encouraging the adaptation of Below you will find a brief summary of the ecological goods and services to the environment. With the growing requirements met by this product.
- Page 58 Congratulations! Information for Environmental Preservation The display you have just purchased carries the TCO’03 LGE. announced the 'LG Declaration for a Cleaner Displays label. Environment' in 1994, and this ideal has served as a This means that your display is designed,manufactured guiding managerial principle ever since.
- Page 59 à la fois les aspects Informationen zur Erhaltung der Umwelt économiques et sociaux de nos activités, tout en Im Jahr 1994 verkündete LGE die 'LG Declaration for a respectant l’environnement. Cleaner Environment' (LG Erklärung für eine sauberere Umwelt).
- Page 60 La LGE. ha annunciato nel 1994 la cosiddetta 'LG Declaration for a Cleaner Environment' (Dichiarazione di Promocionamos actividades orientadas a la conservación LG a favore di un ambiente più pulito), un ideale che da del medio ambiente y desarrollamos nuestros productos allora funge da principio ispiratore della gestione específicamente para que se ajusten a la filosofía que...
- Page 61 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', het milieu ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË Environment' (de LG-verklaring met betrekking tot een Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ...
- Page 62 ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡. «‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í (EPA applied model only) ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ ÍÓÔÓ‡ˆËË LG. is a set of power-saving guidelines NERGY issued by the U.S. Environmental Protection Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ...
- Page 63 Regulatory Information cont. WEEE un bidone della spazzatura barrato da una croce (for Europe ) significa che il prodotto è coperto dalla direttiva europea 2002/96/EC. 2.Tutti i prodotti elettrici ed elettronici dovrebbero essere smaltiti separatamente rispetto alla raccolta differenziata municipale, mediante impianti di raccolta specifici designati dal governo o dalle autorità...
- Page 64 Regulatory Information cont. 4.Wilt u meer informatie over de verwijdering van eller de lokale myndigheder. uw oude toestel? Neem dan contact op met uw 3.Korrekt bortskaffelse af dit gamle apparat er med gemeente, de afvalophaaldienst of de winkel til at forhindre mulige skadevirkninger på miljøet waar u het product hebt gekocht.
- Page 65 Regulatory Information cont. Portuguese Hungarian Slovak Polish Czech Croatian...
- Page 66 Regulatory Information cont. Estonian Latvian Lithuanian...
