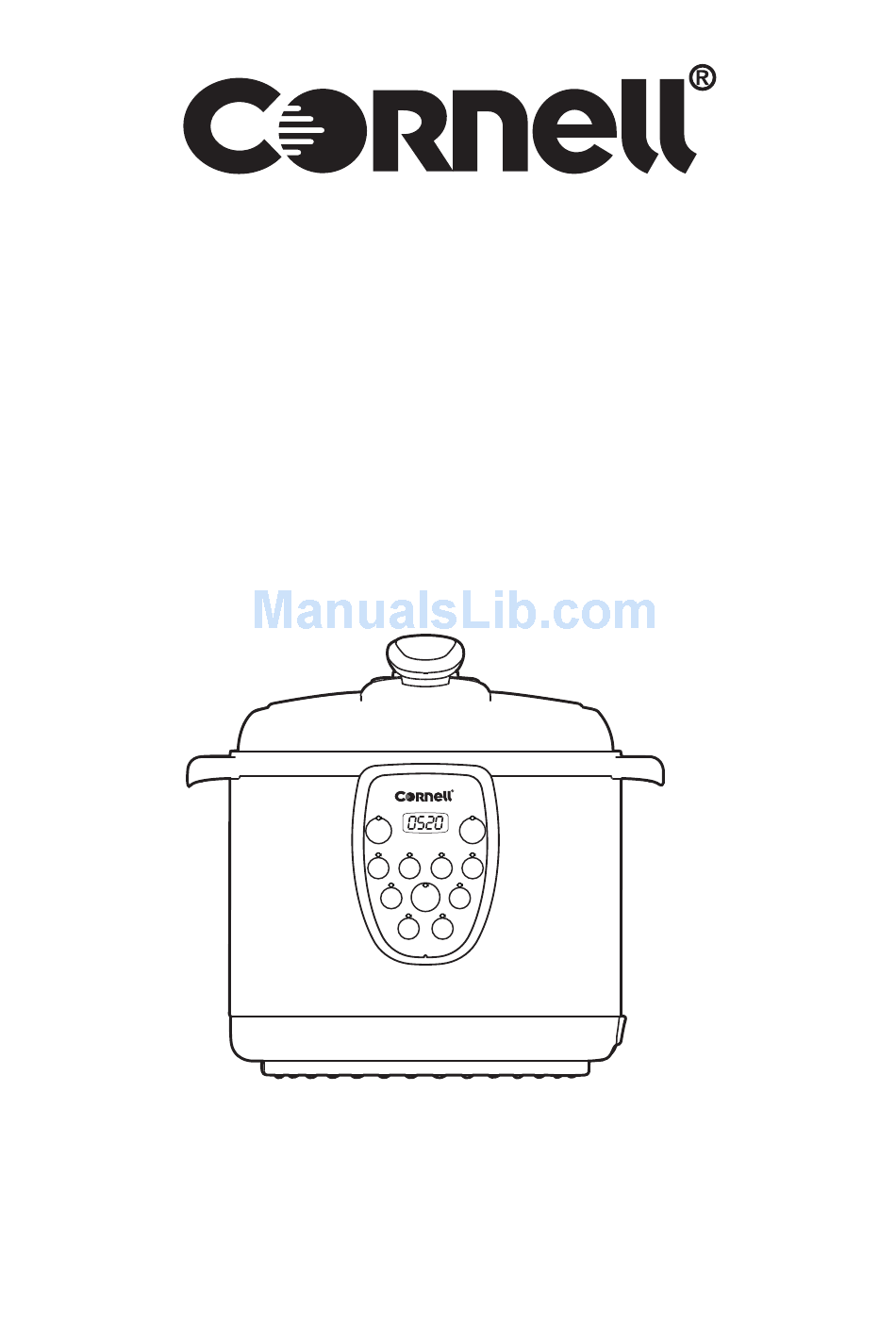

- Page 1 DIGITAL PRESSURE COOKER MODEL: CPC-P60CSS INSTRUCTION MANUAL Please read the Instruction manual and warranty information carefully before using and keep it for future reference.
- Page 3 Contents 1. Impotant Safety Instructions ..............01 2. Package Contents and Technical Specifications ........02 2.1 Package Contents .................02 2.2 Technical Specifications .................02 Product Diagram ..................03 3. Safety Features ..................04 ................04 3.1 Schematic Diagram 3.2 Lid Open/Close and Dismantle/Install Guide ..........04 4. Operating Instructions ..................05 ....................05 4.1 Before use...
-
Page 4: Impotant Safety Instructions
1. Impotant Safety Instructions READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. PLEASE KEEP THE INSTRUCTION MANUAL When using our product, basic precautions should always be followed, including the following: 1.This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Package Contents
2. Package Contents and Technical Specifications 2.1 Package Contents CPC-P60CSS Spoon Water Storage Power Cable Recipe Warranty SS Inner Pot Glass Lid 2.2 Technical Specifications Model CPC-P60CSS Voltage 220 240 V AC Frequency 50Hz Power 1 00 Capacity Diameter 2 cm... -
Page 6: Control Panel
2. Package Contents and Technical Specifications 2.3 Product Diagram Main Unit Handle Inner Pot Lower Body Outer Pot Side Handle Pressure Limiting Valve Upper Body Electronic Heater Floating Valve Control Panel Seal Belt Filter Floater Power Cable Seal Ring for Floating Valve Hinge Water Storage Sensor... -
Page 7: Safety Features
3. Safety Features 3.1 Schematic Diagram Plug Fuse Fuse Fuse Sensor Switch Power Indicator/Screen 220-240V~ Controller Electronic Heater Sensor 3.2 Safety Protections There are nine safety devices installed in the pressure cooker to assure its reliability. 1. Lid-locked detect device One switch installed behind the lid, Only the lid turn to the end position, to press the switch, the heating program will operating. -
Page 8: Operating Instructions
4. Operating Instructions 4.1 Before Use First time use Dismantle the packaging. Take out all package contents . Fix the Water Storage on the cooker. Clean all food contact components by soft cloth. Daily use Make sure that the Seal Belt is fitted onto the Check the Exhausting Hole, Floating Valve inner part of the Lid. -
Page 9: Lid Open/Close Guide
4. Operating Instructions 4.2 Lid Open/Close Guide How to open the Lid When the Lid of the cooker is at the closed Lid position, hold the Handle and turn it clockwise until reach to the end. Lastly, hold the Handle and pull it backward until the Lid is in vertical position. -
Page 10: Operation
4. Operating Instructions 4.3 Operation Open the Lid Hold the Handle and turn it clockwise until reaching the end position. Then, lift the Lid upward. Take the Inner Pot and place food and water into the Inner Pot. The amount of water and food shall not exceed 4/5 of the height of Inner Pot. - Page 11 4. Operating Instructions Close the Lid Make sure that the Seal Belt is fitted onto the inner part of the Lid. Move the Seal Belt inside the Lid to ensure that it is evenly fitted into the track. Hold the Lid's Handle and turn it downwards at the opened Lid position.
- Page 12 4. Operating Instructions Preset Timer Set the Preset Timer(If Preset Timer is not required, skip this step). Press “Preset Timer” button to increase the timer by 0.5- hour increments(or hold for rapid increase) up to a Max. 24-hours maximum of 24-hours. (The time that displays on the Screen shows how long user wants the cooker to wait before heating process starts).
- Page 13 4. Operating Instructions Choose the menu according to different recipes. How to use “Cake/Saute”. This menu includes two different functions: Cake and Saute. To cook the Cake, after place ingredients into the Inner Pot, please close the lid and adjust the Pressure Limiting Valve to “Exhaust”...
-
Page 14: Screen And Indicator Guide
4. Operating Instructions 4.4 Screen and Indicator Guide Screen After press the menu button, screen displays the cooking time and the indicator keep flash 2 seconds(for menu: Slow Cook, Steam, Pressurizing Time, it will keep flashing for 6 seconds), then screen turns to C000, the indicator light remains on, it means the heating process starts. -
Page 15: Keep Warm/Cancel
4. Operating Instructions 4.5 Keep Warm/Cancel When the cooking time finishes, automatically turns to Keep Warm mode for up to 24 hours, during the period, by pressing “Keep Warm/Cancel” button, the keep warm processes can be canceled. During the setting or cooking process, by pressing “Keep Warm/Cancel”... -
Page 16: Cleaning And Maintenance
5. Cleaning and Maintenance Cleaning Methods Unplug the power cable prior to cleaning. Brush the bottom of the cooker with a cloth. Never place the cooker into water or spray water on it. Take off and clean the water storage and wash it with a wet towel. Clean the inner side of the cooker, including the sealant washer, pressure discharging valve, anti-blocking case, steam relief pipe, floating valve with water and clean it with a cloth. - Page 17 5. Cleaning and Maintenance Turn the Lid and take it out. Then, take off the Pressure Limiting Valve, clean it with water. Turn the Filter anticlockwise to take it off, clean it with water. Then fix in the same position. Check and clean the Exhausting hole, Floater.
-
Page 18: Troubleshooting
6. Troubleshooting Please use this chart to troubleshoot common problems of using Primada Speedy Refine Cooker Malfunction Possible causes Solutions Seal Belt is not properly fitted Fit in the Seal Belt properly Difficulty in closing the lid Floating valve stuck on the bar Push the bar gently Spank the cooker several Difficulty in opening...
