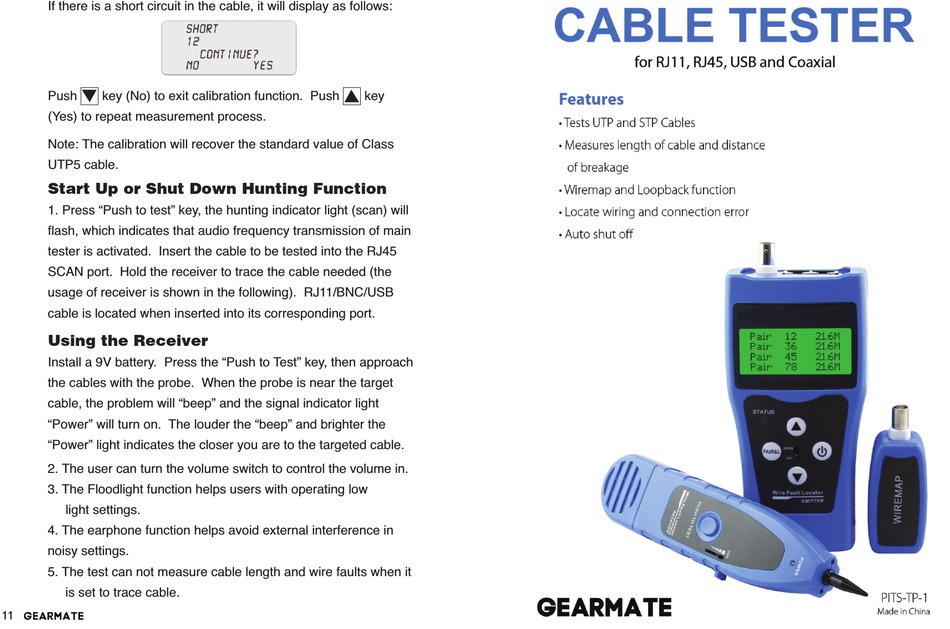

If there is a short circuit in the cable, it will display as follows:
Push
key (No) to exit calibration function. Push
(Yes) to repeat measurement process.
Note: The calibration will recover the standard value of Class
UTP5 cable.
Start Up or Shut Down Hunting Function
1. Press "Push to test" key, the hunting indicator light (scan) will
flash, which indicates that audio frequency transmission of main
tester is activated. Insert the cable to be tested into the RJ45
SCAN port. Hold the receiver to trace the cable needed (the
usage of receiver is shown in the following). RJ11/BNC/USB
cable is located when inserted into its corresponding port.
Using the Receiver
Install a 9V battery. Press the "Push to Test" key, then approach
the cables with the probe. When the probe is near the target
cable, the problem will "beep" and the signal indicator light
"Power" will turn on. The louder the "beep" and brighter the
"Power" light indicates the closer you are to the targeted cable.
2. The user can turn the volume switch to control the volume in.
3. The Floodlight function helps users with operating low
light settings.
4. The earphone function helps avoid external interference in
noisy settings.
5. The test can not measure cable length and wire faults when it
is set to trace cable.
11
key
Advertisement
Related Manuals for Gearmate PITS-TP-1
Summary of Contents for Gearmate PITS-TP-1
- Page 1 If there is a short circuit in the cable, it will display as follows: Push key (No) to exit calibration function. Push (Yes) to repeat measurement process. Note: The calibration will recover the standard value of Class UTP5 cable. Start Up or Shut Down Hunting Function 1.
- Page 2 Calibration and Setup Function Entering the calibration and setup function, the tester will display PLEASE READ INSTRUCTIONS as follows: CAREFULLY BEFORE OPERATING EQUIPMENT Unit: is used to select length unit M (Meter) and Ft (Feet). • The tester uses 9V battery for power supply. Calibration: is used for calibrating.
- Page 3 Test Result 1: Display paired lines and length first then unpaired lines as bnormal Pair & Length shown below: The last line (78 ) indicates no pair was found in lines 7 and 8. Table of ontents Push key, to display length of unpaired line number as shown below.
- Page 4 Overview PITS-TP-1 is a convenient cable tester for RJ11, RJ45, Pair & Length Functions Measuring length of cable uses only Main Tester, no remote USB, coaxial connection in addition to measuring the length identifier required. Entering Pair & Length function will display of a cable.
- Page 5 Main functions and features Test Result 4: Open Circuit, Far-End • Requires only one person to complete cable continuity check. • Directly hunt Cat5e/Cat6, telephone wire, coaxial cable, USB cable and other cables. • Check wiring error in Cat5e/Cat6, coaxial cable for open circuit, “R”...
- Page 6 Test Result 1: Short Circuit (SHORT) If any short circuit is found in the cable, the display will read as Compatible Test Cables STP/UTP cable, coaxial cable. follows: (e.g. 12 short circuit) Detectable Cables Cat5e/Cat6, telephone wire, coaxial cable, USB cable and other metal wires.
- Page 7 Product Operation Methods Boot Screen: Product Interface Diagram Carry out self-checking at the same time (Dotted line dynami- cally displays the course of self-checking from left to right): Wait 5 seconds or push any button to display main menu. Main menu display: Main Menu Functions 1.
