Solace SIC3-RFK Installation Manual

MODULE
DIAGNOSTICS
PROGRAMMING
solaceremotestarters.com
MODEL SIC3-RFK
A
B
LED'S
C
D
RED LED (FLASHING / ON)
1x / Sec. Power On
On Ignition On (Data / Analog)
DATA PROTOCOL SELECTION
1 Leave Ignition in OFF position
2 Press programming button (antenna button) 8x within 10 seconds (White LED on SIC3-RFK
flash 1x)
3 Choose your protocol below by pressing the programming button:
Option 2 - Press 2x - iData Telematics (Default)
Option 4 - Press 4x - iData / Fortin RF
Option 6 - Press 6x - D2D
Option 8 - Press 8x - Future Use
4 After 5 seconds White LED will flash according your selection.
REMOTE PROGRAMMING
1 Turn Igntion ON-OFF-ON (Analog Ignition connection may be required)
2 Press and hold the programming button (White LED will illuminate on SIC3-RFK)
3 After 3 Seconds the White LED will flash 1x. Release antenna button and press Lock on each
transmitter to be programmed. (White LED on SIC3-RFK flash 1x for each remote programmed)
4 Turn Ignition to OFF
(When using iData/Fortin RF protocol, the Solace remotes need to be programmed to bypass module. See
manufacturer's guide for details)

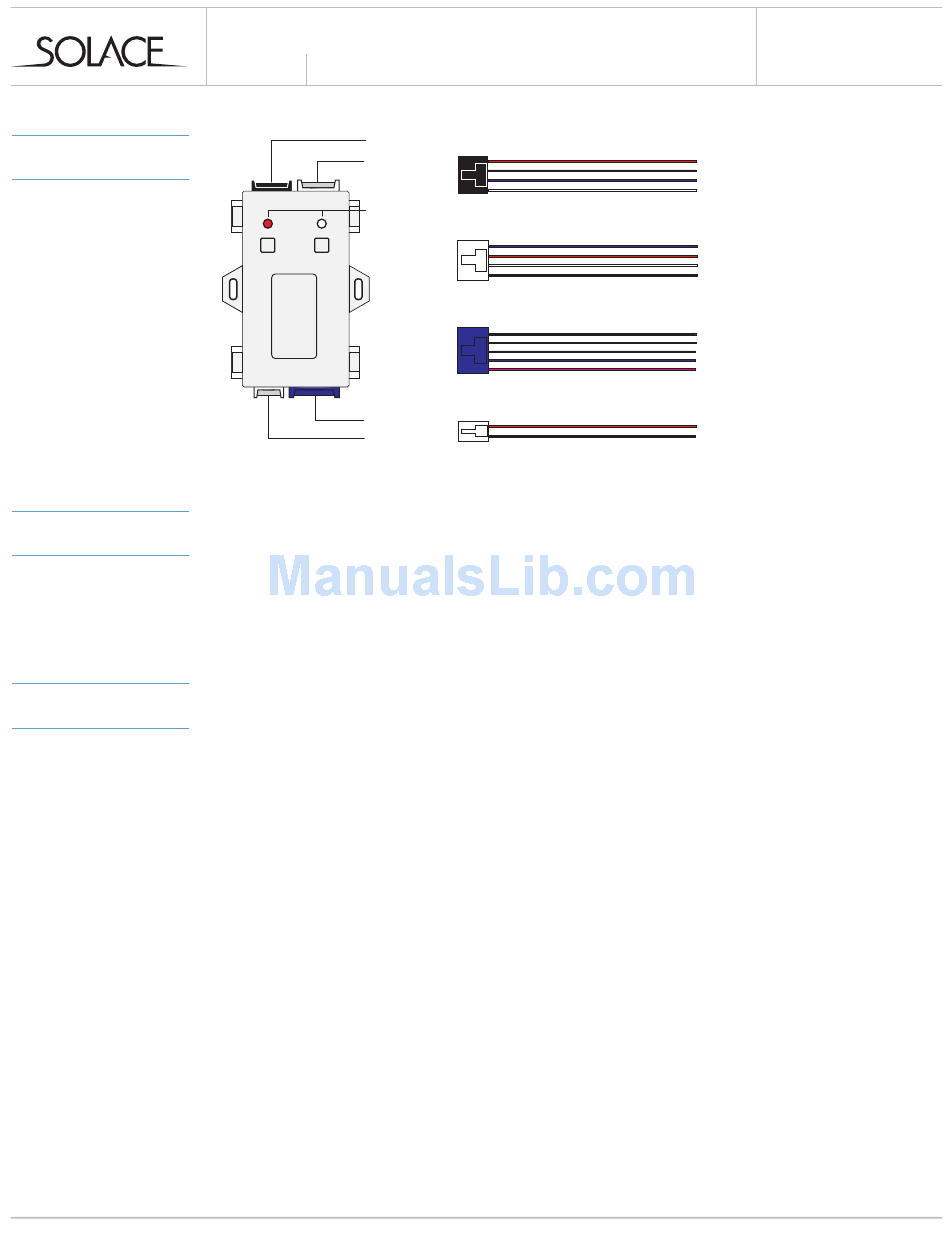

CONNECTOR A (BLACK 4 PIN)
CONNECTOR B (WHITE 4 PIN)
CONNECTOR C (BLUE 5 PIN)
CONNECTOR D (WHITE 2 PIN)
WHITE LED (FLASHING)
1x Data communication from connected
device (after remote function or status from car).
2x - 4x Programming
INSTALLATION
GUIDE
TO BYPASS MODULE OR REMOTE STARTER
TO SOLACE ANTENNA ( NOT INCLUDED )
GRAY / BLACK - START / STOP (-)
WHITE / BLACK - TRUNK RELEASE (-)
GREEN - LOCK (-)
BLUE - UNLOCK (-)
PINK - IGNITION INPUT (+)
RED - 12V INPUT (+)
BLACK - CHASSIS GROUND (-)
REV112316
