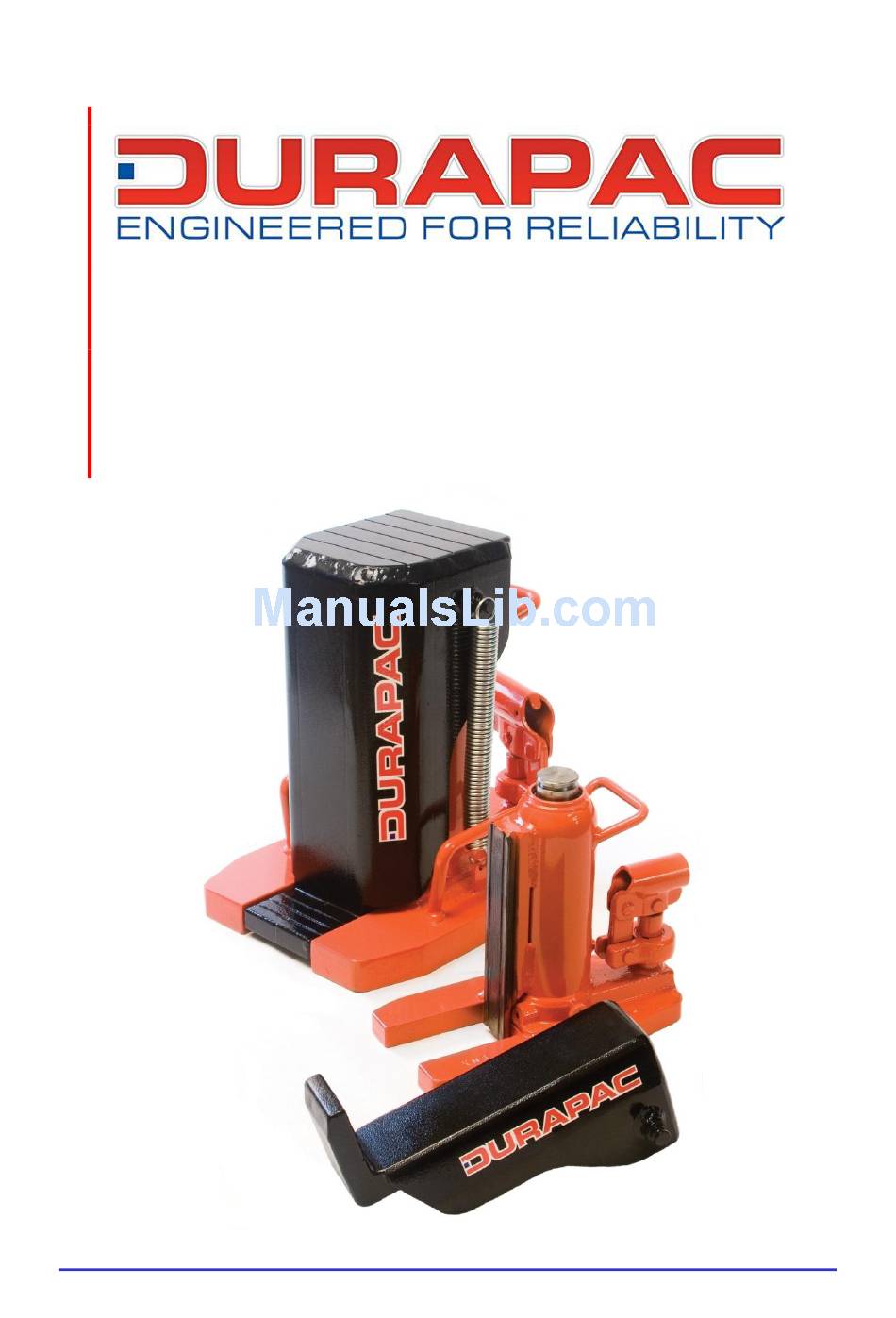

- Page 1 Instruction Manual Manual Hydraulic Toe Jack Model – DTJ Series ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
- Page 2 The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your toe jack’s suitability for a particular application.
- Page 3 Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil CAUTION: ...
- Page 4 4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your toe jack, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. Toe Lift...
- Page 5 Note: The release valve should not be closed abruptly (except in an emergency) since this shock loads the hydraulic system. 5.2.5 After use, the jack should be stored with the load piston and pump piston both fully retracted. DTJ Series Toe Jacks - V1.0 www.durapac.com Page 5 of 12...
- Page 6 Equipment must only be serviced by a qualified hydraulic technician. For repair service, contact your local Durapac authorised service centre The greatest single cause of failure in hydraulic systems is dirt; keep the jack clean and well lubricated to prevent foreign matter from entering the system. If the jack has been exposed to rain, snow, sand or grit, it must be cleaned before and after each use.
- Page 7 Jack will not retract or Release valve is closed Open release valve retracts slowly Cylinder damaged internally Send to a Durapac authorised service centre for repair Reservoir too full Drain oil to correct level DTJ Series Toe Jacks - V1.0 www.durapac.com...
- Page 8 Instruction Manual 8.0 Parts Breakdown and List 8.1 DTJ-2.5 Item Description Qty Item Description Body combination 15 Fixed bolt Steel ball 16 Fixed bolt Spring 17 Oil bung* O-ring* 18 Toe-lift Bolt 19 Stop-ring Bolt 20 Up lining ring O-ring*...
- Page 9 11 Omnibearing ring 26 Metal ring 12 Stop-ring 27 C type ring 13 Oil bung* 28 Rocker bar 14 C type ring 29 S spring 15 C type ring DTJ Series Toe Jacks - V1.0 www.durapac.com Page 9 of 12...
- Page 10 25 Seal* 11 Omnibearing ring 26 Metal ring 12 Stop-ring 27 C type ring 13 Oil bung* 28 Rocker bar 14 C type ring 29 S spring 15 Rocker joint DTJ Series Toe Jacks - V1.0 www.durapac.com Page 10 of 12...
- Page 11 23 Piston 10 C type ring 24 Seal* 11 Omnibearing ring 25 Metal ring 12 Stop-ring 26 C type ring 13 Oil bung* 27 S spring 14 C type ring DTJ Series Toe Jacks - V1.0 www.durapac.com Page 11 of 12...
- Page 12 29 Connector bar 10 Rocker joint 20 Plug Items marked with a * are contained within a standard Repair Kit. Serial number and model need to be quoted when ordering parts. DTJ Series Toe Jacks - V1.0 www.durapac.com Page 12 of 12...
