USER'S MANUAL
SPECIFICATIONS
Reservoir Capacity:
1.9 quarts
(1.8 liters)
Bleed Tube Length:
72 in. (1830 cm)
Evac Tube Length:
48 in. (1220 cm)
Working Pressure:
60 to 150 psi
(4.1 to 10.3 bar)
Air Consumption:
4.3 scfm @ 90 psi
(2.0 l/s @ 6.2 bar)
Vacuum
@ 30 psi (2.0 bar):
6.5 in. hg (22 kpa)
@ 60 psi (4.1 bar):
16.5 in. hg
(56 kpa)
@90 psi (6.2 bar):
26.5 in. hg
(90 kpa)
@150 psi (10.3 bar):
27 in. hg (91 kpa)
Fill Rate
@ 30 psi (2.0 bar):
24.5 oz/min
(725 ml/min.)
@ 60 psi (4.1 bar):
49.5 oz/min
(1460 ml/min.)
@90 psi (6.2 bar):
70.5 oz/min
(2095 ml/min.)
@150 psi (10.3 bar):
70.5 oz/min
(2095 ml/min.)

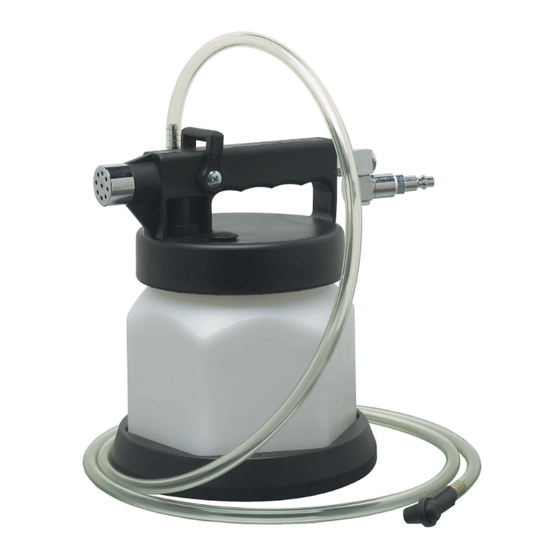

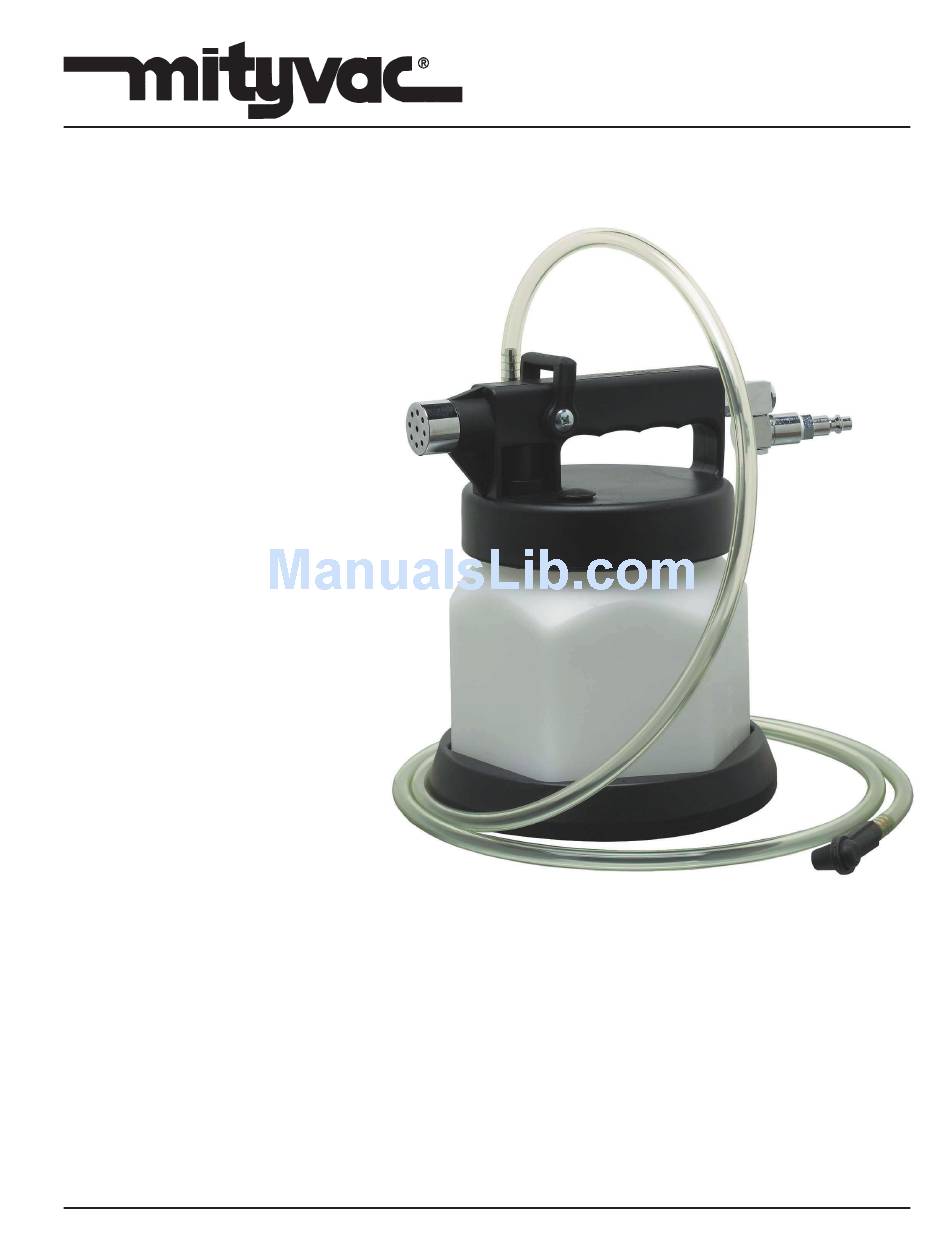

VACUUM BRAKE BLEEDER
MODEL MV6830
- MV26
Section
- 1B
Page
Advertisement
Related Manuals for Mityvac MV6830
Summary of Contents for Mityvac MV6830
- Page 1 VACUUM BRAKE BLEEDER MODEL MV6830 USER’S MANUAL SPECIFICATIONS Reservoir Capacity: 1.9 quarts (1.8 liters) Bleed Tube Length: 72 in. (1830 cm) Evac Tube Length: 48 in. (1220 cm) Working Pressure: 60 to 150 psi (4.1 to 10.3 bar) Air Consumption: 4.3 scfm @ 90 psi...
- Page 2 15© BRAKE BLEEDER KIT COMPONENTS Item Part No. Description Item Part No. Description 822664 BRAKE BLEEDING ADAPTER 822705 O-RING KIT 822694 BLEEDING TUBE KIT 822706 RESERVOIR GASKET KIT 822700 VALVE KIT 822709 MUFFLER KIT 822701 BASE KIT 822722 SUCTION TUBE KIT 822702 COUPLER SWIVEL KIT 822731 FLOAT KIT 822703 COUPLER KIT...
-
Page 3: Important Precautions
Instructions for Bleeding Brakes Important Precautions • Always read carefully and understand instruc- IMPORTANT: This unit is designed for servicing a tions prior to using this equipment variety of vehicles in a safe, convenient manner. • Brake fluid is highly corrosive. Wear gloves and However, options such as load sensors or anti- approved safety goggles at all times, and pre- lock brakes, available on many automobiles, may... - Page 4 Vacuum bleed brake lines and wheel indicate a malfunction. To prevent or reduce this introduction of air, coat the bleed screw threads brake cylinders with silicon grease prior to bleeding. Note: Prior to bleeding, ensure the master cylinder is full of new manufacture’s recommended brake 7.
- Page 5 Note: It is important to ensure that the bleed clutch system. Additional automatic refill kits are screw adapter remains connected to the bleed available from Mityvac. screw, and the bleeder is still pulling a vacuum while the bleed screw is closed. This prevents 1.
