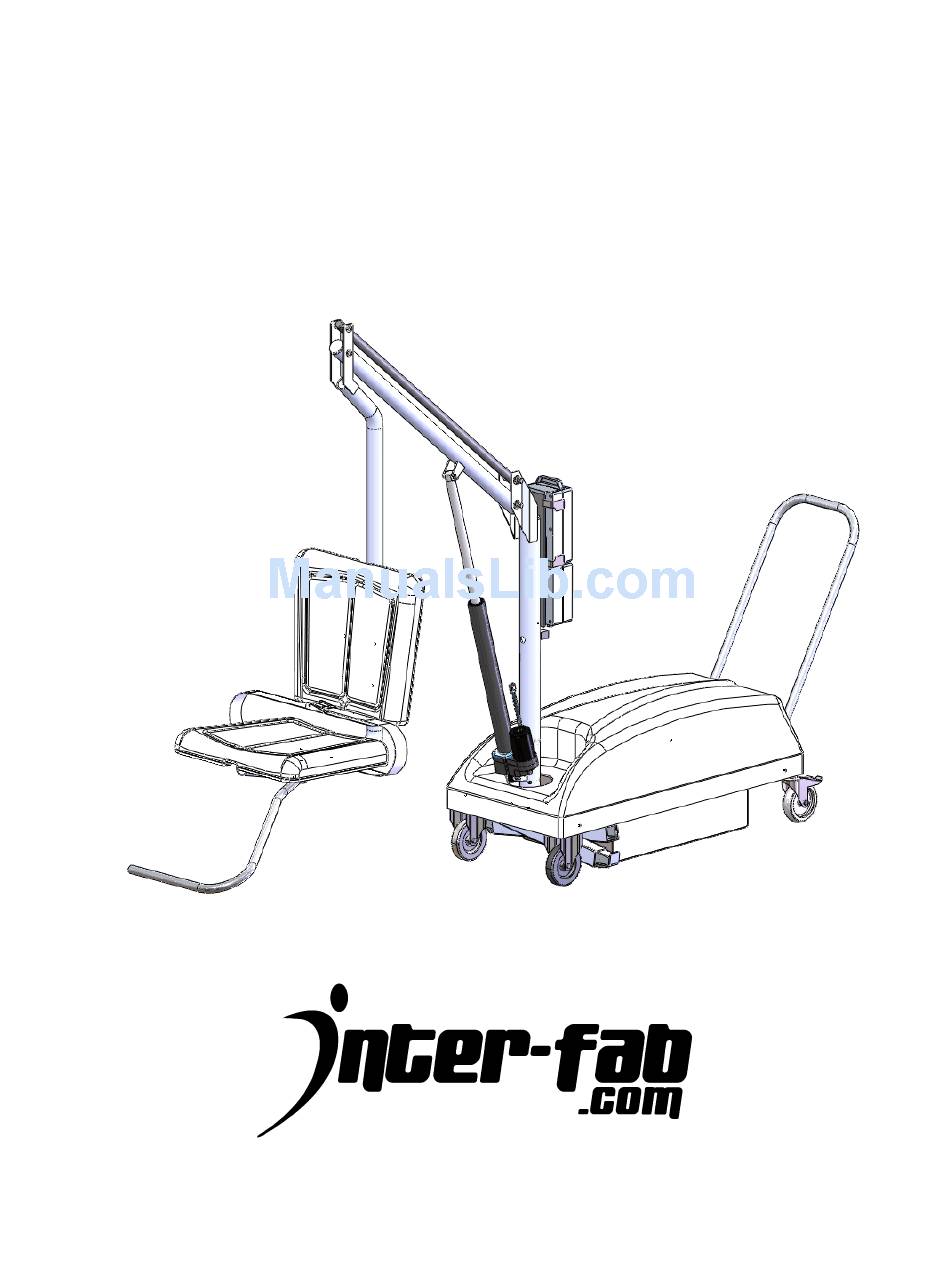

- Page 1 PORTABLE i-LIFT 3050 S Alvernon Way • Tucson, AZ 85713 800.737.5386 • www.inter-fab.com Portable i-Lift Man 11/11 Rev A...
- Page 2 Shipping Information: Each Portable i-Lift will arrive partially assembled in two separate units, a box containing the lifting components and a pallet containing the mobile base. Before accepting the Portable i-Lift from the carrier, inspect for visible damage and match the contents with those listed below.
- Page 3 Components and Hardware 800-737-5386 ▪ www.inter-fab.com...
- Page 4 WIRELESS RECEIVER 800-737-5386 ▪ www.inter-fab.com...
- Page 5 The Portable i-Lift allows for the flexibility of use and ease of installation around the pool deck, into storage or from pool to pool. The Portable i-Lift is safe and easy to operate. It has two high performance locking casters and two pull-out locking stabilizers for added safety and stability.
- Page 6 Leave the lift in this position for the next steps. Join the seat arm to the mast assembly using: (2) - 3/8” Shoulder 2 1/2” x 5/16” Thread (4) - 3/8” Flat washers (2) - 5/16” - 16 Nylock nut (4) - Donut Shims 800-737-5386 ▪ www.inter-fab.com...
- Page 7 (2) - 5/16"-18 x ¾” (4) - 5/16" Flat Washers (4) - 5/16" Lock Washers Note: When attaching the seat belt use 5/16"-18 x 1" as shown below. The below image shows the proper way to assemble the seat belt. 800-737-5386 ▪ www.inter-fab.com...
- Page 8 Install the Charger as shown on page 11 and charge the Battery for at least 8 hours prior to use. The battery will reach full capacity after the first three charge/discharge cycles. NOTE: Please see pages 10-11 for battery charge/discharge cycles. 800-737-5386 ▪ www.inter-fab.com...
- Page 9 1:48. Position the Portable i-Lift at least 6” from the edge of the pool. Before each use of the Portable i-Lift inspect the unit to ensure that all rear casters are locked and both stabilizer bars are tight to the deck in the fully extended position.
- Page 10 Pressing the () button causes the seat to lower. The seat will continue to lower as long as the button is pressed, or until the lift reaches its lowest extent. Releasing the button at any time during travel will also cause the lift to stop. 800-737-5386 ▪ www.inter-fab.com...
- Page 11 If the lift does not work with the new transmitter, try the procedure again; making sure that the transmitter is unlocked. If you are not able to program the new Transmitter to your lift, please call Inter-Fab Customer Service at 800-737-5386.
- Page 12 Carefully open the transmitter case and remove the battery. This battery is stocked at most stores where coin batteries are sold, it is a 3V lithium Type 2032. Under normal operating conditions this battery should last at least two years. 800-737-5386 ▪ www.inter-fab.com...
- Page 13 If the battery goes for longer than 3 months without a charge, the battery will have reduced capacity. 4. Apply Dielectric grease to the battery connections and receiver connections where the battery and receiver meet. Any dielectric grease will work however Grote silicone dielectric grease is applied at the factory. 800-737-5386 ▪ www.inter-fab.com...
- Page 14 Charger Fuse Blown Replace Charger Fuse Bad Battery (red LED on charger – not turning orange or green in 4 Replace Battery* hours or less) *Please contact your local distributor or Inter-Fab Customer Service to order parts 800-737-5386 800-737-5386 ▪ www.inter-fab.com...
