COMPLET KIT FOR SPRING OR COUNTERWEIGHT HORIZONTALLY-PIVOTED DOOR
ZN10 AUTOMATIC SYSTEM FOR SECTION-
AL AND SPRING OR COUNTERBALANCE
HORIZONTALLY PIVOTED DOORS
General description
The ZN10 electromechanical operator is
designed for sectional and spring or counter-
balance up and over doors.
Thanks to its push-pull and closing force,
650N, it will open and close doors up to 10 m
max without difficulty.
This generation of
operators is designed with the accent on ease
of installation but also on the strength of the
materials employed.
The ZN10 operator integrates perfectly with the design of any up and over door with-
out essentially altering its appearance. It also features quiet and linear operation
which renders it safe and agreeable to use, thanks not least to a courtesy light timed
to switch off after 3 minutes.
Total safety
The use of low voltage motors (12 V) eliminates any risk of electrical discharges or
accidental electrification of the structure.
Electronic clutch
if the door is obstructed by an obstacle, an electronic device will immediately stop
the automatic system as soon as the slightest hint of abnormal friction is detected,
and reverse the movement by about 10 cm.
Easy to install
Simpler electrical installation thanks to the separate control unit, optimizing mainte-
nance and assembly (can be connected to the power supply using an existing sock-
et). The control unit lights up automatically (when the motor is activated) and has a
button for opening and closing the door. The absence of any "control head" at the
end of the mechanism, and consequently the reduction in length of 310 mm, is espe-
cially advantageous in situations where space may be limited.
Maintenance-free and reliable
With the new operating principle of a motor travelling along a fixed chain in a track,
the automatic system is quiet and long-lasting, and requires no maintenance.
Mod. ZN20
- Jointed C-track
- Overall length: 3230 mm
- Dimensions of pack:
ZN10 motor unit: 160x160x800 mm
Tracks: 160x55x1600 mm
30
Press to return to index
ZN SERIES ACTUATOR
COMPLETE KIT FOR SECTIONAL DOOR
Type ZKN1
Type ZKN2
2
75
35

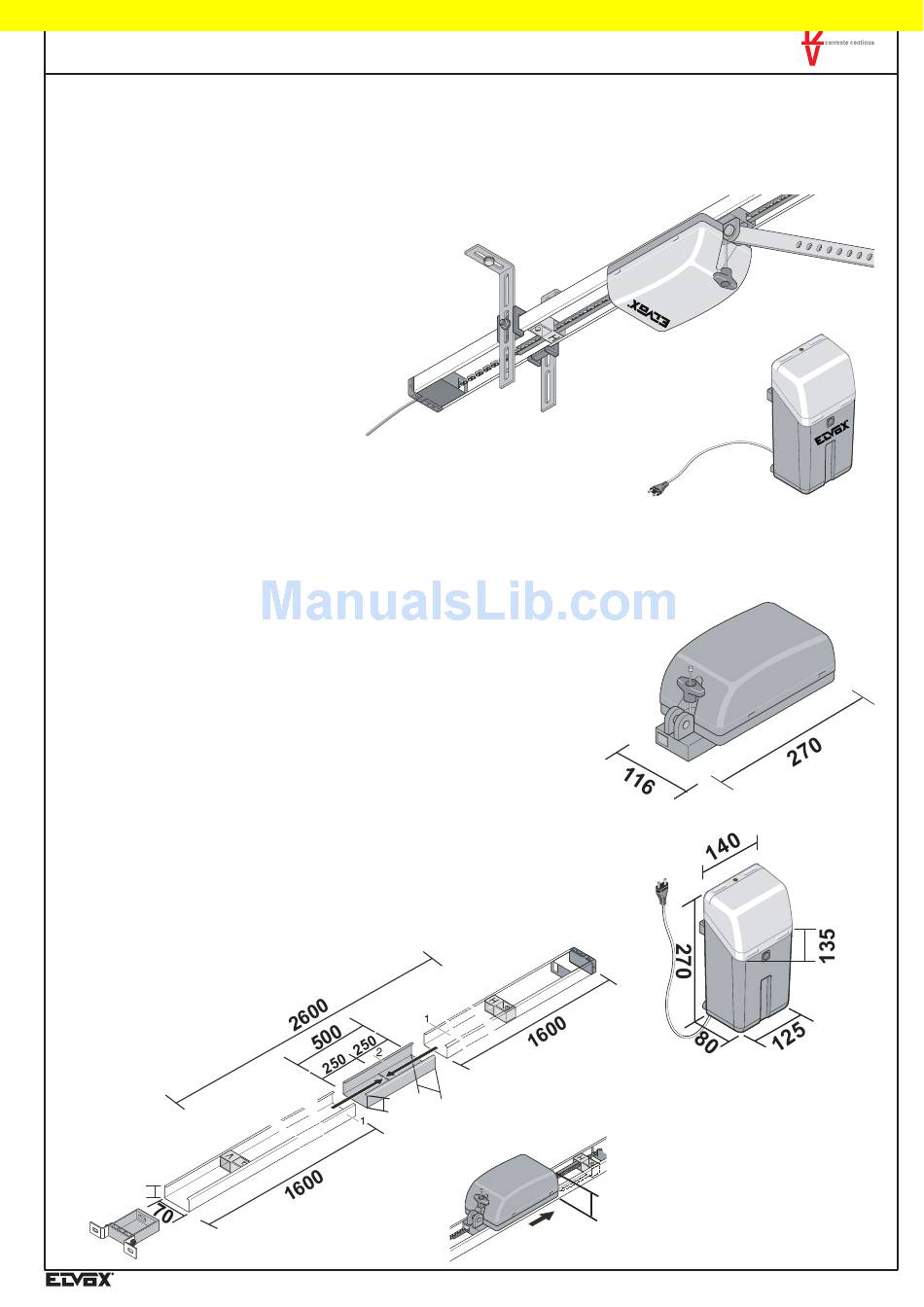

OVERALL DIMENSIONS
Mod. ZN10
- Electromechanical operator:
- Control unit
120
69
