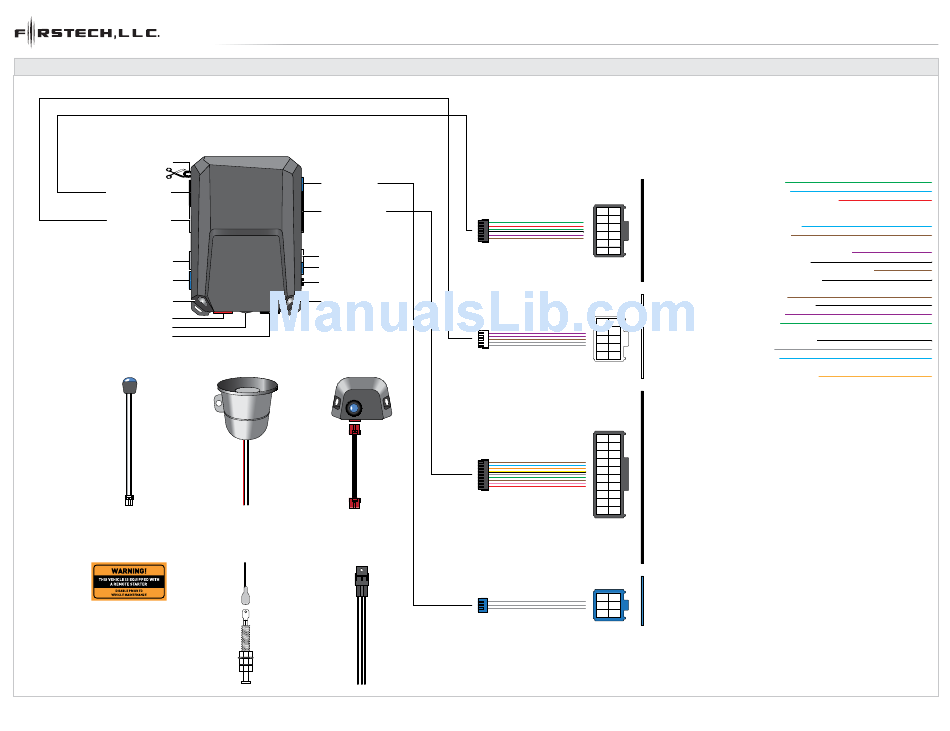

BOX CONTENTS
AUTOMATIC
TRANSMISSION
CUT LOOP
M2 - 12 PIN BLACK
M3 - 10 PIN WHITE
DRONE - 4 PIN GRAY
RF PORT - 4 PIN BLUE
LED 2
FT-DAS - 4 PIN RED
FT-DAS SENSITIVTY ADJUSTMENT DIAL
WEBLINK PORT - 4 PIN BLACK
FT-LED
STICKERS
2X
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2016
MODULE
M5 - 6 PIN BLUE
M4 - 20 PIN BLACK
2 PIN WHITE - LED
2 PIN BLUE - THERMISTOR
PROGRAMMING BUTTON
LED 1
FT-SIREN6T FT-DAS
HOOD SWITCH FT-ELOCK
BOX CONTENTS - 1 OF 1
2
4
6
8
10
12
2
4
6
8
10
2
4
6
8
10
12
14
16
18
20
1
3
5
FT-DC2-AS
M2 01 GREEN•BLACK DOT - LOCK (-) OUTPUT 01 GREEN•BLACK DOT - LOCK (-) OUTPUT
02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT
03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT
04 EMPTY 04 EMPTY
1
05 EMPTY 05 EMPTY
3
06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT 06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT
5
07 BROWN•BLACK DOT - SIREN (+) OUTPUT 07 BROWN•BLACK DOT - SIREN (+) OUTPUT
7
9 08 EMPTY 08 EMPTY
11
09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT 09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT
10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT 10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT
11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT 11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT
12 WHITE•BLACK DOT - PARKING LIGHTS (-) OUTPUT
01 BROWN•SILVER DOT - BRAKE (+) INPUT
M3
02 BLACK/WHITE•SILVER DOT - E-BRAKE (-) INPUT
03 PURPLE•SILVER DOT - DOOR (+) INPUT
1
04 GREEN•SILVER DOT - DOOR (-) INPUT
3
05 EMPTY
5
06 WHITE/BLUE•SILVER DOT - X-TRIGGER (-) INPUT
7
07 GRAY•SILVER DOT - HOOD (-) INPUT
9
08 BLUE•SILVER DOT - TRUNK (-) INPUT
09 EMPTY
10 TAN•SILVER DOT - EXT ALARM SENSOR (-) INPUT
M4
1
3
5
7
9
FUNCTIONS DEFINED BY FIRMWARE
11
13
15
17
19
M5
2
FUNCTIONS DEFINED BY FIRMWARE
4
6
PAGE 3 OF 12
