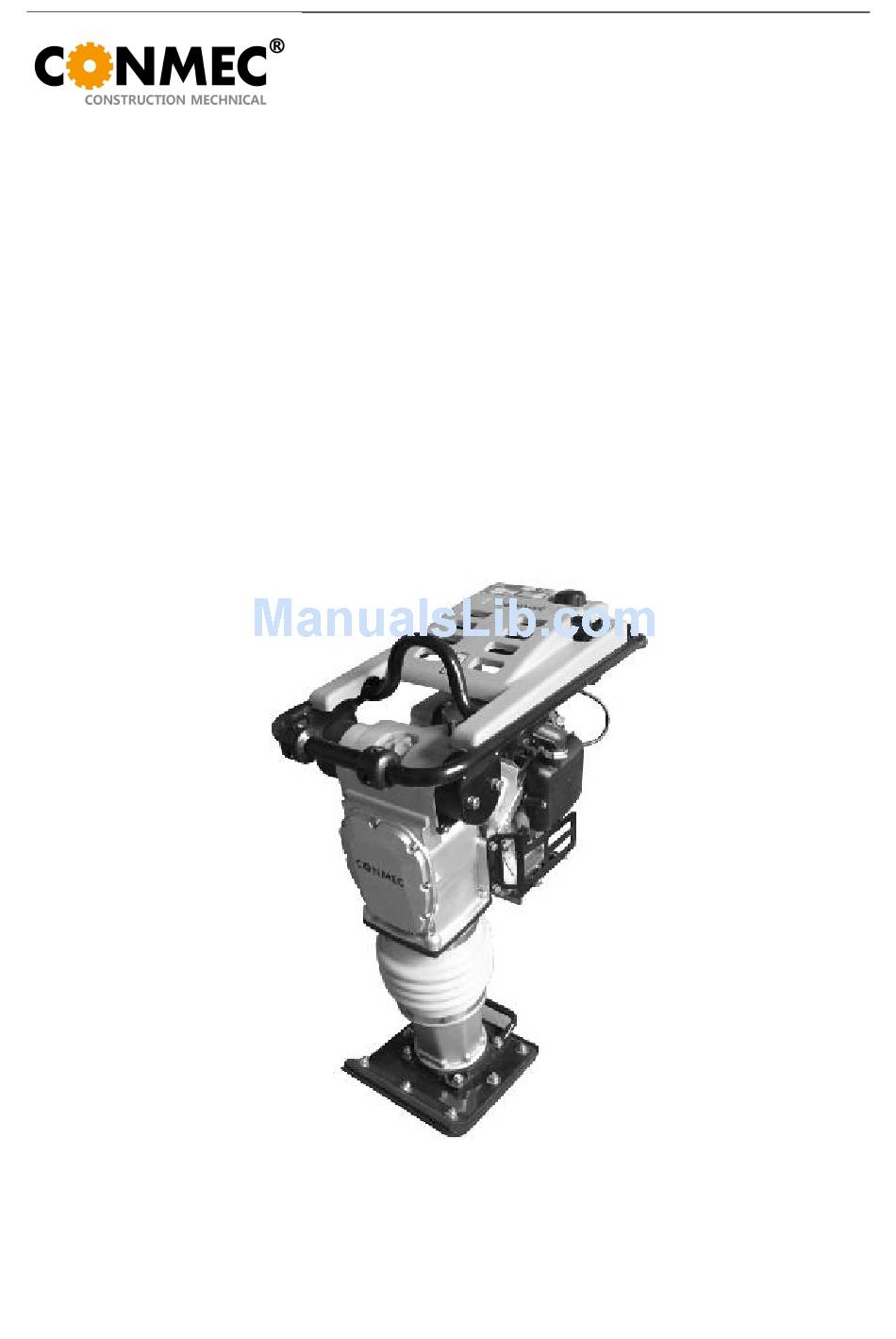

- Page 1 Operator's Manual Tamping Rammer CR68H CR70H...
- Page 2 Manufacturer Conmec Engineering Co., Ltd No.88, 2# Industrial Avenue, An Wu Road, Wu Qiao County, Feng Xian, Shanghai, P.R.C Tel: 86 (0)21 57407318 Fax: 86 (0)21 57406955 www.conmec.cn Original instructions This Operator’s Manual presents the original instructions. The original language of the Operator’s Manual is English.
-
Page 3: Foreword
Foreword This manual contains important instructions for this machine. These instructions must be followed during installation, operation, and maintenance of the machines. This manual provides information and procedures to safely operate. For your own safety and to reduce the risk of injury, carefully read, understand, and observe all instructions described in this manual. - Page 4 Table of Contents Foreword Warranty 1. SAFETY INFORMATION. ………………………………………………………………….. .5 1.1 Operating Safety…………………………………………………………………………..5 1.2 Operator Safety while using Internal Combustion Engines……………………………..6 1.3 Label Locations………………………………………………………………………………6 1.4 Safety and Operating Labels……………………………….…………………………….7-8 2. OPERATION …………………………………………………………….……………………... 9 2.1 Application…………………………………………………………………………………….9 2.2 Preparing the machine for First Use………………………………………………………..9 2.3 Before Starting……………………..……………………..…………………….…..………..9 2.4 To Start ………………………………………………………………………..…….……...
-
Page 5: Safety Information
1. SAFETY INFORMATION 1.1 Operating Safety Only trained personnel are permitted to start, operate, and shut down the machine. They have received instruction on how to properly use the machine and are familiar with required safety devices The machine must not be accessed or operated by children and people impaired by ... -
Page 6: Operator Safety While Using Internal Combustion Engines
1.2 Operator Safety while using Internal Combustion Engines DO NOT smoke when refueling the engine or during any other fuel handling operation. DO NOT refuel a hot or running engine. DO NOT refuel the engine near an open flame. ... -
Page 7: Safety And Operating Labels
Safety and Operating Labels CONMEC machines use international pictorial labels where needed. These labels are described below: Label Meaning DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the Operation Manual for machine information. No sparks, flames, or burning objects near the machine. - Page 8 Label Meaning WARNING! Serious injury if struck by compressed spring or cover. If the spring system cover is removed improperly, the springs can eject. CAUTION! Lifting point. CAUTION! Use only clean, filtered fuel. WARNING! Hot surface! Guaranteed sound power level in dB(A). A nameplate listing the model number and serial number is attached to each unit.
-
Page 9: Operation
2. OPERATION 2.1 Application This machine is a vibratory rammer. The Rammer consists of a gasoline, a clutch, a fuel tank, a spring-loaded ramming system, a ramming shoe, and a handle. The engine transmits power through the ramming system and ramming shoe, generating percussive impact force to compact soil. -
Page 10: To Start
If it is difficult to start the engine by repeatedly pulling the starter rope, remove ignition plug and check the sparking performance. If the plug is wet due to excessive fuel intake or soiled, replace the coil or clean sufficiently to its internals. With the ignition plug removed, pull the recoil starter handle 2-3 times to discharge excessive blended gas. -
Page 11: Periodic Maintenance Schedule
3 MAINTENANCE 3.1 Periodic Maintenance Schedule The chart below lists basic rammer and engine maintenance. Refer to engine manufacturer’s Operator's Manual for additional information on engine maintenance. A copy of the engine Operator's Manual was supplied with the machine when it was shipped. Daily After Every... -
Page 12: Transporting
3.3 Lifting and Transporting 3.3.1 Lifting the Rammer 1. Before lifting the machine, ALWAYS turn off the engine. 2. Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). 3. NEVER lift the machine only by the handle. 4. -
Page 13: Trouble Shooting
3.4 Trouble Shooting SYMPTOM POSSIBLE CAUSES SOLUTION Engine does not start, No fuel in tank Add fuel. or stalls. Spark plug fouled Clean or replace spark plug. Engine oil level low Add engine oil. Engine switch in the “OFF” Move engine switch to the “ON” position position. -
Page 14: Technical Data
4. TECHNICAL DATA Model CR68H CR70H Engine type Honda GX100 Honda GX120 Power kw(hp) 2.2(3.0) 3.0(4.0) Operating weight kg(lb) 68(152) 70(154) Impact Force Jumping Stroke cm(in) 4-8.5(1.5-3.3) Fuel Tank Shoe Size cm(in) 33*28.5(12.3*11) Working Size (L x W x H): 760mm x 430mm x 1020mm... -
Page 15: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. CONMEC ENGINEERING CO., LTD NO.88, 2# INDUSTRIAL AVENUE, ANWU ROAD, WUQIAO COUNTY, FENGXIAN DISTRICT, SHANGHAI, P.R.C hereby certifies that the construction equipment specified hereunder /bescheinigt, da. das Bauger.t/ certifica que la máquina de construcción/atteste que le matériel :... - Page 16 CONMEC ENGINEERING CO., LTD Add: No.88, 2# Industrial Avenue, An Wu Road, Wu Qiao County, Feng Xian, Shanghai, P.R.C Tel: 86 (0)21 57407318 Fax: 86 (0)21 57406955 E-mail: sales@conmec.cn www.conmec.cn Version: 2014/01/03...
