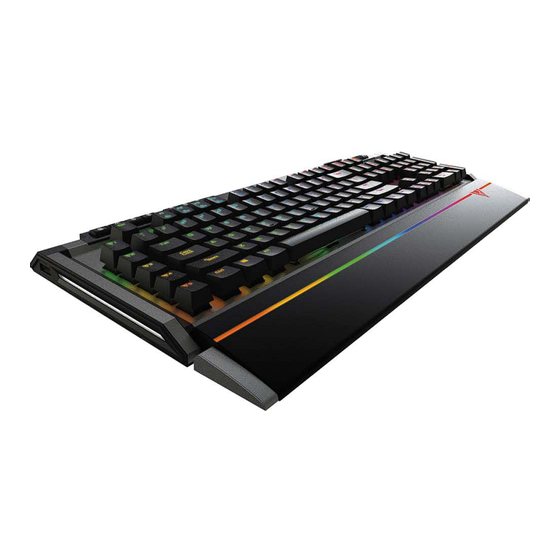

- Page 2 Thank you for purchasing the Viper V770 gaming keyboard. The V770 uses quiet mechanical Kailh Red switches for smooth SPECIFICATIONS • Dedicated multimedia control keys linear feel and quick response times. Each key can be customized to 16.8 million colors using the Viper software. The key- • Viper V770 gaming keyboard • 100% mechanical Kailh Red switches •...
- Page 3 SOFTWARE INSTALLATION Please download the Viper software from the product page at http://www.patriotmemory.com to be able to create and manage macros, create lighting profiles, adjust latency, response time, and more. Once downloaded, double-click on the software to start the installation. Follow the onscreen instructions to finish the process.
- Page 4 MULTI-MEDIA KEYS AND VOLUME WHEEL Play/Pause Previous Track KEYBOARD SHORTCUTS Stop Volume Up Next Screen Volume Down Previous Screen Mute (press wheel) Next Track...
- Page 5 BACKLIGHT RECORDING MODES Record and Save custom LED Profiles BACKLIGHT RECORDING MODES Press any key in recording mode to illuminate it, When recording is complete, then press making it part of your customized lighting profile. FN+F12 again to save your customized profile.
- Page 6 WAVE/SPOTLIGHT/RADAR MODES Press FN+ -Continuously to alternate between modes FN+ -WAVE MODE FN+ X3-RADAR MODE FN+ X2-SPOTLIGHT MODE A wave of light will travel across the keyboard. Two patterns of light will travel across the key- A pattern of light will revolve around the center of LIGHTING EFFECTS To change the direction of the wave pattern, press board intersecting in the middle.
- Page 7 RIPPLE MODE SIDEWINDER/VORTEX MODES Press FN+ -Continuously to alternate between modes Press FN+ -Continuously to alternate between modes FN+ -RIPPLE MODE FN+ -SIDEWINDER MODE FN+ X2-VORTEX MODE The light pattern will wind its way from the top left of the keyboard to the The light pattern will wind its way from the top left of the keyboard to the center When pressing any key, the light pattern will be spread in all directions;...
- Page 8 RAINDROP/REACTIVE MODES BREATHE MODE Press FN+ Continuously to alternate between modes Press FN+ -Continuously to alternate between modes FN+ 2X-REACTIVE MODE FN+ -RAINDROP MODE FN+ -BREATHE MODE Key will light up when pressed and fade. Pressing Keys on the keyboard will light up and fade randomly: displaying a The entire keyboard brightens then fades.
- Page 9 STATIC/SPECTRUM Press FN+ Continuously to alternate between modes FN+ -SPECTRUM MODE X2-STATIC MODE The entire keyboard will gradually shift through the various colors. The entire keyboard remains illuminated. Pressing BRIGHTNESS Pressing FN+ repeatedly will scroll through the different LED colors. repeatedly will scroll through the different FN + Pg Up or Pg Dn will decrease or increase the interval of the fade.
- Page 10 BRIGHTNESS MODES Press FN+ -Continuously to alternate between modes BRIGHTNESS Press FN+ increase the LED brightness. KEYBOARD SOFTWARE decreases the LED brightness to off. FN+ (-/+) Increases/Decreases Brightness FN+PgUp FN+PgDn Increases Speed of Light Decreases Speed of light...
- Page 11 Select the lighting effect from the drop down menu, and set color selection, The V770’s light effects can be set from the Viper software by selecting the effect from the drop down menu. Color brightness, speed and pattern direction from the menu and click on Apply to save the settings.
- Page 12 CUSTOM LIGHTING PROFILES RESPONSE TIME AND REPORT RATE You may create custom lighting profiles by selecting one of the five Lighting Profiles from the drop down menu in You may adjust the response time and report rate for the keyboard from the main menu. A lower response time will Light Effects.
- Page 13 Deleting a Macro Loop – By checking the box under Loop, you may assign the number of times a The V770 has five additional dedicated macro keys for convenience. Click Start Recording to create your macro script. You may create Open the macro editor, and select a macro from the macro list macro script runs when you press macro key.
- Page 14 KEY ASSIGNMENTS MACRO Select a Lighting Profile and check the box on Keymap. This gives you access to the SELECTED KEY menu. You may assign specific functions to each key through the SELECTED KEY menu. This allows you to assign macro scripts you have created and saved to specific keys. •...
- Page 15 ADVANCE This allows you to browse various folders (i.e. music, photos), and assign functions to keys making them hot keys, including playing music, opening folder, start up function, and more. Click a key you wish to assign an advance function to on the keyboard image (except for the Windows® key). Click on the Advance tab from the SELECTED KEY menu and choose the function you wish to assign from the list.
- Page 16 To create a user profile, follow the steps outlined above to custom color keys, To load a saved profile to the keyboard, simply click on Profiles in the lower left Double click on the profile you wish to load from your user profile folder and hit and select and assign macro scripts.
- Page 17 FACTORY REST WINDOWS KEY LOCK To reset the keyboard to factory default settings, click on the set- GENERAL SETTINGS You may disable the Windows® key during game play by checking ting icon in the upper right corner and then click Reset settings. the box next to WINDOWS KEY LOCK, and then clicking Apply.
- Page 18 FCC and Legal: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
