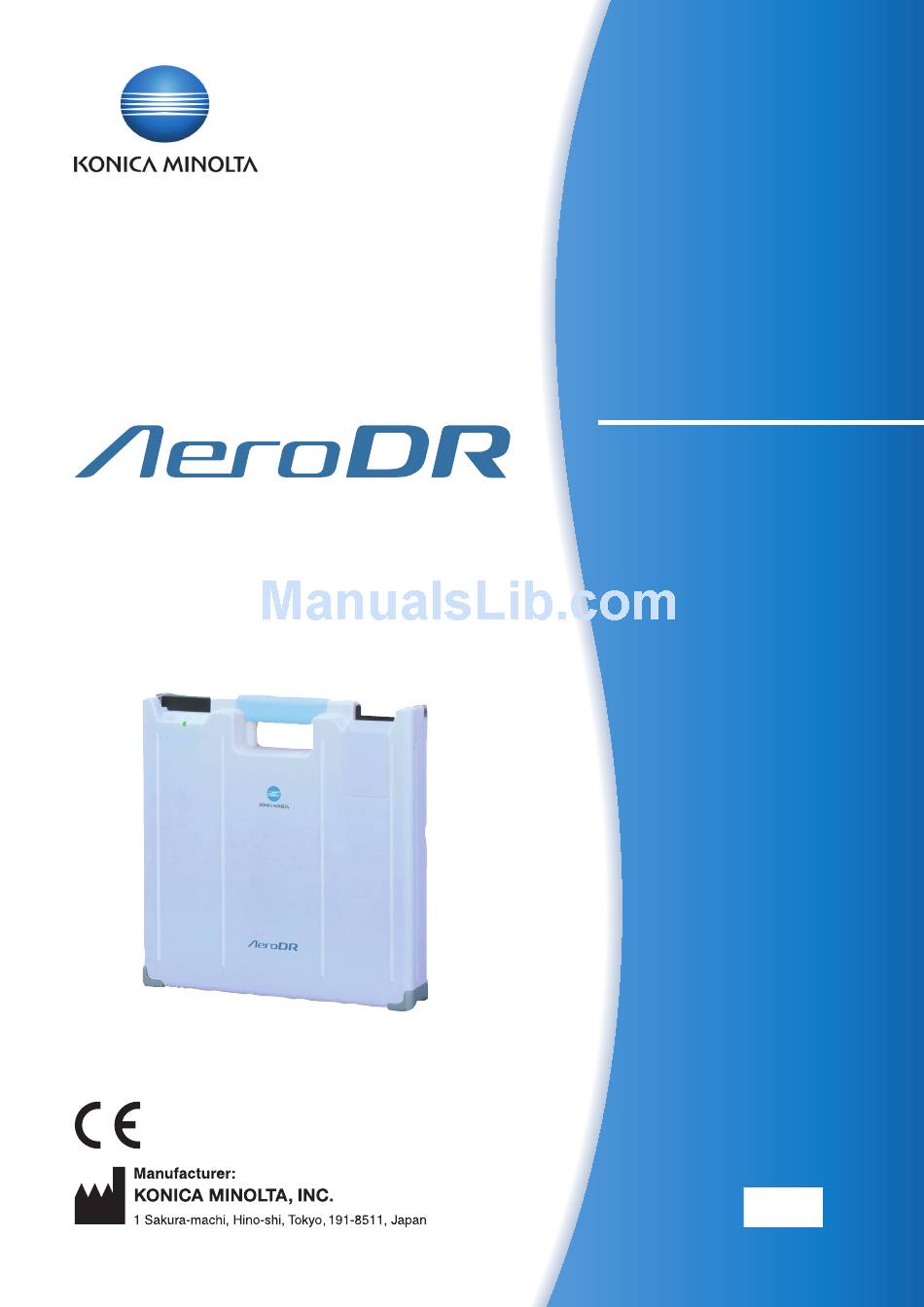

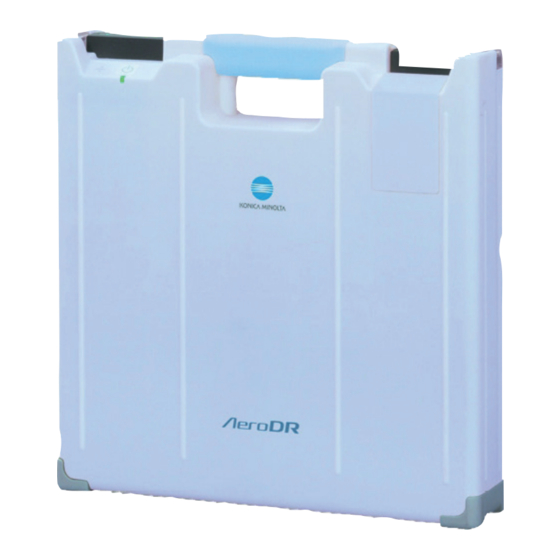

  • Page 1 Operation Manual DIRECT DIGITIZER SYSTEM AeroDR Portable RF Unit...
  • Page 3 Contents Introduction . . . . . . . . . . . . . . . . 5 Chapter 3 General Operations . . . . . . . . . 33 Introduction .
  • Page 4 Contents Chapter 7 Specifications . . . . . . . . . . . . . 57 Specifications . . . . . . . . . . . . . . . . . . . . . 58 7 .1 .1 AeroDR Portable RF Unit .
  • Page 5 Introduction...
  • Page 6 Introduction The Direct Digitizer AeroDR SYSTEM picks up an X-ray image of human body using the X-ray planar detector, and enters digital output signals into the image processing device . The system then acquires this image as diagnostic im- age data using the digital image acquisition device, and transfers the image data to the filing system, the printer, the image display unit and others .
  • Page 7 . (7) Konica Minolta, Inc . is not responsible for any claim for malfunction or damage of system units based on the environmental conditions that deviate from installation or application conditions of power supply and installation environment described in the Installation Requirements or Operation Manual .
  • Page 8 . Please note that ©, ® and ™ marks are omitted hereafter . Copyright © 2011 - 2015 Konica Minolta, Inc . All Rights Reserved . Term description The meanings of terms used in this operation manual are as follows:...
  • Page 9 Introduction Structure of pages Example of page structure 1.1 Operations on the AeroDR Portable RF Unit 1.1.1 Preparation to take radi- IMPORTANT • • •••••••••••••••••••••••••••••••••••• ography •• Confirm• that• the•AeroDR• Portable• Unit• Battery• and• the• image• processing• controller• have• recharged• suf- Prepare•the•AeroDR•Portable•RF•Unit•to•take•radiogra- ficiently. phy•according•to•the•following•procedure. •• When• using• a• image• processing• controller• battery• or•...
  • Page 11 Chapter Safety Precautions & Warnings This chapter describes precautions and warnings to ensure safe use of the AeroDR Portable RF Unit .
  • Page 12 1 .1 Symbols relating to safety 1 .1 .3 Description of graphic 1 .1 .1 Safety alert symbol symbols Indicates the Power On or Standby po- sition . This is a "safety alert symbol" . This symbol alerts you to matters and/or operation potentially hazardous to Indicates that it is necessary to read the yourself and other people .
  • Page 13 RF Unit and mount kits . * If a warning label is too dirty or damaged to read, contact Konica Minolta technical representatives to have a new warning label attached, and redisplay by parts replacement . (There is a fee for this service .)
  • Page 14 1 .2 Warning labels 1 .2 .2 Mount kits z AeroDR Portable CS7 17D Mount Kit G1/ z AeroDR Portable CS7P Mount Kit G1 AeroDR Portable CS7 12P Mount Kit Sh1/ AeroDR Portable CS7 17D Mount Kit Sh1 z AeroDR Portable 19PC Mount Kit G1/ z AeroDR Portable Unit Mount Kit Si1D AeroDR Portable 19PC MK-G-OP...
  • Page 15 1 .2 Warning labels z Accessories Cover 5 z AeroDR Portable CS7 17P Mount Kit Si1D...

  • Page 16: Safety Precautions

    Off and place a warning tag showing nected to the wall outlet without any slack . the "Out of order" or others . Contact Konica Minolta - Use the power supply having the ground (GND) technical representatives .
  • Page 17 . waves such as high-frequency therapy equipment, • Contact Konica Minolta technical representatives . mobile phones, or pocket pagers, close to this unit . - Take note of the reception status for radios and TVs near this unit, since an interference may oc- cur in them when this unit is in use .
  • Page 18 • Various hand switch cables • Ethernet cable (max 20 m/With shield) (4) The use of accessories, transducers and cables other than those sold by Konica Minolta, Inc . as internal components, may result in increased emissions or decreased electromagnetic immunity of this device .
  • Page 19 1 .3 Safety precautions Table 1 Guidelines and manufacture's declaration - electromagnetic emissions This device is intended for use in the electromagnetic environment specified below. The customer or the user of this device should assure that it is used in such an environment . Emissions test Compliance Electromagnetic environment - guidelines...
  • Page 20 1 .3 Safety precautions Table 3 Guidelines and manufacturer's declaration - electromagnetic immunity This device is intended for use in the electromagnetic environment specified below. The customer or the user of this device should assure that it is used in such an environment . IEC 60601 Compliance Immunity test...
  • Page 21 1 .3 Safety precautions Table 4 Recommended separation distance between portable and mobile RF communications equipment and the device This device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled . The customer or the user of this device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and this device as recommended below, according to the maximum output power of the communications equipment .
  • Page 22 • Because connections of the X-ray device can only 0 .5% hypochlorite (10-fold dilution of household be made by Konica Minolta or its designated con- bleach) when disinfecting . However, bleach and tractors, contact Konica Minolta or its designated hypochlorite are corrosive, so wash the bleach contractors .
  • Page 23 1 .3 Safety precautions 1 .3 .7 Precautions on service life CAUTION Service life Name Service life AeroDR Portable RF Unit 6 years • The above service life is valid only if the product has been properly operated while following the precautions for use and performing the specified maintenance.
  • Page 25 Chapter Product Overview This chapter describes the overview of the AeroDR Portable RF Unit .
  • Page 26 2 .1 Overview of the AeroDR Portable RF Unit This section describes the functions of AeroDR Portable RF Unit and its system configuration. 2 .1 .1 Functions The AeroDR Portable RF Unit allows X-ray radiography in any facility by combination of AeroDR Detector, image processing controller configuration, and X-ray device.
  • Page 27 • The method used to install the AeroDR Portable RF Unit may vary depending on the X-ray device . Install the AeroDR Por- table RF Unit as advised by Konica Minolta or an authorized Konica Minolta technician . • Depending on the image processing controller type, the battery may be loaded . When using a 17-inch monitor, load the bat- tery .
  • Page 28 2 .1 Overview of the AeroDR Portable RF Unit z For a wireless connection between the AeroDR Portable RF Unit and the image processing controller AeroDR Detector 17-inch monitor AeroDR Detector registration side AeroDR Image processing Battery Charger controller AeroDR Detector AeroDR (2) AeroDR Portable I/F Cable...
  • Page 29 2 .1 Overview of the AeroDR Portable RF Unit z For a wireless connection between the AeroDR Portable RF Unit and the image processing controller AeroDR Detector (3) Mount kit Image processing controller (4) AeroDR Portable RF Kit AeroDR Portable XG CBL (3) Mount kit X-ray device...
  • Page 30 2 .2 Component names and functions 2 .2 .1 AeroDR Portable RF Unit The component names and functions of the AeroDR Portable RF Unit are as follows . (6) AeroDR (3) Battery insertion port (1) Battery stopper Portable RF (4) LAN cable cover (2) Holder grip (5) LAN port (1) Battery stopper...
  • Page 31 2 .2 Component names and functions 2 .2 .2 AeroDR Portable Unit Battery The component names and functions of the AeroDR Portable Unit Battery are as follows . (1) Battery connector (2) Charging (3) Battery level LED light LED indicator Number Name Functions...
  • Page 33 Chapter General Operations This chapter describes general operation methods of the AeroDR Portable RF Unit .

  • Page 34: Startup And Shutdown

    3 .1 Startup and shutdown Start the AeroDR Interface Unit or AeroDR Start up and shut down each system unit by the follow- ing operations . Battery Charger . • Turn the power switch of the AeroDR Interface Unit on, and confirm that the LED (green) lights. •••••••••••••••••••••••••••••••••••••...
  • Page 35 3 .1 Startup and shutdown ••••••••••••••••••••••••••••••••••••• • ••• •• •• •• ••• •• •• •• •• ••• •• •• •• ••• • • • • HINT HINT • When using a image processing controller battery, • When using a 17-inch monitor, start up the battery for start up the image processing controller battery .
  • Page 36 3 .1 Startup and shutdown Shut down the AeroDR Portable RF Unit . 3 .1 .2 Shutdown of each system • Turn off the power switch of the AeroDR Por- device table RF Unit, and confirm that the Power LED (green/orange) is turned off .
  • Page 37 3 .1 Startup and shutdown Make sure that the power switch of X-ray device is Off . HINT ••••••••••••••••••••••••••••••••••••• • When a 17-inch monitor is used, turn off the battery for the monitor . • Press and hold the power switch for 2 seconds or lon- ger to turn off the battery and confirm that the Power LED (green) turns off .
  • Page 38 3 .2 Operations on the AeroDR Portable RF Unit 3 .2 .1 Preparation to take radi- IMPORTANT •••••••••••••••••••••••••••••••••• • •• ography • Confirm that the AeroDR Portable Unit Battery and the image processing controller have recharged suf- Prepare the AeroDR Portable RF Unit to take radiogra- ficiently.

  • Page 39: Chapter 1 3 .2 .2 Exposure

    3 .2 Operations on the AeroDR Portable RF Unit Store the AeroDR Detector in the X-ray 3 .2 .2 Exposure device . Carry out radiography using the AeroDR Portable RF Unit according to the following procedure . IMPORTANT • ••• •• •• •• ••• •• •• •• •• ••• •• •• •• ••• • • • • •...
  • Page 40 3 .2 Operations on the AeroDR Portable RF Unit Push the exposure switch up to the sec- 3 .2 .3 Operations after radiogra- ond stage to perform exposure . • Exposure is performed to produce X-ray images . • When the exposure is completed, images are After you finish taking radiography, follow the procedures stored in the AeroDR Detector and will then be below .

  • Page 41: Battery

    3 .2 Operations on the AeroDR Portable RF Unit Plug the power cables in a receptacle to 3 .2 .4 Mounting or dismounting the recharge the AeroDR Portable RF Unit and AeroDR Portable Unit Battery the image processing controller . z Mounting •••••••••••••••••••••••••••••••••••••...
  • Page 42 3 .2 Operations on the AeroDR Portable RF Unit Make sure that the AeroDR Portable Unit Pull out the AeroDR Portable Unit Battery Battery is locked and secured by the bat- from the battery slot . tery stopper . Battery stopper z Dismounting Slide the battery stopper to release it .
  • Page 43 3 .2 Operations on the AeroDR Portable RF Unit z When the AeroDR Portable CS7 17P Mount 3 .2 .5 Operating a mount kit Kit Si1D is used • Grasp the handle, release the lock, and then pull out the mount kit . Image processing IMPORTANT •••••••••••••••••••••••••••••••••••••...
  • Page 44 3 .2 Operations on the AeroDR Portable RF Unit z When the AeroDR Portable 19PC Mount Kit 3 .2 .6 Precautions of operations G1 or the AeroDR Portable 19PC MK-G-OP is used • When transporting the X-ray device, rotate and set the image processing controller to the right When transporting the X-ray device of the column of the X-ray device .
  • Page 45 3 .2 Operations on the AeroDR Portable RF Unit z When the AeroDR Portable CS7 12P Mount Protecting the image processing controller Kit Sh1 is used against theft • When transporting the X-ray device, rotate and • Protect the image processing controller against theft set the image processing controller to the right of using a commercial security lock .
  • Page 46 3 .2 Operations on the AeroDR Portable RF Unit z When the AeroDR Portable CS7 17P Mount z When the AeroDR Portable CS7 12P Mount Kit Si1D is used Kit Sh1 is used Image processing controller Position to install a security lock Mount kit Image process-...
  • Page 47 Mount kit is damaged it may cause injury . For replacement of the cover, con- tact Konica Minolta technical representatives . •• • •• •• • •• •• ••••••••••••••••••••••••••••••••••••••••• z When the AeroDR Portable 19PC Mount Kit...
  • Page 48 3 .2 Operations on the AeroDR Portable RF Unit z When the AeroDR Portable Unit Mount Kit z When the AeroDR Portable Unit Mount Kit Si1D is used Sh4 is used Image processing AeroDR Portable RF Unit controller Image process- AeroDR Detector ing controller AeroDR Portable RF Unit...
  • Page 49 3 .3 Recharging of the AeroDR Portable Unit Battery Plug the power cable into the receptacle . IMPORTANT ••••••••••••••••••••••••••••••••••••• • When battery charging starts, the "blue" charge • Never carry out exposure while recharging the Aero- LED starts blinking on the top of battery . DR Portable Unit Battery .
  • Page 50 3 .3 Recharging of the AeroDR Portable Unit Battery Remove the power cables from the recep- 3 .3 .2 Charging time guide tacle . ••••••••••••••••••••••••••••••••••••• HINT It takes approximately 5 hours to fully charge up AeroDR Portable Unit Batteries if they have been fully •...
  • Page 51 Chapter Status (LED) Display This chapter describes the LED display patterns and the status of the respective devices .
  • Page 52 4 .1 LED display of respective devices Status of the respective devices can be confirmed with LEDs. Check the status of the respective devices, referring to the "LED display pattern" . LED display pattern Notation Display pattern Flashing 4 .1 .1 AeroDR Portable RF Unit Power LED light Power LED (green/orange) Display pattern...

  • Page 53: Troubleshooting

    Chapter Troubleshooting This chapter describes problems that may occur and error codes that may be displayed, and how to resolve each of them .

  • Page 54: Communication

    IMPORTANT • After performing countermeasures, if the problem does not go away, contact Konica Minolta technical representatives . • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
  • Page 55 Chapter Maintenance This chapter describes the items that require periodic maintenance .

  • Page 56: Aerodr Portable Rf Unit

    Portable RF Unit in an optimum condition . onto the Power LED and LAN port . • Do not clean with sharp or hard metal objects . If you cannot remove stains, contact Konica Minolta techni- 6 .1 .1 Maintenance schedule cal representatives .

  • Page 57: Specifications

    Chapter Specifications This chapter describes the specifications of each system device.

  • Page 58: Specifications

    7 .1 Specifications 7 .1 .1 AeroDR Portable RF Unit Item Description Product name AeroDR Portable RF Unit Normal operation: DC24 .6±0 .3V 4 .0A direct current Power requirements During charging: AC 100/110/115/120/200/220/230/240 VAC ±10%, single phase, 50/60 Hz 386(W)×72(D)×386(H)mm 386mm External dimensions 386mm...

  • Page 59: Aerodr Portable Unit Battery

    7.1 Specifications 7 .1 .2 AeroDR Portable Unit Battery Item Description Product name AeroDR Portable Unit Battery Power consumption Approx . 60VA 75(W)×320(D)×23(H)mm External dimensions 320mm 23mm 75mm Weight 760 g Battery type Lithium-ion batteries • The AeroDR Portable RF Unit uses two batteries for the AeroDR Portable Unit . 7 .1 .3 General AeroDR Portable RF Unit Item Description...

  • Page 60: Product Configuration

    7.1 Specifications 7 .1 .4 Product configuration This device must be configured as shown below. z EU and EFTA countries and Turkey Product Name Component name in this manual Component name in Label AeroDR Portable RF Unit AeroDR Portable AeroDR Portable RF Unit AeroDR Portable Unit Battery z Cables and minor components Specific components described in operation manual of the specific components are not described in the following table.
