Summary of Contents for Dynamic R1 PRO

  • Page 1 DYNAMIC R1 PRO 21S FITNESS CYCLE OWNER’S MANUAL...
  • Page 2 Dear customer, Thank you for purchasing the DYNAMIC R1 PRO 21S Fitness Cycle. This product was designed to meet your workout and fitness needs and provide you with a healthier life. Before you begin using this product, please read the Owner’s Manual completely, thoroughly, and follow the instructions precisely paying close attention to all WARNING and CAUTION labels.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Before you start to assemble and operate this product, please carefully read the Owner’s Manual in its entirety. Please follow all instructions in this Owner’s Manual as described. Be sure to read through the Safety Instructions below and keep this Owner’s Manual for future reference.
  • Page 4: Parts List

    PARTS LIST Item Description Quantity Item Description Quantity Main Frame Inner Chain Cover Rear Foot Bar Screw Front Foot Bar Belt U-Mone Bar Belt Deck Seat Post Screw Handle Post Outer Chain Cover Seat Slider Round Head Screw Handle Bar Left Crank End Cap Right Crank...

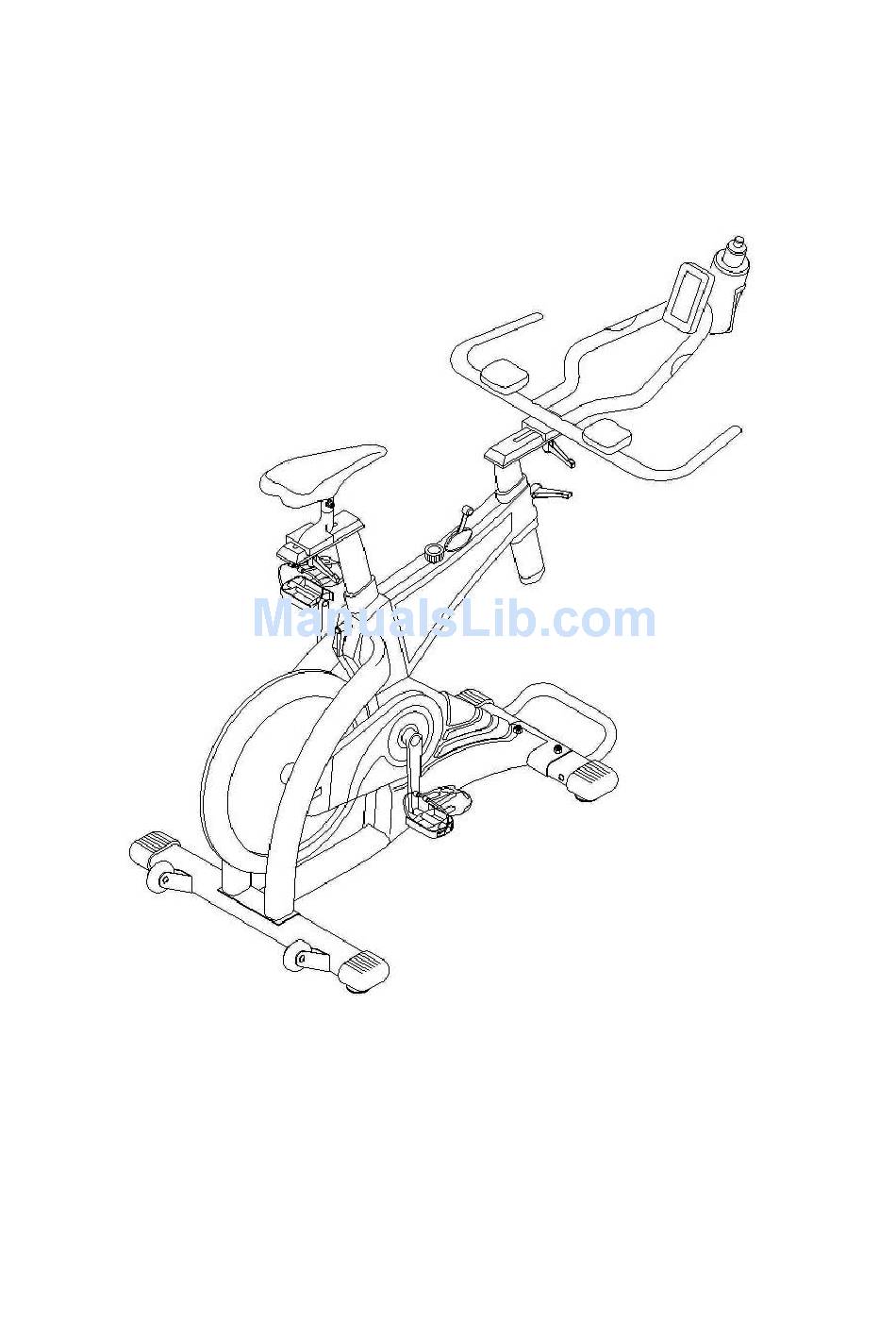

  • Page 5: Exploded Drawing

    EXPLODED DRAWING...
  • Page 6: Packing Parts List

    ____________________________________________________________ PACKING PARTS LIST...
  • Page 7: Main Frame (

    ___________________________________________________________ ASSEMBLY Read the Owner’s Manual in its entirety before assembly. ● Remove all parts from the box. ● Check to confirm receipt of all parts and quantities shown in the Packing Parts List on ● page 5. (Note: Some parts may be pre-assembled.) STEP 2 Slide the Front Foot Bar (3) to the front of the Main Frame (1) adding two Washers (14), two...
  • Page 8: Seat Post (

    ____________________________________________________________ ASSEMBLY STEP 4 Attach the Left Pedal (55) and Right Pedal (56) to the Left Crank (53) and Right Crank (54) as shown in Figure 2. ** Tighten the Left & Right Pedals used in STEP 4 with the Spanner Tool (67). STEP 5 Insert the Seat Post (5) into the tube of the Main Frame (1) with Knob (60) as shown in Figure 3.
  • Page 9: Handle Bar (

    ____________________________________________________________ ASSEMBLY STEP 8 Insert the Handle Post (6) into the tube of the Main Frame (1) with Knob (60) as shown in Figure 4. ** Hand tighten ONLY. STEP 9 Affix the Bracket (25) on the Handle Bar (8) with screw (81) and Table frame nut (87).
  • Page 10 HOW TO USE THE BIKE After assembling the bike and tightening all appropriate components as instructed, you can now begin using bike. Handle bar, seat, and elbow pad adjustments allow users to adjust the bike to fit one's size and body frame. Streamline surface design fits in with ergonomics and increases comfort.
  • Page 11: Computer 1

    COMPUTER CONSOLE (computer console subject to change) How to change battery﹕ 1. Open battery cover and insert two AAA batteries. 2. Properly replace the back battery cover. 3. Under normal circumstances, the life of the battery is approximately one year. 4.
  • Page 12 Function and Operation Auto ON/OFF The monitor automatically starts working once the user starts to do the exercise on the machine. It will automatically turn off after the machine is not used for 4 minutes. Once it turns off, all exercise values will be removed. TIME 1.
  • Page 13: Belt

    ____________________________________________________________ SERIAL NUMBER LABEL The diagram below shows the location of the Serial Number Label. The serial number is indicated on the label affixed to the lower part of the Main Frame. (Note: The label shown below is not of actual size.)
  • Page 14 DYNAMIC nor any of its affiliates shall be responsible for incidental or consequential damages or costs. Golden Designs, Inc. and DYNAMIC shall not be liable for loss of use of the exercise equipment or other Golden Designs, Inc. products or other secondary or incidental or consequential costs, expense or damages arising directly or indirectly out of the use or inability to use the product.
