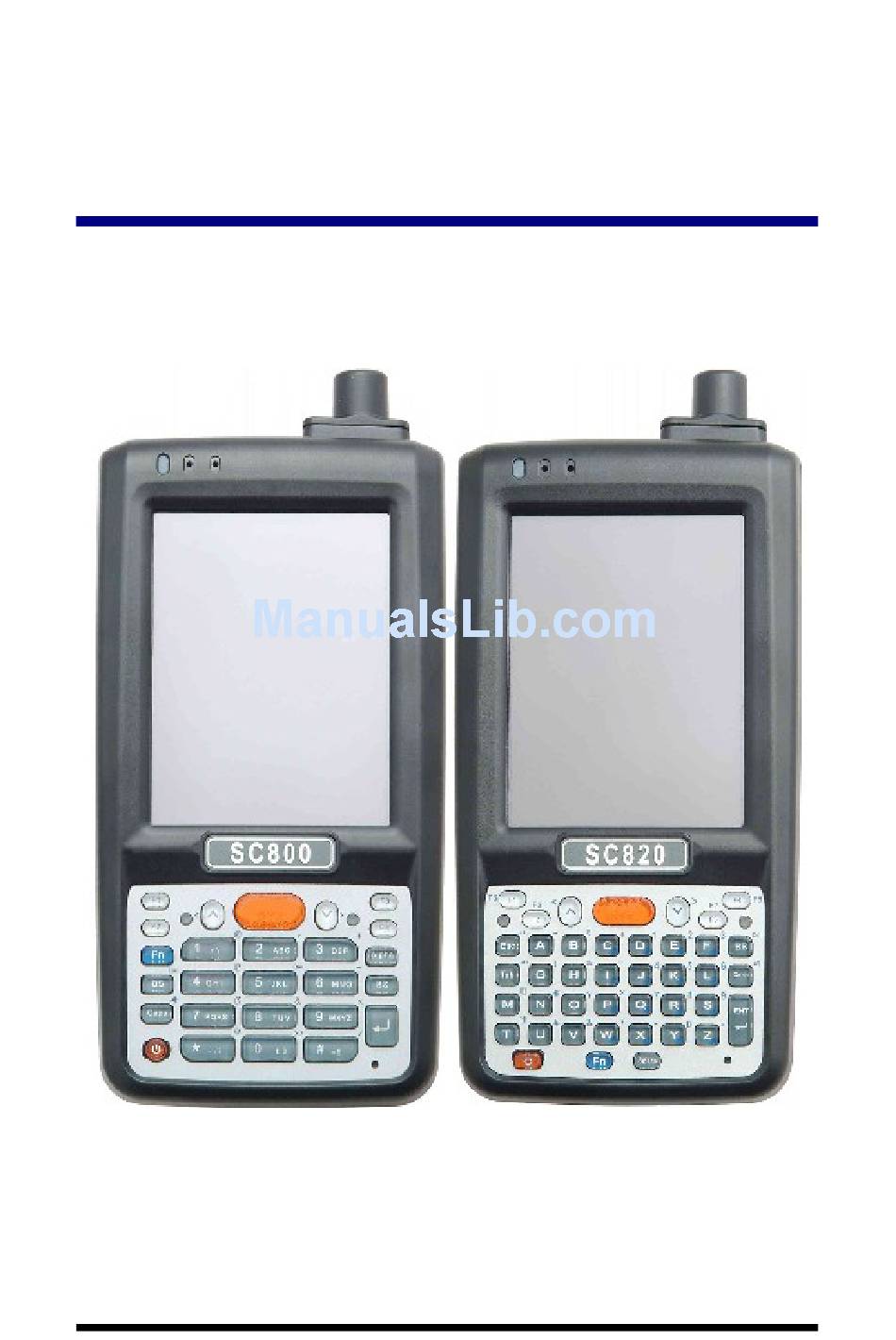

Page 1 SC800 / SC820 User’s Manual WinCE. NET Rugged Portable Data Terminal Mar/10/2008 Ver: 0.2...
Page 2 2.4.1 Starting the PDT..............2-10 2.4.2 Power on / off............... 2-10 2.4.3 Calibration of the touch Screen..........2-11 2.4.4 To mute the Sound for SC800..........2-11 2.4.5 Adjusting the Sound for SC820 ..........2-11 2.4.6 Using the Stylus ..............2-12 2.4.7 Using the SC800 Keypad............. 2-12 2.4.8 Using the SC820 Keypad.............
Page 3 2.5.4 The Task Bar ................ 2-19 2.5.5 The Soft Keypad ..............2-20 2.5.6 Setting Up Wireless LAN ............ 2-20 2.5.7 Reading barcodes, 1D laser version........2-25 2.5.8 Help..................2-26 2.6 Power management............... 2-27 2.6.1 Suspend Mode..............2-27 2.6.2 Resuming ................2-28 2.7 Resetting the PDT .................
Page 4 Chapter 4.Communication ..............4-1 4.1 Installing & Setting Up Microsoft ActiveSync ....... 4-1 4.1.1 Installing Microsoft ActiveSync on the Host PC....4-1 4.1.2 Connecting PDT to Host PC ..........4-1 4.2 Using ActiveSync................4-1 4.2.1 Setting up a Partnership ............4-1 4.2.2 ActiveSync File Synchronization...........
Page 5: About This Manual
Chapter 1. Introduction Congratulations on purchasing the SC800/SC820 Portable Data Terminal (PDT), a Microsoft Windows®CE .Net rugged PDT. Its special combination of features makes it perfect for using in a wide range of applications. These features as: Intel® XScale PXA270 520MHz 32 bits RISC Processor Windows®...
Page 6 1.2 User and Product Safety Do not stare into the laser or LED beam directly or shine it into eyes. Never use strong pressure onto the screen or subject it to severe impact, as the LCD panel could become cracked and possibility cause personal injury. If the LCD panel is broken, never touch the liquid inside because the liquid irritates the skin.
Page 7: Battery Safety
1.3 Battery Safety CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. Lithium-ion battery packs might get hot, explode, ignite and/or cause serious injury if exploded by abusive using. Please follow the safety warnings listed as below: Do not throw the battery pack in fire.
Page 8 1.4 CE Statement Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60950-1: 2006 Safety of Information Technology Equipment...
Page 9 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.2.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment EN 301 489-7 V1.2.1: (2002-08)
Page 10 Deutsch Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] [German] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [Estonian] [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Page 11 elõírásainak. Polski Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest [Polish] zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Nome do fabricante] declara que este [tipo de equipamento] está [Portuguese] conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Page 12: Fcc Statement
1.5 FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 13: Regulatory Information
The firmware setting is not accessible by the end user. Caution: SCC declares that SC800 ( FCC ID: TQ2-SC800PDT-BW ) / SC820 ( FCC ID: TQ2-SC800PDT-BW ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A.
Page 14 1.8 Product Labeling The PDT has several labels as showed in Figure 1-1 to 1-4. A. SC800 Figure 1-1 Product Labeling (Front side view) Label nr. Description LCD panel protection film SC800 logo Warranty seal PDT Table 1-1 Front labeling...
Page 15 Figure 1-2 Product Labeling (Back side view) Label nr. Description Laser radiation warning label Serial / Configuration number PenPower label (only use on Simplified Chinese version) CCC label (only use with China) System and regulatory label NCC label (only use on Traditional Chinese version) RoHS Use Life Label for China Windows CE .NET label...
Page 16 B. SC820 Figure 1-3 Product Labeling (Front side view) Label nr. Description LCD panel protection film SC820 logo Warranty seal PDT Table 1-3 Front labeling 1-12...
Page 17 Figure 1-4 Product Labeling (Back side view) Label nr. Description LED/Laser radiation warning label Serial / Configuration number PenPower label (only use on Simplified Chinese version) CCC label (only use with China) System and regulatory label NCC label (only use on Traditional Chinese version) RoHS Use Life Label for China Windows CE .NET label...
Page 18: System Specifications
1.9 System Specifications The SC800 / SC820 detailed specifications as follows. Unless otherwise noted, all the specifications are subject to change without prior notification. Table 1-5 System Specification SC800 / SC820 Processor - Intel PXA270 520MHz 32 bits RISC CPU...
Page 19 SC800 / SC820 - One Power Button - One Reset Button - Three Barcode Scanner Buttons - Two Navigation Buttons - Four Application Buttons - One 18-key Numeric Keypad - One Reserved Button Keypad / Buttons - One Power Button...
Page 20: Environment Standard
1.10 Environment Standard Table 1-6 Environment Standards F ~ 122 F( -10 C ~ 50 Operating Temperature F ~ 158 F (-20 C ~ 60 Storage Temperature 5% ~ 95% (non-condensing) Humidity 5ft (1.5m) Drop onto Concrete Drop IP65 Certificated Water &...
Page 21 Chapter 2. Getting Started 2.1 Check the package Open the package and check all the parts are inside without shortage and damage: A. SC800 Figure 2-1 Inside the package SC800 Terminal Standard Battery Pack (3.7V, 2200 mAh) USB Client Cable for Terminal AC Power Cord Standard AC Adapter 5VDC/2.6A...
Page 22 B. SC820 Figure 2-2 Inside the package SC820 Terminal Standard Battery Pack (3.7V, 2200 mAh) USB Client Cable for Terminal AC Power Cord Standard AC Adapter 5VDC/2.6A Earphone/ Microphone Set Quick Guide (not shown in the picture)
Page 23 2.2 General View of the PDT 2.2.1 SC800 general view Figure 2-3 SC800 front side view Figure 2-4 SC800 back side view...
Page 24 Table 2-1 Description of SC800 General View Scanner LED Indicator “Red” color Reading barcode “Green” color Successful reading Charge LED Indicator “Red” color Charging battery “Green” color Battery charged full LCM / Touch Panel Do specific action through touch panel by stylus...
Page 25 2.2.2 SC820 general view Figure 2-5 SC820 front side view Figure 2-6 SC820 back side view...
Page 26 Table 2-2 Description of SC820 General View Scanner LED Indicator “Red” color Reading barcode “Green” color Successful reading Charge LED Indicator “Red” color Charging battery “Green” color Battery charged full LCM / Touch Panel Do specific action through touch panel by stylus Left Scan key Start scanning the barcode by pressing any one of Right Scan key...
Page 27: Charging The Battery Pack
2.3 Charging the Battery Pack Before using the PDT, perform the basic procedure of charging the battery pack through the following steps. 2.3.1 Installing the battery pack 1. On the PDT attached with a hand-strap, detach and loose the hand-strap. Figure 2-7 Release the Hand strap from PDT 2.
Page 28 3. Insert the battery pack into the battery compartment with the label facing out, and ensuring the battery snaps into place. Figure 2-9 Insert the battery pack 4. Replace the battery cover by inserting the top first, and then press the bottom in firmly. Turn the locking screws (right and left) upwards to secure the cover to the PDT.
Page 29: Charging The Battery Pack With Power Adapter
◆. When charging the battery pack, the charge LED indicator on the PDT turns on Red. After the battery pack is fully charged, the charge LED indicator turns to Green. 2.3.2 Charging the battery pack with Power Adapter 1. Connect the Power cord to the Power adapter. 2.
Page 30 2.4. Handling the PDT 2.4.1 Starting the PDT Press the Power key to turn on/off the PDT. If the PDT does not power on, perform a cold boot. See 2-7 Resetting the PDT. CAUTION: When a battery is fully inserted in PDT for the first time, upon the PDT’s first power up, the device boots and powers on automatically.
Page 31: Calibration Of The Touch Screen
Start > Settings > Control Panel > Stylus, to open the “Calibration” to recalibrate again. Figure 2-14 Calibration 2.4.4 To mute the Sound for SC800 To mute the sound, press the key first, and then press the key to turn off and on of the sound.
Page 32: Using The Stylus
3) Hold the stylus on the screen and drag across the screen to select the list of multiple items. CAUTION: Never use a pen, pencil, or other sharp object on the display to avoid any unexpected damage of the touch screen. 2.4.7 Using the SC800 Keypad Figure 2-15 SC800 Keypad Table 2-3 Keypad List Alpha + Main...
Page 33 Alpha + Main Main Function Fn + Main Function Function Microsoft WordPad Inbox File Explorer Left Down Right TAB (Tabulation) Caps Audio Mute Function change Change to letters Backspace ＠ (at) ：＼ ’ (Quotation Marks) ＡＢＣ＋ (Plus Sign) Ｄ...
Page 34 2.4.8 Using the SC820 Keypad Figure 2-16 SC820 Keypad Table 2-5 Keypad List Main Function Fn + Main Function Main Barcode Scan Power On/Off Internet Explorer Microsoft WordPad Inbox File Explorer Left Down Right Backspace Caps Start Menu 2-14...
Page 35 Main Function Fn + Main Function Enter Function change Space － (Minus Sign) Copy 2-15...
Page 36 Main Function Fn + Main Function ＊ Paste & . (Point) Table 2-6 Special Assembler Key Assembler Key Functionality Definition Press “Reset” button in the back. Warm Reset Press “Power” and “Reset” button Cold Reset simultaneously. 2-16...
Page 37 2.4.9 Using the Ear/Microphone Connect Ear/Microphone to PDT earphone jack connector. The PDT is not built in microphone; if you like to record the voice, you have to use Ear/Microphone. Figure 2-17 Ear/Microphone 2-17...
Page 38: Navigating The Display
2.5 Navigating the Display 2.5.1 Setting Time and Date In the Date/Time options, you can change the year, month, date, time, time zone, or select automatic adjust for Daylight Saving Time. To set or change the date and time: 1. Select Start > Settings > Control Panel > Date/Time 2.
Page 39: The Task Bar
SC800 keypad”. Use the stylus on the touch screen. Select text in the same way you select the text on a PC. Use the stylus to highlight the desired text by dragging the stylus across the desired text, double-tapping to select one word and triple-rapping to select an entire line/paragraph.
Page 40: The Soft Keypad
2.5.5 The Soft Keypad In applications that accept keypad input, the soft input panel (SIP) can be used to enter data using the stylus. The SIP is digital, QWERTY-style keyboard. To open the SIP, tap the keyboard icon to open the menu and select Hide Input Panel to close the keyboard.
Page 41: Main Tab
Main Tab Enable/Disable Radio: When the radio is enabled, selecting this button disables it; when the radio is disabled, selecting this button enables it. Active Profile: You can view the name of the active profile and, using the selection list, select a different profile.
Page 42 them, and delete them on the Profile tab in SCU. Profile changes made on the tab are saved to the profile only when the Commit button is pressed. Unless it is modified, the Default profile does not specify an SSID, EAP type, or method of encryption.
Page 43: Status Tab
Security: Values for the two primary security attributes, EAP type and encryption type, are displayed in separate dropdown lists, with the current values highlighted. When you as an administrator select an EAP type, the Credentials button appears; when you tap it, a dialog box appears that enables you to define authentication credentials for that EAP type.
Page 44: Diags Tab
Diags Tab (Re)connect: Disable and enable the radio, apply or reapply the current profile, and attempt to associate and authenticate to the wireless LAN, logging all activity in the output area at the bottom. Release/Renew: Obtain a new IP address through DHCP release/renew, and log all activity in the output area at the bottom.
Page 45: Reading Barcodes, 1D Laser Version
until you tap the Stop Ping button, move to an SCU window other than Diags or Status, exit SCU, or remove the radio. Diagnostics: Attempt to (re)connect to an AP, and provide a more thorough dump of data than is obtained with (Re)connect. The dump will include radio state, profile settings, global settings, and a BSSID list of APs in the area.
Page 46: Help
configurations following all description of 3.2.1 BarCode Setting. 3. Run the WordPad software program. 4. Press one of the three barcode reader trigger buttons. 5. Aim the scanning beam at the center of barcode. 6. Good scanning position. The reading range is from 40 to 300mm distance. 1) Decrease the scanning distance to the bar code when scanning small barcodes.
Page 47: Power Management
2.6 Power management 2.6.1 Suspend Mode The PDT will go into a suspend mode when it is idle for a period of time. The idle duration can be customized using the Power control panel (refer to Figure “Schemes Tab”) Suspend mode works and looks just like you have turned the unit off.
Page 48: Resuming
2.6.2 Resuming Use one of following methods to resume (wake up the PDT): Press <Power> key to suspend or resume (wake up). Put the PDT into a dock. When a battery pack completely discharges while the unit is in suspend mode, the PDT remains suspended until discharged battery condition is corrected.
Page 49: Introduction
Chapter 3. Setting 3.1 Introduction To view available options for PDT’s setting, tap Start > Settings. Then, there are three items inside Settings: “Control Panel”, “Network and Dial-up” and “Taskbar and Start”. 3.2 Control Panel To view the Control Panel and settings you can modify by tapping Start > Settings > Control Panel.
Page 50: Barcode Setting
3.2.1 BarCode Setting CAUTION：Please do not enter into any Barcode Application Program before settings completing this Barcode. There are three Tabs for scanner configuration setting: “Basic” Tab, “Code Configure” Tab and “Code ID” Tab. In addition, there is “BarCode Setup” for the “Code Configure” Tab. 3.2.1.1 “Basic”...
Page 51 Field Name Function Explaining Two Times After scanning the barcode, give out beep two times. Select the scanning timeout duration (in seconds) from this Scan Timeout pull-down list. <2 ~ 20 sec, Default: 5> (sec) None After showing barcode, do not action. Termination Code CRLF...
Page 52 3.2.1.2 “Code Configure” Tab: Select the barcode symbologies you plan to scan from the list. Tap to enable/disable the desired symbologies. Figure 3-3 Code Configure Tab Table 3-2 Code Configure Explaining Barcode Symbology Explaining Type A. Numeric-only Barcodes UPC-E Compressed version of UPC code for use on small products.
Page 53 books, and other periodicals. Industrial 2 of 5 / IATA Older code not in common use. Interleaved 2 of 5 Compact numeric code, widely used in industry, air cargo, other applications. Plessey / MSI Plessey: Older code commonly used for retail shelf marking.
Page 54 3.2.1.3 “Code ID” Tab: Figure 3-4 Code ID Tab Table 3-3 Code ID Explaining Code ID is added into prefix of the barcode and let user identify which kind of barcode being scanned. Enable Code ID Enable this functionality. Set 1 ~ Set 5 Select one default value by Set 1 ~ Set 5.
Page 55 Set 1 Set 2 Set 3 Set 4 Set 5 Plessey / MSI Code 11 Codabar / NW 7 Matrix 2 of 5 Code 39 / Code 32 Code 93 Code 128 Code 4 Korea Code 3 of 5 UCC128 / EAN128 3.2.1.4 BarCode Setup A.
Page 56: Symbologies List
3.2.2 Symbologies List A Type -- Numeric-only Barcodes 3.2.2.1 UPC-E Figure 3-6 UPC-E Table 3-5 UPC-E Explaining Item Explaining Ignore 1st digit Do not transmit 1st digit by barcode. Format Transmit 1st digit by barcode. Transmit 1st digit Send Check Digit Whether send check digit by barcode.
Page 57 3.2.2.2 UPC-A UPC-A movements together with EAN-13, so only Enable EAN-13 then UPC-A will be Enable, too. Figure 3-7 UPC-A Table 3-6 UPC-A Explaining Item Explaining Ignore 1st & 2nd digits Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode.
Page 58 3.2.2.3 EAN-13 / ISBN Figure 3-8 EAN-13 / ISBN Table 3-7 EAN-13 / ISBN Explaining Item Explaining Ignore 1st & 2nd digits Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode. Format Transmit 2nd digit Transmit 2nd digit by barcode.
Page 59 3.2.2.4 EAN-8/JAN-8 Figure 3-9 EAN-8/JAN-8 Table 3-8 EAN-8/JAN-8 Explaining Item Explaining Ignore 1st digit Do not transmit 1st digit by barcode. Format Transmit 1st digit by barcode. Transmit 1st digit Send Check Digit Whether send check digit by barcode. Convert to EAN-13 When this option is selected the scanner will convert EAN-8 to EAN-13 by transmitting five zeroes …...
Page 60 3.2.2.5 UPC-EAN Add on 2/5 A. UPC-E, UPC-A, EAN-13 / ISBN and EAN-8 / JAN-8 may all include an additional barcode to the right of the main barcode. B. This barcode will show primary & additional code together. C. So the UPC-EAN Add-ON 2/5 code is unable to use alone, must operate in UPC-E or UPC-A or EAN-13 / ISBN or EAN-8 / JAN-8.
Page 61 3.2.2.6 Industrial 2 of 5 / IATA Figure 3-11 Industrial 2 of 5 / IATA Table 3-10 Industrial 2 of 5 / IATA Explaining Item Explaining Send Check Digit Whether send check digit by barcode. Enable IATA Code Whether use this IATA Code. Checksum Verify Whether verify checksum by barcode.
Page 62 3.2.2.7 Interleaved 2 of 5 Figure 3-12 Interleaved 2 of 5 Table 3-11 Interleaved 2 of 5 Explaining Item Explaining Send Check Digit Whether send check digit by barcode. Checksum Verify Whether verify checksum by barcode. Length Min Length can be set from 4 to 48 Min / Max (Default: 4 / 48) Max Length can be set from 4 to 48...
Page 63 3.2.2.8 Plessey / MSI Figure 3-13 Plessey / MSI Table 3-12 Plessey / MSI Explaining Item Explaining Format Mode 10 Checksum mode for this barcode. Mode 10-10 Mode 11-10 Send Check Digit Whether send check digit by barcode. Check 1 digit & send by checksum. 1 Digit 2 Digits Check 2 digits &...
Page 64 3.2.2.9 Code11 Figure 3-14 Code 11 Table 3-13 Code 11 Explaining Item Explaining Send Check Digit Whether send check digit by barcode. 1 Digit Check 1 digit & send by checksum. Check 2 digits & send by checksum. 2 Digits 3-16...
Page 65 3.2.2.10 Codabar / NW7 Figure 3-15 Codabar / NW7 Table 3-14 Codabar / NW7 Explaining Item Explaining Start / Stop Digit Whether transmit Start & Stop Digit. ABCD abcd Start / Stop transmit type TN*E tn*e Checksum Verify Whether verify checksum by barcode. 3-17...
Page 66 3.2.2.11 Matrix 2 of 5 Figure 3-16 Matrix 2 of 5 Table 3-15 Matrix 2 of 5 Explaining Item Explaining Send Check Digit Whether send check digit by barcode. Checksum Verify Whether verify checksum by barcode. Length Min Length can be set from 4 to 48 Min-Max (Default: 4 / 48) Max Length can be set from 4 to 48...
Page 67 B Type -- Alphanumeric Barcodes 3.2.2.12 Code39 / Code32 Figure 3-17 Code39 / Code32 Table 3-16 Code39 / Code32 Explaining Item Explaining Enable Code 39 Standard characters Code39 Standard Format Code39 Full ASCII Enable Code 39 Full ASCII character Code32 Enable Code 32 Start / Stop Digit Whether transmit Start &...
Page 68 3.2.2.13 Code93 The barcode do not have setting. Figure 3-18 Code93 3.2.2.14 Code128 / UCC EAN128 Figure 3-19 Code 128 / UCC EAN128 Table 3-17 Code128 / UCC EAN128 Explaining Item Explaining Enable UCC128/EAN128 Enable UCC128/EAN128. 3-20...
Page 69 C Type -- Others Barcodes 3.2.2.15 China Post Figure 3-20 China Post Table 3-18 China Post Explaining Item Explaining Checksum Verify Whether verify checksum by barcode. Send Check Digit Whether send check digit by barcode. Length Min Length can be set from 4 to 48 Min-Max (Default: 4 / 48) Max Length can be set from 4 to 48...
Page 70 3.2.2.16 Code4 The barcode do not have setting. Figure 3-21 Code4 3.2.2.17 GTIN The barcode do not have setting. Figure 3-22 GTIN 3-22...
Page 71 3.2.2.18 Korea Code 3 of 5 The barcode do not have setting. Figure 3-23 Korea Code 3 of 5 3.2.2.19 RSS Figure 3-24 RSS Table 3-19 RSS Explaining Item Explaining Convert to UCC128 The scanner will convert RSS to UCC128. Verify Checksum Whether verify checksum by barcode.
Page 72: Bluetooth Device Properties
3.2.3 Bluetooth Device Properties Table 3-20 Bluetooth Device Properties ICON ITEM & FUNCTION “BT Service” Tab ( Figure 3-25) : Tap the “Enable Bluetooth Device” to enable Bluetooth device. Wait for 20 seconds in order to initialize the Bluetooth hardware correctly.
Page 73 Figure 3-25 Bluetooth Device Properties Figure 3-25-1 Bluetooth Device Properties Figure 3-26 Bluetooth Manager Windows Figure 3-26-1 Bluetooth Manager Windows Figure 3-27 Bluetooth Error Windows Figure 3-28 Bluetooth Manager Windows 3-25...
Page 74 Figure 3-29 Bluetooth Enter PIN Windows Figure 3-30 Bluetooth Manager Windows Figure 3-30-1 Bluetooth Manager Windows Figure 3-30-2 Bluetooth Manager Windows 3-26...
Page 75 Figure 3-30-3 Bluetooth Manager Windows Figure 3-30-4 Bluetooth Manager Windows If the device to which the mobile computer is bonding does not appear in the list, Note: ensure it is turned on, in discoverable mode, and within range (30 feet / 10 meters) of the mobile computer.
Page 76: Certificates
Icon Description Linked icon Device is linked. 3.2.4 Certificates Certificates are used by some applications for establishing trust and for secure communications. Certificates are signed and issued by certificate authorities and are valid for a prescribed period of time. Windows CE manages multiple certificate stores. Table 3-22 Certificates ICON ITEM &...
Page 77 Figure 3-31 Certificates Figure 3-32 Certificates Figure 3-33 Certificates Figure 3-34 Certificates Figure 3-35 Certificates 3-29...
Page 78: Control Center
3.2.5 Control Center The Control Center includes four AP, listed the following ..Figure 3-36 Control Center 3.2.5.1 Information Table 3-23 Information ICON ITEM & FUNCTION “Information” Tab : Provide Software version, MAC address, Bluetooth ID, Serial No. and Configuration No. 3-30...
Page 79 3.2.5.2 Brightness Table 3-24 Brightness ICON ITEM & FUNCTION LCD Brightness Set the LCD brightness by adjusting the slider from low to high Amounts 5 steps: Every step have corresponding picture of self. Battery Power, turn The table must disable when its item is not off backlight after marked.
Page 80 3.2.5.4 Fn-key Settings Table 3-26 Fn-Key ICON ITEM & FUNCTION Fn-Key Setting (Figure 3-42) Fn Key The Application Program of default setting Internet Explorer Microsoft WordPad Inbox My Computer Barcode Settings Media Player Only for SC820 <None> Information To assign your favorite application program to Hot Keys. Choose one of Hot Keys from pull-down list.(Figure 3-43) To tap “Browse…”...
Page 81 3.2.5.3 Backup Restore Table 3-25 Backup Restore ICON ITEM & FUNCTION 1. You can backup/restore system to/from flash disk or inserted memory card. (A. Disk on Chip, B. CF Card, C. SD Card) ( Figure 3-38) When you launch this AP, it must check backup file in DOC first.
Page 82: Date/Time
3.2.6 Date/Time Table 3-27 Date/Time ICON ITEM & FUNCTION “Date/Time” Tab :( Figure 2-14) Please see the detail information of 2.5.1 Setting Time and Date on P.2-21 3.2.7 Dialing Properties Table 3-28 Dialing properties ICON ITEM & FUNCTION “Dialing Properties” Tab :( Figure 3-44) In the When dialing from list, select the “Location”...
Page 83 Figure 3-44 Dialing Properties Figure 3-45 Dialing Properties Figure 3-46 Dialing Properties Figure 3-47 Dialing Properties 3-35...
Page 84: Display Properties
3.2.8 Display Properties Table 3-29 Display properties ICON ITEM & FUNCTION “Background” Tab :( Figure 3-48) From the “Image” list, select an image you want as the background of the desktop.(Figure 3-49) To locate an image in another folder, select “Browse”.(Figure 3-50) To have the image cover the entire background, select “...
Page 85: Input Panel
Figure 3-50 Display properties Figure 3-51 Display properties Figure 3-52 Display properties 3.2.9 Input Panel Table 3-30 Display properties ICON ITEM & FUNCTION “Input panel” Tab :( Figure 3-53) Select the input method you want to change. To change the Soft Keyboard Options , tap “Option” (Figure 3-54) .
Page 86: Internet Options
“Options” Tab : Change the soft keyboard options as desired, selecting from: Large or small keys Using gestures for space, black-space shift, and enter. To exit the soft keyboard Options, press “OK” on the control bar, or press the <Enter> key on the keypad. To exit the Input Panel, press “OK”...
Page 87 “Security” Tab (Figure 3-57) Modify the security settings as desired. You can enable any of the following by tapping the checkbox: Allow cookies Allow TLS 1.0 security Allow SSL 2.0 security Allow SSL 3.0 security Warm when switching across secure and insecure areas. “Advanced”...
Page 88: Keyboard
Figure 3-57 Internet Settings Figure 3-58 Internet Settings 3.2.11 Keyboard Table 3-32 Keyboard ICON ITEM & FUNCTION “Repeat” Tab :( Figure 3-59) To change the amount of time between depressions before repetition starts, adjust the Repeat delay slider To change the repeat rate, adjust the Repeat rate slider. Test your new setting.
Page 89: Network And Dial-Up Connections
Figure 3-59 Keyboard Properties 3.2.12 Network and Dial-up Connections Table 3-33 Network and Dial-up Connections ICON ITEM & FUNCTION “Connection” Tab : To create a “Dial-up Connection”: Double-tap the “Make New connection”. In the “Make New Connection” dialog box, enter a name for the connection.
Page 90 Select “TCP/IP Settings”. In the “General” tab, ensure “Use Server-assigned IP address” is selected. In the “Name Servers” tab, ensure “Use Server-assigned addresses” is selected, and select “OK”. If you are unable to connect with these default settings, see your ISP or network administrator for specific TCP/IP information.
Page 91 Figure 3-60 Network and Dial-up Connections Figure 3-61 Network and Dial-up Connections Figure 3-62 Network and Dial-up Connections Figure 3-63 Network and Dial-up Connections 3-43...
Page 92 Figure 3-64 Network and Dial-up Connections Figure 3-65 Network and Dial-up Connections Figure 3-66 Network and Dial-up Connections Figure 3-67 Network and Dial-up Connections 3-44...
Page 93: Owner
Figure 3-68 Network and Dial-up Connections Figure 3-69 Network and Dial-up Connections Figure 3-70 Network and Dial-up Connections Figure 3-71 Network and Dial-up Connections 3.2.13 Owner Table 3-35 Owner ICON ITEM & FUNCTION “Identification” Tab : (Figure 3-72) 3-45...
Page 94: Password
Fill in or edit the data as desired. To have this information displayed when you start your device, select “Display Owner Identification” at Power On. To set up identification for remote networks, see Setting up identification for remote networks. “Network ID” Tab: (Figure 3-73) Enter the user name, password, and domain name you use to log on to remote network.
Page 95: Pc Connection
Figure 3-74 Password Properties 3.2.15 PC Connection Table 3-37 PC Connection ICON ITEM & FUNCTION “PC Connection” Tab : (Figure 3-75) Select the first checkbox to enable direct connections to the desktop computer. (Figure 3-75) Tap the “Change Connection…” button to modify the connection method from USB or Serial.
Page 96: Power
Provide remaining power capacity of main battery. If a “Main Batteries very Low” warning message shows, the remaining battery life is around 30 minutes to SC800 shuts down. ( Figure 3-81) The PDT will shutdown during the main batteries capacity is around 0% To exit Battery control panel, press “OK”...
Page 97 The Scheme Tab allows you to determine the time to switch state to Suspend mode when using either Battery Power or AC Power. Select Battery Power or AC Power as the power scheme from the pull-down list.( Figure 3-78) Select the time to suspend mode from the pull-down list. ( Figure 3-79) “Device Status”...
Page 98: Regional Settings
Figure 3-79 Power Figure 3-80 Power Figure 3-81 Power 3.2.17 Regional Settings Table 3-39 Regional Settings ICON ITEM & FUNCTION “Region” Tab : (Figure 3-82) Select the desired location/language. Review the Appearance samples in the bottom half of the screen. Select the Tab at the top for any settings you wish to change, Options to modify include Number, Currency, Time, and Date.
Page 99: Remove Programs
Figure 3-82 Regional Settings 3.2.18 Remove Programs Table 3-40 Remove Programs ICON ITEM & FUNCTION “Remove Programs” Tab : Only user installed programs can be removed. Select the program you wish to remove from the list and press “remove” button. 3-51...
Page 100: Storage Manager
3.2.19 Storage Manager Table 3-41 Storage Manager ICON ITEM & FUNCTION “Storage Manager” Tab : (Figure 3-83) To change Storage properties control panel default settings: Insert. Compact Flash(CF) or Secure digital (SD) storage card into the unit. Select Start > Settings > Control Panel > Storage Properties From the “Storage Info”...
Page 101: Stylus
3.2.20 Stylus Table 3-42 Stylus ICON ITEM & FUNCTION “Double-Tap” Tab : (Figure 3-84,Figure 3-85) Double-tap the checkerboard grip at a comfortable speed. Double-tap clapboard to test your settings The function is OK if the figures are changed from Figure 3-84 to Figure 3-85.
Page 102: System
Figure 3-86 Stylus Properties Figure 3-87 Stylus Properties 3.2.21 System Table 3-43 System ICON ITEM & FUNCTION “General” Tab : (Figure 3-88) To show: Firmware information Information about Processor type, Memory size, Expansion card Memory”: (Figure 3-89) “ Move the slider to adjust memory allocation. Default storage memory is normally is normally set to about 8MB with the reminder assigned to Program memory.
Page 103 To close the Device Name, press the “OK” button, or press the <Enter> key on keypad. Copyrights” Tab: (Figure3-91) “ Refer to this tab for specific copyright data. As a user, you are responsible to read this statement. Figure 3-88 System Properties Figure 3-89 System Properties Figure 3-90 System Properties Figure 3-91 System Properties...
Page 104: Volume & Sounds Properties
3.2.22 Volume & Sounds Properties Table 3-44 Volume & Sound ICON ITEM & FUNCTION “Volume” Tab : (Figure 3-92) The factory default for Volume is the forth level. You can adjust the volume to your environment and comfort. Set the volume by adjusting the slider from Soft to Loud, or press Right or Left edge of Navigation keys Sounds ”...
Page 105: Taskbar And Start Menu
3.3 Taskbar and Start Menu Table 3-45 Taskbar and Start menu ICON ITEM & FUNCTION Taskbar and “General” Tab : Start Menu In this tab, You can change the position of the Taskbar and Start menu Is always on top or not Auto hide or not Show Clock or not Advanced ”...
Page 106: Chapter 4.Communication
Chapter 4. Communication 4.1 Installing & Setting Up Microsoft ActiveSync 4.1.1 Installing Microsoft ActiveSync on the Host PC Microsoft ActiveSync is a file transfer tool to synchronize the files on a PC with the files on your PDT. To install Microsoft ActiveSync, complete the following steps on the PC: 1.
Page 107 Only devices that have a partnership with a desktop computer can synchronize information between the two computers. For more information on partnerships, please refer to your Microsoft ActiveSync documentation or help file. Transferring Files: To transfer files, complete the following steps on the host PC: Select Start>...
Page 108: Activesync File Synchronization
4.2.2 ActiveSync File Synchronization ActiveSync files synchronization requires an ActiveSync partnership between the PDT and the Host PC. Refer to “Setting up a Partnership”, above: Select the files in the synchronization configuration for the PDT partnership. Select Tools > Options from the ActiveSync command bar to configure the synchronization options.
Page 109: Chapter 5.Software Applications
Chapter 5. Software Applications 5.1 Introduction The PDT includes Calculator, Inbox,….. You can switch to any software program by tapping the Start Menu. 5.2 Software Applications 5.2.1 Inbox Use Inbox to send and receive e-mail messages in the following ways: Synchronize e-mail messages with Microsoft Exchange or Outlook on the Host Computer.
Page 110 icon, and follow the instructions in wizard. When finished, select Inbox in the Taskbar and continue setting up Inbox. POP3 Host(POP3 only): Enter the name of the mail server you use to receive and send messages. Server(IMPA4 only): Enter the name of he mail server you use to receive and send messages.
Page 111 extended characters. Only display messages from last 3 days: Select how many day’s messages you want downloaded. Set inbox preferences If you are adjusting the settings of an existing service, select Services> Options, select the service you are using, select Properties, and then select New twice. In the Inbox Preferences dialog box, choose any of the following options: Get message headers only: Select to save storage space and time by downloading only headers.
Page 112 Include the original message in a reply: Select Services> Options> Compose tab. Under Reply, select Include Body. This setting will place a copy of the original message beneath your response text. To indent the original message, select Indent. To add leading characters (such as>) to the original message lines, select Add leading character, and enter the character you want.
Page 113 Select the message Select File> Move To or File> Copy To. Select the destination folder. If you are working offline, the message will be moved or copied from the server the next time you connect. Folder- Create a folder: Select File> Folder> New Folder Type a name for the folder.
Page 114 marked as offline are synchronized. To synchronize all folders after the initial connection, select Services> Synchronize Folders. To synchronize just the selected folder and the Outbox folder, select Services> Send/Receive Mail. Compose and send a message: In list view, select Compose> New Message Enter the address of one or more recipients, separating them with a semicolon.
Page 115 connection and a mail server connection. The remote connection connects you and your ISP or network. The mail server connection downloads messages from your mail server to Inbox on your device. When you select Services> Connect in Inbox, Inbox starts a remote connection using the connection you specified when setting up the current mail service.
Page 116 receive full copies of messages, attachments, and meeting requests. For more information on using Journal, see the Help for the desktop version of Outlook. Working with Message Attachments: If you receive messages through a remote mail server, in Inbox on the device, select the Get file attachments and meeting requests (IMAP4) or Get meeting requests (POP3) setting in the Inbox Preferences dialog box.
Page 117 To delete an attachment you have received, delete the message. Attach a file to a message: With the message open, select File> Attachments> Add Attachment. Select the file you want to attach. Note: OLE objects cannot be attached to Inbox messages. Note 1: To add a mail service, select “Add”, To remove a mail service, select the service from the Installed service box and select “Remove”.
Page 118: Internet Explorer
5.2.2 Internet Explorer With Internet Explorer, you can view Web or intranet Web pages on your device. You will need to use a modem or WLAN to connect to an Internet server provider (ISP) or network. 5.2.2.1 Connect to the Internet Before you can view Web pages, you must set up a remote connection to your ISP or network.
Page 119 5.2.2.5 Enable Cookies A cookie file contains information about your identity and preferences so that a Web site can tailor information to your needs. The Web site sends the file and it is stored on your mobile device. Select View > Internet Options > Security Tab. Select Allow cookies.
Page 120 5.2.2.12 Stop loading a page Select View > Stop. 5.2.2.13 View current page Select View > Internet Options To view the protocol, page type, size, and address, selects the General tab. To view security information about the page, select the Security tab. 5.2.2.14 View HTML source code While viewing the page, select File >...
Page 121: Media Player
5.2.3 Media Player The PDT comes with Media Player for Windows CE.NET installed. Open Media Player by selecting Start > Programs > Media Player from the desktop. Select File > Open to open a new media file. Please refer to www.microsoft.com for additional information and help with your...
Page 122 5.2.5.1 Selecting and Editing Text Select text To select Do this Any amount of text Drag the stylus over the text. A word Double-tap the word. A single paragraph Triple-tap within the paragraph. An entire document Select Edit > Select All An picture Tap the picture Find text...
Page 123 To undo an action, select Edit > Undo. To restore the action, select Edit > Redo. 5.2.5.2 Formatting Text Create bulleted and numbered lists Select the Bullets or Numbering button. Type the first item. Press ENTER, type the next item, and repeat as needed. Select the button again to end list formatting.
Page 124 Adjust the indentation settings as needed. Set tabs Select Format > Tabs. Change the tab settings as needed. 5.2.5.3 Adjusting the Display Wrap text in the window Select View > Wrap to Window. Display the document using the full screen Select View >...
Page 125 5.2.5.6 Printing a Document Select File > Print. Select the printing options you want. Tips: Port list the available printer ports If Network is selected from the Port list, enter the path to the network printer to the Net Path box. 5.2.5.7 Setting a password for a Document Select File >...
Page 126 Fonts and font sizes Fonts not supported by your mobile device are mapped to the closest font available in WordPad. Page Formatting Headers, footers, footnotes, columns, pages setup information, and style sheets are removed during conversion to WordPad. WordPad supports built-in headings.
Page 127: Remote Connection
5.2.6 Remote Connection Using Remote Desktop Connection, you can log on to Windows Terminal Server and use all programs installed on this server. For example, instead of running Microsoft Pocket Word, you can run the desktop version of Microsoft Word. 5.2.6.1 Connecting to Terminal Server Select Start >...
Page 128: Windows Explorer
5.2.7 Windows Explorer Windows Explorer works almost the same on your PDT as it does on your PC. See the topics below for information about the difference in Windows Explorer on your device. 5.2.7.1 Navigating in File View Go forwards and Back To go to the previous folder, select Go >...
Page 129 > Infrared Recipient. To receive a file, line up the infrared ports, and select File > Receive. 5.2.7.4. Creating Desktop Shortcuts Display the file or Web page for which you want to create a Shortcut. Select File > Send to. Select Desktop as Shortcut.
Page 130: Diskonchip
5.3 DiskOnChip The DiskOnChip let the application or a data file can be stored into the Flash Memory. Note: The DiskOnChip storage memory persists all reset (warm/cold reboot) conditions and software/firmware updates. We strongly recommends installing all applications, applets, programs, and important data files to the DiskOnChip Flash location.
Page 131: Diskonchip Size
5.3.3 DiskOnChip Size The size of the DiskOnChip will vary, depending on the size of system firmware. Inside the DiskOnChip directory, tap File > Properties. The DiskOnChip Properties dialog: The number following Free is the amount of memory currently available on your device.
