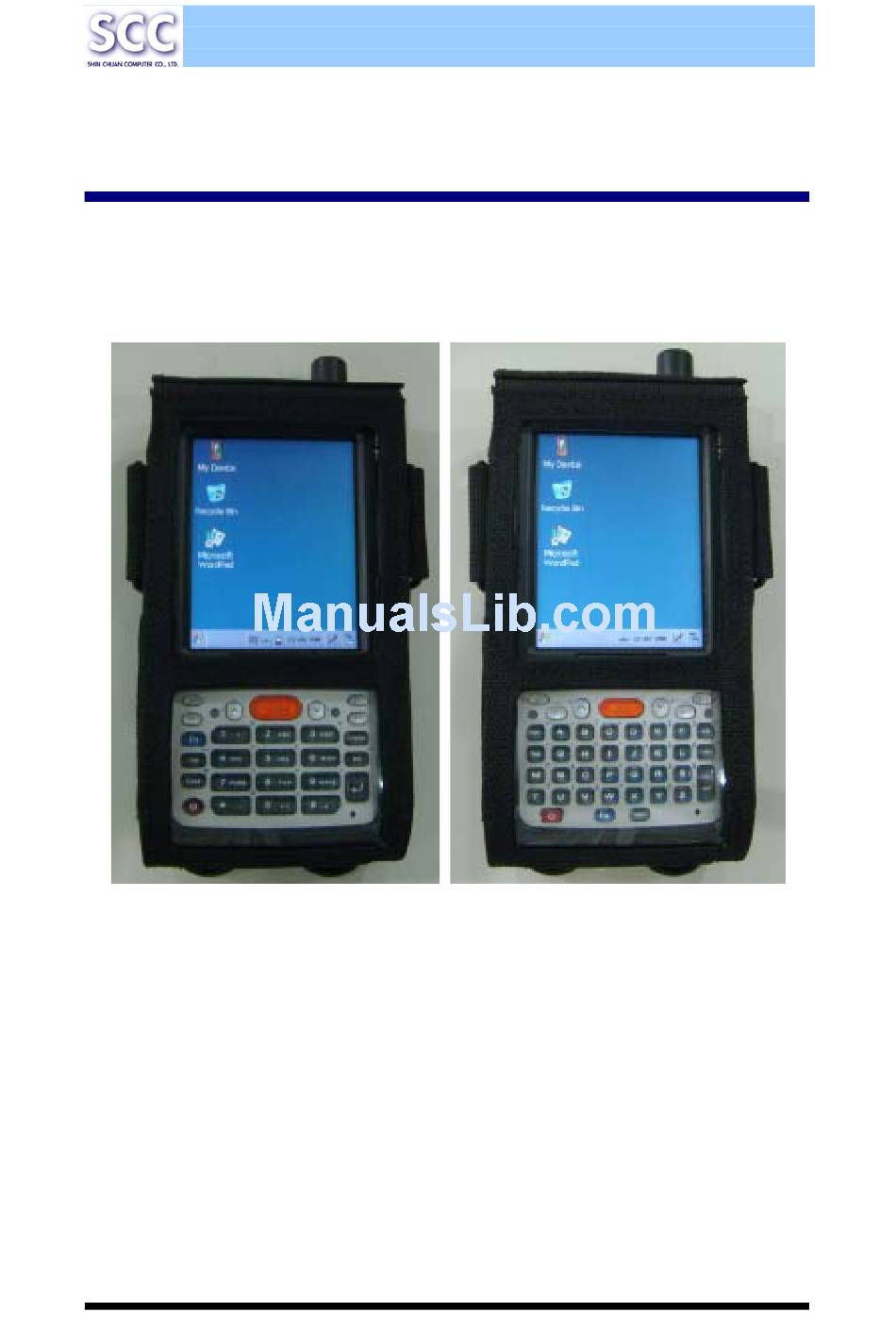

Shin Chuan Computer SC800 User Manual

Wince rugged portable data terminals
Hide thumbs Also See for SC800:
Table of Contents

Advertisement

Quick Links

Download this manual
Shin Chuan Computer
User's Manual
SC800/SC820
SC800/SC820 User's Manual
WinCE Rugged Portable Data Terminal
July/10/2009 Ver: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shin Chuan Computer SC800

Summary of Contents for Shin Chuan Computer SC800

  • Page 1 Shin Chuan Computer User’s Manual SC800/SC820 SC800/SC820 User’s Manual WinCE Rugged Portable Data Terminal July/10/2009 Ver: 1.0...

  • Page 2: Revision History

    Shin Chuan Computer User’s Manual SC800/SC820 Revision History: Date Description Remark 2008/12/18 Modified the contents of ch.3 and Appendix A GPRS Function 2009/2/16 Modified the contents of 2.5.8 Installing the SD Card 2009/6/16 Added Appendix B Expansion Module Applicability(RFID, GPS) 2009/6/19 Added “...

  • Page 3: Table Of Contents

    2.4.1 Starting the PDT............2-10 2.4.2 Power on / off.............2-10 2.4.3 Calibration of the touch Screen........2-11 2.4.4 To mute the Sound for SC800........2-11 2.4.5 Adjusting the Sound for SC820 ........2-11 2.4.6 Using the Stylus ............2-12 2.4.7 Using the SC800 Keypad...........2-12 2.4.8 Using the SC820 Keypad...........2-14...
  • Page 4 Shin Chuan Computer User’s Manual SC800/SC820 2.5 Navigating the Display............2-18 2.5.1 Setting Time and Date ..........2-18 2.5.2 Entering the Data ............2-18 2.5.3 The Command Bar.............2-19 2.5.4 The Task Bar..............2-19 2.5.5 The Soft Keypad ............2-20 2.5.6 Setting Up Wireless LAN ...........2-20 2.5.7 Reading barcodes, 1D laser version.
  • Page 5 Shin Chuan Computer User’s Manual SC800/SC820 3.2.18 Remove Programs ...........3-52 3.2.19 Storage Manager .............3-53 3.2.20 Stylus ...............3-54 3.2.21 System..............3-56 3.2.22 Terminal Server Client Licenses......3-58 3.2.23 Volume & Sounds Properties ........3-58 3.3 Taskbar and Start Menu .............3-59 Chapter 4. Communication ..............4-1 4.1 Installing &...
  • Page 6 Shin Chuan Computer User’s Manual SC800/SC820 A.3.1 Connecting ..............A-8 Appendix B Expansion Module Applicability.......... B-1 B.1 RFID Applicability..............B-1 B.2 GPS Applicability ..............B-3 Appendix C 2D Barcode Scanner Setting ..........C-1 C.1 Basic Tab ................C-1 C.2 Code Configure Tab............C-1 C.3 Prefix and Suffix Tab............

  • Page 7: Chapter 1. Introduction

    User’s Manual SC800/SC820 Chapter 1. Introduction Congratulations on purchasing the SC800/SC820 Portable Data Terminal (PDT), a Microsoft Windows®CE Rugged PDT. Its special combination of features makes it perfect for using in a wide range of applications. These features as: Intel® XScale PXA270 520MHz 32 bits RISC Processor Windows®...

  • Page 8: User And Product Safety

    Shin Chuan Computer User’s Manual SC800/SC820 1.2 User and Product Safety Do not stare into the laser or LED beam directly or shine it into eyes. Never use strong pressure onto the screen or subject it to severe impact, as the LCD panel could become cracked and possibility cause personal injury.

  • Page 9: Battery Safety

    Shin Chuan Computer User’s Manual SC800/SC820 1.3 Battery Safety CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. Lithium-ion battery packs might get hot, explode, ignite and/or cause serious injury if exploded by abusive using.

  • Page 10: Ce Statement

    Shin Chuan Computer User’s Manual SC800/SC820 1.4 CE Statement 1.4.1 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE...
  • Page 11 Shin Chuan Computer User’s Manual SC800/SC820 EN 301 489-1 V1.6.1: (2005-09) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.2.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM);...
  • Page 12 Shin Chuan Computer User’s Manual SC800/SC820 Dansk Undertegnede [fabrikantens navn] erklærer herved, at [Danish] følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch Hiermit erklärt [Name des Herstellers], dass sich das Gerät [German] [Gerätetyp] in Übereinstimmung mit den grundlegenden...
  • Page 13 Shin Chuan Computer User’s Manual SC800/SC820 Nederlands van toestel] in overeenstemming is met de essentiële eisen en [Dutch] de andere relevante bepalingen van richtlijn 1999/5/EG. Malti Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel [Maltese] tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva...

  • Page 14: Fcc Statement

    IMPORTANT NOTE: For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the (Shin Chuan Computer Co., Ltd.) accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

  • Page 15: Hand-Operated Device Sar Evaluation

    Note: Wireless LAN, 2.4GHz Low Power Hyper and GPRS/EDGE cannot be used at the same time. Caution: SCC declares that SC800 ( FCC ID: TQ2-SC800PDT-BWG ) / SC820 ( FCC ID: TQ2-SC800PDT-BWG ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A.

  • Page 16: Recycling & Disposal Instructions

    LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT 1.6 Recycling & disposal instructions. Do not throw this product in the home waste bin. 1.7 Regulatory information. For CE, FCC, RoHS and other Document of Conformities, consult the Contact Window of Shin Chuan Computer. 1-10...

  • Page 17: Product Labeling

    Shin Chuan Computer User’s Manual SC800/SC820 1.8 Product Labeling The PDT has several labels as showed in Figure 1-1 to 1-4. A. SC800 Figure 1-1 Product Labeling (Front side view) Label nr. Description LCD panel protection film SC800 logo Warranty seal PDT...
  • Page 18 Shin Chuan Computer User’s Manual SC800/SC820 Figure 1-2 Product Labeling (Back side view) Label nr. Description Laser radiation warning label Serial / Configuration number PenPower label (only use on Simplified Chinese version) CCC label (only use with China) System and regulatory label...
  • Page 19 Shin Chuan Computer User’s Manual SC800/SC820 B. SC820 Figure 1-3 Product Labeling (Front side view) Label nr. Description LCD panel protection film SC820 logo Warranty seal PDT Table 1-3 Front labeling 1-13...
  • Page 20 Shin Chuan Computer User’s Manual SC800/SC820 Figure 1-4 Product Labeling (Back side view) Label nr. Description LED/Laser radiation warning label Serial / Configuration number PenPower label (only use on Simplified Chinese version) CCC label (only use with China) System and regulatory label...

  • Page 21: System Specifications

    Shin Chuan Computer User’s Manual SC800/SC820 1.9 System Specifications The SC800 / SC820 detailed specifications as follows. Unless otherwise noted, all the specifications are subject to change without prior notification. Table 1-5 System Specification SC800 / SC820 Processor - Intel PXA270 520MHz 32 bits RISC CPU...
  • Page 22 Shin Chuan Computer User’s Manual SC800/SC820 SC800 / SC820 - One Power Button - One Reset Button - Three Barcode Scanner Buttons - Two Navigation Buttons - Four Application Buttons - One 18-key Numeric Keypad - One Reserved Button Keypad / Buttons...

  • Page 23: Environment Standard

    Shin Chuan Computer User’s Manual SC800/SC820 1.10 Environment Standard Table 1-6 Environment Standards Operating Temperature F ~ 122 F( -10 C ~ 50 Storage Temperature F ~ 158 F (-20 C ~ 60 Humidity 5% ~ 95% (non-condensing) Drop 5ft (1.5m) Drop onto Concrete Water &...

  • Page 24: Chapter 2. Getting Started

    Shin Chuan Computer User’s Manual SC800/SC820 Chapter 2. Getting Started 2.1 Check the package Open the package and check all the parts are inside without shortage and damage: A. SC800 Figure 2-1 Inside the package SC800 Terminal Standard Battery Pack (3.7VDC/2200mAh)
  • Page 25 Shin Chuan Computer User’s Manual SC800/SC820 B. SC820 Figure 2-2 Inside the package SC820 Terminal Standard Battery Pack (3.7VDC/2200mAh) USB Client Cable for Terminal AC Power Cord Standard AC Adapter 5VDC/2.6A Earphone/ Microphone Set Quick Guide (not shown in the picture)

  • Page 26: General View Of The Pdt

    Shin Chuan Computer User’s Manual SC800/SC820 2.2 General View of the PDT 2.2.1 SC800 general view Figure 2-3 SC800 front side view Figure 2-4 SC800 back side view...
  • Page 27 Shin Chuan Computer User’s Manual SC800/SC820 Table 2-1 Description of SC800 General View Scanner LED “Red” color Reading barcode Indicator “Green” color Successful reading Charge LED “Red” color Charging battery Indicator “Green” color Battery charged full 3 color LED “Blue” color 2.4GHz Low Power Hyper or...

  • Page 28: Sc820 General View

    Shin Chuan Computer User’s Manual SC800/SC820 2.2.2 SC820 general view Figure 2-5 SC820 front side view Figure 2-6 SC820 back side view...
  • Page 29 Shin Chuan Computer User’s Manual SC800/SC820 Table 2-2 Description of SC820 General View Scanner LED “Red” color Reading barcode Indicator “Green” color Successful reading Charge LED “Red” color Charging battery Indicator “Green” color Battery charged full 3 color LED “Blue” color 2.4GHz Low Power Hyper or...

  • Page 30: Charging The Battery Pack

    Shin Chuan Computer User’s Manual SC800/SC820 2.3 Charging the Battery Pack Before using the PDT, perform the basic procedure of charging the battery pack through the following steps. 2.3.1 Installing the battery pack 1. On the PDT attached with a hand-strap, detach and loose the hand-strap.
  • Page 31 Shin Chuan Computer User’s Manual SC800/SC820 3. Insert the battery pack into the battery compartment with the label facing out, and ensuring the battery snaps into place. Figure 2-9 Insert the battery pack 4. Replace the battery cover by inserting the top first, and then press the bottom in firmly.

  • Page 32: Charging The Battery Pack With Power Adapter

    Shin Chuan Computer User’s Manual SC800/SC820 ◆. When charging the battery pack, the charge LED indicator on the PDT turns on Red. After the battery pack is fully charged, the charge LED indicator turns to Green. 2.3.2 Charging the battery pack with Power Adapter 1.

  • Page 33: Handling The Pdt

    Shin Chuan Computer User’s Manual SC800/SC820 2.4. Handling the PDT 2.4.1 Starting the PDT Press the Power key to turn on/off the PDT. If the PDT does not power on, perform a cold boot. See 2-7 Resetting the PDT. CAUTION: When a battery is fully inserted in PDT for the first time, upon the PDT’s first power up, the device boots and powers on automatically.

  • Page 34: Calibration Of The Touch Screen

    Start > Settings > Figure 2-13 Calibration Control Panel > Stylus, to open the “Calibration” to recalibrate again. 2.4.4 To mute the Sound for SC800 To mute the sound, press the key first, and then press the key to turn off and turn on the sound.

  • Page 35: Using The Stylus

    CAUTION: Never use a pen, pencil, or other sharp object on the display to avoid any unexpected damage of the touch screen. 2.4.7 Using the SC800 Keypad Figure 2-14 SC800 Keypad Table 2-3 Keypad List Alpha + Caps +...
  • Page 36 Shin Chuan Computer User’s Manual SC800/SC820 Alpha + Caps + Main Function Fn + Main Function Main Function Inbox File Explorer Left Down Right TAB (Tabulation) Caps Audio Mute Function change Change to letters Backspace ＠ (at) ： ＼ ’ (Quotation Marks) ＋...

  • Page 37: Using The Sc820 Keypad

    Shin Chuan Computer User’s Manual SC800/SC820 2.4.8 Using the SC820 Keypad Figure 2-15 SC820 Keypad Table 2-5 Keypad List Fn + Main Caps + Main Main Function Function Function Main Barcode Scan Key Power On/Off Internet Explorer Microsoft WordPad Inbox...
  • Page 38 Shin Chuan Computer User’s Manual SC800/SC820 Fn + Main Caps + Main Main Function Function Function Enter Function change Space － (Minus Sign) Copy 2-15...
  • Page 39 Shin Chuan Computer User’s Manual SC800/SC820 Fn + Main Caps + Main Main Function Function Function ＊ Paste & . (Point) Table 2-6 Special Assembler Key Assembler Key Functionality Definition Reset Key Warm Reset Press “Reset” button in the back.

  • Page 40: Using The Ear/Microphone

    Shin Chuan Computer User’s Manual SC800/SC820 2.4.9 Using the Ear/Microphone Connect Ear/Microphone to PDT earphone jack connector. The PDT has built in microphone; but if you do want to record the voice, you have to use the packed Ear/Microphone. Figure 2-16 Ear/Microphone...

  • Page 41: User's Manual Sc800/Sc820

    There are several ways to enter data on the PDT once in an application: Use the keypad to enter alpha-numeric characters, Refer to “2.4.7 Using the SC800 keypad”. Use the stylus on the touch screen. 2-18...

  • Page 42: The Command Bar

    Shin Chuan Computer User’s Manual SC800/SC820 Select text in the same way you select the text on a PC. Use the stylus to highlight the desired text by dragging the stylus across the desired text, double-tapping to select one word and triple-rapping to select an entire line/paragraph.

  • Page 43: The Soft Keypad

    Shin Chuan Computer User’s Manual SC800/SC820 2.5.5 The Soft Keypad In applications that accept keypad input, the soft input panel (SIP) can be used to enter data using the stylus. The SIP is digital, QWERTY-style keyboard. To open the SIP, tap the keyboard icon to open the menu and select Hide Input Panel to close the keyboard.
  • Page 44 Shin Chuan Computer User’s Manual SC800/SC820 Inside the Summit directory are two items: a directory for the storage of security certificates and an SCU icon. To run SCU, double-click the SCU icon SCU has five tabs: Main, Profile, Status, and Diags, and Global. Each tab is described in more detail in this section.
  • Page 45 Shin Chuan Computer User’s Manual SC800/SC820 SCU: Indicates the version of SCU that is running on the device. About SCU: When tapped, supplies information on SCU that on a Windows application normally would appear under Help\About. Profile Tab Profile settings are radio and security settings that are stored in the registry as part of a configuration profile.
  • Page 46 Shin Chuan Computer User’s Manual SC800/SC820 -Rename: Give the profile a new name, one that is not assigned to another profile -Delete: Delete the profile, provided that it is not the active profile. -Scan: Open a window that lists access points that are broadcasting their SSIDs.
  • Page 47 Shin Chuan Computer User’s Manual SC800/SC820 - WPA2 or WPA with dynamic keys (derived from the EAP authentication process) - WPA2 or WPA with pre-shared keys - Static WEP keys Consult the user’s guide for details on all profile settings, including security settings.
  • Page 48 Shin Chuan Computer User’s Manual SC800/SC820 Diags Tab Figure 2-22 Diags Tab (Re)connect: Disable and enable the radio, apply or reapply the current profile, and attempt to associate and authenticate to the wireless LAN, logging all activity in the output area at the bottom.

  • Page 49: Reading Barcodes, 1D Laser Version

    Shin Chuan Computer User’s Manual SC800/SC820 An administrator can define and change most global settings on the Global Settings Tab in SCU. Figure 2-23 Global Tab The default setting for each global setting ensures reliable operation in most environments. Consult the user’s guide for details on all global settings.

  • Page 50: Reading Barcodes, 2D Cmos Version

    Shin Chuan Computer User’s Manual SC800/SC820 6. Good scanning position. The reading range is from 40 to 300mm distance. 1) Decrease the scanning distance to the bar code when scanning small barcodes. 2) Increase the scanning distance from the bar code when scanning large barcodes 3) The scanning area is visible by a red laser beam.
  • Page 51 Shin Chuan Computer User’s Manual SC800/SC820 5. Good scanning position. The reading range is from 45 to 260mm distance. 1) Decrease the scanning distance to the bar code when scanning small barcodes. 2) Increase the scanning distance from the bar code when scanning large...

  • Page 52: Installing The Sd Card

    Shin Chuan Computer User’s Manual SC800/SC820 2.5.9 Installing the SD Card 1. On the PDT attached with a hand-strap, detach and loose the hand-strap. Figure 2-24 Release the Hand strap from PDT 2. Turn the locking latches (right and left) downwards and lift the battery cover away from the PDT.

  • Page 53: Help

    Shin Chuan Computer User’s Manual SC800/SC820 3. Detach SD Holder and Insert the SD Card into the SD Slot. Figure 2-26 Detach the SD Holder from PDT 2.5.10 Help To tap “?” can get help information for each program. 2.6 Power management 2.6.1 Suspend Mode...

  • Page 54: Resuming

    Shin Chuan Computer User’s Manual SC800/SC820 Suspending: The following conditions will suspend: Press <Power> key while the unit is on. The duration timer of item “Switch state to Suspend” expires, which indicates that there has been no use for a specified of time.

  • Page 55: Cold Reset

    Shin Chuan Computer User’s Manual SC800/SC820 After Warm Reset: The desktop appears with the application shortcuts on the screen. The custom settings in the registry are persistent. 2.7.2 Cold Reset 1) You can use Cold Reset to initiate device if WINCE.NET OS lock up or Warm Reset still can’t work...

  • Page 56: Chapter 3. Setting

    Shin Chuan Computer User’s Manual SC800/SC820 Chapter 3. Setting 3.1 Introduction To view available options for PDT’s setting, tap Start > Settings. Then, there are three items inside “Control Panel”, “Network and Dial-up” and “Taskbar and Start”. 3.2 Control Panel To view the Control Panel and settings you can modify by tapping Start >...
  • Page 57 Shin Chuan Computer User’s Manual SC800/SC820 3.2.1.1 “Basic” Tab Figure 3-2 Basic Tab Table 3-1 Basic Description Field Name Description Beep After Select the numbers of beep tone after scan OK. Scan OK None After scanning the barcode, do not give out beep sound.
  • Page 58 Shin Chuan Computer User’s Manual SC800/SC820 Field Name Description Select a method based upon the barcode scanning Keyboard application you will use. Message Type Writing A unit continues a unit, fast showing barcode number. Copy & Paste Once show barcode number.
  • Page 59 Shin Chuan Computer User’s Manual SC800/SC820 Table 3-2 Bar Code List Description Barcode Symbology Description Type A. Numeric-only Barcodes UPC-E Compressed version of UPC code for use on small products. UPC-A Universal product code seen on almost all retail products in the USA and Canada.
  • Page 60 Shin Chuan Computer User’s Manual SC800/SC820 Code128 / UCC Very capable code, excellent density, high EAN128 reliability; in very wide use world-wide. Widely used data formatting model for Code Type C. Others Barcodes China Post Used by China Postal Service for automated mail sorting.
  • Page 61 Shin Chuan Computer User’s Manual SC800/SC820 User Define Establish number by oneself. Barcode List Set 1 ~ Set 5: defaults setting. User Define: select barcode to define. Default Press “Default” button to reset all configuration setting of “Code ID” Tab into default values.

  • Page 62: Symbologies List

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-5 BarCode Setup 3.2.2 Symbologies List A Type -- Numeric-only Barcodes 3.2.2.1 UPC-E Figure 3-6 UPC-E...
  • Page 63 Shin Chuan Computer User’s Manual SC800/SC820 Table 3-5 UPC-E Description Item Description Ignore 1st digit Do not transmit 1st digit by barcode. Format Transmit 1st digit Transmit 1st digit by barcode. Send Check Digit Whether send check digit by barcode.
  • Page 64 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.3 EAN-13 / ISBN Figure 3-8 EAN-13 / ISBN Table 3-7 EAN-13 / ISBN Description Item Description Ignore 1st & 2nd digits Do not transmit 1st digit by barcode. Transmit 1st digit Transmit 1st digit by barcode.
  • Page 65 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.4 EAN-8/JAN-8 Figure 3-9 EAN-8/JAN-8 Table 3-8 EAN-8/JAN-8 Description Item Description Ignore 1st digit Do not transmit 1st digit by barcode. Format Transmit 1st digit by barcode. Transmit 1st digit Send Check Digit Whether send check digit by barcode.
  • Page 66 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.5 UPC-EAN Add on 2/5 A. UPC-E, UPC-A, EAN-13 / ISBN and EAN-8 / JAN-8 may all include an additional barcode to the right of the main barcode. B. This barcode will show primary & additional code together.
  • Page 67 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.6 Industrial 2 of 5 / IATA Figure 3-11 Industrial 2 of 5 / IATA Table 3-10 Industrial 2 of 5 / IATA Description Item Description Send Check Digit Whether send check digit by barcode.
  • Page 68 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.7 Interleaved 2 of 5 Figure 3-12 Interleaved 2 of 5 Table 3-11 Interleaved 2 of 5 Description Item Description Send Check Digit Whether send check digit by barcode. Verify Whether verify checksum by Checksum barcode.
  • Page 69 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.8 Plessey / MSI Figure 3-13 Plessey / MSI Table 3-12 Plessey / MSI Description Item Description Format Mode 10 Mode 10-10 Checksum mode for this barcode. Mode 11-10 Send Check Digit Whether send check digit by barcode.
  • Page 70 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.9 Code11 Figure 3-14 Code 11 Table 3-13 Code 11 Description Item Description Send Check Digit Whether send check digit by barcode. 1 Digit Check 1 digit & send by checksum. 2 Digits Check 2 digits & send by checksum.
  • Page 71 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.10 Codabar / NW7 Figure 3-15 Codabar / NW7 Table 3-14 Codabar / NW7 Description Item Description Start / Stop Digit Whether transmit Start & Stop Digit. ABCD abcd Start / Stop transmit type...
  • Page 72 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.11 Matrix 2 of 5 Figure 3-16 Matrix 2 of 5 Table 3-15 Matrix 2 of 5 Description Item Description Send Check Digit Whether send check digit by barcode. Verify Whether verify checksum by Checksum barcode.
  • Page 73 Shin Chuan Computer User’s Manual SC800/SC820 B Type -- Alphanumeric Barcodes 3.2.2.12 Code39 / Code32 Figure 3-17 Code39 / Code32 Table 3-16 Code39 / Code32 Description Item Description Code39 Standard Enable Code 39 Standard characters Format Code39 Full ASCII Enable Code 39 Full ASCII character...
  • Page 74 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.13 Code93 The barcode does not have setting. Figure 3-18 Code93 3.2.2.14 Code128 / UCC EAN128 Figure 3-19 Code 128 / UCC EAN128 Table 3-17 Code128 / UCC EAN128 Description Item Description Enable UCC128/EAN128 Enable UCC128/EAN128.
  • Page 75 Shin Chuan Computer User’s Manual SC800/SC820 C Type -- Others Barcodes 3.2.2.15 China Post Figure 3-20 China Post Table 3-18 China Post Description Item Description Verify Whether verify checksum by Checksum barcode. Send Check Digit Whether send check digit by barcode.
  • Page 76 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.16 Code4 The barcode does not have setting. Figure 3-21 Code4 3.2.2.17 GTIN The barcode does not have setting. Figure 3-22 GTIN 3-21...
  • Page 77 Shin Chuan Computer User’s Manual SC800/SC820 3.2.2.18 Korea Code 3 of 5 The barcode does not have setting. Figure 3-23 Korea Code 3 of 5 3.2.2.19 RSS Figure 3-24 RSS Table 3-19 RSS Description Item Description The scanner will convert RSS to Convert to UCC128 UCC128.

  • Page 78: Bluetooth Device Properties

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.3 Bluetooth Device Properties Table 3-20 Bluetooth Device Properties ICON ITEM & FUNCTION “BT Service” Tab: (Figure 3-25) Tap the “Enable Bluetooth Device” to enable Bluetooth device(Figure 3-26). Wait for 20 seconds in order to initialize the Bluetooth hardware correctly.
  • Page 79 Shin Chuan Computer User’s Manual SC800/SC820 Port” tab, and will see the devices you had trusted or active. Select the device that you want to map a virtual com and which virtual com you want to use. Now COM1 has mapped for BT device.
  • Page 80 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-29 Bluetooth Error Windows Figure 3-30 Bluetooth Manager Windows Figure 3-31 Bluetooth Enter PIN Windows Figure 3-32 Bluetooth Manager Windows 3-25...
  • Page 81 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-33 Bluetooth Manager Windows Figure 3-34 Bluetooth Manager Windows Figure 3-35 Bluetooth Manager Windows Figure 3-36 Bluetooth Manager Windows Note: If the device to which the mobile computer is bonding does not appear in the list, ensure it is turned on, in discoverable mode, and within range (30 feet / 10 meters) of the mobile computer.

  • Page 82: Certificates

    Shin Chuan Computer User’s Manual SC800/SC820 Table 3-21 Bluetooth Icon Icon Description Unknown device icon Device is not defined Locked icon Device is locked and cannot be bonded to. Not locked icon Device is not locked and can be bonded to.
  • Page 83 Shin Chuan Computer User’s Manual SC800/SC820 “Store” Tab: (Figure 3-39) To add a certificate or associated private key to the selected store, select “Import” (Figure 3-39). To view more details of the selected certificate, such as the expanded name or expiration date, choose “View”.

  • Page 84: Control Center

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-41 Certificates 3.2.5 Control Center The Control Center includes four AP, listed the following.. Figure 3-42 Control Center 3-29...
  • Page 85 Shin Chuan Computer User’s Manual SC800/SC820 3.2.5.1 Information Table 3-23 Information ICON ITEM & FUNCTION “Information” Tab: Provide Software version, MAC address, Bluetooth ID, Serial No. and Configuration No. 3.2.5.2 Brightness Table 3-24 Brightness ICON ITEM & FUNCTION LCD Brightness: (Figure 3-43)
  • Page 86 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-43 Brightness 3.2.5.3 Fn-key Settings Table 3-25 Fn-Key ICON ITEM & FUNCTION Fn-Key Setting: (Figure 3-44) Fn Key The Application Program of default setting Internet Explorer Microsoft WordPad Inbox Windows Explorer To assign your favorite application program to Hot Keys.
  • Page 87 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-44 Fn-Key Settings Figure 3-45 Fn-Key Settings 3.2.5.4 Backup Restore Table 3-26 Backup Restore ICON ITEM & FUNCTION 1. You can backup/restore system to/from flash disk or inserted memory card. (Disk on Chip, or SD Card) (Figure 3-46) When you launch this AP, it must check backup file in DOC first.
  • Page 88 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-46 Backup Restore Figure 3-47 Backup & Restore Start Figure 3-48 Backup OK Figure 3-49 Restore OK 3-33...

  • Page 89: Date/Time

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.6 Date/Time Table 3-27 Date/Time ICON ITEM & FUNCTION “Date/Time” Tab: (Figure 2-14) Please see the detail information of 2.5.1 Setting Time and Date on P.2-21 3.2.7 Dialing Properties Table 3-28 Dialing properties ICON ITEM &...
  • Page 90 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-50 Dialing Properties Figure 3-51 Dialing Properties Figure 3-52 Dialing Properties Figure 3-53 Dialing Properties 3-35...

  • Page 91: Display Properties

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.8 Display Properties Table 3-29 Display properties ICON ITEM & FUNCTION “Background” Tab: (Figure 3-54) From the “Image” list, select an image you want as the background of the desktop.(Figure 3-55) To locate an image in another folder, select “Browse”.(Figure 3-56)
  • Page 92 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-54 Display properties Figure 3-55 Display properties Figure 3-56 Display properties Figure 3-57 Display properties 3-37...

  • Page 93: Input Panel

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-58 Display properties 3.2.9 Input Panel Table 3-30 Display properties ICON ITEM & FUNCTION “Input panel” Tab: (Figure 3-59) Select the input method you want to change. To change the Soft Keyboard Options , tap “Option”...

  • Page 94: Internet Options

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-59 Input Panel Properties Figure 3-60 Input Panel Properties 3.2.10 Internet Options Table 3-31 Internet Options ICON ITEM & FUNCTION “General” Tab: (Figure 3-61) Type in the URL of desired start page and the desired search engine.
  • Page 95 Shin Chuan Computer User’s Manual SC800/SC820 Never ○ Always ○ Hover ○ Figure 3-61 Internet Settings Figure 3-62 Internet Settings Figure 3-63 Internet Settings Figure 3-64 Internet Settings 3-40...

  • Page 96: Keyboard

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.11 Keyboard Table 3-32 Keyboard ICON ITEM & FUNCTION “Repeat” Tab: (Figure 3-65) To change the amount of time between depressions before repetition starts, adjust the Repeat delay slider To change the repeat rate, adjust the Repeat rate slider.

  • Page 97: Network And Dial-Up Connections

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.12 Network and Dial-up Connections Table 3-33 Network and Dial-up Connections ICON ITEM & FUNCTION “Connection” Tab: (Figure 3-66) To create a “Dial-up Connection”: Double-tap the “Make New connection”. In the “Make New Connection” dialog box, enter a name for the connection.(Figure 3-67)
  • Page 98 Shin Chuan Computer User’s Manual SC800/SC820 in the Make New Connection Wizard. If you can’t connect using the default settings, contact your ISP or access your ISP’s Web site for specific TCP/IP information as well as primary and secondary DNS address.
  • Page 99 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-68 Network and Dial-up Figure 3-69 Network and Dial-up Connections Connections Figure 3-70 Network and Dial-up Figure 3-71 Network and Dial-up Connections Connections 3-44...
  • Page 100 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-72 Network and Dial-up Figure 3-73 Network and Dial-up Connections Connections Figure 3-74 Network and Dial-up Figure 3-75 Network and Dial-up Connections Connections 3-45...

  • Page 101: Owner

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-76 Network and Dial-up Figure 3-77 Network and Dial-up Connections Connections 3.2.13 Owner Table 3-34 Owner ICON ITEM & FUNCTION “Identification” Tab: (Figure 3-78) Fill in or edit the data as desired. To have this information displayed when you start your device, select “Display Owner Identification”...
  • Page 102 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-78 Owner Properties Figure 3-79 Owner Properties Figure 3-80 Owner Properties 3-47...

  • Page 103: Password

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.14 Password Table 3-35 Password ICON ITEM & FUNCTION “Password Setting” Tab: (Figure 3-81) Enter the password In the “Confirm password “box, enter the password again. To require the password on startup, select “Enable password protection at power- on“.

  • Page 104: Power

    Provide remaining power capacity of main battery. If a “Main Batteries very Low” warning message shows, the remaining battery life is around 30 minutes to SC800 shuts down. ( Figure 3-88) The PDT will shutdown during the main batteries capacity...
  • Page 105 Shin Chuan Computer User’s Manual SC800/SC820 is around 0% To exit Battery control panel, press “OK” from the command bar, or press <Enter> key on keypad. “Schemes” Tab: (Figure 3-85) The Scheme Tab allows you to determine the time to switch state to Suspend mode when using either Battery Power or AC Power.
  • Page 106 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-86 Power Figure 3-87 Power Figure 3-88 Power 3-51...

  • Page 107: Regional Settings

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.17 Regional Settings Table 3-38 Regional Settings ICON ITEM & FUNCTION “Region” Tab: (Figure 3-89) Select the desired location/language. Review the Appearance samples in the bottom half of the screen. Select the Tab at the top for any settings you wish to change, Options to modify include Number, Currency, Time, and Date.

  • Page 108: Storage Manager

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-90 Regional Settings 3.2.19 Storage Manager Table 3-40 Storage Manager ICON ITEM & FUNCTION “Storage Manager” Tab: (Figure 3-91) To change Storage properties control panel default settings: Insert. Compact Flash(CF) or Secure digital (SD) storage card into the unit.

  • Page 109: Stylus

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-91 Storage Manager 3.2.20 Stylus Table 3-41 Stylus ICON ITEM & FUNCTION “Double-Tap” Tab: (Figure 3-92, Figure 3-93) Double-tap the checkerboard grip at a comfortable speed. Double-tap clapboard to test your settings The function is OK if the figures are changed from Figure 3-84 to Figure 3-85.
  • Page 110 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-92 Stylus Properties Figure 3-93 Stylus Properties Figure 3-94 Stylus Properties Figure 3-95 Stylus Properties 3-55...

  • Page 111: System

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.21 System Table 3-42 System ICON ITEM & FUNCTION “General” Tab: (Figure 3-96) To show: Firmware information Information about Processor type, Memory size, Expansion card “Memory”: (Figure 3-97) Move the slider to adjust memory allocation. Default storage memory is normally is normally set to about 8MB with the reminder assigned to Program memory.
  • Page 112 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-96 System Properties Figure 3-97 System Properties Figure 3-98 System Properties Figure 3-99 System Properties 3-57...

  • Page 113: Terminal Server Client Licenses

    Shin Chuan Computer User’s Manual SC800/SC820 3.2.22 Terminal Server Client Licenses Table 3-43 Terminal Server Client Licenses ICON ITEM & FUNCTION “Terminal Server Client Licenses” Tab: (Figure 3-100) The section allow users can connect to Terminal Server, If the user has License.

  • Page 114: Taskbar And Start Menu

    Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-101 Volume & Sound Figure 3-102 Volume & Sound 3.3 Taskbar and Start Menu Table 3-45 Taskbar and Start menu ICON ITEM & FUNCTION Taskbar “General” Tab: (Figure 3-104) and Start In this tab, You can change the position of the Taskbar and...
  • Page 115 Shin Chuan Computer User’s Manual SC800/SC820 Figure 3-103 Taskbar and Start Menu Figure 3-104 Taskbar and Start Menu- General Figure 3-105 Taskbar and Start Menu- Advanced 3-60...

  • Page 116: Chapter 4. Communication

    Shin Chuan Computer User’s Manual SC800/SC820 Chapter 4. Communication 4.1 Installing & Setting Up Microsoft ActiveSync 4.1.1 Installing Microsoft ActiveSync on the Host PC Microsoft ActiveSync is a file transfer tool to synchronize the files on a PC with the files on your PDT.
  • Page 117 Shin Chuan Computer User’s Manual SC800/SC820 your desktop computer. This file enables your desktop computer to recognize your device. Only devices that have a partnership with a desktop computer can synchronize information between the two computers. For more information on partnerships, please refer to your Microsoft ActiveSync documentation or help file.

  • Page 118: Activesync File Synchronization

    Shin Chuan Computer User’s Manual SC800/SC820 4.2.2 ActiveSync File Synchronization ActiveSync files synchronization requires an ActiveSync partnership between the PDT and the Host PC. Refer to “Setting up a Partnership”, above: Select the files in the synchronization configuration for the PDT partnership.

  • Page 119: Chapter 5. Software Applications

    Shin Chuan Computer User’s Manual SC800/SC820 Chapter 5. Software Applications 5.1 Introduction The PDT includes Inbox, MediaPlayer,….. You can switch to any software program by tapping the Start Menu. 5.2 Software Applications 5.2.1 Inbox Use Inbox to send and receive e-mail messages in the following ways: Synchronize e-mail messages with Microsoft Exchange or Outlook on the Host Computer.
  • Page 120 Shin Chuan Computer User’s Manual SC800/SC820 instructions in wizard. When finished, select Inbox in the Taskbar and continue setting up Inbox. POP3 Host(POP3 only): Enter the name of the mail server you use to receive and send messages. Server(IMPA4 only): Enter the name of he mail server you use to receive and send messages.
  • Page 121 Shin Chuan Computer User’s Manual SC800/SC820 Display a message box when new mail arrives (IMAP4 only): Select to be informed that new mail has arrived. Send using MIME format (POP3 only): Select to send messages with extended characters. Only display messages from last 3 days: Select how many day’s messages you want downloaded.
  • Page 122 Shin Chuan Computer User’s Manual SC800/SC820 messages and selecting Services> Get Full Copy. Get file attachments and meeting requests (IMAP4 only): Select to download and store meeting requests and message attachments when getting full copies of messages. This setting applies you have...
  • Page 123 Shin Chuan Computer User’s Manual SC800/SC820 Note: If you are working offline, messages that have been deleted from the device the next time you connect. Empty the Deleted (local) folder: Select File> Empty Deleted (local). This permanently deletes messages in the Deleted (local) folder.
  • Page 124 Shin Chuan Computer User’s Manual SC800/SC820 able to read and respond to messages in that folder only when connected to the server. To designate a folder as offline, select the folder and then select Service > Offline Folder. Rename a folder: Select the folder you want to rename.
  • Page 125 Shin Chuan Computer User’s Manual SC800/SC820 e-mail address through Choose E-mail Recipients. To attach a file, select File> attachments> Add Attachment. Select File> Send. If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.
  • Page 126 Shin Chuan Computer User’s Manual SC800/SC820 mail service. If you are already connected through a remote connection other than the one you specified in the service, you will be asked if you want to use the current connection. If you choose not to, you will need to disconnect from the current connection before you can check for new messages.
  • Page 127 Shin Chuan Computer User’s Manual SC800/SC820 dropping it. Also, be sure to set your IMAP4 service to receive full copies of messages, attachments, and meeting requests. For more information on using Journal, see the Help for the desktop version of Outlook.
  • Page 128 Shin Chuan Computer User’s Manual SC800/SC820 If you use more than one storage card, select it from the list. Note: Once you make the above selection, all attachments will be moved to the selected card. Delete an attachment: To delete an attachment from a message you are sending, select the attachment, and then select Edit>...

  • Page 129: Internet Explorer

    Shin Chuan Computer User’s Manual SC800/SC820 5.2.2 Internet Explorer With Internet Explorer, you can view Web or intranet Web pages on your device. You will need to use a modem or WLAN to connect to an Internet server provider (ISP) or network.
  • Page 130 Shin Chuan Computer User’s Manual SC800/SC820 and drag the sliding menus to the left or right to see the hidden menu items and toolbars. To achieve more screen real estate in Internet Explorer, you can hide the Status bar and View menu. From the top menu bar, go to View > Hide Toolbars.
  • Page 131 Shin Chuan Computer User’s Manual SC800/SC820 5.2.2.9 Add and view Favorites Go to the page you want add Select Favorites > Add To Favorites. If necessary, locate the folder you want. Confirm or change the name. To view your favorite Web sites, select Favorites and the Web site you want to view.

  • Page 132: Messenger

    Shin Chuan Computer User’s Manual SC800/SC820 from the Internet or Intranet without using cached memory. Select File > Save As Specify a folder location and give the file name. 5.2.2.17 Copy a Web page to a document Select all or part of the Web page you want to copy.
  • Page 133 Shin Chuan Computer User’s Manual SC800/SC820 buttons and menu commands that are similar to those used in the desktop version of Microsoft Word. You can work with files Normal or Outline view. WordPad documents are usually saved as .pwd files, but you can also save documents in other file formats, such as .rtf or .doc.
  • Page 134 Shin Chuan Computer User’s Manual SC800/SC820 the Copy button. To paste the information, move the insertion point to the desired location, and select the Paste button. Notes: To undo an action, select Edit > Undo. To restore the action, select Edit > Redo.
  • Page 135 Shin Chuan Computer User’s Manual SC800/SC820 Adjust the paragraph alignment Select the paragraph you want to align. Select the Align Left, Center, or Align Right button. Note: To see more formatting options, select Format > Paragraph. Indent a paragraph Select the paragraph you want to indent.
  • Page 136 Shin Chuan Computer User’s Manual SC800/SC820 5.2.4.5 Inserting Symbols Place the insertion point where you want to insert the symbol. Select Tools > Insert Symbols. Select the symbol you want, and then select Insert. Tips: If you select a different font ( or subset of a font), a different set of Symbols will be displayed.
  • Page 137 Shin Chuan Computer User’s Manual SC800/SC820 Changes caused by Word document conversion Formatting Borders and Shading Borders and shading are not displayed in WordPad, but are restored when converted back to a Word document. Shading is not restored when used in a table, but simple borders are restored.

  • Page 138: Remote Connection

    Shin Chuan Computer User’s Manual SC800/SC820 OLE Objects OLE Objects are removed during conversion. Revisions marks, annotations, and comments Revision marks are visible but cannot be changed. Annotations and documents are removed during conversion. 5.2.5 Remote Connection Using Remote Desktop Connection, you can log on to Windows Terminal Server and use all programs installed on this server.

  • Page 139: Windows Explorer

    Shin Chuan Computer User’s Manual SC800/SC820 5.2.5.2 Disconnecting Without Ending a Session In the Remote Connection window, select Start > Shutdown. Select Disconnect > OK. Note: If you previously disconnected from a Terminal Server without ending the session, the Terminal Server will continue to execute any running...
  • Page 140 Shin Chuan Computer User’s Manual SC800/SC820 Use the Go menu To quickly access the My Documents folder, select Go > My Documents To see all of the folders you have accessed, select Go > History. Double-tap a folder to return to it.

  • Page 141: Diskonchip

    Shin Chuan Computer User’s Manual SC800/SC820 5.3 DiskOnChip The DiskOnChip let the application or a data file can be stored into the Flash Memory. Note: The DiskOnChip storage memory persists all reset (warm/cold reboot) conditions and software/firmware updates. We strongly recommends installing all applications, applets, programs, and important data files to the DiskOnChip Flash location.

  • Page 142: Diskonchip Size

    Shin Chuan Computer User’s Manual SC800/SC820 5.3.3 DiskOnChip Size The size of the DiskOnChip will vary, depending on the size of system firmware. Inside the DiskOnChip directory, tap File > Properties. The DiskOnChip Properties dialog: The number following Free is the amount of memory currently available on your device.

  • Page 143: Appendix A Gprs Function

    Shin Chuan Computer User’s Manual SC800/SC820 Appendix A GPRS Function A.1 Using the GPRS Features Use the PDT to make and receive data and send. Your service provider may provide other useful services such as GPRS. The PDT can also be used to connect to an Internet Service Provider (ISP) or work network so you can browse the Web and read e-mail.

  • Page 144: Before Start

    Shin Chuan Computer User’s Manual SC800/SC820 Figure A-2 Remove SIM Card from SIM Tray Note: Repeat the same steps to remove the SIM card from the SIM tray. A.1.3 Before Start: Warning! 1. Before start to using GPRS, you must wait the GPRS icon in the task bar to appear.
  • Page 145 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-5 Enable GPRS Module Process Figure A-6 Dial-up to GPRS? Figure A-7 GPRS Connecting-Please Figure A-8 GPRS Connected wait...

  • Page 146: Select Settings

    Shin Chuan Computer User’s Manual SC800/SC820 Figure A-9 Launch PIN CODE Figure A-10 PIN Code Input GPRS Module Active Symbol: GPRS Module is Disable (Power off) GPRS Module is Enable (Power on) A.2 Select settings Click the button to selecting the setting for your want: Set GPRS Connection: The default COM Port of GPRS Module is COM 8.
  • Page 147 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-11 Set GPRS Connection Figure A-12 Set GPRS Connection Figure A-13 GPRS Properties Figure A-14 GPRS Connection Properties...
  • Page 148 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-15 Configure-Port Settings Figure A-16 Configure-Call Options Figure A-17 TCP/IP Settings-General Figure A-18 TCP/IP Settings-Name Servers...
  • Page 149 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-19 Set GPRS Connection- Figure A-20 Set GPRS Connection- Security Settings Bluetooth Figure A-21 Set GPRS Connection-Phone Number...

  • Page 150: Internet Connection

    Shin Chuan Computer User’s Manual SC800/SC820 A.3 Internet connection Warning! On the equipment, the fact of connecting to the Internet Explorer. Configuring the network operator The AP preserves one standard setting; other establishment, please consult your mobile phone service provider define and not by oneself manual to set This setting will produced an ‘GPRS Connection’...
  • Page 151 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-23 GPRS Connection Figure A-24 GPRS Connection Properties Figure A-25 GPRS Connecting Figure A-26 GPRS Connecting...
  • Page 152 Shin Chuan Computer User’s Manual SC800/SC820 Figure A-27 GPRS Connecting Figure A-28 GPRS Connecting Figure A-29 GPRS Connected A-10...
  • Page 153 Shin Chuan Computer User’s Manual SC800/SC820 Suspend / Resume The GPRS module can not connection automatically, while the device entry Suspended and Resumed. You shall re-connect manually. Figure A-30 GPRS Module Enable Figure A-31 GPRS Enable Process Figure A-32 GPRS Disabled...

  • Page 154: Appendix B Expansion Module Applicability

    Shin Chuan Computer User’s Manual SC800/SC820 Appendix B Expansion Module Applicability B.1 RFID Applicability B.1.1 Read Mode Sub Item Description Remark Please Tap it before OPEN Enable the RFID device. use the RFID CLOSE Disable the RFID device Read UID (Unique Identifier)
  • Page 155 Shin Chuan Computer User’s Manual SC800/SC820 Figure B-1 RFID Power On Figure B-2 Continue Mode-Start Figure B-3 RFID Power On Figure B-4 WriteMode B.1.2 Write Mode Sub Item Explaining Remarks Tag Type (TI, AMIC, Choose the tag card type Philips)

  • Page 156: Gps Applicability

    Shin Chuan Computer User’s Manual SC800/SC820 Write 2 bits AFI (Application Family WriteAFI Identifier) code to tag Only input number, card. Num = 0 ~ 255 or 0 ~ FF. Write 2 bits DSFID (Data WriteDSFID Storage Format Identifier) code to tag card.
  • Page 157 Shin Chuan Computer User’s Manual SC800/SC820 Save log file “gpslog.txt” to “My Log File Computer” folder. Viewing Area Show the state data of GPS. Figure B-5 GPS Info Figure B-6 GPS Power On Figure B-7 GPS Scan...
  • Page 158 Shin Chuan Computer User’s Manual SC800/SC820 B.2.2 GPS Info Tab: Figure B-8 Did not fix direction Figure B-9 Fixed direction...

  • Page 159: Appendix C 2D Barcode Scanner Setting

    Shin Chuan Computer User’s Manual SC800/SC820 Appendix C 2D Barcode Scanner Setting C.1 Basic Tab Tab □ Icon to Enable or Disable bar code reader C.2 Code Configure Tab Tab □ Icon to Enable or Disable bar code type...

  • Page 160: Prefix And Suffix Tab

    Shin Chuan Computer User’s Manual SC800/SC820 C.3 Prefix and Suffix Tab...

  • Page 161: Quiet Zone Tab

    Shin Chuan Computer User’s Manual SC800/SC820 C.4 Quiet Zone Tab C.5 Read Mode Tab...

  • Page 162: Ascii Conversion Tab

    Shin Chuan Computer User’s Manual SC800/SC820 C.6 ASCII Conversion Tab C.7 Advanced Tab...

  • Page 163: Firmware Upgrade Tab

    Shin Chuan Computer User’s Manual SC800/SC820 C.8 Firmware Upgrade Tab...

This manual is also suitable for:

Sc820

Table of Contents
