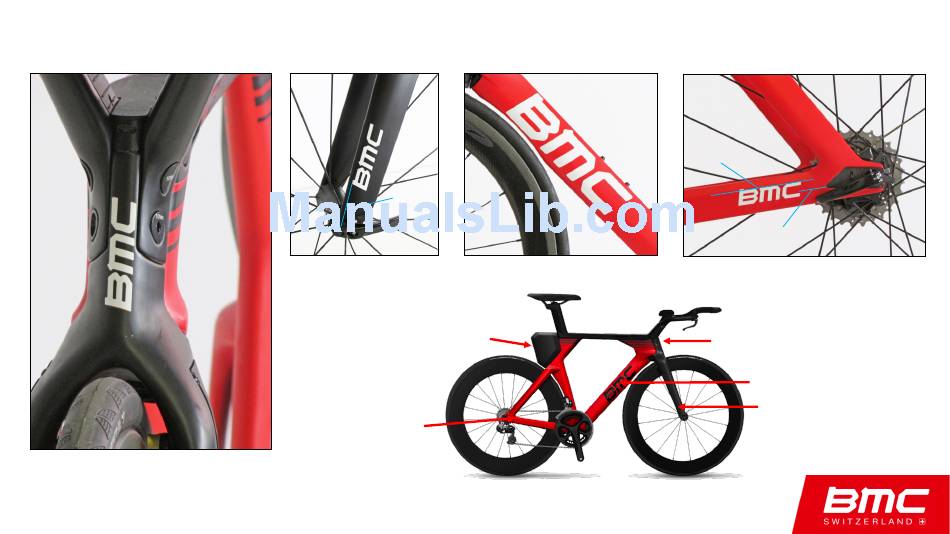

Decal set for Timemachine 01 Dura Ace Di2 / FRS
Align on edge
50 mm
30 mm
1.  Headtube
2.  Fork (x2)
3.  Downtube (x2)
1
5
4.  Chainstay (x2)
5.  Storage box
3
2
4
