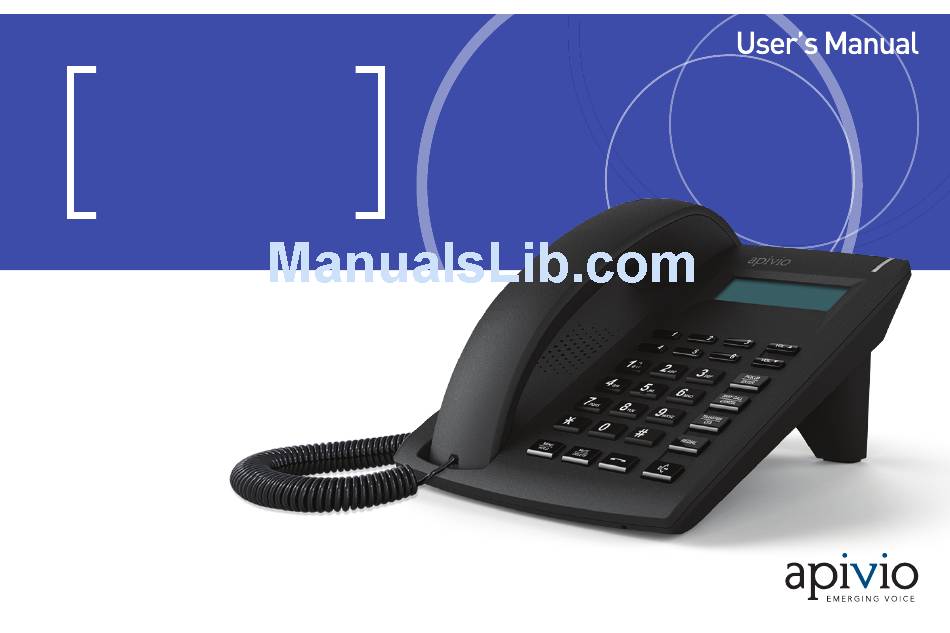

- Page 1 Dexter IP330S...
-
Page 2: User Precaution
USER PRECAUTION Please read the instruction carefully to protect yourself and others from personal injury or damage to property. To use the phone correctly and safely and prevent an - Any damages due to unauthorized disassembly and accident, it is essential for you to heed the warning and intentional damages by users are not covered by the information provided. - Page 3 CONTENTS COMPONENTS The components must be checked when the package is opened. Please contact the store where ..........User Precaution you purchased it if there are any missing items............Components ............. About Phone Body of IP330 Receiver with connecting cable ............
-
Page 4: About Phone
ABOUT PHONE LCD screen Indicate status of network, message and etc. Front Call to the registered phone numbers with each Memory dial keys button. (provide 6 memory dial keys) Volume Adjust volume ▲/▼ - Allow you to answer another ringing phone Pickup / Enter in the network. - Page 5 ABOUT PHONE Side Back...
-
Page 6: Lcd Status
LCD STATUS CASES Case 1 “No Service” 03/11/Fri, 10:00 03/11/Fri, 10:00 0701234567 No Service In this case, phone does not properly communicate with LCD screen IP-PBX. - Causes 1. Network connection failure Status Explanation 2. Blocked by firewall(security equipment) port Time Indicate present time. - Page 7 CASES Case 3 “IP address is duplicated” Case 5 “Starting” Duplicated Addr apivio Starting… In this case, you use same IP address with other PC In case system does not start for more than 1 minute due to or phone.
-
Page 8: Installation
INSTALLATION How to install phone based on internet environment Connecting cables (Back) A. Customers who use directly connected optic fiber LAN. 1. Connect internet line of optic fiber LAN to LAN port. 2. Connect computer line to PC port. 3. Connect power adaptor. internet line DC 5V Power... - Page 9 INSTALLATION How to install phone according to internet using environment ADSL, VDSL, ADSL, VDSL, ADSL, VDSL, ADSL, VDSL, Cable modem Cable modem Cable modem Cable modem internet line B. Customers who use ADSL, VDSL or cable modem 1. Connect internet line to LAN ports of modem and Phone internet line port 2.
-
Page 10: Networks Setting
NETWORK SETTING Detail settings according to protocol 1. How to use dynamic IP - Press shortcut keys as shown below, and set dynamic IP Enter subnet mask address - “Dynamic IP” is set as default value. Subnet mask and press confirm button 255.255.255.0 Enter gateway address and Function Setup... -
Page 11: Service Setting
NETWORK SETTING SERVICE SETTING Service (VoIP) detail settings 3. How to use PPPoE - Press shortcut keys as shown below, and move to PPPoE setting 1. LCD screen settings Press menu button and after Function Setup message is appeared on the LCD screen as shown on the right, Phone Setup press [4] button or move to menu... -
Page 12: Setting Via Web
SERVICE SETTING SETTING VIA WEB Phone settings Phone settings Web settings Web settings Enter password to use numeric 1. Check IP to use numeric keys of phone. Password keys and press confirm. Press menu button to swift keyboard mode from number to English upper / lower case. - Page 13 SETTING VIA WEB Home Page of Managing Website Dynamic IP setting DNS Server Setting Fixed IP setting NAT setting PPPoE setting...
-
Page 14: Trouble Shooting
TROUBLE SHOOTING Solution for simple issues – Following issues may occur although the phone is working correctly. Symptoms How to solve 1. I cannot use hold mode during call. - Please check hold during call setting on your phone. (Menu + 3+ 2) - Group must be set to use pickup. -
Page 15: Basic Functions
BASIC FUNCTIONS Pick up Hang up Call through Call through Enter phone Memory dial Ringtones Function the receiver the phone handset speaker phone numbers button/Enter Make a Call Call through Handset Call through speaker phone Enter phone Enter phone numbers numbers You can call the Memory... -
Page 16: Answer A Call
BASIC FUNCTIONS Answer a Call Call through handset Call through handset Phone rings Phone rings Tip! Answer another call during an ongoing call : In this case, hold during call function has to be set. After set the function, press [HOLD] button to answer another call during an ongoing call. -
Page 17: Call Log
BASIC FUNCTIONS Call log Press [MENU] and [8–Call Log]. You can check the lists of outcoming, search incoming and missing calls. for lists Memory buttons (six speed dial keys) - Save number : After entering phone numbers, press memory button and the number will be saved. memory button search for lists to store... -
Page 18: Conference Call
BASIC FUNCTIONS Conference call Allow you to join 2 different people and call together at once through ‘Make another call during an ongoing call’ and ‘Hold during call’. (Method 1) Make another call during an ongoing call (Method 2) Answer another call during an ongoing call during call Enter phone number to call make another call... -
Page 19: Ring Type
BASIC FUNCTIONS Call wating Allow you to answer another call during an ongoing call (How to receive) (How to set) during call another incoming call answer the another call Ring type Allow you to find and change ringtones easily. (How to set) search for ringtones Auto prefix... - Page 20 Setting BLF ( Busy Lamp Field ) Keys * This page is only applicable for IP-330s BLF version. BLF displays call status of saved phone numbers with six LED buttons. BLF keys can be set up either by phone or by managing website. Setting BLF by Phone - Save number : After entering phone numbers, Input...
-
Page 21: How To Set Function Menu
HOW TO SET FUNCTION MENU MENU MENU MENU Text Message Ring Type Auto Provision New Message Call Waiting Set Default Voice Message Call Pickup Test Provision Sent Message Speed Dial Change App Delete Messages Auto Pref ix Reboot Message Memory Phone Book S/W Version Do Not Disturb... -
Page 22: Treatment Before Disposal
TREATMENT BEFORE DISPOSAL Please follow the instructions when you dispose the product. When disposing of the product, please contact the nearest local governments for proper treatment. Please dispose it in the right way that you are informed. Please inform administration office if they provide free recycling service of the phone. -
Page 23: Warranty
WARRANTY The products which are produced and sold from Moimstone Co, Ltd are guaranteed for 12 months from the date you purchased if the products have been used in accordance with those specified in the documentation 1. 12 months from the date of purchase The products which failed in the production process are free exchanged or repaired from the store you purchased. -
Page 24: Damage Compensation
DAMAGE COMPENSATION Free of charge Free compensation services will be provided for manufacturer’s defects or spontaneous failure within 12 months of warranty. Compensation Types of damage Within warranty After warranty Major repair within 10 days from the purchase Exchange or refund Major repair within 1 months from the purchase Exchange or free repair Damages occurred during shipping or installation... -
Page 25: Product Specification
PRODUCT SPECIFICATIONS Product spec Description Power consumption Less than 5W Operating supply DC 5V 2.0A 0 ~ 45 Operating temperatures ℃ Adaptor power supply AC 90~264V, 47Hz/60Hz Size (with Handset) 160 X 192 X 120(㎜) Weight (± 50g) 570g Display screen “LCD(2LINE FSTN Mono Graphic(128 X 32 dots)) Ring indicate”... - Page 26 MEMO...
- Page 27 MEMO...
- Page 28 IP-330O-02(20141014) * User’s manuals can be different according to software version of each IP phone and the product specifications can be changed without prior notice.
