Summary of Contents for Winmate W05TA3S-PCT3

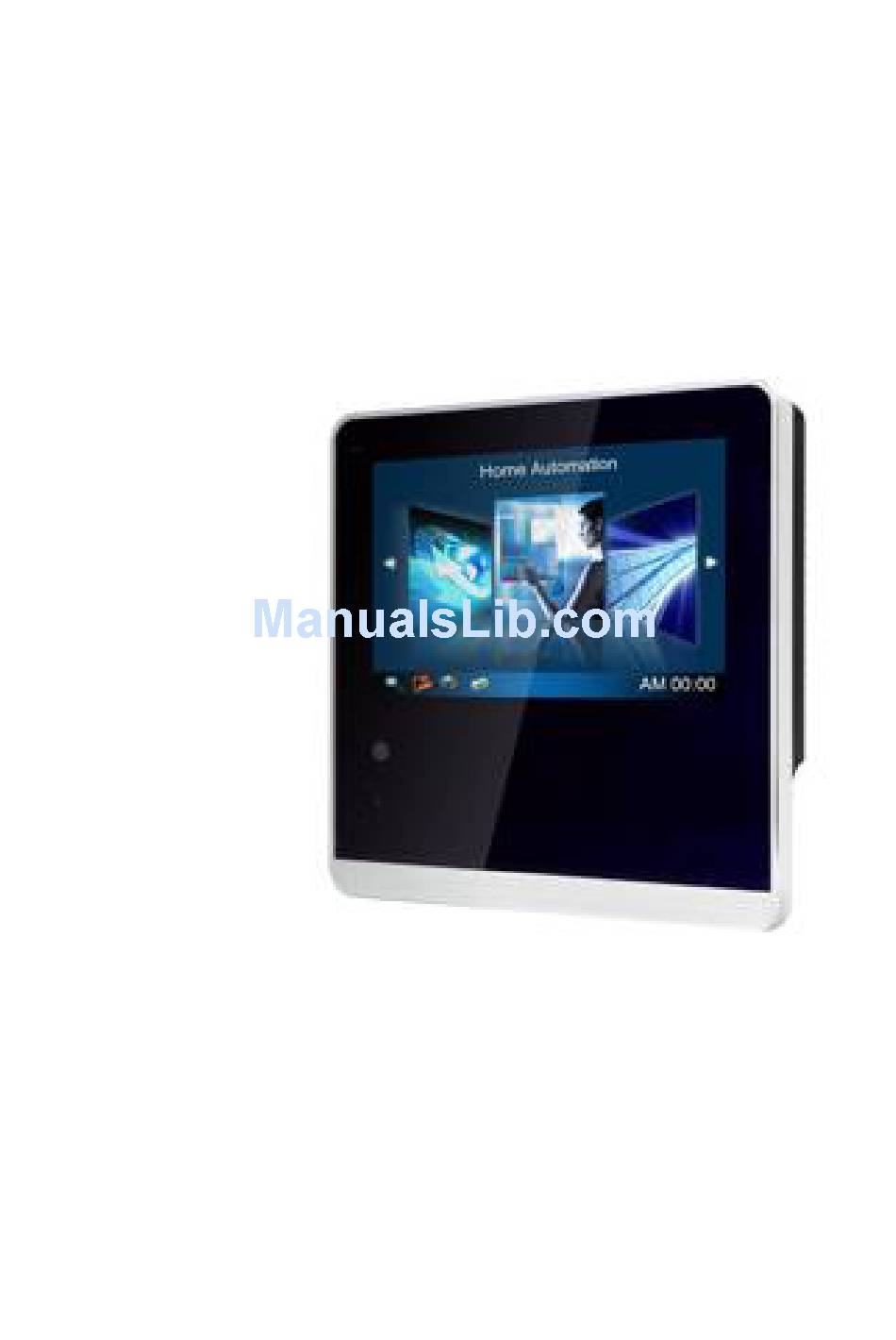

- Page 1 5" Access Control System W05TA3S-PCT3 User Manual V1.0...
- Page 2 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions： This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "a"...
- Page 3 Copyright Notice ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
- Page 4 Please do not hesitate to call or e-mail us. Manufacturer：WinMate Communication Inc. Address： 9F, Number 111-6, Shin-De Rd., San-Chung City, Taipei 241, Taiwan, R.O.C.
- Page 5 Safety Precautions • Please read these safety instructions carefully. • Please keep this user’s manual for later reference. • Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. •...
- Page 6 not exceeding 140% of the rated voltage at the power supply terminals of the apparatus. • WARNING – Explosion Hazard – Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous. • WARNING –...
- Page 7 Contents Chapter1: Product Specification ..................2 1.1 Product Specification ....................3 1.2 RFID Reader Specification ................... 4 1.3 Accessories ........................5 Chapter2: Product Drawing & Dimension ................. 6 2.1 Product Overview ......................7 2.2 Product Dimension ....................... 8 Chapter3: First Operating ....................10 3.1 Turn on the Device .....................
- Page 8 Product Specification Chap ter 1 Users Manual 5” ACCESS Control...
- Page 9 1.1 Product Specification Display Spec Screen Size 5” LED backlight panel Resolution 800 x 480 Brightness 300 nit Contrast 500 : 1 Viewing Angle -70~70(H),-50~70(V) Touch Screen Projected Capacitive Hardware Specification TI Cortex A8 AM3354 1GHz with DSP 1 x DDR2 533(Default 512 MB, Max 1GB) LAN / PoE 1 x RJ45 10/100/1000 Mpbs (Support PoE function IEEE 802.3AT)
- Page 10 1.2 RFID Reader Specification Users Manual 5” ACCESS Control...
- Page 11 1.3 Accessories Before using this Access Control System PC, please make sure that all the items listed below are present in your package. Model name: W05TA3S-PCT3 Accessories List: 1 x W05TA3S-PCT3 1 x User Manual 1 x AC to DC Adapter ...
- Page 12 Product Drawing & Dimension Chap ter 2 Users Manual 5” ACCESS Control...
- Page 13 2.1 Product Overview 5” 800*480 LED panel with PCAP Touch Screen 2M Camera RFID Reader LED Light bar Speaker Digital I/O Kensington Lock Users Manual 5” ACCESS Control...
- Page 14 USB A Type SD Card Slot Backlight Switch button LAN / PoE DC 12V in Digital I/O 2.2 Product Dimension Users Manual 5” ACCESS Control...
- Page 15 Users Manual 5” ACCESS Control...
- Page 16 First Operating Chap ter 1 Users Manual 5” ACCESS Control...
- Page 17 3.1 Turn on the Device Follow the following step to turn on your Device. Step1. Connect the Power Cord to AC to DC Adapter Step2. Connect the open wire of AC to DC Adapter to the Terminal Block female connector and screw it well. Step3.
- Page 18 3.3 System Block Diagram Users Manual 5” ACCESS Control...
