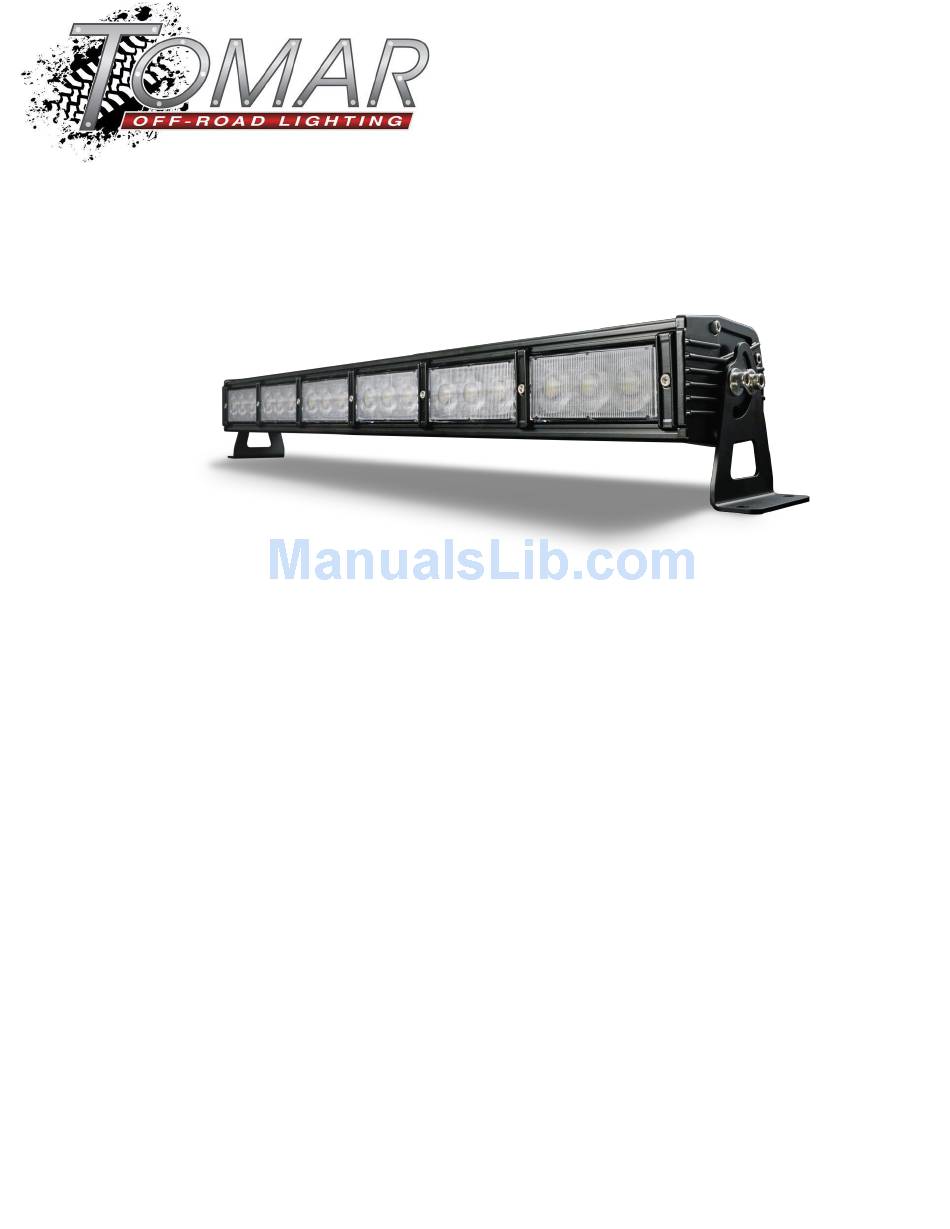

- Page 1 IS0615-02 12/15/2016 TRX SERIES LIGHTBARS TRX-20 TRX-25 TRX-30 TRX-35 TRX-40 TRX-45 TRX-50 TRX-60 Product Manual TOMAR OFF-ROAD, 2100 W OBISPO AVE, GILBERT, AZ 85233 800-338-2133 www.tomaroff-road.com...
- Page 2 IS0615-02 Wiring Main Power Wires Wiring the TRX lightbar into the vehicles electrical system does not require the use of relays. The power and ground leads are connected directly to the 12Vdc to 24Vdc supply voltage and are always hot. ...
- Page 3 IS0615-02 Amber/White Combo Available Flash Patterns and Rates: Patterns 1) Off 2) Amber Combination (Patterns 5,4,6 Repeat) Default Pattern 3) White S.O.S. 4) Amber Alternating 5) Amber Random 6) Amber Sweep Rates 1) Single – Default Rate 2) Double 3) Neobe 4) Scroll Note: The White S.O.S.
- Page 4 20 gauge wire is sufficient for all distances. WIRE GAUGE Part Number Lamps TRX-03 TRX-06 TRX-10 TRX-15 TRX-20 TRX-25 TRX-30 TRX-35 TRX-40 TRX-45 TRX-50 TRX-60 Common Switch Wiring Configuration...
- Page 5 IS0615-02 Mounting TRX lightbars include L shape mounting brackets designed to secure the lightbar to a flat surface. The bracket will allow a 135° range of motion. For additional mounting options visit www.tomaroff- road.com. 1. Attach the mounting foot to the lightbar using the socket head screws and ¼”...
- Page 6 IS0615-02 Dimensions Outside Dimensions Mounting Hole Spacing Nominal Lamps Dim "A" Dim "B" Dim "C" Dim "D" Dim "E" Dim "F" Length 3.41 4.66 5.66 3.00 4.25 3.82 5.68 6.93 7.93 3.00 4.25 3.82 10.23 11.48 12.48 3.00 4.25 3.82 14.78 16.03 17.03...
- Page 7 IS0615-02 Recommended Fuse/Breaker Sizing Part Amp draw Fuse/Breaker Lamps Number @13.8Vdc Size (A) TRX-03 TRX-06 TRX-10 TRX-15 TRX-20 TRX-25 10.5 TRX-30 12.6 TRX-35 14.7 TRX-40 16.8 TRX-45 18.9 TRX-50 21.0 TRX-60 25.2 Replacing a lamp module All TRX lamp modules are interchangeable and can be used in any position on the lightbar. This offers the flexibility to configure a lightbar for any mission with perfect balance of flood, spot or dual color amber white modules.
- Page 8 IS0615-02 Maintenance The best cleaning method is to gently wash the lightbar with a solution of mild soap and lukewarm water, using a soft cloth or sponge to loosen any dirt or grime. Thoroughly rinse with clean water to remove any cleaner residue and dry the surface with a soft cloth to prevent water spotting.
- Page 9 IS0615-02 Addendum: TRX-35x-STTRAB Model Control Wiring Wiring Control Cable Activating the Lightbar is done by applying +Vdc to one or more of the lightbar control wires. The control wires consume only a few milliamps of current and can be used with virtually any on/off switch. There are five control wires in the Control Cable plus one +Vdc supply feed.
