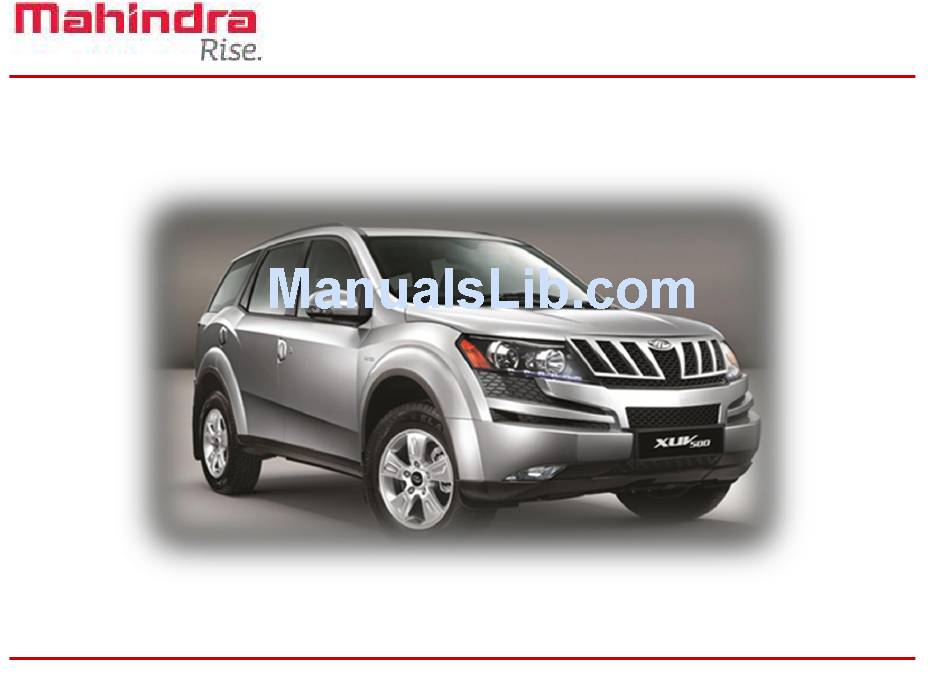

- Page 1 XUV500 Reverse Camera Installation Instructions Issue: 1 - 01/03/2013 Page 1 of 12...
- Page 2 XUV500 Fitting Time: 45 Minutes Parts Supplied: Reverse Camera Wiring Harness Tools and Materials Flat Blade Screw driver Phillips head screw driver Power Drill Cable Ties XUV500 Flashing Tool Issue: 1 - 01/03/2013 Page 2 of 12...
- Page 3 XUV500 Step 1: Remove the following panels Always refer to vehicle workshop manual when removing vehicle components Left side kick trim: Remove plastic nut at front, remove Phillips head screw behind oval cover place. Remove front and rear scuff trims.
- Page 4 XUV500 Step 2: Remove the following panels Always refer to vehicle workshop manual when removing vehicle components Left side tail light assembly: Pull back boot pinch mould, Remove black cover above tail light and Remove tail light. Pull out wiring rubber boot behind tail light.
- Page 5 XUV500 Step 3: Remove the following panels Tailgate trim cover: Remove top and side panels by hand . Undo screws and remove pocket along bottom of main trim then remove tailgate trim, taking care to unplug interior light . Issue: 1 - 01/03/2013...
- Page 6 XUV500 Step 4: Fitting Overview Looking at wiring kit, the short section with Male/Female plugs gets inserted behind tail light. The section with the cylindrical plug runs into the tailgate for the camera. The long section with single square plug runs...
- Page 7 XUV500 Gain Access to the inside of the cargo area, remove hidden screw behind cover, and the manual fuel flap opener override. You will now be able to unclip the top of the panel and lever it out enough to...
- Page 8 XUV500 Camera Mounting. Remove numberplate light housing, by undoing 2 x 10mm bolts from inside the tailgate, then unclipping the housing from outside the vehicle Remove switch from light housing Remove passenger Side screw, then Refit screw with camera Attached to assembly Run camera cable back under metal bracket, run camera cable adjacent to switch wiring.
- Page 9 XUV500 Wiring the Camera Run Camera lead up towards the tailgate behind interior trims. Remove LHS wiring conduit, run cable through. Use lubricant to assist pulling through if needed Reseat grommets for wiring conduit. Run camera lead to camera cable, securing with cable ties.
- Page 10 XUV500 Wiring to the front of vehicle Run the remaining lead behind the LHS cargo bay trim, being sure to locate it low behind the trim to avoid fouling on mounting clips upon reassembly. Run lead behind pinchmould on wheel-arch and under rear and front scuff trims .
- Page 11 XUV500 Step 5: Reverse Camera Activation To activate the camera in the vehicle, enable the RVC in IS (Infotainment System) using XUV500 flashing tool as mentioned below: 1. Connect XUV500 flashing tool and select IS (Infotainment system) 2. Select “CONFIG”...
- Page 12 XUV500 Step 6: Final test and image alignment With the engine running and the handbrake engaged, place the vehicle into reverse. The reverse image should look similar to the below image. Some slight adjustment to the camera may be necessary by loosening the camera in its housing adjusting to the correct angle and re-tightening .
