Startup Screen - Berkeley Varitronics Systems Butterfly Manual

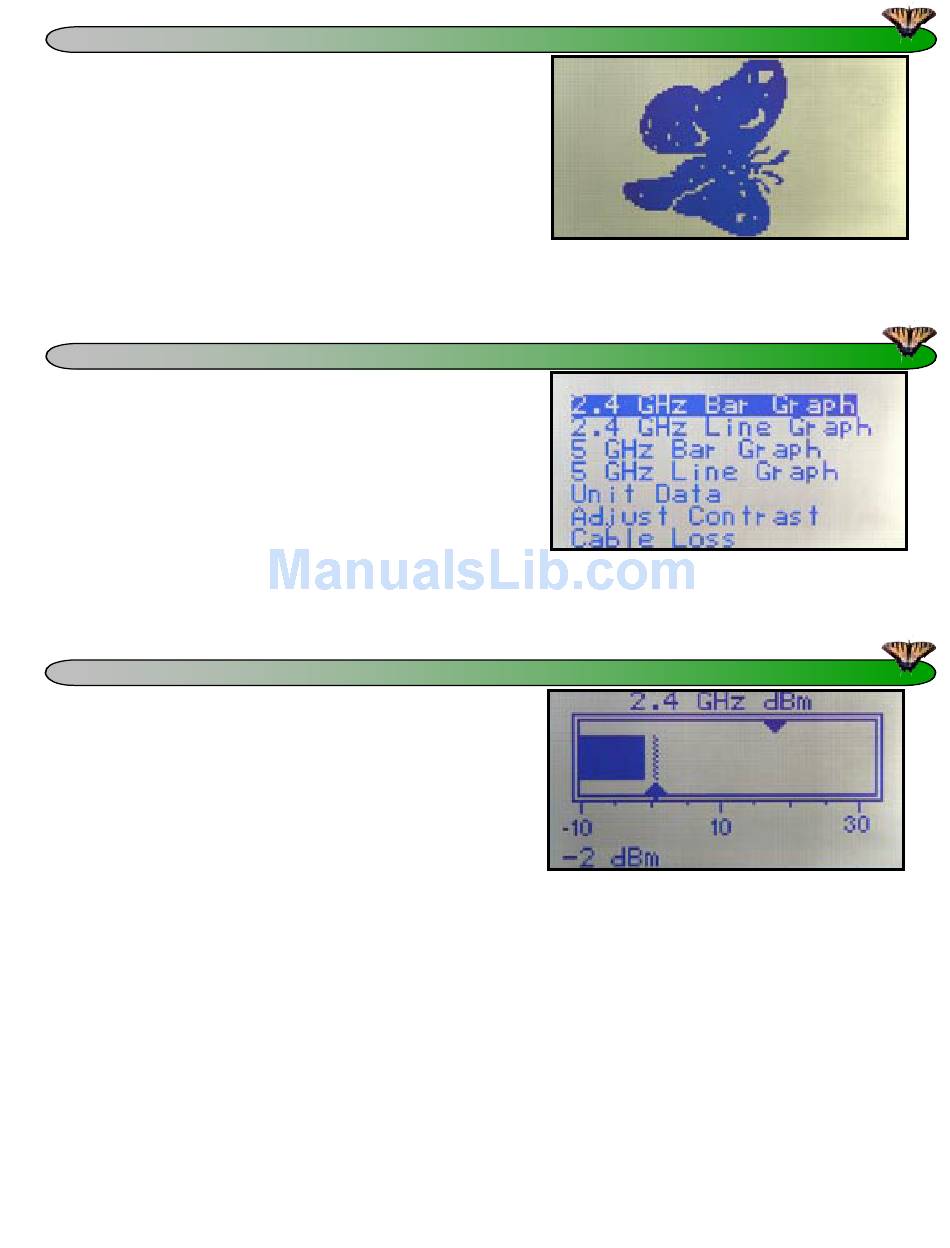

STARTUP SCREEN

Operation of the Butterfly is straightforward. Insert 4
fresh battery cells into removable pack. Close back up
and power on the Butterfly. The Butterfly will display
the STARTUP SCREEN followed by the MAIN MENU.
MAIN SELECT SCREEN
Use the UP/DOWN buttons to scroll through menu
selections. Push the LEFT button to make a selection
and push the RIGHT button to move back one previous
screen.
2.4 GHZ BAR GRAPH
This screen displays any 2.4 GHz access point's out-
put in dBm using a horizontal graphical bar. When a
bar graph measurement is started, it will run until the
measurement is changed or the unit is turned off. The
last measurement selected is restored when the unit is
turned back on. The bar graph measurement continu-
ally monitors the RF input connected to unit. When a
packet is detected that is above the set threshold, a
bar is displayed whose length is proportional to the
measured signal strength of the packet. The threshold
is marked by the down arrow above the signal strength
bar. This packet threshold is adjusted by pressing the
UP and DOWN keys while the measurement is dis-
played.
The current signal strength is displayed in
text in the lower left corner of the screen. This signal
strength text is always updated, even if a packet is not
detected. The highest level measured when a packet
is detected is marked by the Up arrow and wavy line
Page 4
