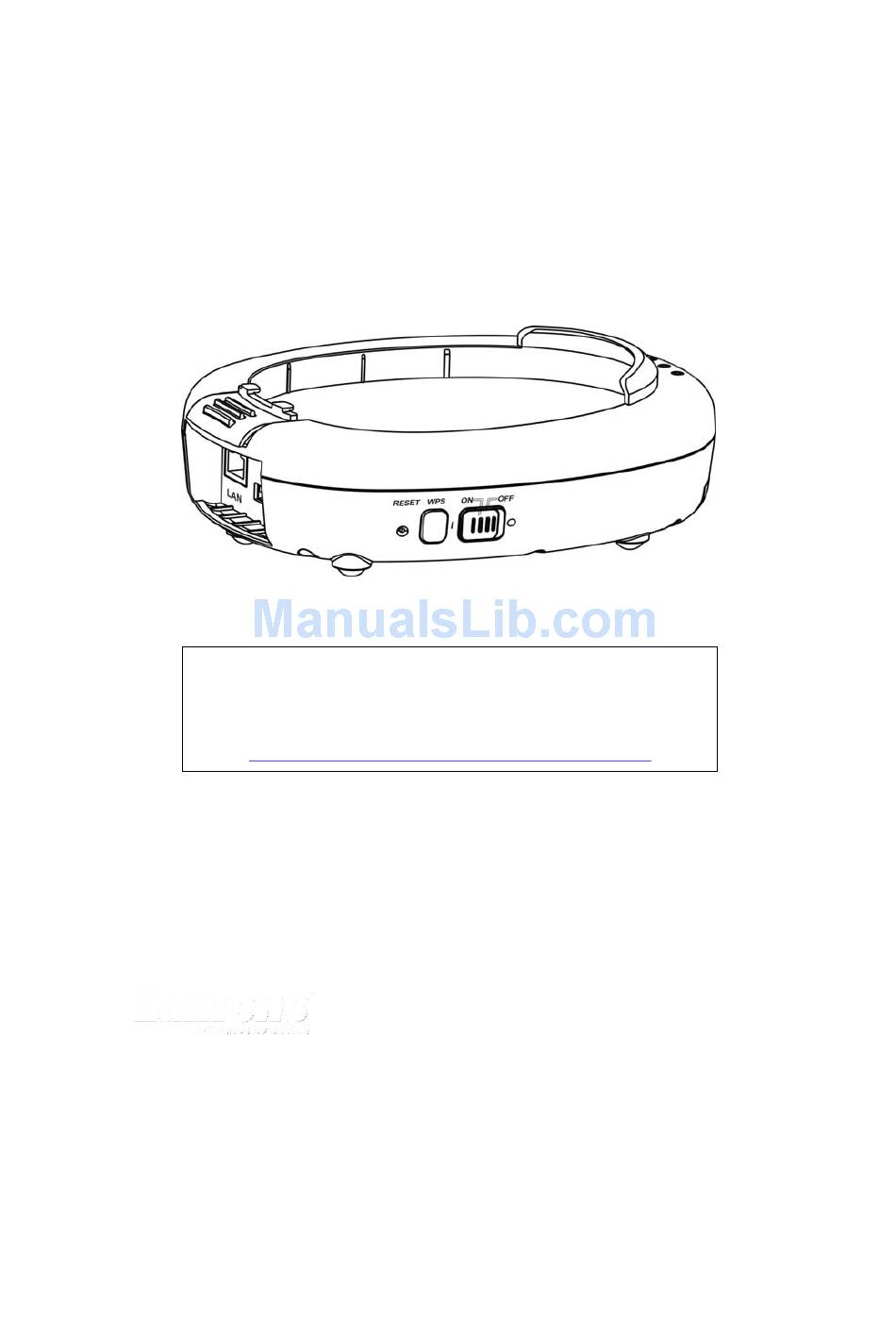

- Page 1 DC-W50 Wireless Docking User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.Mylumens.com/support.php...
- Page 2 Wireless .................... 20 7.1.1 Basic ....................20 System ....................21 Chapter 8 Set DC-W50 for AP use ..............24 Connection diagram ................. 24 Equipment requirements ..............24 DC-W50 setup .................. 24 Chapter 9 Troubleshooting................
-
Page 3: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Please use the product following the safety instructions below: 1. Operation 1.1 Please use the product in the recommended operating environment. 1.2 Do not place Light Engine in tilted position. 1.3 Do not place the product on an unstable trolley, stand or table. 1.4 Do not use this product near water or source of heat. -
Page 5: Precautions
3.3 The charging of the product may cause overheating, do not place the product in the place where it is badly ventilated. 4 Storage 4.1 Do not place the Product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug. -
Page 6: En55022 (Ce Radiation) Warning
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. -
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents DC-W50 Quick Start Guide USB connector holder (For download of other language versions, please visit Lumens website) Adapter Power Cord Appearance may vary depending on country/region English - 6... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview DC-W50 7. LED Indicator 6. LAN 5. USB connector fixing hole 4. USB Port 1. Power Switch 3. Default Values 2. WPS Button 8. HDMI Output English - 7... -
Page 9: Lock Usb Connector Holder
3.2 Lock USB Connector Holder 1. Disconnect the ball chain on the USB connector holder. 2. Thread the ball chain through the connector fixing hole on DC-W50. 3. Shackle the ball chain. English - 8... -
Page 10: Chapter 4 Description Of Led Indicator
Chapter 4 Description of LED indicator 4.1 POWER: The indicator lights blue in normal conditions. ： 4.2 Power status 4.2.1 No Light: No Power 4.2.2 Blue Light: Full Power 4.2.3 Red Light: Low power 4.2.4 Flickering Blue: In charging status, if it is charged when the power is not enough, it will flicker red 4.3 WPS：... -
Page 11: Chapter 5 Installation And Connections
Install hardware Refer to Sections 5.3 Install USB Install DC125 Document Camera hardware installation To start using and connection, please refer Chapter Start Using Please refer to Chapters for details of DC-W50 administrative management programs. English - 10... -
Page 12: Installing Application Software
5.2.2 Install Ladibug™ Please download Ladibug™ and Ladibug Software User Manual software at Lumens website. a. Windows System: Please use Ladibug PC 3.x b. MAC System: Please use Ladibug MAC 3.x c. iOS System: Please search Ladibug on App Store, iPad shall use iOS 7.0 version or above... -
Page 13: Install Dc125
5.3 Install DC125 5.3.1 Install DC125 on DC-W50 5.3.2 Install USB connector holder on DC125 and DC-W50 Connector Holder English - 12... -
Page 14: Chapter 6 Start Using
1. Charge the unit for 3 hours before the first use. 2. Switch power to [ON]. (Caution: When the unit is fully charged, indicator lights blue) 3. To start connection of DC-W50 with computer, please follow the steps of 6.1.1 Manual connection. -
Page 15: Start Wireless Connection
6.1 Start wireless connection [Note] How to improve the wireless signal quality The working frequency band of IEEE 802.11 b/g/n is 2.4 or 5 GHz. The application of wireless equipment at adjacent frequency channel will interfere with each other, and such interferences include the same frequency interference and adjacent channel interference. -
Page 16: Manual Connection
Open the wireless network list on the computer. b. Select the [Lumens_Wireless_Flyer] in the network list, press the [Connection] and then press the WPS on DC-W50, the connection will be completed after the WPS light turns to blue. 6.1.3 Change the SSID a. -
Page 17: Change The Setting Of Firewall
6.2 Change the setting of firewall 6.2.1 Windows XP a. Select [Console] in [Start] menu. b. Click [Information Security Center], and then click [Windows Firewall]. [Remark] Click [Windows Firewall] in the traditional view of [Console]. c. In [Windows Firewall Setting] window, click the tab [Exceptions]. d. -
Page 18: Windows 8
through Windows Firewall]. [Remark] Click [Windows Firewall] in the icon view of [Console]. c. Select [Change settings] in [Allowed programs and features] window. d. Please select Ladibug program in the list. e. If Ladibug was not listed, please click [Allow another program], and then you will find Ladibug program. - Page 19 mouse pointer down, then press [Search] and input the firewall in the search block, click or press [Allow the Application Program or Function to pass Windows Firewall]. b. Click or press [Change Settings]. System may ask for your system administrator password or confirm your selection. c.
- Page 20 h. Change Ladibug in the list to [Allow incoming connections]. If the software name was not listed, please click [+] to add new programs to the list, and start to use the software. English - 19...
-
Page 21: Chapter 7 Administration Menu
MHz, CH157 5785 MHz, CH161 5805 MHz, CH165 5825 MHz Encryption Encryption mode settings Password Set the passport for connection to AP Wireless Mode: Client Setup item when DC-W50 is set for Client use SSID Device name of wireless network Encryption Encryption mode settings 10. Password... -
Page 22: System
System 7.2.1.1 IP-LAN Network setting page Function Descriptions IP address setting Subnet Mask Netmask DHCP Turn on/off DHCP function DHCP Server Available address range Address Range 7.2.1.2 User-User Configure Administration page for change of webpage password Function Descriptions Administrator Webpage administration account (cannot be changed) Password New password... - Page 23 7.2.1.3 Streaming You can update the software, return to the default value and restart the machine on this page. Function Descriptions Video Resolution Set Resolution Video Frame Rate Frame rate setting Video Max Bitrate Bit rate setting Port Number COM port setting English - 22...
- Page 24 7.2.1.4 Maintenance You can update the software, return to the default value and restart the machine on this page. Function Descriptions DC-W50 Firmware Version Current Firmware Version Image File Upload the updated firmware file Reboot Restart the DC-W50 Reset to factory...
-
Page 25: Chapter 8 Set Dc-W50 For Ap Use
Chapter 8 Set DC-W50 for AP use Through this connection method, multiple DC-W50 can be controlled through DC-W50 at AP terminal Connection diagram DC-W50 (Client) DC-W50 (AP) DC-W50 (Client) Computer Equipment requirements Two or more DC-W50 One computer equipment ... - Page 26 Click [Save] to apply the changes 8.3.2 DC-W50 customer settings a. Turn on customer DC-W50 [Remark] Turn on one customer DC-W50 each time for initial setting. b. Open the computer wireless network list, connect the [Lumens_Wireless_Flyer], enter the connection password [ladibugflyer] to complete the network connection c.
- Page 27 Start the Ladibug software c. Click to open [Search Window] d. Select “Wireless Document Camera” to search for the DC-W50 which can be connected. After finishing the search in the list, click one DC-W50 to start operation e. If it is necessary to switch to other DC-W50s, please open the [Search...
-
Page 28: Chapter 9 Troubleshooting
Chapter 9 Troubleshooting This chapter describes problems you may encounter while using DC-W50. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. - Page 29 DC-W50 cannot be identified when two or more DC-W50s are connected If you forget the Please press and hold the DC-W50 [Reset] button for 5 password and seconds and restore the factory default values. cannot log in the administrator webpage...
