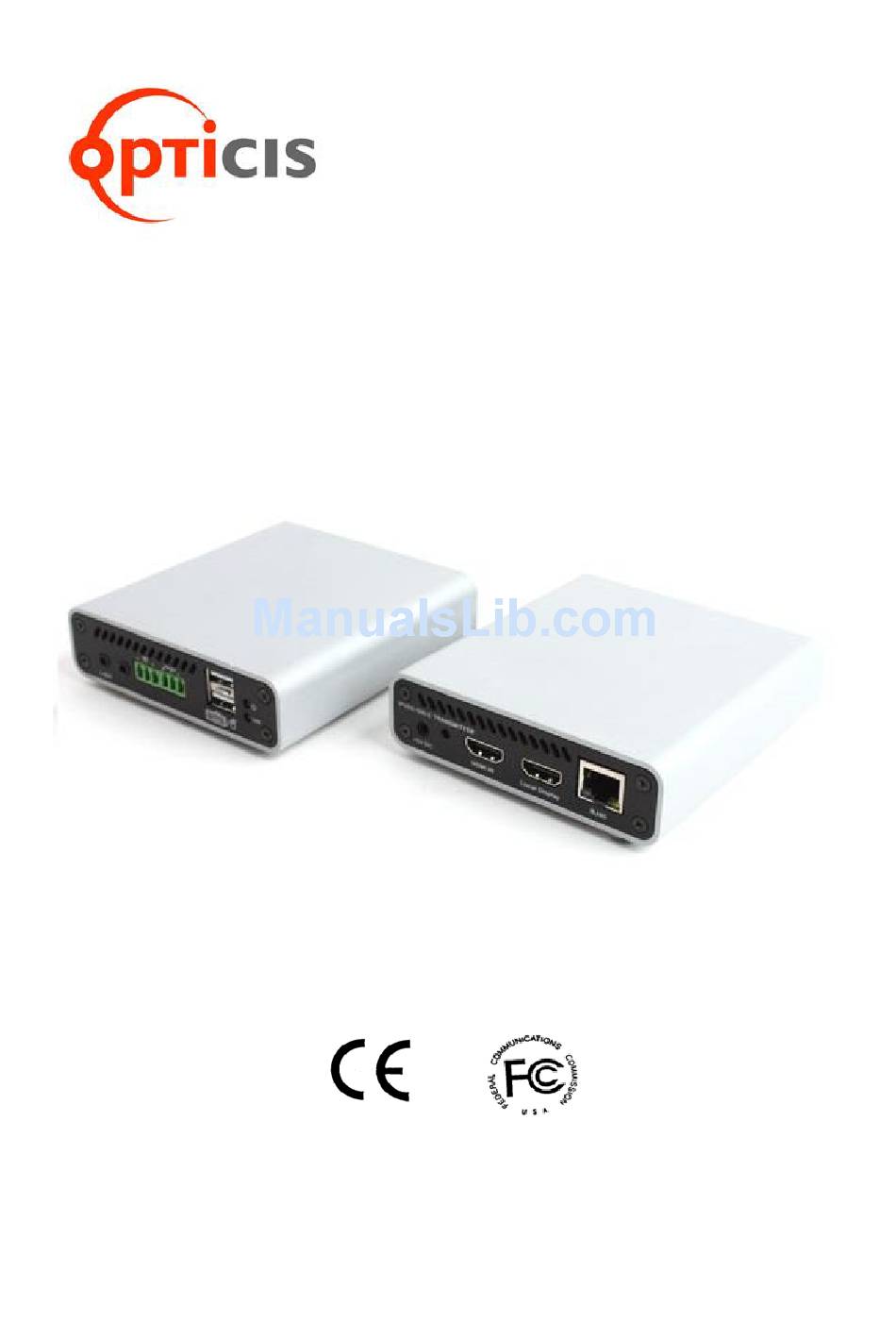

WWW.OPTICIS.COM
4K HDMI IP Video Wall Controller, IPVDS-500-ED
User Manual
Doc No. : OIPVDS-171123E / Rev1.3
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPVDS-500-ED and is the answer not in the manual?

Questions and answers

Related Manuals for opticis IPVDS-500-ED

Summary of Contents for opticis IPVDS-500-ED

  • Page 1 WWW.OPTICIS.COM 4K HDMI IP Video Wall Controller, IPVDS-500-ED User Manual Doc No. : OIPVDS-171123E / Rev1.3 - 1 -...
  • Page 2 5. Installation ......................9 5.1 Hardware Installation Procedure ..............9 5.2 Reset and Factory Reset ................10 5.3 PC Program Installation ................10 6. Start IPVDS-500-ED ....................11 6.1 Log-in ........................11 6.2 Menu Contents ....................12 6.2.1 Application Icon Menu ..............12 6.2.2 Ribbon Menu ..................12 6.3 Layout Management ...................16...
  • Page 3 7.1 Layout Management Context Menu ............27 7.1.1 Encoder List Context Menu …..……………………………….………….27 Device Setup Firmware Update Set Source Name Encoder Crop Feature 7.1.2 Video Wall Context Menu…………………………………………………...31 Remove Encoder Split Merged Cell Add Black Mask Bring/Send Layer Set Location Name Delete Location Name 7.2 Display Placement Context Menu ...............35 7.2.1 Decoder List Context Menu ..............35...

  • Page 4: Product Description

    1. Product Description IPVDS-500-ED, 4K HDMI IP Video Wall Controller, is an integrated control solution that plays multi-source of audio/video (such as PC, Media player, DVD, or Blu-ray) on the video wall system and multiple individual displays simutaneously. This solution offers advanced video/audio matrix feature as well as control of video wall system which divide high quality video source(4K30Hz or 1080p60Hz) into multiple video walls with using IPVDS-500-E(encoder) and IPVDS-500-D(decoder) on IP network.

  • Page 5: Main Features

    1.1 Main Features TCP/IP based IP network: Gigabit Ethernet Up to 4K resolution (3840x2160 at 30Hz) or 1080p at 60Hz. Up to 256 displays (16x16, 4x64, 1x256 and etc) Video wall and multi-source support Supports analog/HDMI audio input and output Fast switching time / Low video latency Transmit HDMI/DVI video, USB, RS-232, Audio, DIO signal vid IP network Provides HDMI loop-thru port for Local display...

  • Page 6: Shipping Group

    2. Shipping Group □ IPVDS-500-ED □ Power Adapter □ HDMI cable 1.2m □ Mini-USB cable □ User Manual General Specification IPVDS-500-E: TX (Encoder) or IPVDS-500-D: RX (Decoder) AC / DC power adaptor: One (1) unit of 5V / 2A One (1) HDMI male to male cable (1.2m)

  • Page 7: System Requirement

    L2/L3 network switch 3.4 Control PC Requirement OS version check for video wall controlling PC application Requirement: Windows7 or higher 3.5 AC / DC Power Adapter IPVDS-500-ED is designed to use +5V AC/DC external power adapter - 7 -...

  • Page 8: Exterior Description

    4. Exterior Description 4.1 IPVDS-500-E, Encoder Figure. 3 Encoder Front Panel Figure. 4 Encoder Back Panel USB IN : Connection with PC USB port for use of keyboard and mouse(HID) L-IN : Line input port. Connection with line out audio DIO / RS-232 : Optional USB A: Connection of Keyboard / Mouse.

  • Page 9: Installation

    4.3 LED Indication IPVDS-500-ED indicates power and network status with 2 LED on the front panel. - Power status LED (RED) ‘Blinking’ Booting, Initializing status ‘ON’ Completion of booting, working status - Link LED (Green) ‘Blinking’ Ready to work with network connection, waiting for source status ‘ON’...

  • Page 10: Reset And Factory Reset

    5.3 PC Application Installation 1) Download (1) Visit Opticis website at www.opticis.com (2) Click PRODUCTS > IP Video Wall / IPVDS-500-ED (3) Download PC program (Password : 0315) 2) Installation (1) Run setup.exe file in Windows operating system (2) Follow on screen instruction...

  • Page 11: Log-In

    6. Start Video Wall IPVDS-500 allows convenient use of its features with IPVDS-500 Video Wall control PC Application. User can merge, split, overlay and clear video source for Video Wall by dragging & dropping the mouse for host allocation. Not only that user can also check and confirm preview screen on the layout management before applying it to the display.

  • Page 12: Menu Contents

    6.2 Menu Contents 6.2.1 Application Menu Figure. 9 Application Icon Menu (1) New Presets: Create new presets (2) Open Presets: Open saved presets (3) Save Presets: Save current presets in file (4) Save Presets as: Save current presets in different file name (5) Send Presets to Android Device: Send saved presets to Android devices (6) Quit: Close IPVDS-500 PC Application 6.2.2...
  • Page 13 (1) User Management Administrator ID (Admin) can only fix their password. As logging-in with administrator, User/Guest add, change password, remove user/guest can be made. User type User: All authority without user/guest management (add/delete) Guest: Select preset, and apply function only Figure.
  • Page 14  Select ‘Single Video Wall’ (Default) or ‘Multiple Video Wall’ (Pro) In order to use Pro version, license key is required. To obtain license key, contact tosales@optisic.com techsupp@opticis.com Figure. 13 Pro Version License Language  Select ‘English’ or ‘Korean’ Network Interface Selection ...
  • Page 15 Step 2 Select ‘All Decoders’, ‘All Encoders’ or specific device need to be updated. Note: Change IP address and Gateway from control panel, if IP address and gateway of PC and desired device don’t match. Step 3 Click Browse button, and open particular firmware file to update. Note: User can check firmware version of selected device from right space.

  • Page 16: Layout Management

    Layout Management Figure. 15 Layout Management Encoder List Search: Search IPVDS-500-ED on the network Encoder device list that is connected to the IP network Check preview scene of Video sources connected Assign preview screen for Video Wall layout with drag and drop...

  • Page 17: Layout Editing

    6.3.1 Layout Editing Step 1 After searching devices, drag and drop video source from the encoder list on the left side to the video wall layout. Figure. 16 Encoder Placement Step 2 Drag-pointer will appear with clicking assigned video source. User can stretch or reduce size of video source as direction of arrow.

  • Page 18: Audio Setup

    Step 3 With using Audio ON/OFF icon, audio of display can be turned ON or OFF. Figure. 18 Audio On/Off Step 4 Repeat Step 1~3, and click ‘Apply’ button for actual application to decoders and displays. Figure. 19 Apply Setup. Step 5 When rows and columns of layout is numerous so decoders can’t fit in the display, zoom button can be used (x0.2 ~ x5) to check overall layout.

  • Page 19: Preset Save

    6.3.2 Preset Save Step 1 Type name of current preset, and click ‘Save’ button to save current display placement. Figure. 20 Preset Save Step 2 If select non-saved preset number, video wall placement will be initialized, and it will become editable status. Place sources and save as Step 1. Presets can be saved up to 99.
  • Page 20 Step 3 As selecting particular preset number, user can load saved video wall layout. Click ‘Apply’ button to have current preset to decoder devices and displays. Figure. 22 Apply Setup Step 4 When user re-launch IPVDS-500 application, last saved preset will be loaded if user save preset setup with ‘Save Presets’...

  • Page 21: Display Placement

    Display Placement Figure. 24 Display Placement Screen Decoder list List of Decoder device list which has connected to IP Network Assign Video wall layout with drag and drop Video Wall Adjusting physical placement as placing decoder device to particular video wall layout Display rotation: Rotate separately 180°, entirely 270°...
  • Page 22 6.4.1 Edit Display Layout Step 1 Change display layout to desired rows and columns (Default: 4x4) Figure. 25 Change Video Wall Layout Step 2 Replace decoder placement to desired place with drag and drop when ‘unlocked’ Figure. 26 Change Decoder Placement - 22 -...
  • Page 23 Assigned decoder can be removed separately or entirely with mouse right click, and listed decoder under search button can be place with drag and drop. Drag & Drop Figure. 27 Remove Decoder ‘Clear’ button will empty all decoder which has assigned to layout, and ‘Reset’ button will automatically place decoders with ‘serial number’...

  • Page 24: Display Rotation

    Step 3 With clicking Display rotation button on upper right hand corner, display will be rotated clockwise. One click will rotate 180°, and one more click will rotate 270°. 180°: For separate display. Display will rotate 180° 270°: For entire display. Entire display on the layout will rotate 270° Monitor need to be rotated 90°...
  • Page 25 Step 4 Current number of display can be indicated when clicking ‘OSD ON’ button. User can change their sequence by automatic replacement or manual replacement Using OSD is recommended to use when video source is not connected to decoder. Display Output ‘OSD Off’...
  • Page 26 Step 5 Display placement is disabled when it is Display replacement is ‘Locked’ ‘Layout management’ button will lead user to main screen for layout management. Figure. 32 Layout Locked Step 6 When coming back to layout management page after changing display placement, following window will pop up.

  • Page 27: Context Menu

    7. Context Menu 7.1 Layout Management Context Menu 7.1.1 Encoder List Context Menu Figure. 33 Layout Management Context Menu (1) Device setup. Network information setup DHCP IP(dynamic) / STATIC IP(static) Device name : Set the name of encoder device English (No Korean), Special symbol(+,-,_,#), maximum 20 character Will be applied after save and restart.

  • Page 28: Device Setup

    b) Bitrate Setup Transmission speed : Image quality and network condition 50/100/150/200(Default)/Best [Mbps] It is recommended to set all encoders have same Bitrate Apply Save & Reboot Figure. 35 Encoder Device Setup – Bitrate Setup EDID Read/Write Select IP address for Encoder(left) / Decoder(right) and click ‘Read’ button to load EDID information from display that has connected to the device (Encoder: local display / Decoder: HDMI Out).

  • Page 29: Firmware Update

    (2) Firmware Update 6.2.2 Refer to Ribbon menu (7) Firmware update (page 14). (3) Source Name Setup Set the video source name English, Korean, Special symbol, maximum 20 characters Source name will be appeared on the upper right corner of each display Figure.
  • Page 30 Step 1 Set rows and columns for the desired size. Step 2 Select cropped image which will appear on the display. Selected image will be placed on the right display on the window. Click ‘Apply’ button and close Encoder Crop Setup window to go back to main screen.

  • Page 31: Video Wall Context Menu

    7.1.2 Video Wall Context Menu (1) Remove Encoder Remove selected video source from video wall layout. All of encoder sources will be discarded from video wall layout when click ‘Remove All Encoders’. Figure. 39 Encoder Remove - 31 -...

  • Page 32: Split Merged Cell

    (2) Split Merged Cells Change stretched video wall source (M x N) to 1 x 1 video source. After change, 1 x 1 video source will be placed on upper left corner of existing cells. Figure. 40 M x N Merge Figure.

  • Page 33: Add Black Mask

    (3) Add Black Mask Replace selected cell to black mask. When applied, selected display will switch over to black-out state. Black mask can be removed with ‘Encoder Remove’ button. Figure. 42 Add Black Mask (4) Bring/Send Layer Bring and send overlaid layer to front and/or back. Foremost source will appear on the display.

  • Page 34: Set Location Name

    (5) Set Location Name IPVDS-500 PC application allows user to set location name for display. With this function, user can manager installation site, location for the display. English, Korean, Special symbol, maximum 20 characters. Location name will be appeared on the upper left corner of each display. Figure.

  • Page 35: Decoder List Context Menu

    7.2 Display Placement Context Menu 7.2.1 Decoder List Context Menu Figure. 45 Display Placement Context Menu (1) Device Setup Network Information Setup DHCP IP(dynamic) / STATIC IP(static) Device name : set decoder device name English (no Korean), Special symbol (+,-,_,#), Maximum 20 characters Will be applied after save and restart Figure.

  • Page 36: Remove Decoder

    7.2.2 Video Wall Context Menu Video wall context menu will be activated when display placement is ‘Unlocked’ Error window will pop up if try in ‘Locked’. Figure. 47 Context Menu Error Window – Display Placement ‘Locked’ (1) Remove Decoder Remove selected decoder when click remove decoder. Remove all decoders on the layout when click remove all decoder.
  • Page 37 (2) Display Setup Bezel and Gap Compensation As compensate bezel which surround display panel, IPVDS-500 enables to show natural screen. Select ‘All Decoders’, ‘All Encoders’ or IP address of designated device, then type bezel value in 0.1mm unit. Click ‘Change’ to apply. Original Width : General width of display (OW) Original Height : General height of display (OH) Bezel Width : Width of bezel...
  • Page 38 Display Fit in/Stretch out Use ‘Fit it’ and ‘Stretch out’ feature for atypical ratio on decoder layout setup. ‘Fit in’ : Reduce or increase size of original source to fit in to the display ‘Stretch out’ : Maintain original ratio as cutting video source to the display Figure.

  • Page 39: Additional Feature

    8. Additional features 8.1 Scheduling feature IPVDS-500 can automatically operate as saved preset schedule. There are two different preset schedule options; Sequence Preset Schedule, Weekly Preset Schedule. 8.1.1 Sequence Preset Schedule Figure. 53 Setup of Sequence Preset Schedule Step 1. Click ‘Sequence Preset Schedule’ on Preset Schedule Menu to activate Sequence Preset Schedule Step 2.
  • Page 40 8.1.2 Weekly Preset Schedule Figure. 54 Weekly Preset Schedule Step 1. Click ‘Weekly Preset Schedule’ on Preset Schedule Menu to activate Weekly Preset Schedule. Step 2. Click designated time schedule or drag and select region on Step 3. Select saved preset from Step 4.
  • Page 41 8.1.3 Operate Scheduling Once ‘Sequence Schedule’ or ‘Weekly Schedule’ setup is done, user can operate scheduling feature with ‘Start Preset Scheduling’ button on layout management. Figure. 55 Start Preset Scheduling Once Preset Scheduling is activated, ‘Start Preset Scheduling’ icon will be changed, And click ‘Stop Preset Scheduling’...

  • Page 42: Multiple Video Wall

    Figure. 56 Apply Multiple Video Wall Step 2. Register license key. Note: Multiple Video Wall feature require to use IPVDS-500 Pro PC application and license key to use. Please contact regional distributor or tosales@opticis.com to obtain license key. - 42 -...
  • Page 43 Step 3. Now, IPVDS-500 PC application will be changed to IPVDS-500 Pro, and user can select and set different video wall on Figure. 57 Pro Version Start-Up Page Step 4. Click ‘Configure’ button to load device assignment window. Click ‘Search’ button to load all the encoder and decoder device on the network.
  • Page 44 Step 5. Select devices as clicking boxes on the upper left corner from Searched Encoder List and Searched Decoder List, and click assign button( Figure. 59 Device Select and Assign on Wall 1 Tab Step 6. Assigned devices can be checked on the Assigned Encoder List and Assigned Decoder List on the right, and use can un-assign device with using ‘Unassign’...
  • Page 45 Step 7. Select Video wall (#2~9) and repeat Step 5~6 to assign devices, and then close window. Figure. 61 Change Video Wall Tab Step 8. Set layout and assign source for video wall #1~9 and save preset. When click Apply button ( ), change command will be delivered to particular video wall, and decoders in other tabs will not be changed and maintain existing connection.

  • Page 46: Plug-In Feature

    Product Linkage Control 8.3.2 Product Linkage Control enables integrated control of Opticis products such as HDMI IP Decoding Converter (IPDC), HDMI IP Media Player (MPDS) on one PC application. Contact tosales@opticis.com techsupp@opticis.com for detailed information.

  • Page 47: Product Specification

    9. Product Specification Description Network TCP/IP based IP network: 100/1000 Base-T Ethernet with CAT5e/ CAT6 Cables Resolution Up to 4K resolution (3840x2160 at 30Hz) or 1080p at 60Hz Video Wall Up to 256 (16x16, 4x64, 1x256, etc.) Video Wall with multi-sources Virtual IP Matrix Supports Rows by Columns Virtual Matrix with individual displays Multicast streaming...

  • Page 48: Troubleshooting

    10. Troubleshooting Problem Remedy - Check Jumbo Frame specification of network switch. Change Jumbo Frame ‘Disabled’ on Environment Setup(Ribbon Menu) when network switch doesn’t support Jumbo Frame - Check IGMP, IGMP Snooping setup of network switch. If network Image drop switch doesn’t support IGMP, there is limit of multicast operation, (All decoder output) thus new network switch is needed.
  • Page 49 - Up to 1920x1200p 60Hz for Local display resolution No video output 1) Change resolution less than 1080p (Local Display output) 2) Change EDID - Change HDMI cable - Check LAN cable condition of Control PC - Check network setup of Control PC (IP bandwidth) - Setup >...

  • Page 50: Warranty

    Opticis or authorized resellers. To request repair or service from Opticis, customer shall not open the product, nor place any part of IPVDS-500 without assistance from Opticis. Keep serial number sticker on the device.
  • Page 51 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 52 Opticis Headquater 7F SPG Dream Building 166, Jeongjail-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13558 Tel: +82 (31) 719-8033 Fax: +82 (31) 719-8032 Please visit Opticis website, www.opticis.com or contact tosales@opticis.com techsupp@opticis.com if you need any technical support or additional support. - 52 -...
