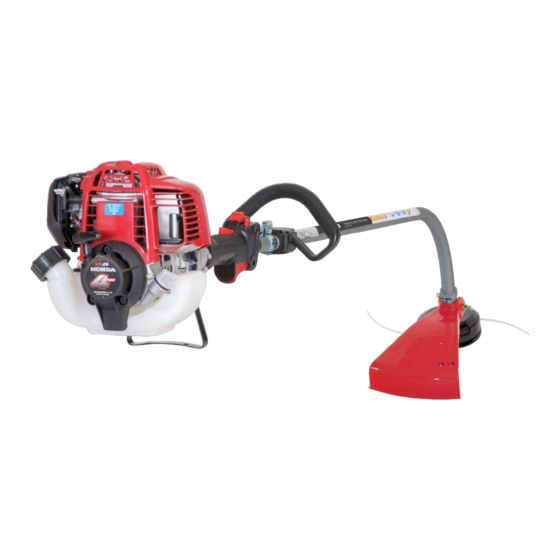

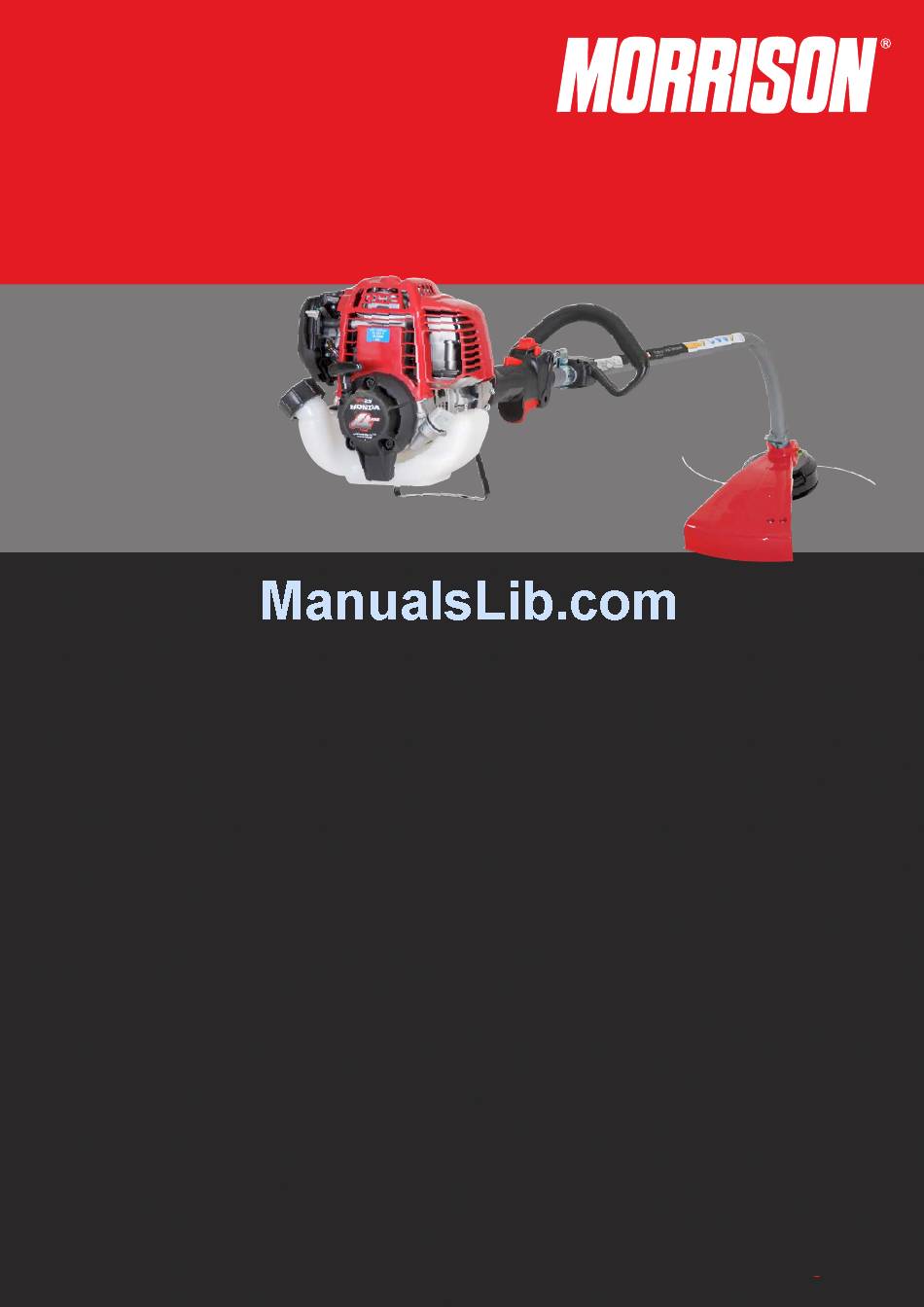

Petrol Line Trimmer
MX-26HB
Owner's Manual
Important
Please read this Owner's Manual and the Express Warranty before using this product. The Warranty does
not cover damage due to misuse or failure to follow the operating and installation instructions.
Keep the instructions in a safe place for future use.
www.morrisonoutdoor.com
Part N
: 571823
o
Revised April 2014
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Morrison MX-26HB
Summary of Contents for Morrison MX-26HB
- Page 1 Petrol Line Trimmer MX-26HB Owner’s Manual Important Please read this Owner’s Manual and the Express Warranty before using this product. The Warranty does not cover damage due to misuse or failure to follow the operating and installation instructions. Keep the instructions in a safe place for future use.
- Page 2 Revised April 2014...
- Page 3 Proper Use Do not operate this machine before it has been assembled correctly and you have read and understood For safety reasons, the Line Trimmers are not to be used by these instructions. children, young people under 16 years of age, or any other persons who are not acquainted with these directions for use.
-
Page 4: Parts Location
FUEL HANDLING WARNING For Honda 4 stroke engines: Fuel and oil are not to be mixed, they fill separate tanks. Use unleaded gasoline for fuel and automotive 4 cycle oil for the oil tank. Do not store cans of fuel or refill the fuel tank in any place where there is a boiler, stove, wood fire, electrical or welding sparks, or any other source of heat or fire which might ignite the fuel. -
Page 5: Safety Precautions
When replacing the blade or any other parts, always be sure to WARNING use only genuine MORRISON spares. Never use other cutting devices than those provided Before Starting the engine Notes on transportation Take a careful look around to make sure that there are no obstacles within a radius of 15m around the line trimmer. - Page 6 SAFETY GUARD Assembly Put the safety guard on the shaft tube near the gear case, attach it with the screw, washer and nut provided. Insert the throttle wire through bracket and fasten by hex nut. Fig. 3 Move the carburettor swivel toward the attachment. Insert the tip (thick portion) of the throttle wire into the ground Do not operate this unit without a safety guard, if the safety hole of the swivel.
- Page 7 WHEN THE ENGINE HAS BEEN WARMED Maintenance Fully open the choke lever. Follow steps 7-2 starting a cool engine. CLEANING AIR CLEANER If the engine does not start, repeat step Wash or replace the cleaner when it 2 procedure for starting a cool engine. becomes dirty.
-
Page 8: Specifications
Pull the recoil starter handle slowly until the D. piston reaches the top of its travel and leave it there. Install the spark plug (do not connect spark plug cable). Specifications Model MX-26HB Brand & model Honda GX25 4 Stroke Displacement 24.5cc... - Page 12 Head Office - New Zealand 1-37 Mt Wellington Highway, Panmure, Auckland 1060 P.O. Box 14 349, Panmure, Auckland 1741...
