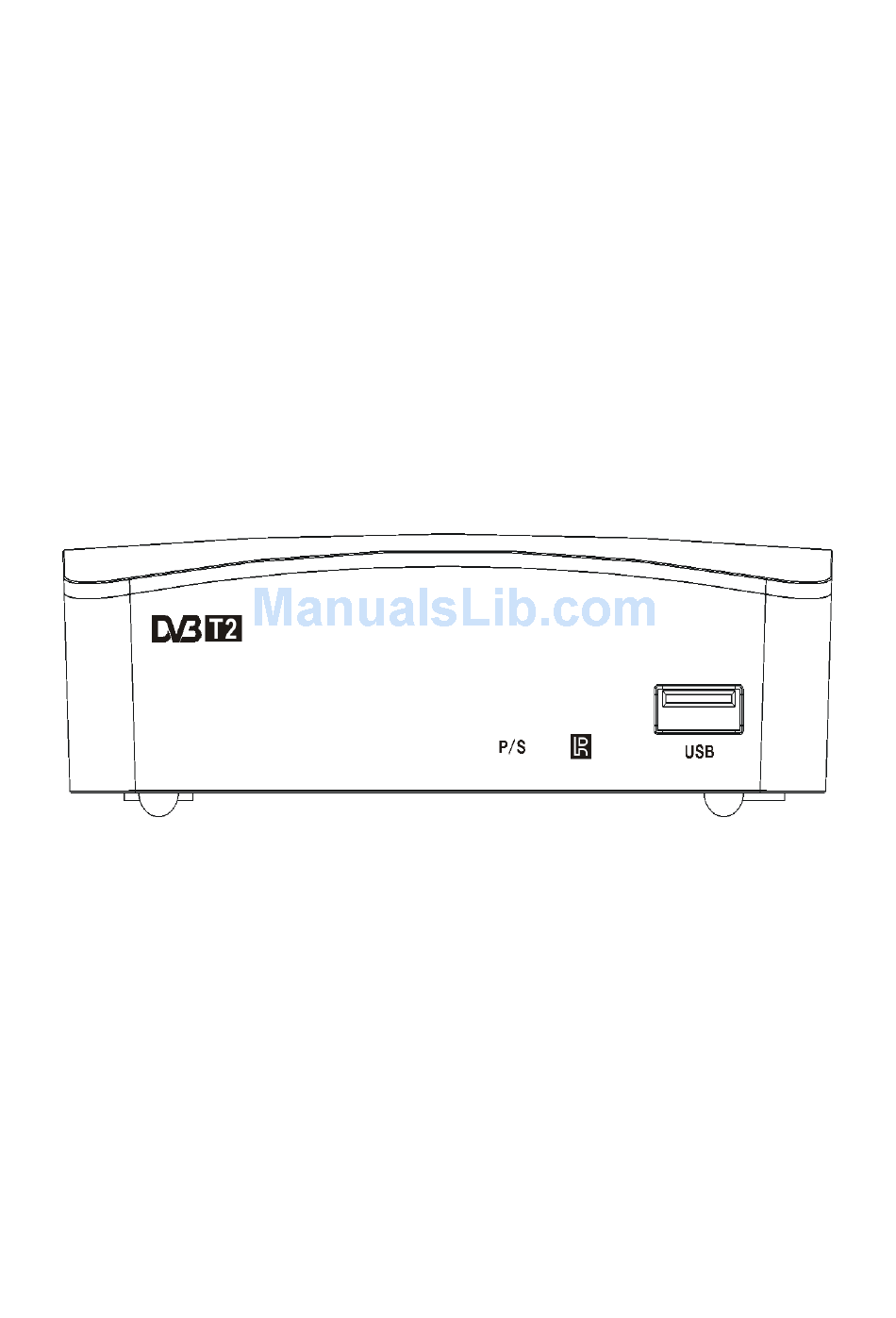

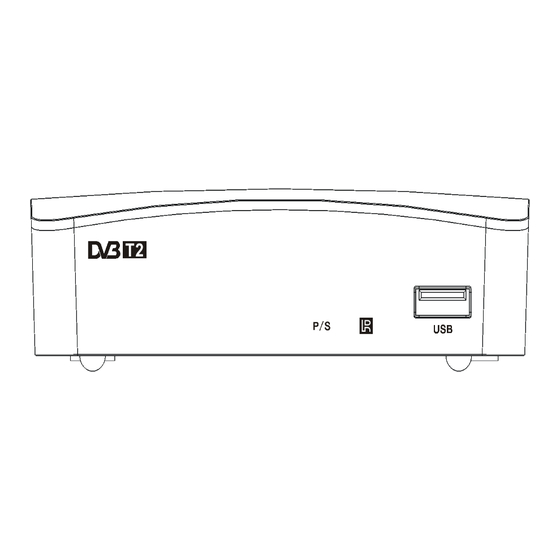

Page 1: Service Manual
DVB-Terrestrial Receiver SMP129HDT2(new version) Service Manual This service manual should be used with the User Manual together. Please read this Service Manual and User Manual carefully before service this product. - Page 2 Contents Safety Instructions ..................3 Generally Guide ..........................3 Low Voltage Leakage Testing ..........................3 High Voltage Leakage Testing ..........................3 Electrical Specifications ................. 5 Mechanical Exploded View Drawing .............. 6 Mechanical Parts List .......................... 6 Packaging and Accessories ................7 Packaging Exploded View Drawing ....................
-
Page 3: Safety Instructions
Safety Instructions Generally Guide 1. Please check electric circuits before maintenance and change the damaged or over heated components if short-circuit has been found. 2. Please check all protective devices have been installed well after maintenance, such as insulation covering and paper. - Page 4 Please install the electrostatic-sensitive devices on conductor products such as aluminum foil to prevent static build-up after disassembling from this DVB-T receiver. The soldering iron must be earthed while soldering and unsoldering the electrostatic-sensitive devices. Only antistatic solder can be used for electrostatic-sensitive devices disassembly. The electrostatic-sensitive devices will be damaged by static without ESD prevention solder while disassembling.
-
Page 5: Electrical Specifications
Electrical Specifications A Audio Section （MPEG-1 Layer Ⅱ, R. L Track Output） ITEM UNIT REQUIREMENTS Test Environment 1.0～2.0 Audio Output Level Output impedance is 10KΩ 1KHz 0dB +1/-2.0 20Hz-60Hz 0.5 60Hz-17.5KHz Frequency Characteristics +1/-3 17.5KHz-20KHz 1KHz 0dB weighting ≥70 N-CBAR100.TS f= 1KHz ≥60 R Channel Separation P-CBAR75.TS... -
Page 6: Mechanical Exploded View Drawing
Mechanical Exploded View Drawing Mechanical Parts List Part No. Part Name Notes 4110-1656-005H Front Panel 2104-1770-Y00H Decoding Board 3141-5851-0363 Power Cord 4111-1656-018H Bottom Cover Transparent ABS 3000-4000-0800 Feet Pads Rubber, Black 3211-2008-0005 ST2*8PANi Screws 3... -
Page 7: Packaging And Accessories
Packaging and Accessories Packaging Exploded View Drawing Material List NO. Material No. Name White Box User Manual Remote Control Bubble Bag 180*210mm 1... -
Page 8: Appendix 1 Flowchart And Circuit Diagram
Appendix 1 Flowchart and Circuit Diagram Flowchart Wiring Diagram Circuit Diagram of Decoding Board... - Page 9 Flowchart...
- Page 10 Wiring Diagram...
- Page 11 Decoding Board Schematic Diagram (1)
- Page 12 Decoding Board Schematic Diagram (2)
- Page 13 Decoding Board Schematic Diagram (3)
- Page 14 Decoding Board Schematic Diagram (4)
- Page 15 Decoding Board Schematic Diagram (5)
- Page 16 Decoding Board Schematic Diagram (6)
- Page 17 Power Board Schematic Diagram (1)
- Page 18 Power Board Schematic Diagram (2)
-
Page 19: Appendix 2 Silkscreen Of Pcb
Appendix 2 Silkscreen of PCB Silkscreen of Decoding Board Top Silkscreen of Decoding Board Bottom Silkscreen of Power Board Bottom of Decoding Board Top Silkscreen... - Page 20 Silkscreen of Decoding Board Bottom...
- Page 21 Silkscreen of Power Board Bottom...
-
Page 22: Appendix 3 Component List
Appendix 3 Component List Component List of Decoding Board... - Page 23 Component List of Decoding Board Component List Component List of Decoding Board Material No. Name Specification Position WJQTPBGAD3MM01 0.3mm Shield Cover JCQTHW00MYS83801 MYS-838 Receiver Head JCCZQTUSB0000001 USB-A USB Socket WJQTSR20X20X1001 20*20*10mm On the top of U1 Heat Sink JCZZWZ1X05W20001 Curved needle 1*5P*2.0mm CON2 FH=4.0mm，...
- Page 24 DYDZTP03K30402JJ01 SMT Resistor 3.3K DYDZTP04K70402JF01 SMT Resistor 4.7K R1,R3,R17,R20,R21,R23,R25,R29,R30, R50,R53,R57,R64,R69,R70 R108 DYDZTP05K10402JJ01 SMT Resistor 5.1K DYDZTP010K0402JJ01 SMT Resistor R5,R6,R10,R12,R15,R19,R26,R33,R35, R37,R39,R42,R47,R79,R107 DYDZTP015K0402JJ01 SMT Resistor R14,R22 DYDZTP020K0402JJ01 SMT Resistor R11,R13 DYDZTP022K0402JF01 SMT Resistor DYDZTP030K0402JJ01 SMT Resistor R18,R52,R56 DYDZTP068K0402JF01 SMT Resistor R48,R55 DYDZTP091K0402JF01 SMT Resistor DYDZTP100K0402JF01 SMT Resistor...
- Page 25 DYDRTP04N70402K50V01 SMT Capacitor 4.7nF/50V DYDRTP010N0402M50V01 SMT Capacitor 103/10N/0.01uF/50V C46,C50,C62,C90 DYDRTP330N0402K10V01 SMT Capacitor 334/330N/0.33U/10V C6,C10 C7,C24,C25,C31,C32,C36,C37,C43,C44,C45,C 48,C49,C54,C55,C56,C59,C60,C63,C64,C65,C DYDRTP100N0402M16V01 SMT Capacitor 104/100N/0.1U/16V 66,C68,C69,C71,C73,C74,C75,C76,C77,C78,C 79,C80,C83,C84,C88,C89,C91,C92,C93,C94,C 95,C96,C97,C99,C100,C101,C105 DYDRTP001U0402M16V01 SMT Capacitor 1UF/16V C18,C42,C47,C57,C61,C67,C72 DYDRTP02U20603M10V01 SMT Capacitor 2.2uF/10V C16，C104 DYDRTP02U20805M10V01 SMT Capacitor 2.2uF/10V C4,C12,C107 DYDRTP04U70805M10V01 SMT Capacitor 4.7UF/10V DYDRTP010U0805M16V01 SMT Capacitor...
- Page 26 DYSJNPMMBT3904SO230 MMBT3904/LMBT3904LT1G( Triode(NPN) Q1,Q3,Q6 NPN) Component List of Decoding Board Material No. Name Specification Position DYSJPNMMBT3906SO230 MMBT3906/LMBT3906LT1G(P Triode(PNP) DYSJ00TS85500SOT01 Triode S8550 DYSJPNT0008550SO2301 Triode L8550HQLT1G DYSJMSSI2323DSST2301 Triode SI2323DS DYSJMSWTM4PE020SOT MOS tube WTM4PE02EA LD1117-1.8V （ DYXPQTT0LD11170SOP01 CHIP IC LM1117-1.8V） DYXPAS1117LX1D8V01 CHIP IC（LDO） AS1117L-1.8 DYXPWY0LC1117SOT03 CHIP IC...
- Page 27 JCCZHDMISOCKET01 HDMI HDMI SOCKET，:JCJ-CZL-018 Socket Component List of POWER Board Material No. Name Specification Position DYDRDJ04U70000MK4005 Capacitor 4.7UF/400V,105° DYDRDJ010U0000M50V01 Capacitor 106/10U/50V DYDRDJ010U0000MK4005 Capacitor 10UF/400V,105°,...
- Page 28 DYDRDJ220U0000M10V03 Capacitor 227/220U/0.22M/10V DYDRDJ001M0000M10V13 Capacitor 108/1000U/1M/10V DYDRDJ001M0000M10V05 Capacitor 10V1000uF 105℃ Capacitor 470PF 400V（K） DYDRCP000470PK400V01 （YCapacitor） （CT7Y5PAC400V471K） DYDGSH001M0000JK03 Inductance 1mH, 100mA, 0510 DYDGBX10U00000JK02 Inductance 10UH，2A DYEJXTF00SB360DO2701 Diode SB360 DYBXBX001A250V02 FUSE ,1A,250V,,Φ3.6×10mm Line of needle JCZZZZ03PW396004 plate JCAVAV3X8X4X1408 AV3-8.4-14D Socket DYBYBYEE13005V1D5A01 Transformer EE-13，out put 5V，1.5A 5Pin*2.0mm 90°...
- Page 29 DYEJZLT0LB10SSOPA01 Rectifier LB10S CHIP DYXPPN8368SOP701 PN8368SSC-R1 IC( power) DYEJZLTD71KV1A0SOD01 Diode D7,1000V,1A...
