INSTALLATION AND MAINTENANCE INSTRUCTIONS

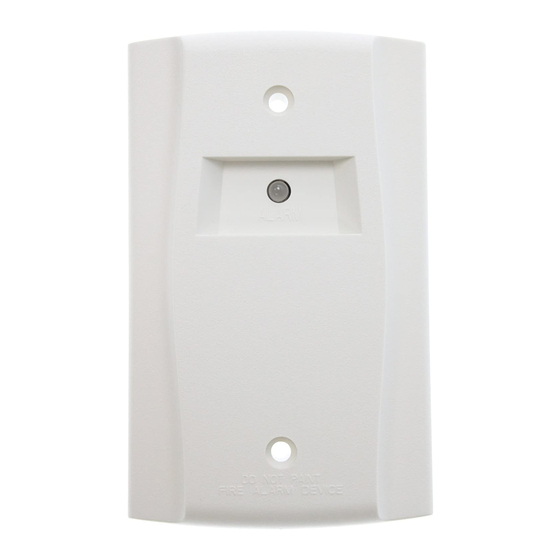

RA100Z and RA100ZA (Canadian)
Remote Annunciator
SPECIFICATIONS
Voltage Range
Conventional System:
Intelligent System:
Maximum Alarm Current:
Temperature Range:
Listing:
Install jumper when using an RA100Z or RA100ZA with any conventional duct detector (such as the System Sensor model D2 or D4120).
NOTE: RA100Z and RA100ZA replaces RA400Z and RA400ZA .
GENERAL INFORMATION
The National Fire Protection Association has published codes, standards, and
recommended practices for the installation and use of the above appliance. It
is recommended that the installer be familiar with these requirements, with
local codes, and any special requirements of the local authority having juris-
diction.
The models RA100Z & RA100ZA remote annunciators are polarized devices
designed for both conventional and intelligent applications. They have been
designed using an active current regulator so that the maximum current re-
quired from the system is 10mA when the input voltage is within the specified
voltage range.
INSTALLATION
The remote annunciator is intended to be mounted to a single gang electrical
outlet box. The wiring must be in compliance with all codes. The device must
be operated within its published specifications.
Wire the remote annunciator according to the instructions supplied with the
device being monitored. Polarity of the incoming wires must be observed and
connected to the proper terminals "+" and "–". (See Figure 2.)
The provided jumper must be installed for use with System Sensor Conventional
systems. To install jumper: slide jumper over both pins. (see Figure 3/Note 1)
3.1 to 32 VDC — (Installation of jumper required) Note 1
18 to 32 VDC — (Do not install jumper)
10 mA maximum.
–10° to 60°C (14° to 140°F)
UL, FM, CE
CAUTION

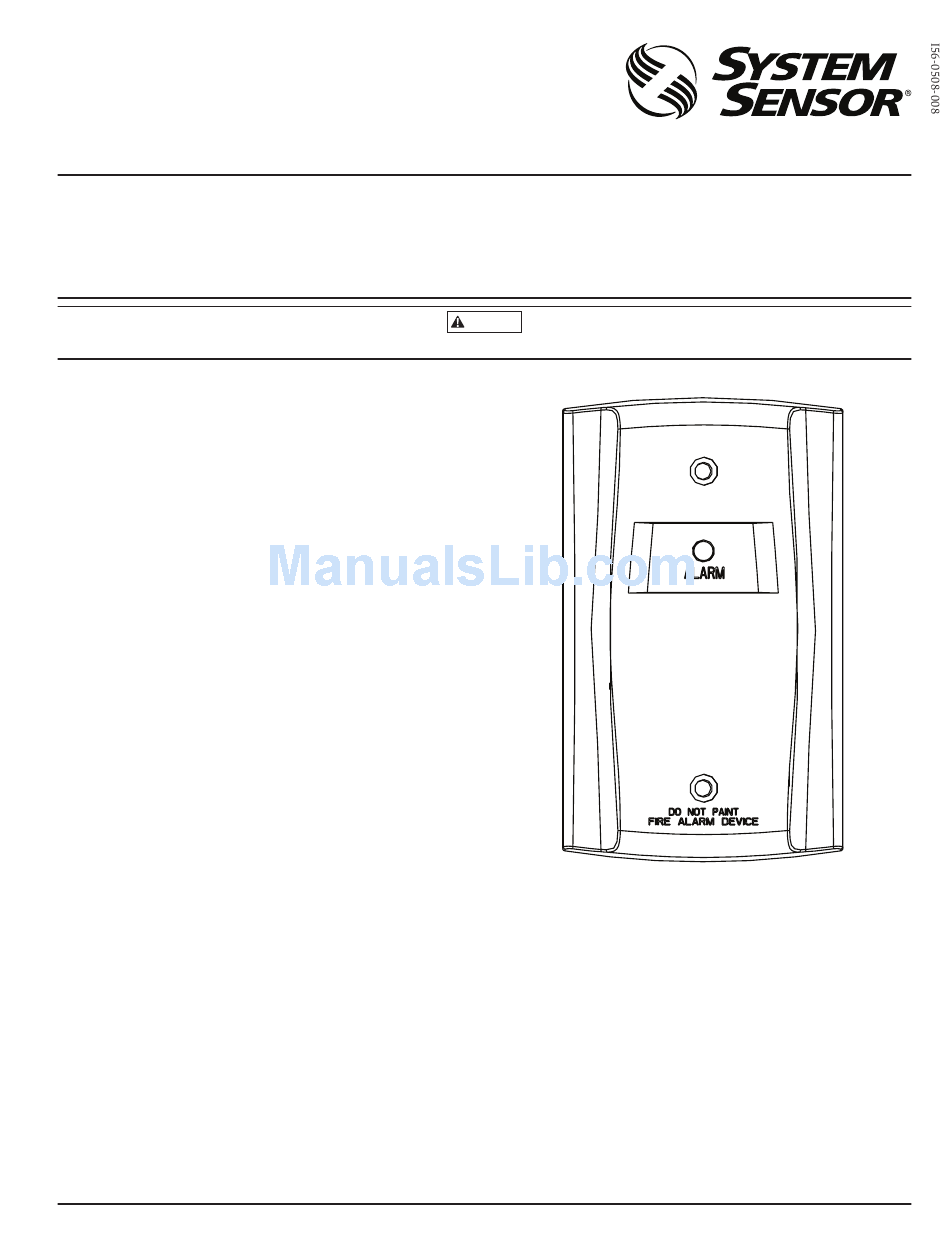

FIGURE 1:
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
H0355-01
I56-0508-008
06-10
