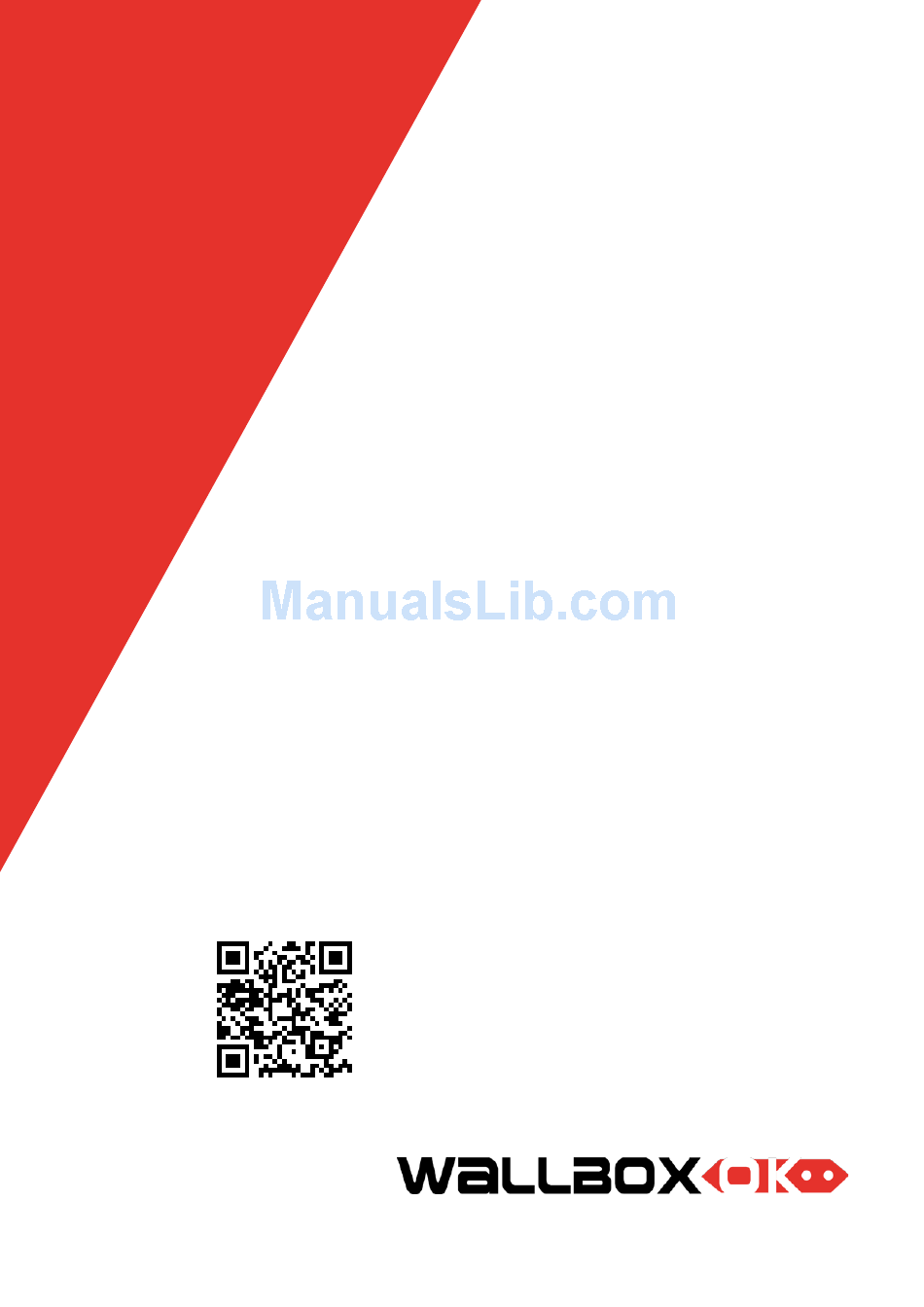

- Page 1 UP WALLBOX USER MANUAL INSTALLATION MANUAL View this manual online www.wallboxok.com/man...
- Page 2 EV Portable bears the CE mark. The corresponding Declarations of Conformity are located at WallboxOK. This product meets the requirements of the ROHS Directive (2011/65/CE). The corresponding Declarations of Conformity are located at WallboxOK Disposal Information The above symbol, crossed-out trash container, indicates that electric...
- Page 3 CABLE INSERTION ......................11 Dear Customer, WallboxOk Team wants to thank you for buying one of our Electric Vehicle Charging Box. Our passion in design and innovation makes our charging points leaders in technology and design. Do not hesitate to contact us at info@wallboxok.com if you have any suggestion.
-
Page 4: Important Information
SAFETY INTRUCTIONS Warning! Not observing the safety instructions can result in risk of death, injuries and damage to the device! WALLBOXOK assumes no liability for claims resulting from this! • Electrical hazard / fire hazard! Never use damaged worn or dirty charging plugs. first time tuning on the electrical... -
Page 5: Entended Use
Never clean the charging station using spray water (from a hose, high-pressure cleaner etc). ENTENDED USE UP WALLBOX is a "charging station" for the indoor and outdoor area at which electrically operated vehicles can be charged (e.g. electric automobiles). The electric charging station is designed for build in a wall. -
Page 6: Overview
OVERVIEW. UP WALLBOX LCD Display Recharging Cable Amp Rated Selector Wallbox Blacklight led Cable IEC 62196 o SAE J1772 VERSIONS Model Power Supply Connector Type 1 20 Amp 6-20 Amp. Hasa 4,6 kW 1F+N+TT SAE J1772 Type 1 32 Amp 6-32 Amp. -
Page 7: Using The Charging Station
Keep save charging connector / charging cable Disconnect the charging cable from the vehicle ("Wait for unplugging"). The charging cable can be left rolled up in the support intended for that purpose. WARNING: THE RECHARGE POINT, IT IS NOT NECESSARY TO DISCONNECT IT FROM THE ELECTRICAL NETWORK. YOU CAN CONSTANTLY LEAVE IT. -
Page 8: Charge Amps Selection
SUMMARY OF RETROILUMINATION LIGHT SIGNALS GREEN The EVSE is connected and is waiting to connect electric vehicle. WHITE The EVSE is ready to charge. The EVSE is connected to the car, but is waiting the authorization of the car. BLUE The EVSE is charging. -
Page 9: Troubleshooting
LEDs. Pressing the right button for 3-4 seconds allows activating / deactivating the lighting of the LEDs, if we want the LEDs to light up or not. TROUBLESHOOTING. PROBLEM... -
Page 10: Installation
• When set up unprotected against the weather (e.g. outside at a parking space), the charging current specification is reduced to 16 A if the maximum permitted temperature is exceeded. We strongly recommend to switched off the device. -
Page 11: Place Evse
Under certain circumstances, this may require a reduction of the pre-adjusted charging current setting to increase the system availability. Maximum value according to the type plate data matching to the amp rate UP • WALLBOX selected. - Page 12 Every recharging point comes with gray colored terminals or contactor (in case of three-phase) Calculate the distance so that you can easily enter and cut the excess cable. The terminals allow up to 10 mm2 of section. One Phase Wallbox The single-phase connection is made through the terminals.
