Internet Office 120V 550VA 300W Standby UPS,
Ultra-Compact Desktop, USB
MODEL NUMBER: INTERNET550U
Description

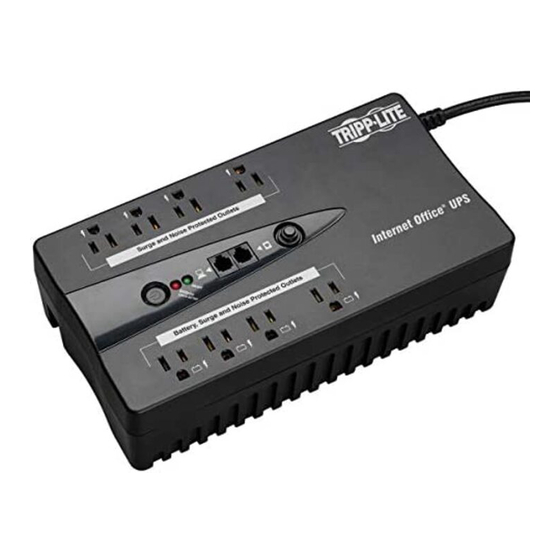

Tripp Lite's INTERNET550U standby UPS offers complete protection for PCs, workstations and other
sensitive electronics in an attractive ultra-compact, mountable housing. Prevents data loss and system
downtime by providing battery supported AC output during brownouts and blackout conditions. 8 output
receptacles, two of which are widely-spaced to accommodate large transformer plugs without blocking
outlets. 4 outlets with full battery support and surge suppression protect computers, monitors and other
vital system components from loss of power. 4 additional outlets with surge suppression-only are ideal for
printers and other accessories not requiring battery support. Single line telephone suppression jacks
protect modem, fax machine, cordless phone or other peripherals with a standard dialup or DSL phone
line connection. USB with PowerAlert monitoring software (available via web download) and cabling
enables safe unattended system shutdown in the case of extended power failure. HID-compliant USB
enables integration with built-in power management and auto-shutdown features of Windows and Mac OS
X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation.
550VA/300 watt power handling ability supports an entry level PC with small monitor consuming 100 watts
for up to 10 minutes during power failures. $100,000 Ultimate Lifetime Insurance (U.S., Canada, and
Puerto Rico only).
Features
INTERNET550U standby UPS offers complete protection from blackouts, brownouts and surges on
both AC and Tel/DSL line connections
8 outlets, two of which are widely spaced to accommodate large transformer plugs without blocking
outlets
4 battery supported outlets protect computer, monitor and vital system peripherals, plus 4 additional
surge suppression-only outlets for printers and other system accessories not requiring battery support
Provides battery derived AC output during blackouts and brownouts
1 / 5
Highlights
550VA ultra-compact 120V
standby UPS
Maintains AC output during
power failures
4 UPS battery supported outlets,
4 surge-only outlets
USB, TEL/DSL protection, Wall
mountable, 99% efficient
NEMA 5-15P input plug and 8
NEMA 5-15R outlets
This product is ENERGY STAR
qualified for its ability to save
customers money while helping
to protect the environment
Package Includes
INTERNET550U UPS System
USB cable
Instruction manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tripp Lite INTERNET550U
Summary of Contents for Tripp Lite INTERNET550U
- Page 1 Package Includes Description Tripp Lite's INTERNET550U standby UPS offers complete protection for PCs, workstations and other INTERNET550U UPS System sensitive electronics in an attractive ultra-compact, mountable housing. Prevents data loss and system USB cable downtime by providing battery supported AC output during brownouts and blackout conditions.
-
Page 2: Specifications
HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment - ideal for unattended... - Page 3 Nominal Input Voltage(s) Supported 120V AC UPS Input Connection Type 5-15P; Right-Angled Input Circuit Breakers UPS Input Cord Length (ft.) UPS Input Cord Length (m) Recommended Electrical Service 15A 120V Input Phase Single-Phase BATTERY Half Load Runtime (min.) 5.6 minutes (150w) DC System Voltage (VDC) Expandable Runtime USER INTERFACE, ALERTS &...
- Page 4 RJ to USB interface cable included WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite LINE / BATTERY TRANSFER Transfer Time...
- Page 5 (U.S., Canada & Puerto Rico) © 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
