Tripp Lite INTERNET550SER Mounting Template

INTERNET550U, INTERNET550SER, INTERNET600U and ECO550UPS

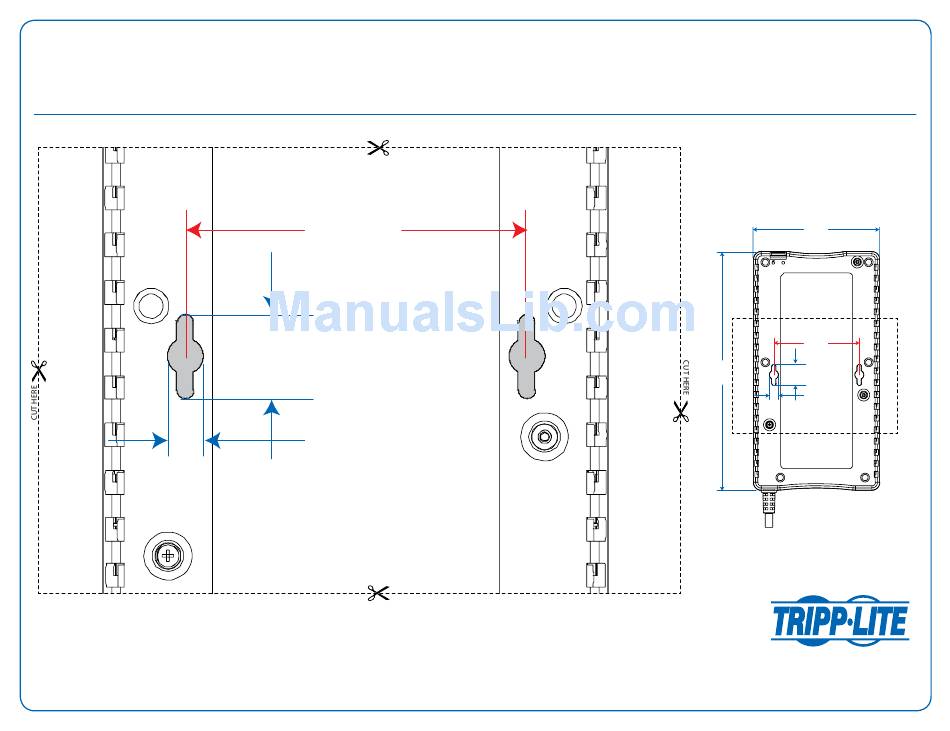

Note: This graphic represents actual-sized center-to-center spacing for drilling holes to mount the unit. This portion can be printed and cut out to use as a template for mounting purposes.
In your PDF print setup menu, be sure to turn the Page Scaling feature OFF or set to NONE, to insure proper measurments.
Refer to the full product drawing for measurements of the entire unit in relation to the cut out holes and determine where to place your
template for proper mounting.
Dimensions: [mm] INCHES
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Mounting Template for Tripp Lite UPS System Models:

CUT HERE
3.884
[98.65]
.954
[24.23]
.406
[10.31]
CUT HERE
