- Page 1 User’s and Maintenance Manual ENGLISH GHIDINI BENVENUTO s.r.l. Manufacturer Ironing table – DORIS-A Product 2009 Year Certification WK18/09 Manual drafted in compliance with EC Directive 98/37, Annex I, paragraph 1.7.4...

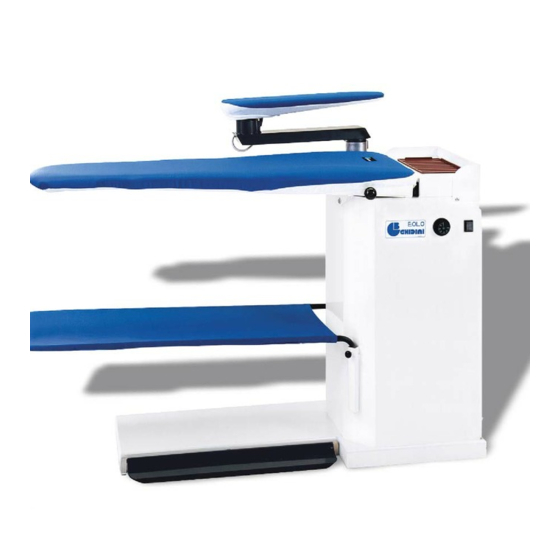

- Page 2 Ghidini s.r.l., relieve the latter of injury to persons and / or damages to things, voiding any warranty bindings, as well. GENERAL DESCRIPTION Doris-A is a complete ironing table, which doesn’t require any supporting equipment for its operation, except for an external power supply...
- Page 3 Sleeve shape plate 163480 Board plate Sleeve shape padding Board padding Z27P33 Z27P32 534292 Antenna 163487 Frame Doris-A 25A001 Silicone pad for iron rest 173443 Tubular support for garment tray 163488 Rear panel 274208 Garment tray cloth Z01S10 Steam iron mod. K...
- Page 4 Pos. ARTICLE DESCRIPTION Pos. ARTICLE DESCRIPTION 46B001 Electric cable for steam iron 25L043 Printed circuit board 07A001 Steam hose 2.4 m 30A001 PCB-wiring 38S001 Safety relief valve 49E005 Boiler probe 39B042 Steam solenoid valve 45G012 Pressure switch 201018 Boiler complete with heater 1450W 28D027 Iron plug 201011...
- Page 5 Steam iron mod. K art. Z18D00 ARTICLE DESCRIPTION ARTICLE DESCRIPTION ARTICLE DESCRIPTION 364273 Cable holder for table heater 364278 Self-tapping screw for rear handle 364287 Front handle support 364256 Electric cable for steam iron 364279 Screw for iron microswitch 364288 Rear handle support Screw for microswitch holder 3,5 x 364274...
- Page 6 MACHINE UNPACKING AND INSTALLATION WARNING: The unit must be installed, opened and repaired by fully qualified technicians only. UNPACKING Find the most suitable place where to put the machine, then remove the packaging. Make sure that the machine has not been damaged during the transport and the storage. The packaging material does not require any special precautions for its disposal, for it is not dangerous or polluting at all.
- Page 7 Make sure that the main switch is Main switch turned off turned on, verify the fuses. The machine doesn’t turn on Switch turned off Turn the switch on Iron and boiler switches not turned The iron doesn’t steam Turn on the switches PRECAUTIONS Read carefully the instructions and the risks related to the use of an ironing table.
- Page 9 11 HAZARDOUS USE The conformity verification according to the essential safety rules and to the provisions of the machine directive has already been carried out by filling out the specially provided checking lists, included in the technical file. The checking lists are of two kinds: ...
- Page 10 Phone number Declares that The machine: Ironing table – DORIS-A has been designed in compliance with the DIRECTIVES OF THE EUROPEAN COMMUNITY COUNCIL referring to machines (98/37/EC) and to low voltage (LV 73/23/CEE). has been designed, as far as enforceable, in compliance with the following harmonized regulations and technical specifications: EN 292-1/2, EN 1050, EN 982, EN 11200, EN 60947, EN 894-1/2.
