Conquer Treadmill Desk
Manual and Assembly Instructions
!
EMAIL:
customercare@conquerequipment.com
Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL:
TEL: 855-349-4327
help.conquerequipment.com
Read all instructions carefully before using this
product. Retain this owner's manual for future
reference.
WEB: help.conquerequipment.com
customercare@conquerequipment.com
TEL: 855-349-4327
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Conquer 330-TMDSK01
Summary of Contents for Conquer 330-TMDSK01

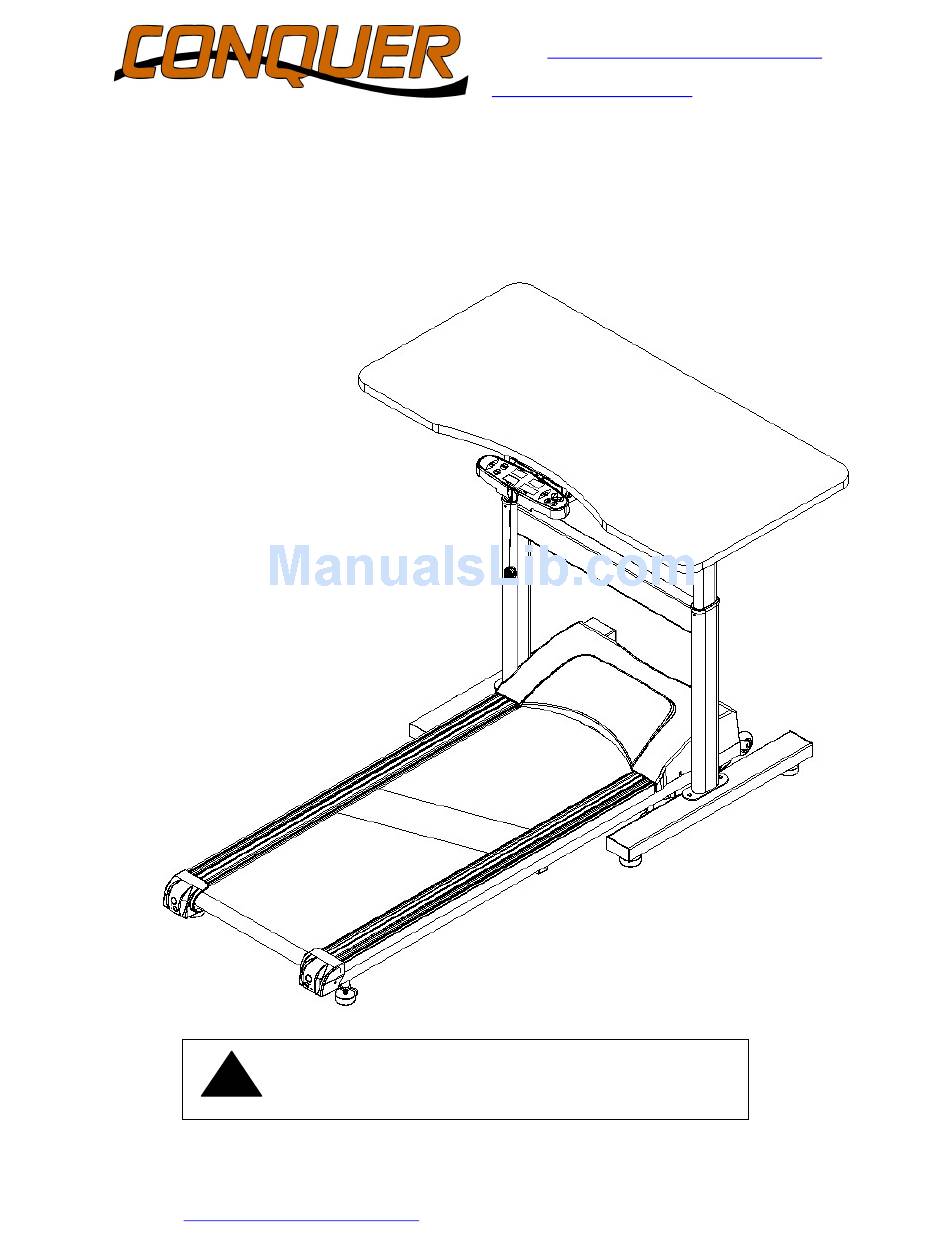

- Page 1 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Conquer Treadmill Desk Manual and Assembly Instructions Read all instructions carefully before using this product. Retain this owner’s manual for future reference. EMAIL: customercare@conquerequipment.com WEB: help.conquerequipment.com TEL: 855-349-4327...
-
Page 2: Safety Warnings
Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Safety Warnings: Warning: Consult with your physician or health professional before beginning any exercise regimen. Treadmill should be carefully assembled and covered with the motor shield before connecting to power. - Page 3 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Parts: Ⅰ Ⅱ Ⅲ Ⅳ Ⅵ Ⅴ Ⅶ Description Specification Qty. Main Frame 1set Safety lock Bottle Base tube 1set Upright frame 1set Ⅳ Tools 1set Ⅴ Desk Ⅵ...
-
Page 4: Assembly Instructions
Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Assembly Instructions: STEP 1： Open the carton, take out the above parts, and put the treadmill (main frame) onto level ground. Use a partner to help you lift, as this piece is heavy! - Page 5 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Step 3: Assemble desk (VII) onto upright frame/desk support (V) with 4pcs M8*10 bolts(42) and 4pcs D8 flat washer(34). Connect the wires. Step 4: Put the treadmill/main frame under desk, then connect wires from control unit to treadmill.
- Page 6 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com NOTE：Fasten all the bolts after making sure the treadmill is assembled as instructed. Connect the power after double checking. For other operations, follow below instructions. Technical Parameters Assembly 1645*1200* （1045~1445）...
- Page 7 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Maintenance and Belt Adjustment: Clean: General cleaning or the unit will greatly prolong the treadmill’s life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.
- Page 8 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com To center the treadmill belt: 1. First, be sure treadmill is on a level surface. Run treadmill to check the condition. If the belt has drifted to the right, pull out the safety lock and switch.
-
Page 9: Exploded Diagram
Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Exploded Diagram EMAIL: customercare@conquerequipment.com WEB: help.conquerequipment.com TEL: 855-349-4327... - Page 10 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Item Item DESCRIPTION DESCRIPTION Main Frame Flat washerφ20*φ23*1 L/R base tube E-shaped snap ring Bottom upright tube desk Monitor base Screw ST2.5*7 Motor base Screw ST4.2*15 Reinforce tube of running Limited bushφ8.5*φ12*80...
- Page 11 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Bolt M8*40 Bolt M8*20 EVA pad W1507-00001double head wheelφ70*φ8.5*23mm boltφ8*210 Bolt M8*60 Felt Bolt M8*35 Wheel φ39*φ20*19 Bolt M6*60 Belt Bolt M6*35 Bearing 608ZZ Screw ST4.8*25 Monitor upper cover Screw ST4.2*12...
-
Page 12: Console Operation
Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com Spring washer D=6 Signal wire Allen wrench S5 Signal wire Allen wrench S4 Safety key Bolt M4*28 Poly dome Nylon nut M4 Incline motor Screw M5*8 Magnetic sensor... - Page 13 Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com BUTTON OPERATIONS: Please NOTE that the treadmill can be operated ONLY when the safety key is inserted. 1. START: Press the button to start the treadmill. 2. STOP: Press the button to stop the treadmill.
-
Page 14: Troubleshooting Guide
Product name: Conquer Treadmill Desk SKU: 330-TMDSK01 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.conquerequipment.com TROUBLESHOOTING GUIDE Error Cause Checking Correction code 1. Check the distance and place 1. Adjust the distance between between sensor and magnet. the sensor and the magnet. 2. Check if the wire is broken.
