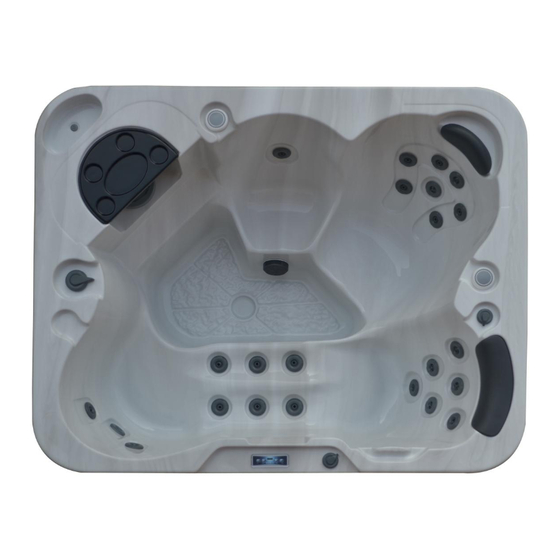

- Page 1 Thank You for Choosing an IQUE Spa Developed and Designed in Sweden by IQue Sweden AB Grustagsgatan 13 254 64 Helsingborg Sweden Here is your manual, please read and follow the instructions carefully Silver Version www.iquehottubs.com Ver.14.0 December 2013...
- Page 2 10. WATER CHEMISTRY _____________________________________________ 23 11. SPA MAINTENANCE _____________________________________________ 27 12.TROUBLESHOOTING ____________________________________________ 29 13. WINTER AND SUMMER INSULATION _____________________________ 30 14. IMPORTANT additional information_________________________________ 33 15. HOW TO REPLACE THE JETS PUMPS AND CIRCULATION PUMP ____ 35 Picture shows Model Tahiti2080 Model 2100,2080,2000 Ver.14.0...
-
Page 3: Safety Instructions
PLEASE FILL IN THE INFORMATION BELOW AND KEEP FOR FUTURE REFERENCE Do remember to study the warranty form sign it and give it to your dealer, warranty null and void if not the warranty form has been signed. Name of Purchaser Date of Purchase Address City... - Page 4 (c) DANGER: RISK OF INJURY: The suction fittings included in this spa are designed to match the water flow of the pump. To ensure safety and compatible flow rates, install the same model suction fitting or pump, in the event a replacement is required.
-
Page 5: Warning
2 WARNING! During pregnancy, soaking in hot water may cause damage to the fetus. Limit use to 10 minutes at a time. Prevent drowning: Prevent child drowning: Spa heat speeds up effects of alcohol, Water attracts children. drugs or medicine and can cause Always attach a spa cover after each use. - Page 6 diabetes or obesity should consult a physician before using a spa. h) Some medication may induce drowsiness; affect heart rate, blood pressure, and circulation. Those people using any medication should consult a physician before using a spa. People with infections, sores, or skin abrasions should not use the spa. Warm temperatures may allow the growth of infectious bacteria if not properly disinfected.
- Page 7 SAFETY DEVICES Your spa is equipped with the following safety features: Over Heat Protection-- An electronic high limit switch is located under water. It shuts off the heater, pumps and accessories when the water temperature exceeds 112'F or 44'C. This function automatically resets when the spa water temperature drops below 109'F or 43'C.
- Page 8 Electrical installation requirements: IMPROPER INSTALLATION MAY RESULT IN EQUIPMENT DAMAGE AND VOID THE WARRANTY NOTE：DO not turn on electrical power to your spa until instructed in the owner manual. 1) Improper electrical connections may damage the equipment, cause injury, a fire, and void your spa warranty. We strongly recommend that only a licensed and bonded electrician perform the electrical installation.
-
Page 9: Electrical Service Configuration
6. ELECTRICAL SERVICE CONFIGURATION The settings made from factory as default is usually 1 x 32Amp, 2 x16Amp If not the setting had been agreed to change for a specific country, check with the Distributor/Retailer 6.1 MAINS CONNECTIONS – Family Budget and Silver Series (a) Services Configuration Options 1 or 2 and 3 phases GS500Z Balboa System PN: 54509 Configuration... - Page 10 230V, 2X16AMP L1, L2– Live N1 , N2 – Neutral White wire Removed 400V, 3X16AMP L1, L2, L3 – Live N1 – Neutral White wire RemovedJ26-J32 Blue wire Removed J28-J58 Model 2100,2080,2000 Ver.14.0...
- Page 11 (b) Dip switch reference A1 Test mode (Normally OFF) A2 ―ON‖ Position: Control panel button is JET/LIGHT/TEMP DOWN/TEMP UP ―OFF‖ Position: Control panel button is UNSUDED/JET/TEMP/LIGHT A3―ON‖ Position: Mini panel ―OFF‖ Position: DDUP/LTDUP Panel A4 Aux Freeze (must be OFF) A5+A9 Pump 1 speeds and Circ Modes: Circ Mode Pump1Speed...
- Page 12 (c) Family Luxury series PUMP INSTALLATION (i) Plug wiring The Socket on the PCB, please note the two outer holes shape Red- Live Blue - No use (except for 2 live connector of 2 sp pump) White– Neutral Green – Earth The Plug (ii) SETUP...
- Page 13 (d) Family Budget and Silver Series Configurations VL401 control panel For every time the Spa is powered, it will go into Priming mode. Display ―Pr‖ The Priming mode will last for up 4 minutes. Then the spa will begin to heat and maintain the water temperature in Standard mode. IMPORTANT check for air lock in the circulation system Temp Control (26°...
- Page 14 ―Jets‖ again, the pump1 will work at high speed. The low speed will turn off automatically after 4 hours, (and if in its filter cycle duration time the pump1 will work in low speed) and the high speed will turn off automatically after 15minutes.
- Page 15 6.3 The power cable cap There are both power cable caps on the corner shirt. you can use a drill machine to drill the suitable hole for the power cable. Model 2100,2080,2000 Ver.14.0...
-
Page 16: Start Up & Care
7. INITIAL START-UP PROCEDURES AND SPA COVER BASKET LIFTER DO NOT TURN ON THE POWER TO THE SPA WHEN THE SPA IS PARTIALLY FILLED OR EMPTY 1) Ensure the circuit breaker to the spa is off 2) Rotate all the jets in the spa to a clockwise—fully open position Executed in FACTORY 3) If the spa is equipped with valves (a handle located near the jet pumps), ensure the handle is open. - Page 17 The side of the skirts panel for install the spa cover basket lifter Note: the spa cover basket lifter should install the back skirt panel that side face to the control box/panel side, one this side shirt we have drilled the holes for the fixing screws, just need to use the screw to fix the spa cover basket lifter.
- Page 18 8 SPA START-UP and CARE IMPORTANT Your spa has passed stringent quality assurance testing by trained technicians to ensure reliability and your long –term satisfaction. Before filling the spa, wipe the shell clean with a soft dry rag. Follow these instructions to ensure a successful start-up or refill. 1) Fill spa to correct level (approximately 4 inches 10 cm above the top of the filter cartridge).
- Page 19 13) Be sure to regularly check your sanitizer levels! 14) Check for air locks in the circulation pump system, there are six small jets installed in the foot well walls turn off the jet pumps and blower check for small bubbles coming out from the small jets. 15) To conserve energy and ensure your spa is ready for use, place the thermal cover securely on and lock it.
-
Page 20: Operating Instructions
9. OPERATING INSTRUCTIONS MESSAGE’S DISPLAYED ON THE CONTROL PANEL Message Meaning Action Required No message on display The control panel will be disabled until Power has been cut off to the spa Power returns. Spa settings are preserved on all systems "Overheat‖... - Page 21 Message Meaning Action Required Sensors are out of balance. If this Is If the problem persists, contact your dealer alternating with the temperature, It may Or service organization just be a temporary condition. If the display shows only this message(periodically blinking), the spa is shut Down A substantial difference between the Check water level in spa.
- Page 22 Message Meaning Action Required - - F Temperature unknown. After the pump has been running for 2 Minutes, the temperature will be displayed. - - C Temperature current In Economy or sleep mode, the pump may Be off for Economy Or sleep mode hours outside a filter.
- Page 23 Warning! Shock Hazard! No User Serviceable Parts Do not attempt service of this control system. Contact your dealer or service organization for assistance. Follow all owners’ manual power connection instructions. A licensed electrician must perform installation and all grounding connections must be properly installed. Jet Selector Valves Your spa is equipped with a spa side selector valve.
-
Page 24: Water Chemistry
10. WATER CHEMISTRY Maintaining water chemistry will aid in preventing possible damage to your spa and ensuring safe water conditions for users. Water Quality: Filtering the water helps maintain clean, clear and safe water. You spa is equipped with a 2 cartridges filter system. - Page 25 WARNING: Sanitizers such as Tri-chlor (tablets or sticks), calcium hypochlorite, sodium hypochlorite, peroxide based chemicals or any chemical compound that remains undeserved in direct contact or adheres to the spa surface will damage the spa and void the warranty. Bromine: Maintaining a proper total bromine level of 3.0-5.0 PPM can control bacteria.
- Page 26 Super Chlorination: Super chlorination quickly oxidizes the spa water to burn away waste such as hairspray and lotions that the spa filter cannot remove. This waste build-up reduces the power of the sanitizer resulting in dull water and may cause irritation to the user’s eyes and skin.
- Page 27 Keeping your water clean & safe MONDAY FRIDAY TEST: Bromine/Chlorine PH Total Alkalinity TEST: Bromine/Chlorine PH Total Alkalinity ADJUST: Follow steps 1-4 ADJUST: Follow steps 1-3 ADD: stain and Scale control STEP#1: Adjust total alkalinity: (ideal range = 130-160). Test water (follow directions on manufacturer’s label) and add required amount of chemicals with jets on.
-
Page 28: Spa Maintenance
11. SPA MAINTENANCE Draining your spa: Do not drain water onto your lawn or garden until all chemicals are negligible in the water. To dissipate the sanitizer, leave the spa cover off to expose the water to direct sunlight. Remember to drain and refill your spa at least every 4 months depending on use. - Page 29 be removed by using a non-abrasive household cleaner dissolved in water. To avoid excessive foaming when refilling the spa, rinse the surface well. CAUTION: Do not use any cleaning products containing abrasives or solvents. This could damage the surface and void your warranty. Care of the spa cabinet (Thermo Guard skirt).
-
Page 30: Troubleshooting
12. TROUBLESHOOTING Heating System Symptom Problem Corrective action Does not heat 1. Temperature setting is too low. 1. Turn up the thermostat 2. Dirty filter 2. Clean filter 3. Air Lock 3. Prime pump Too hot 1. Temperature setting too high 1. -
Page 31: Winter And Summer Insulation
13. WINTER AND SUMMER INSULATION Spas are equipped with an insulation curtain on the pump area skirt that can remove and install it for usage in summer and winter time. DURING SUMMER TIME THE CURTAIN INSULATION MUST BE REMOVED FROM THE SKIRT Remarks: Outside temperature for summer time is from + 15 °... - Page 32 DURING WINTER TIME THE CURTAIN INSULATION SHOULD BE INSTALLED Remarks / Warning When using the curtain insulation during winter time it will save a lot on your energy cost. But be aware of to remove it during summer time. Failure in not remove it can seriously effect the installed equipment and warranty will be void if...
- Page 33 14. IMPORTANT Additional installation information Due to vibrations during transportation the connections to pumps and heater must be checked during installation and water filling of the spa. Fill the spa with water then check each connection for all pumps and the spa pak and hand tighten them.
- Page 34 IMPORTANT Airlock RE-LEASE ACTION To re-lease an air lock in the circulation system open the pump union nut Diamond and Gold Silver version have a 2 speed large pump installed the small circulation pump may have been installed (Option) please see your purchase information.
- Page 35 Safety Valve: there is a safety valve behind the drainage valve, when a failure in the drainage valve happens. Can close the safety valve to stop the water to flow out to the floor. Model 2100,2080,2000 Ver.14.0...
- Page 36 15.HOW TO REPLACE THE JETS PUMPS Just need to remove the two front side screws nuts, the back side is installed the aluminium sheet to secure the base of the pump. Model 2100,2080,2000 Ver.14.0...
- Page 37 After remove the front side fixing nut, put up the front side to loosen the pump base from the bolt, then can pull out the pump. Model 2100,2080,2000 Ver.14.0...
